Aviom AN-16/o v.4 16-Channel Mic/Line-Level Output Module
Aviom AN-16/o v.4 16-Channel Mic/Line-Level Output Module
SoundPro Item: 41640 | Part Number: AN-16/O V.4
Usually ships in 5-7 business days
- 16 balanced mic- or line-level outputs
- Four-position output level switch per channel pair
- +24, +18, and +4dBu line-level, or mic-level outputs
- 48kHz, 24-bit D/A converters
- DB25 output connectors

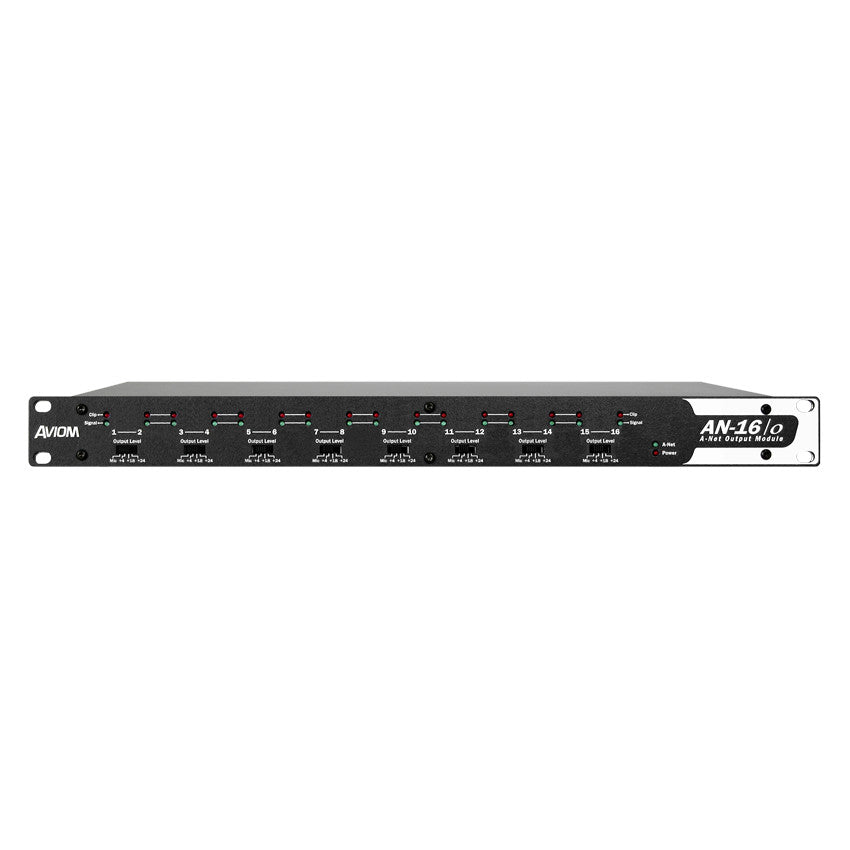

The Aviom AN-16/o v.4 Output Module connects to any Pro16 input module, console card, or A-Net distributor and provides 16 balanced line-level analog outputs. Four output levels, from mic to +24dBu, are available to easily accommodate the input level requirements of the device the AN-16/o v.4 output signals are being connected to.
Use the AN-16/o v.4 anywhere analog outputs are required: with the A640 and A360 and D800's Network Mix Back feature for wireless in-ears, on stage or at FOH in a digital snake, in the studio, or for a recording split. Adding a digital split to a Pro16 system is as simple as connecting an additional AN-16/o v.4 Output Module.
Compatibility Note: AN-16/o v.4 Output Modules with serial numbers 51162 and lower (from 2013 and before) are only compatible with the original version of the Pro16 A-Net protocol and not the higher channel count Pro16e version of A-Net. The Pro16e version of A-Net is used by the AN-16/i v.2 as well as the D800 and D400 series of A-Net Distributors.
- Audio Outputs 16 channels, balanced
- Outputs
- DB25 multipin connectors (2); Tascam® analog audio pinout
- Impedance balanced output for mic, +4dBu, and +18dBu; differential output for +24dBu (Breakout cables are not included)
- D/A Conversion 48kHz sample rate, 24 bit
- Frequency Response 4Hz-22kHz
- A-Net Input/Outputone EtherCon Category 5 (RJ45 connector)
- A-Net Expansion one EtherCon Category 5 (RJ45 connector)
- Output Level Settings
- Four-position switch, per channel pair
- +24dBu, +18dBu, +4dBu, and Mic
- Channel LED Indicators Signal Present and Clip, per channel
- Metering LEDs; green: Signal Present; red: Clip; per channel
- Maximum Output Level +24dBu
- Output Impedance 226 ohms (+18dBu, +24dBu); 100 ohms (+4dBu and mic)
- Freq. Response 4Hz-22kHz +0.2dB/-3dB
- THD+N < 0.004%
- Crosstalk -90dB
- Bit Error Rate (BER) 10(-12)
- Signal to Noise (unweighted)
- 92dB typical, A/D to D/A
- Measured from AN-16/i to AN-16/o v.4 Output Module
- Digital Connections
- A-Net In: 1; A-Net Out: 1; A-Net Expansion: 1
- Neutrik EtherCon connectors
- A-Net Pro16
- A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable
- uses unshielded Cat-5e UTP (or better) cable
- Latency <0.620 msec (measured from analog input to analog output)
- Power Supply
- Input Voltage: 100-240 volts, 50/60Hz, 30VA
- Output Voltage: 24 VDC, 0.5 amp
- Plug Size External, DC, universal switching type: 2 mm
- Power 24 VDC, 500mA
- Dimensions 19" (482.6 mm) wide x 5.75" (146 mm) deep; 1U high
- Weight6.8 lbs (3.08 kg)
