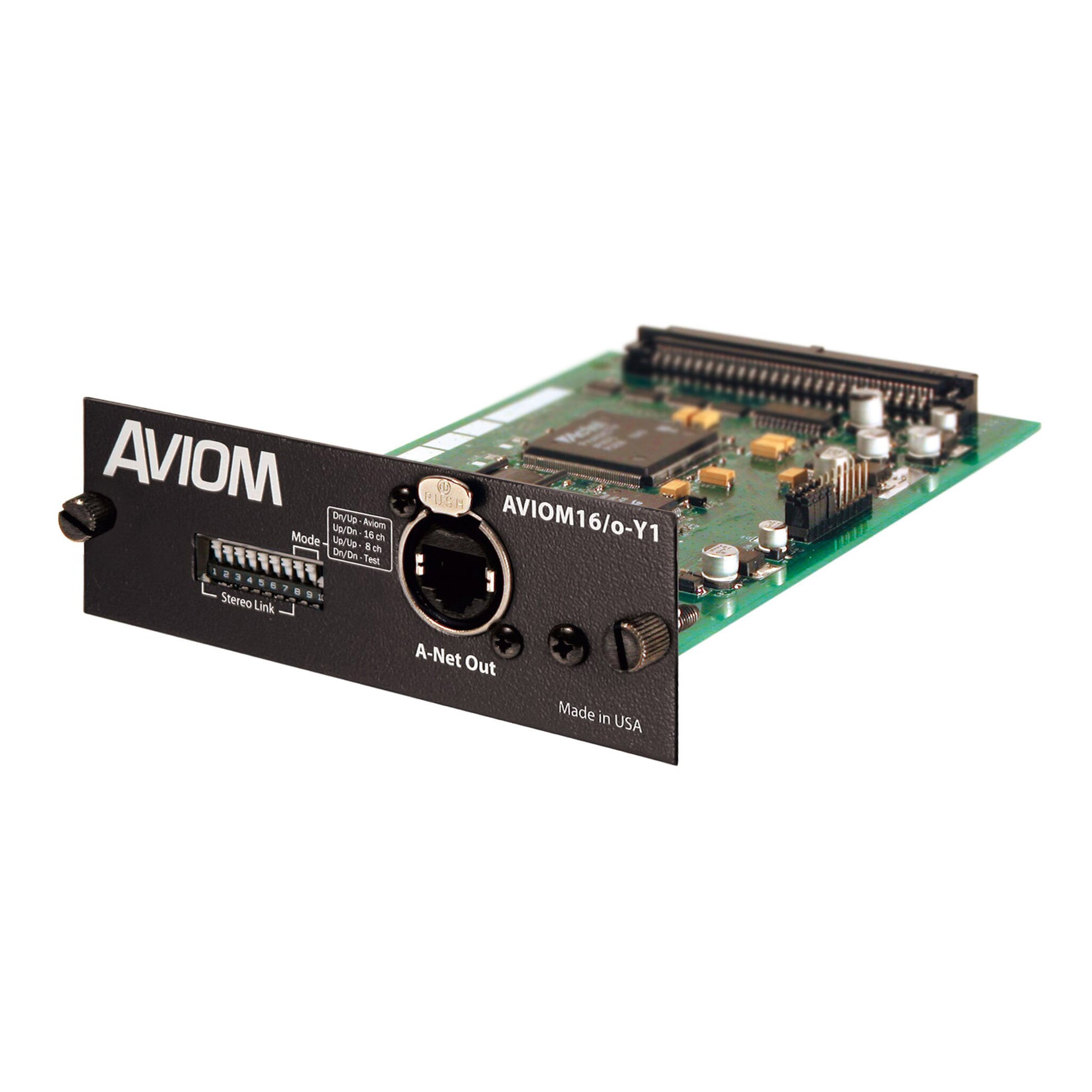

Aviom Aviom16/o-Y1 A-Net Expansion Card

Aviom Aviom16/o-Y1 A-Net Expansion Card

SoundPro Item: 42445 | Part Number: AVIOM16/o-Y1

$899.00
$976.00 $899.00
Your Price Sold out
MSRP: $976.00 | MAP: $899.00

Usually ships in 5-7 business days

  • Mini-YGDAI (MY) format, supported by most Yamaha digital consoles
  • One 16-channel Pro16 A-Net output
  • Supports sample rates from 44.1kHz to 48kHz, +/-10%
  • Assign audio outputs directly from the Yamaha interface
  • Channel Link DIP switches for stereo operation
Log in or register for YOUR best price

The Aviom16/o-Y1 A-Net Card provides a direct digital interface between Yamaha® digital mixer products and Aviom's Pro16® Series, including the A640, A360, A320, and legacy A-16II Personal Mixers*, A-Net distributors, and output modules.

The Y1 card eliminates the need for an analog input module when creating a monitor mixing or audio distribution system. Assign any combination of channels, direct outputs, aux sends, groups, or sub-mixes from the Yamaha console user interface to the Y1 card as needed. Each Y1 card installed in a console's MY expansion slot supports up to 16 channels.

The Aviom16/o-Y1 card provides a direct digital interface between Yamaha digital products that use the MY-format expansion slots and Aviom's Personal Mixers. The Y1 card becomes the head end to the monitoring system, simplifying system setup. Just connect a Cat-5e cable from the card to an A-Net Distributor and some Personal Mixer and you've created a monitor system that can be expanded as needed with additional personal mixers, output modules, and A-Net distributors.

View full details

Specifications

Dimensions
Dimensions
4.75" (120.7 mm) wide x 6.25" (158.8 mm) deep; 1.5" (38.1 mm) high
Audio
Sample Rate
44.1kHz to 48kHz, +/-10%
Connectivity
A-Net Pro16 Output
16 channels of A-Net digital data, * 8 channels on PM1D
A-Net Output
A-Net Out: 1; EtherCon® RJ45 connector
Shipping
Weight
0.8 lbs (0.36 kg)
General
Interface Format
Yamaha mini-YGDAI (MY) Expansion Card
Maximum Expansion
Limited only by the number of available MY expansion slots in the digital mixer
Digital Conversion
24-bit
Switch 1-8
Stereo Link on/off
Switch 9-10
A-Net mode
A-Net Modes
8-channel, 16-channel, Aviom, Test
DIP Switch
Default is switch 9 up, 10 down
A-Net Pro16
A-Net allows 16 channels of audio to be transmitted over one Cat-5e cable, Use unshielded Cat-5e UTP (or better) cable, Max. length 500 feet (150m) between devices
Power Supply
None required; uses Yamaha host device as source of power
Options
SB4 System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable (requires D800 or D800-Dante A-Net Distributor)
Audio Performance
Latency
<0.880 msec (measured from analog input to analog output)
