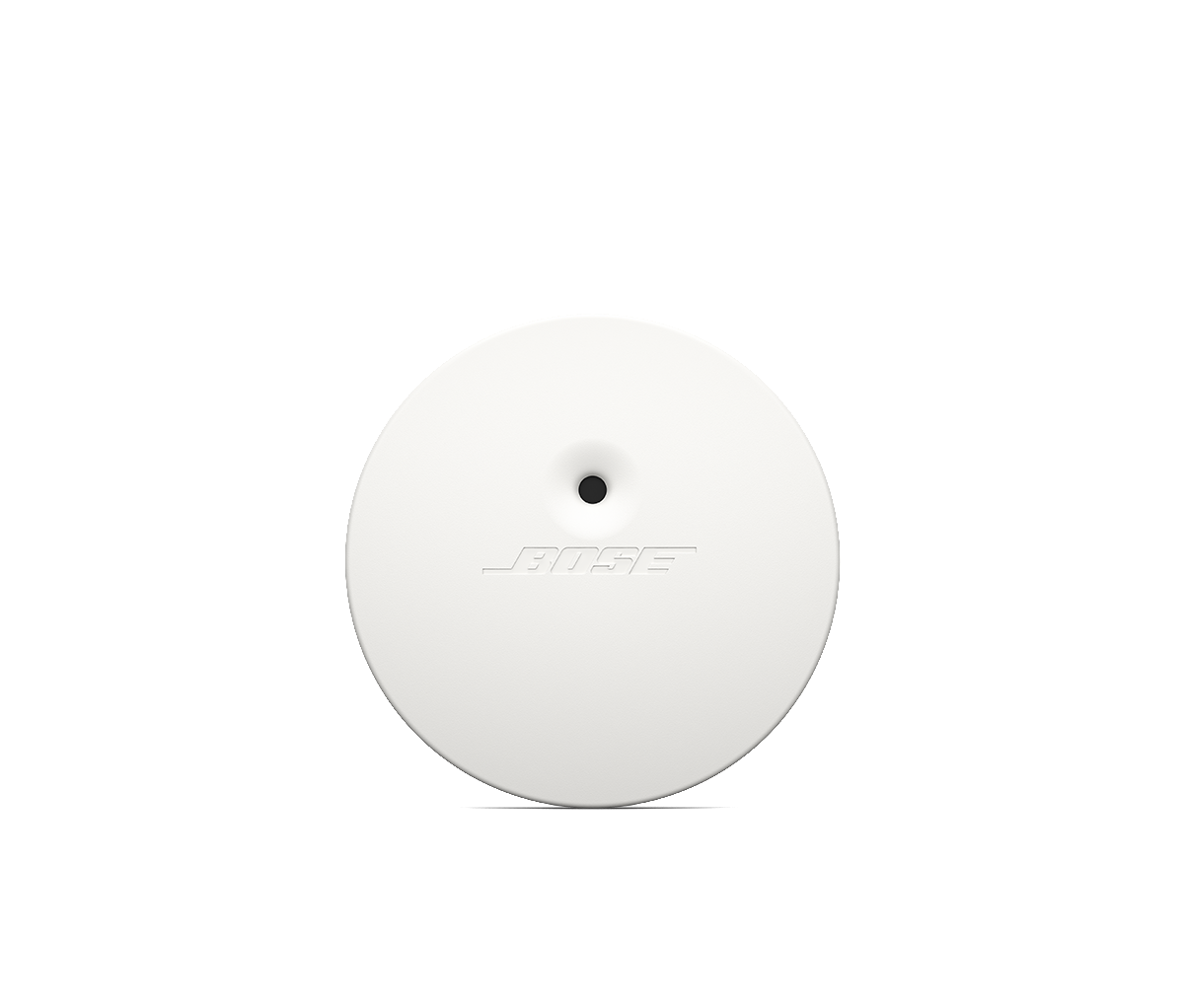

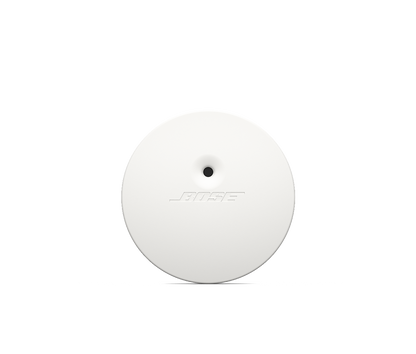

Bose AVM-1 Sense Microphone

Bose AVM-1 Sense Microphone

SoundPro Item: 107109 | Part Number: 808932-0210

$209.00
$209.00 $209.00
Your Price Sold out
MSRP: $209.00 | MAP: $209.00

Usually ships in 5-7 business days

  • Discreet, flush-mounted design blends seamlessly into common ceiling surfaces
  • Omnidirectional condenser microphone capsule operates on phantom power and can be located up to 610 meters (2,000 feet) away from the sound processor

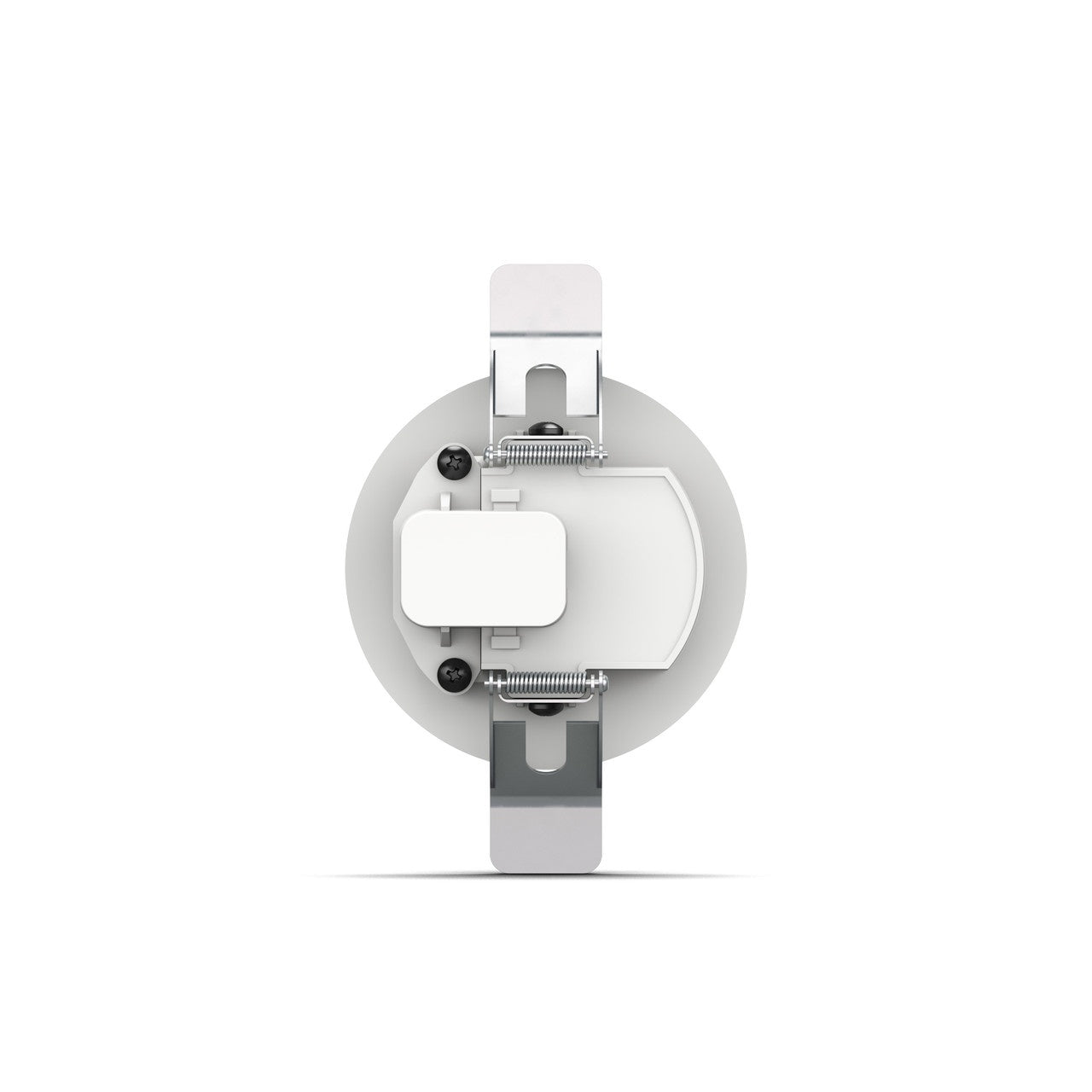

  • Spring clips help make installation easy while keeping the microphone firmly in place
  • Condensation cover protects wire terminals from moisture collection and ensures sustained operation in above-ceiling mounting locations
Log in or register for YOUR best price

The AVM-1 sense microphone mounts discreetly into ceilings and provides an analog output over a balanced audio connection. Designed for use with AutoVolume compensation, as featured in select Bose Professional sound processors, the microphone delivers a continuous ambient room noise reference. This allows the AutoVolume algorithm to adjust output zone levels automatically based on activity in the room.

View full details

Specifications

AMPLIFICATION
Frequency Response
100 Hz - 6 kHz (±4 dB), relative level 1 kHz
THD+N
< 1% at 1 kHz (1 Pa/94 dB SPL)
AUDIO INPUTS, ANALOG
Maximum Input Level
115 dB at 1 kHz
Phantom Power
48 VDC, 10 mA, via ground terminal (typical)
AUDIO OUTPUTS, ANALOG
Channels
1 balanced, mic
Connectors
(1) fixed 3-terminal bare-wire, 3.5 mm
ELECTRICAL
Connectors
(1) fixed 3-terminal bare-wire, 3.5 mm
Power Range
48 VDC, 10 mA phantom power via ground terminal (typical)
GENERAL
Compatible with
CSP-428, CSP-1248
MICROPHONE
Technology
Omnidirectional electret condenser
PHYSICAL
Colors
White
Suspension/Mounting
Spring-loaded clips for ceiling < 1.0 in (25 mm) thick
Operating Temperature Range
0 °C to 40 °C (32 °F to 104 °F)
Product Dimensions (HxWxD)
1.7 in x 2.8 in x 3.9 in (43 mm x 70 mm x 99 mm)
Net Weight
0.14 lb (0.06 kg)
