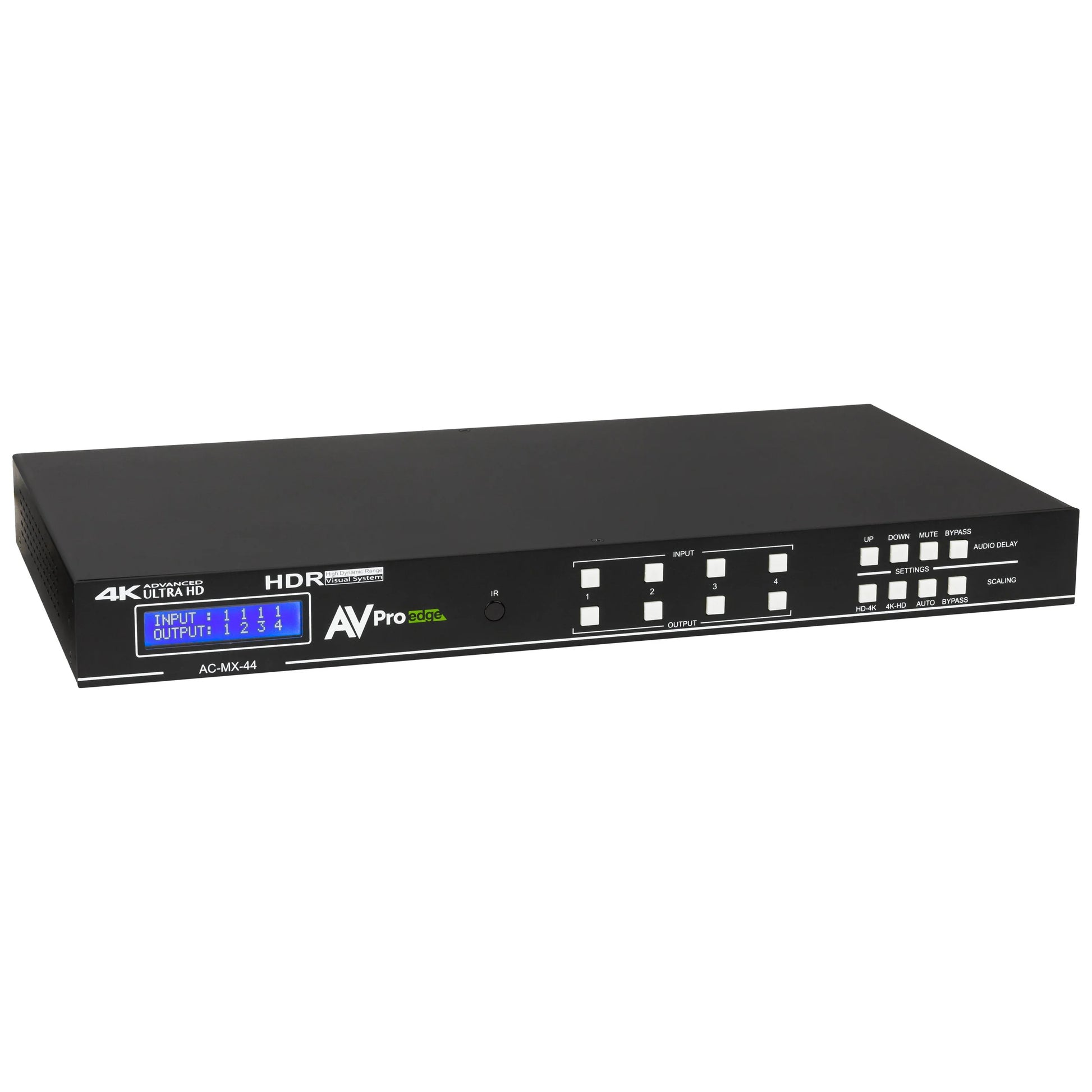

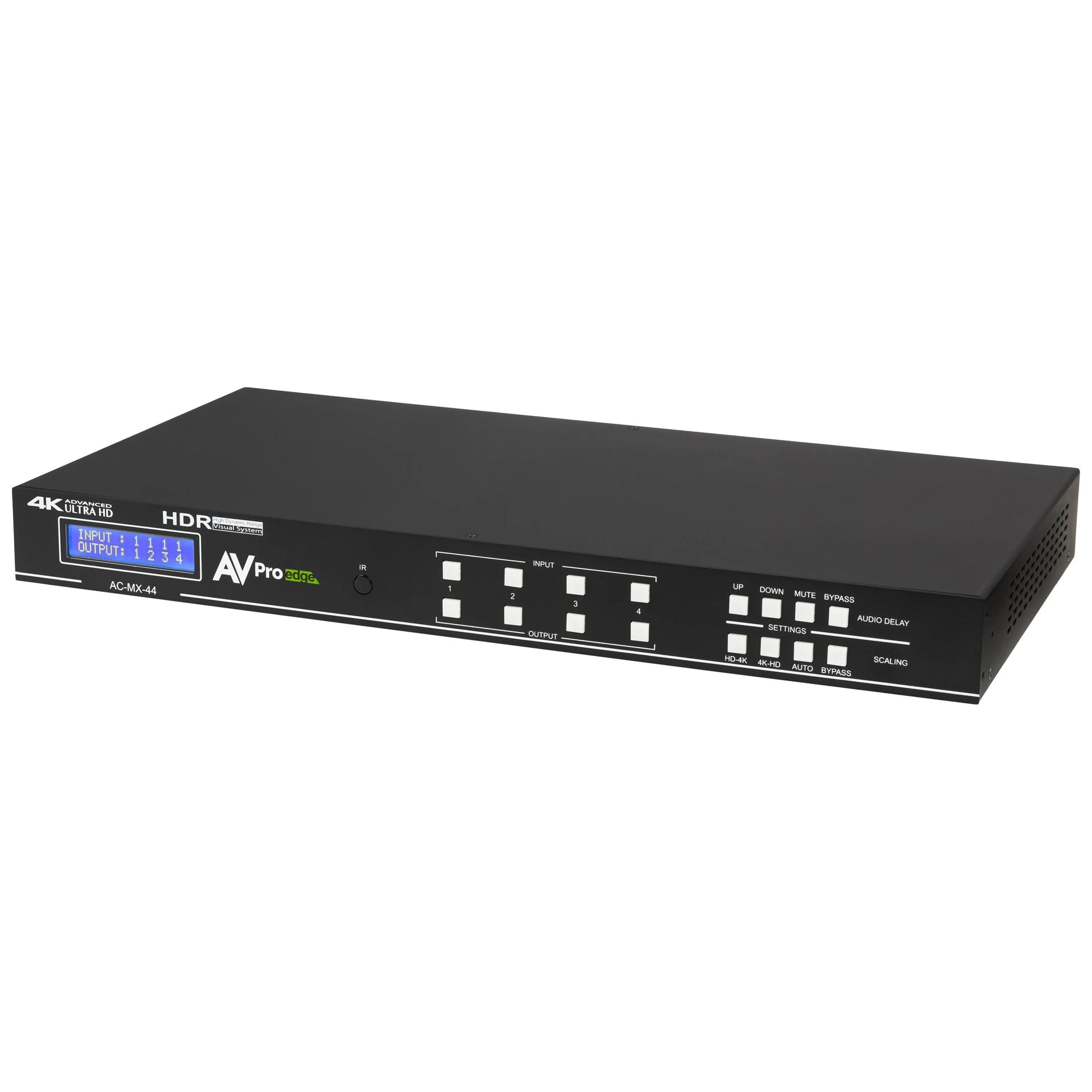

AVPro Edge AC-MX-44 18Gbps 4x4 HDMI Matrix With Audio Delay

AVPro Edge AC-MX-44 18Gbps 4x4 HDMI Matrix With Audio Delay

SoundPro Item: 207203 | Part Number: AC-MX-44

$2,689.00
$2,689.00 $2,689.00
Your Price Sold out
MSRP: $2,689.00 | MAP: $2,689.00

Usually ships in 5-7 business days

  • HDCP 2.3 Compliance Ensures Compatibility With Protected 4K Content And Legacy Devices
  • Per-Output Downscaling Converts 4K Sources To 1080p Displays Without External Processing
  • Three-Mode Audio Extraction Routes Embedded Audio Independently From Video Paths
  • Adjustable Audio Delay Corrects Lip-Sync Across Digital And Analog Outputs Before Display
  • Web-Based Interface Enables Remote Configuration And Real-Time Troubleshooting
  • Built-In Test Pattern Generation Verifies Signal Path And Display Calibration During Install
  • HDBaseT Compatibility Mode Integrates Seamlessly With Existing Twisted-Pair Infrastructure
Log in or register for YOUR best price

The AVPro Edge AC-MX-44 brings comprehensive signal management to four-zone HDMI routing applications. Designed for integration environments where source compatibility and display synchronization matter, this matrix addresses real-world challenges through onboard processing rather than external workarounds. Audio delay adjusts up to 630ms per output or extracted channel, solving lip-sync problems before they reach the display. Per-output scalers convert 4K sources to 1080p displays without requiring separate downscalers, while maintaining original frame rates for smooth motion.

Audio extraction operates in three distinct modes: bound to input, bound to output, or as an independent matrix, enabling flexible zone audio distribution from any source to balanced analog or Toslink outputs. Advanced EDID management ensures source handshake reliability across mixed display environments. The AVPro Edge User Interface provides browser-based configuration, real-time signal monitoring, and built-in test patterns for infrastructure verification, reducing truck rolls and accelerating commissioning.

HDBaseT compatibility mode integrates seamlessly into hybrid systems combining direct HDMI and twisted-pair extension. Support for Dolby Vision, HDR10+, and HLG ensures current and future format compatibility for premium content delivery. Native driver support for Crestron, Control4, RTI, ELAN, and URC platforms streamlines programming and system integration.

View full details

Specifications

Video
Video Resolutions
Up to 4K 60Hz 4:4:4
VESA Resolutions
Up to DCI 4K (4096 x 2160)
HDR Formats
HDR10, HDR10+, Dolby Vision, HLG
Color Space
YUV, RGB (Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling
4:4:4, 4:2:2, 4:2:0
Deep Color
Up to 16-bit (1080p), up to 12-bit (4K)
Scalers
4K to 1080p downscaling per output, 4:4:4 to 4:2:0
Audio
HDMI Audio Formats
PCM 2.0, LPCM 5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS:X, Dolby Atmos
Extracted Audio Toslink
PCM 2.0, LPCM 6/7 channel, Dolby Digital, Dolby Digital Plus
Extracted Audio Analog
PCM 2 channel
Audio Extraction Modes
Bind to input, bind to output, independent matrix
Audio Delay
Up to 630ms per output
Performance
Bandwidth
18 Gbps
HDCP
HDCP 2.3 and earlier versions
Distance
HDMI Input/Output (4K60 4:4:4)
Up to 50' with Bullet Train HDMI cable
HDMI Input/Output (AOC)
Up to 130' with Bullet Train AOC cable

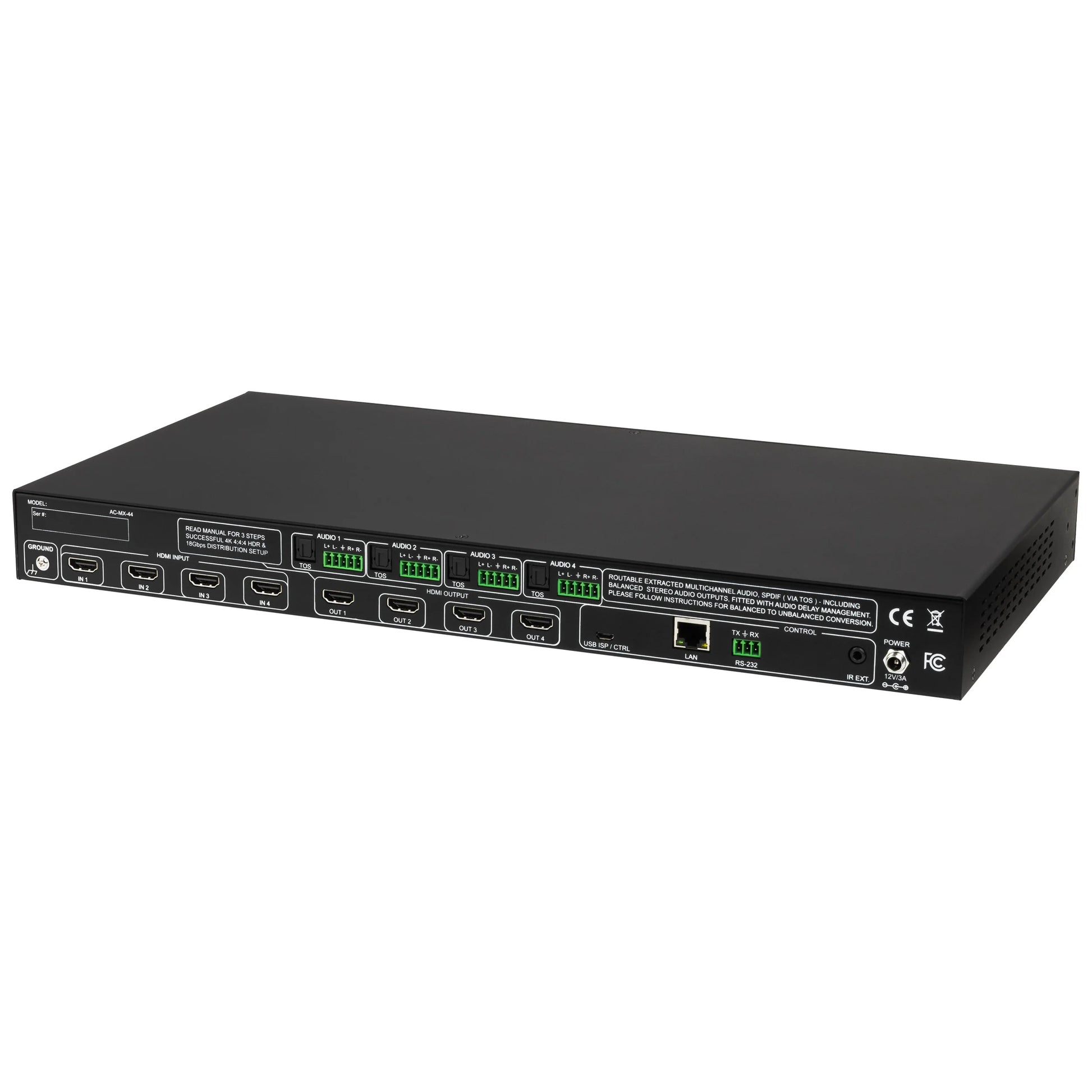

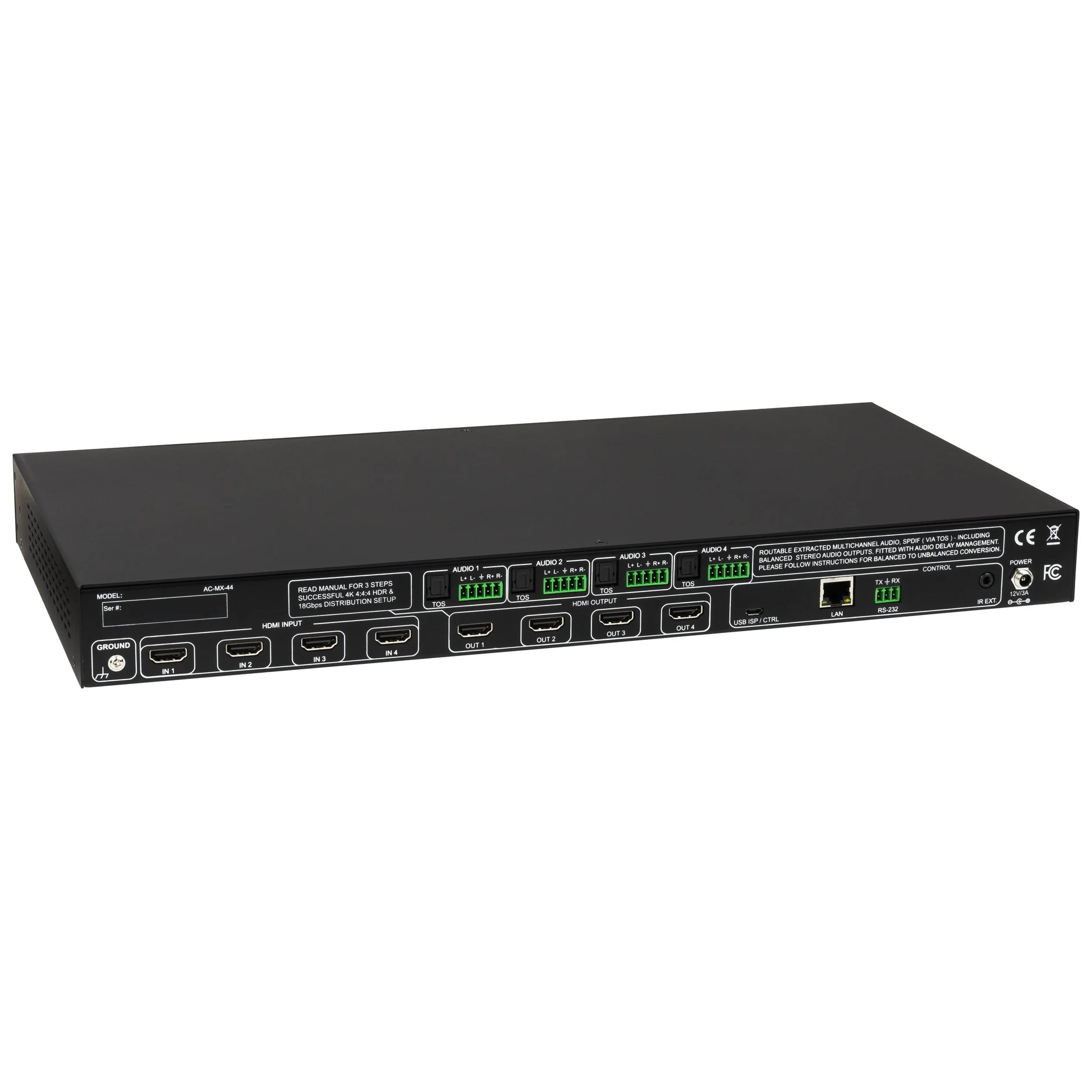

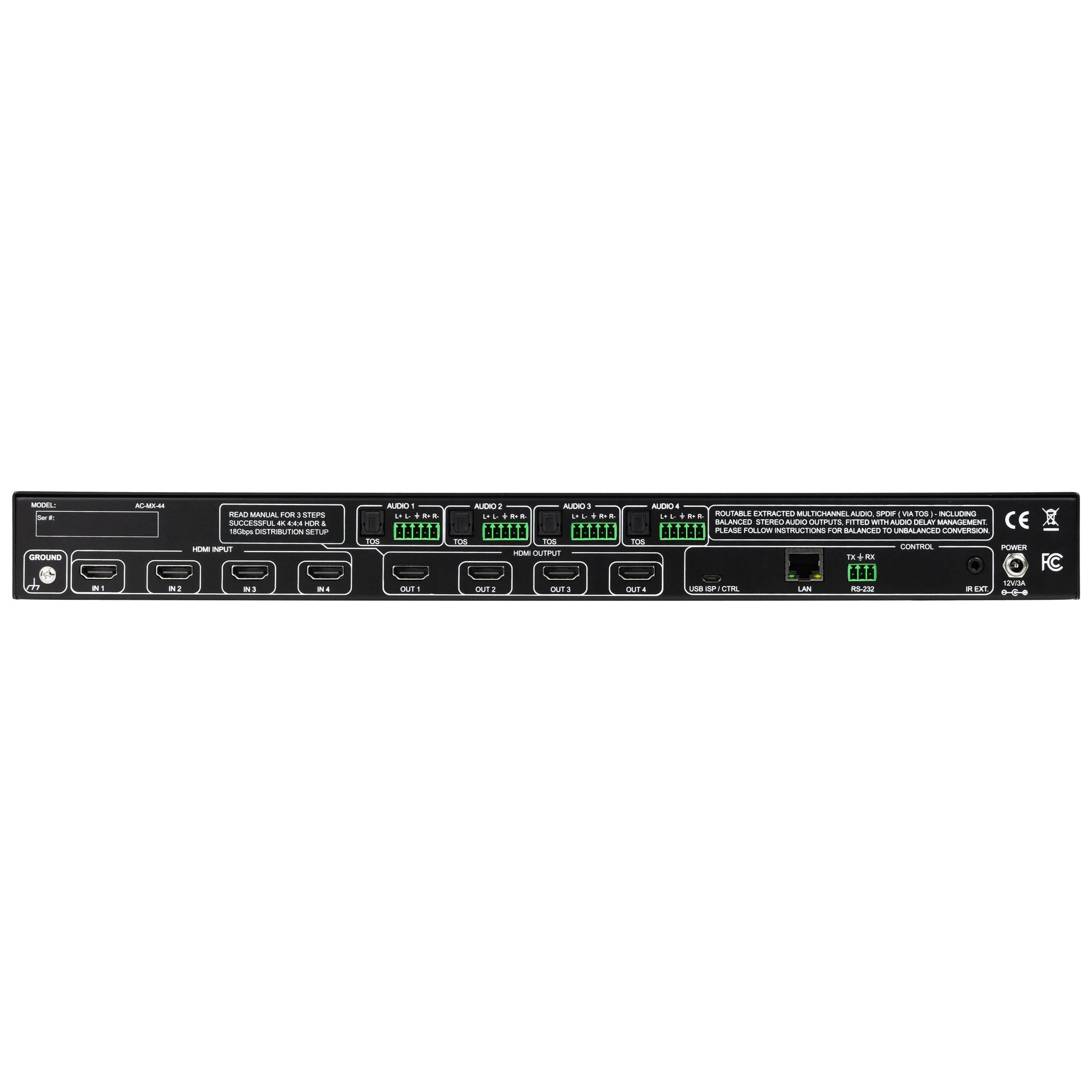

Connectivity
HDMI Connector
Type A
Ethernet
RJ45 with web interface/control
Extracted Audio Digital
Toslink
Extracted Audio Analog
5-pin terminal block (balanced)
IR Extension
3.5mm stereo (3-conductor)
RS-232
3-pin terminal block
Control
Control Ports
LAN, RS-232, IR
Driver Support
Crestron, Control4, RTI, ELAN, URC
Web Interface
Yes
Environmental
Operating Temperature
23°F to 125°F (-5°C to 51°C)
Storage Temperature
-4°F to 140°F (-20°C to 60°C)
Humidity Range
5% to 90% RH (non-condensing)

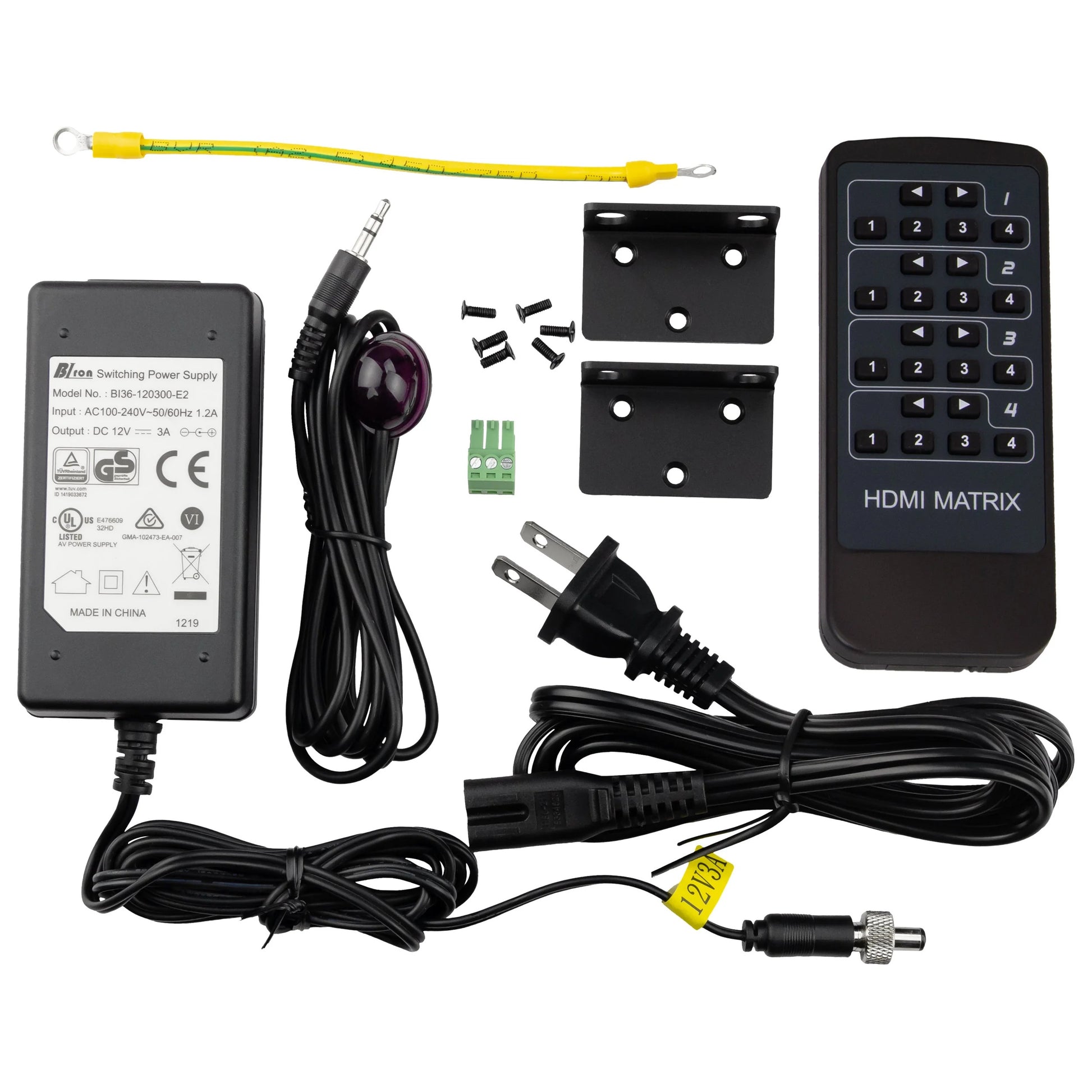

Power
Power Consumption
38 watts maximum
Power Supply Input
AC 100-240V ~ 50/60Hz
Power Supply Output
DC 12V 4A
Dimensions
Unit Dimensions (H x D x W)
1.75" x 8.875" x 17.25" (44.45 x 225.43 x 438.15 mm)
Rack Units
1U
Weight
Unit Weight
6.2 lbs (2.81 kg)
Shipping
Package Dimensions (H x D x W)
3.5" x 13.25" x 19.5" (88.9 x 336.55 x 495.3 mm)
Package Weight
8.32 lbs (3.78 kg)
