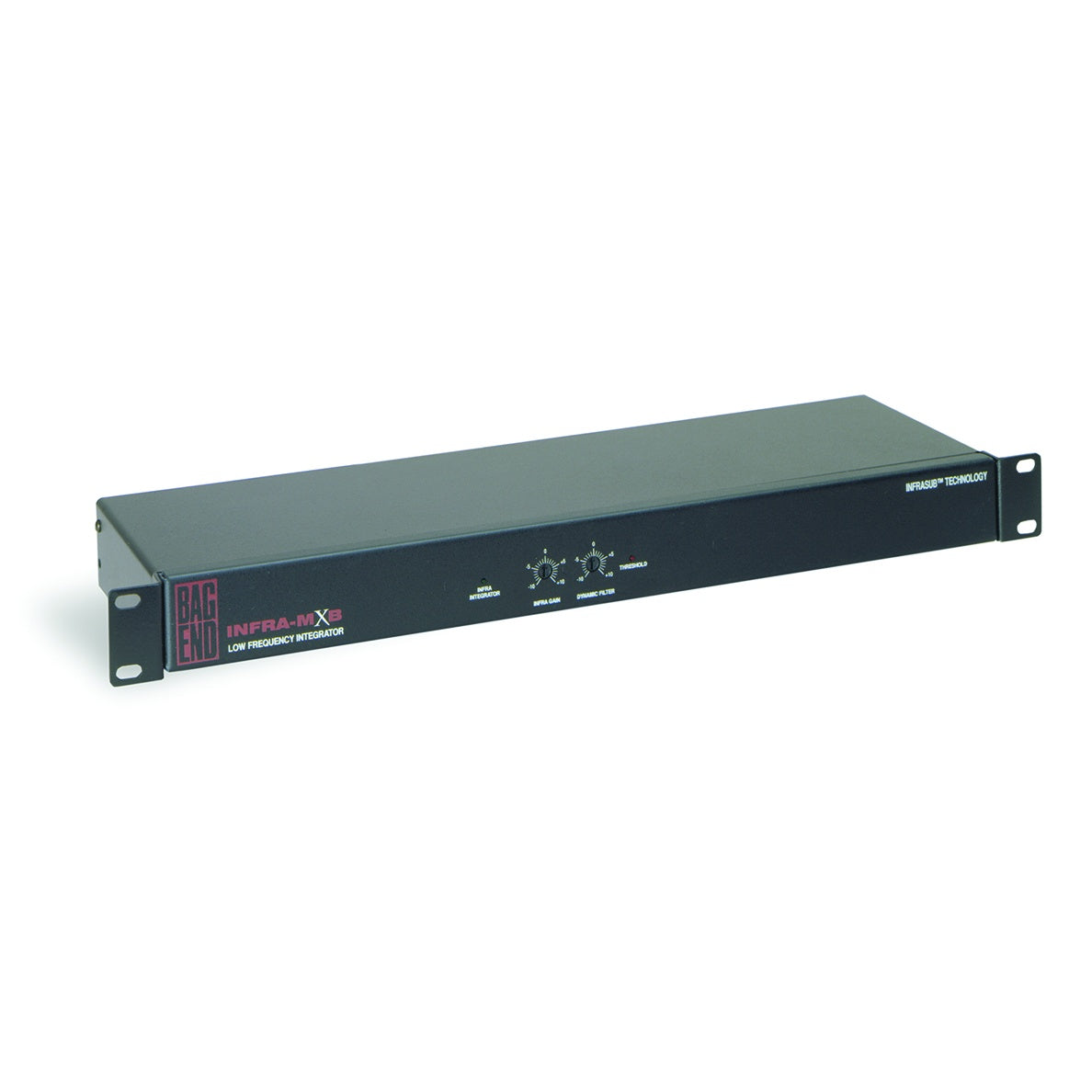

Bag End INFRA-MXB Infra Bass Processor 1U Controller

Bag End INFRA-MXB Infra Bass Processor 1U Controller

SoundPro Item: 202433 | Part Number: INFRA-MXB

$1,258.00
$1,398.00 $1,258.00
Your Price Sold out
MSRP: $1,398.00 | MAP: $1,258.00

In stock and ready to ship

  • Use With Passive Infra Systems
  • Stereo In With Mono Sum Bass Output
  • Stereo Hi-Pass Outputs For System Routing
  • Dynamic Filter Protection For Safer Operation
  • 1U Rack Design Saves Space
  • Front Controls Support Fast Setup
Log in or register for YOUR best price

The Bag End INFRA-MXB is a two-channel loudspeaker controller built for stereo 2-way systems that require a mono summed low-frequency INFRA output. It combines Bag End's INFRA dual integrator processing with frequency dividing and system protection in a compact 1U format, making it a practical choice for installations and sound systems using compatible passive Infra loudspeaker setups. Front-panel rotary controls and internally preset system parameters support straightforward deployment without adding unnecessary operational complexity.

For professional AV users, the INFRA-MXB is designed to manage low-frequency processing while maintaining dedicated stereo hi-pass outputs for the main system. Balanced XLR connectivity supports integration into standard signal chains, and the unit's analog processing architecture suits applications where precise infra bass control is needed in a rack-mounted hardware workflow. Dynamic filter overload protection adds an extra layer of operational security when running demanding low-frequency content.

This controller is intended for use with Bag End passive Infra systems and INFRA or Infrasub type loudspeakers. With programmable INFRA cutoff and hi-pass filter settings, it can be adapted within the supported ranges to suit different system tuning requirements while preserving the core operating structure of stereo input, mono low-frequency summing, and stereo high-pass distribution.

Downloads

View full details

Specifications

Connections
Input Connectors
XLR female
Output Connectors
XLR male
Input Voltage Connector
Miniature DC 2.5 mm
Input Voltage Polarity
Center pin +
Signal Levels And Gain
Maximum Input Signal
4.5 V (+16 dBu)
Maximum Output Signal
4.5 V (+16 dBm)
Balanced In/balanced out
+6 dB gain
Balanced in/unbalanced out
Unity gain
Unbalanced in/balanced out
Unity gain
Unbalanced in/unbalanced out
Unity gain
Output Impedance
< 50 Ohms
Power
Operating Input Voltage
12 - 15 VDC
Operating Current Required
200 mA
Power-on Indication
Green LED
INFRA Processing
Maximum INFRA Gain
10 dB
Maximum INFRA Attenuation
10 dB
INFRA Cutoff Frequency Programming
Plug in resistors
INFRA Cutoff Frequency
8 Hz to 40 Hz
Factory default
18 Hz
INFRA Output Mode
Sum in Stereo Mode
Nominal Dynamic Filter Threshold
0 dBu Output
Minimum Dynamic Filter Threshold
-10 dBu Output
Maximum Dynamic Filter Threshold
+10 dBu Output
Maximum Dynamic Filter Reduction Capability at 18Hz
30 dB
Dynamic Filter Threshold Exceeded Indication
Red LED
INFRA Circuit Noise
< -90dBu (20 Hz to 20 kHz)
INFRA Dynamic Range
> 105 dB (20 Hz to 20 kHz) (bandwidth unweighted)
INFRA Output
Use with Infrasubâ„¢ or INFRAâ„¢ type loudspeakers only.
Hi Pass Section
Hi Pass Gain
Unity
Hi Pass Filter Frequency Programming
Plug in resistors
Factory Set Hi Pass Filter Frequency
- 3 dB @ 130 Hz/-6 dB @ 97 Hz
Hi Pass Filter Frequency Range
50 Hz to 200 Hz
Hi Pass Filter Slope
12 dB/octave
Hi Pass Circuit Noise
< -90 dBu (20 Hz to 20 kHz)
Hi Pass Dynamic Range
> 105 dB (20 Hz to 20 kHz) (bandwidth unweighted)
Physical
Enclosure
Black powder coated steel
Enclosure Mounting
1U EIA rack (1.75")
Dimensions
1.75"h x 19"w x 5.25"d
Weight
5 lbs.
Shipping Dimensions
6" x 22" x 12"
Shipping Weight
7 lbs.
