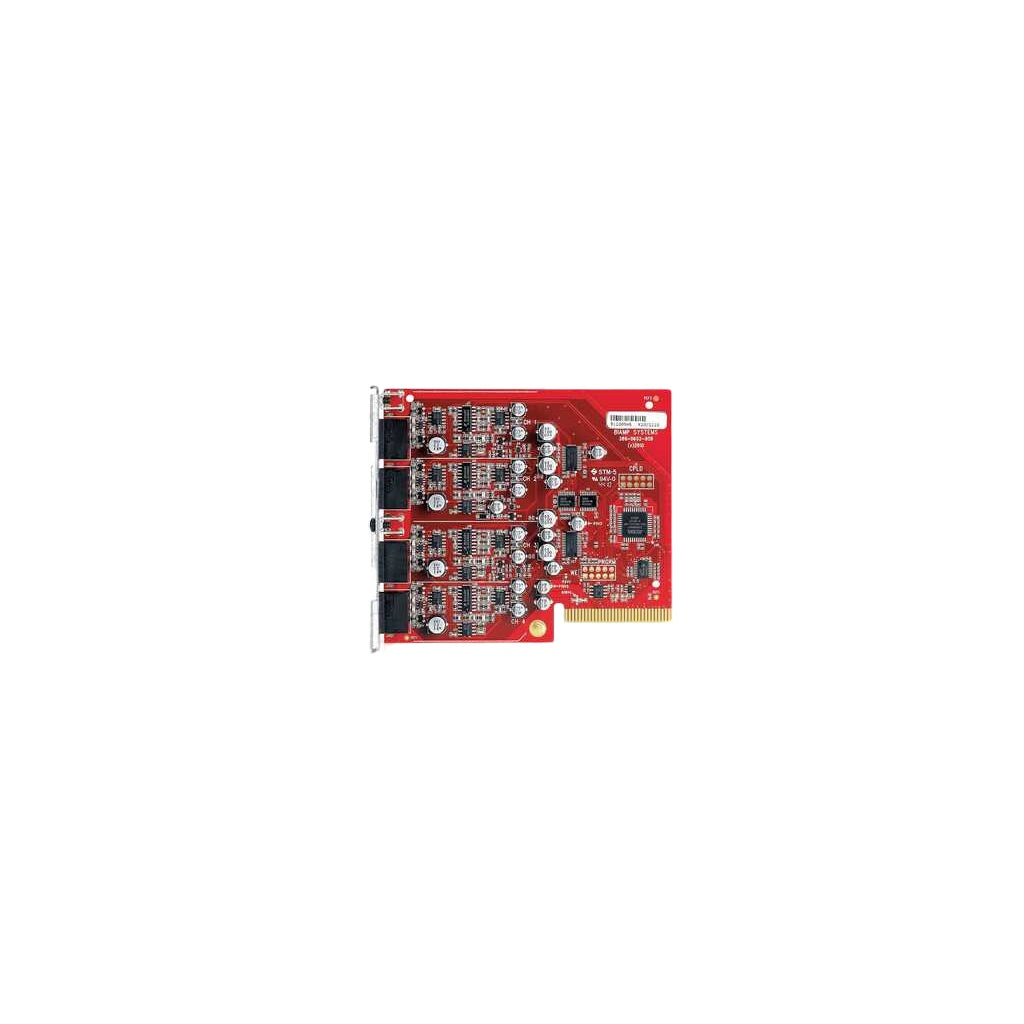

Biamp Tesira SOC-4 CK 4-Channel Analog Output Card

Biamp Tesira SOC-4 CK 4-Channel Analog Output Card

SoundPro Item: 36073 | Part Number: 910-00324

$400.90
$422.00 $400.90
Your Price Sold out
MSRP: $422.00 | MAP: $400.90

Usually ships in 5-7 business days

  • Four Balanced Outputs Deliver Independent Mic Or Line Level Interface Across Multiple Zones
  • Barrier Strip Termination Enables Toolless Field Service Without Soldering Or Special Connectors
  • Software Fader Control Spans -100 To +12 dB Range For Precise Output Adjustment
  • Selectable Reference Levels From -31 To +24 dBu Match Downstream Equipment Without External Gain Stages
  • TAA Compliance Qualifies Card Kit For GSA Schedule Federal Government Procurement
Log in or register for YOUR best price

The Biamp Tesira SOC-4 CK card kit enables integrators to add four channels of balanced analog audio output to existing Tesira SERVER and SERVER-IO installations. Each channel supports both microphone and line level interfacing, with software-selectable reference levels ranging from -31 dBu to +24 dBu, allowing precise matching to connected amplifiers, mixers, or distribution systems without external padding or gain staging.

Field-removable barrier strip connectors simplify installation in rack-mounted corporate AV, education, and government facilities where toolless serviceability reduces downtime. All four outputs offer independent mute, polarity inversion, and level fading, giving system designers granular control over zone distribution and signal routing within networked DSP architectures.

TAA compliance and RoHS certification make this card kit suitable for federal procurement under GSA Schedule contracts, while the five-year warranty and AES grounding standard ensure long-term reliability in mission-critical installed sound environments.

View full details

Specifications

Certifications
TAA Compliant
Yes
RoHS Compliant
Yes
Grounding Standard
AES
Audio
Output Channels
4
Output Type
Balanced Microphone/Line Level
Level Range
-100 to +12 dB
Full-Scale Output Reference Levels
24 dBu, 18 dBu, 12 dBu, 6 dBu, 0 dBu, -31 dBu
Signal Polarity Control
Invert
Connectivity
Connector Type
Plug-in Barrier Strip
Identifiers
Warranty
5-Year
