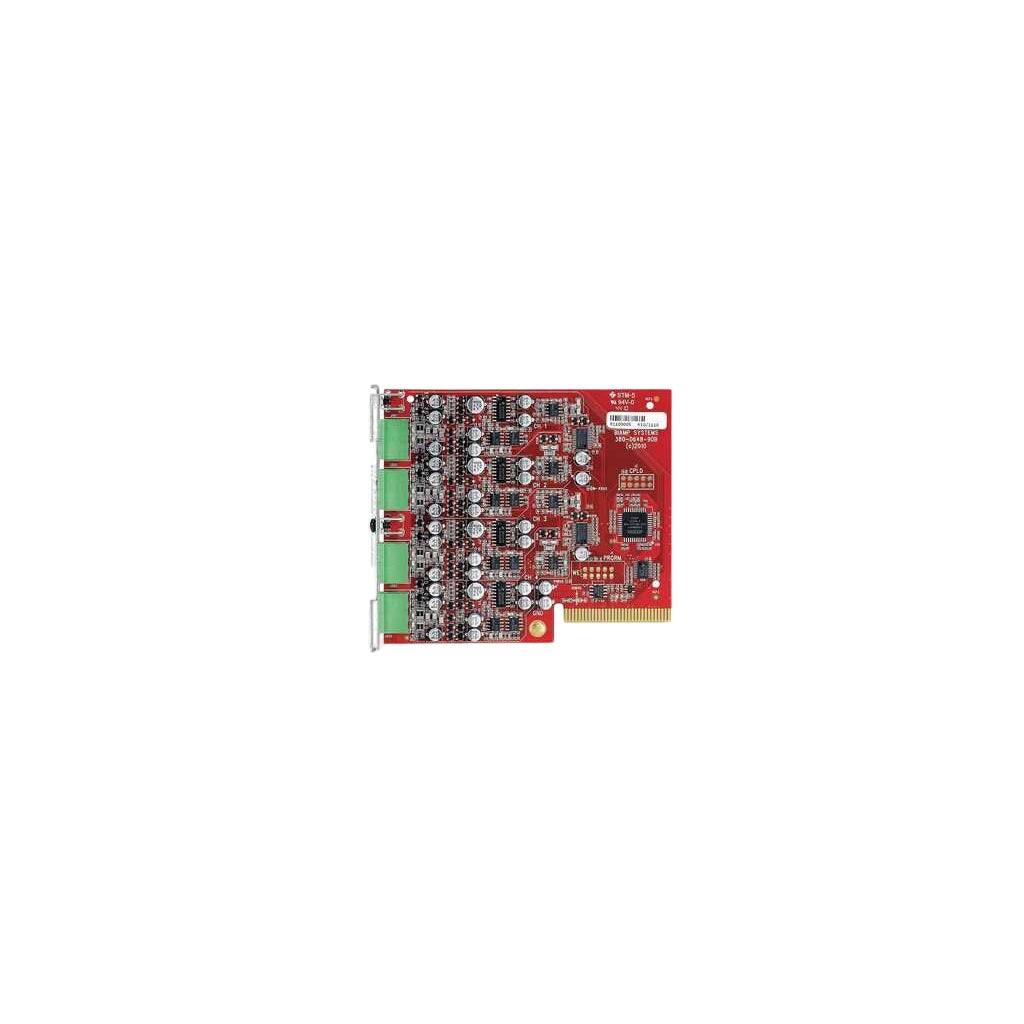

Biamp Tesira SIC-4 CK 4-Channel Input Card

Biamp Tesira SIC-4 CK 4-Channel Input Card

SoundPro Item: 36072 | Part Number: 910-00325

$455.05
$479.00 $455.05
Your Price Sold out
MSRP: $479.00 | MAP: $455.05

Usually ships in 5-7 business days

  • Software-Controlled Gain Staging From 0 To 66 dB Enables Precise Source Matching Across Microphone And Line Inputs
  • Individual Phantom Power Switching Per Channel Supports Condenser Microphones Without External Power Supplies
  • Barrier Strip Connectors Allow Tool-Free Field Termination And Simplified On-Site Wiring
  • TAA Compliance Qualifies Product For US Federal Government Procurement Under GSA Schedule Contracts
  • Integrated Clip Indicators Provide Real-Time Overload Monitoring For Each Input Channel
Log in or register for YOUR best price

Built for integrators working on corporate, government, and institutional audio systems, this modular input card expands Tesira SERVER and SERVER-IO chassis with four fully configurable analog channels. Each input supports both microphone and line-level sources with software-controlled gain staging, phantom power, and polarity inversion—critical for large-format conferencing, courtroom, and lecture hall deployments where source flexibility and remote management reduce site visits.

TAA compliance makes it eligible for federal GSA Schedule bids, while plug-in barrier strip connectors simplify field termination without specialized tools. The card integrates directly into Tesira's networked architecture, allowing gain adjustment, muting, and fader control from any networked location. Designed for installations where analog endpoints must coexist with a digital backbone, it bridges legacy microphones and program sources into modern DSP workflows without requiring external preamps or interface boxes.

View full details

Specifications

Certifications
TAA Compliant
Yes
RoHS Compliant
Yes
AES Grounding
Yes
Audio
Channels
4 balanced mic/line inputs
Maximum Input Level
+24 dBu
Gain Range
0 to 66 dB, adjustable in 6 dB increments
Fader Range
100 to +12 dB
Sampling Rate
48 kHz
A/D Converter Resolution
24-bit
THD+N @ 0 dB Gain, +4 dBu In
< 0.006% (20 Hz–20 kHz)
THD+N @ 54 dB Gain, -50 dBu In
< 0.040% (20 Hz–20 kHz)
EIN @ 66 dB Gain, 150Ω
< -125 dBu (20 Hz–20 kHz)
Dynamic Range @ 0 dB
> 108 dB (20 Hz–20 kHz)
Crosstalk @ 0 dB Gain, +4 dBu In
< 85 dB @ 1 kHz
Crosstalk @ 54 dB Gain, -50 dBu In
< 75 dB @ 1 kHz
Connectivity
Input Connectors
Plug-in barrier strip
Power
Phantom Power
+48V per channel
