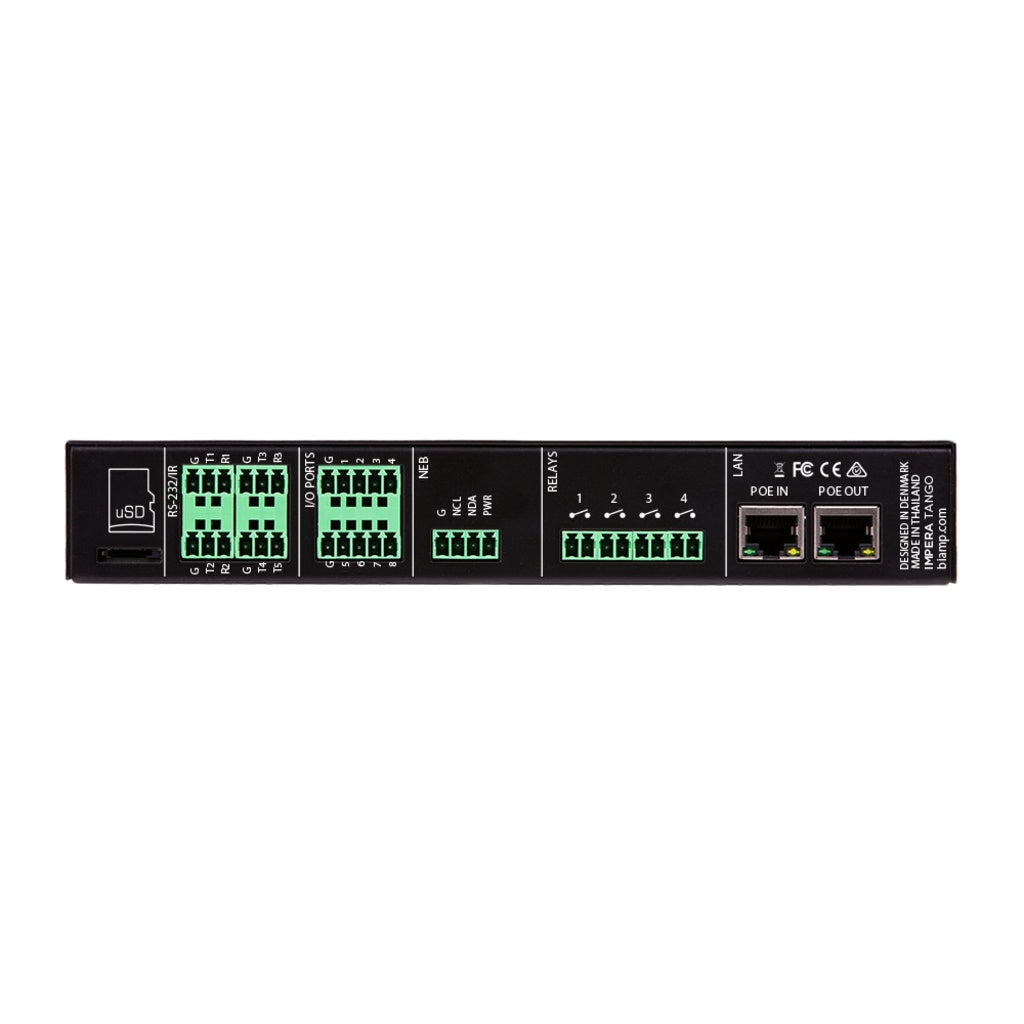

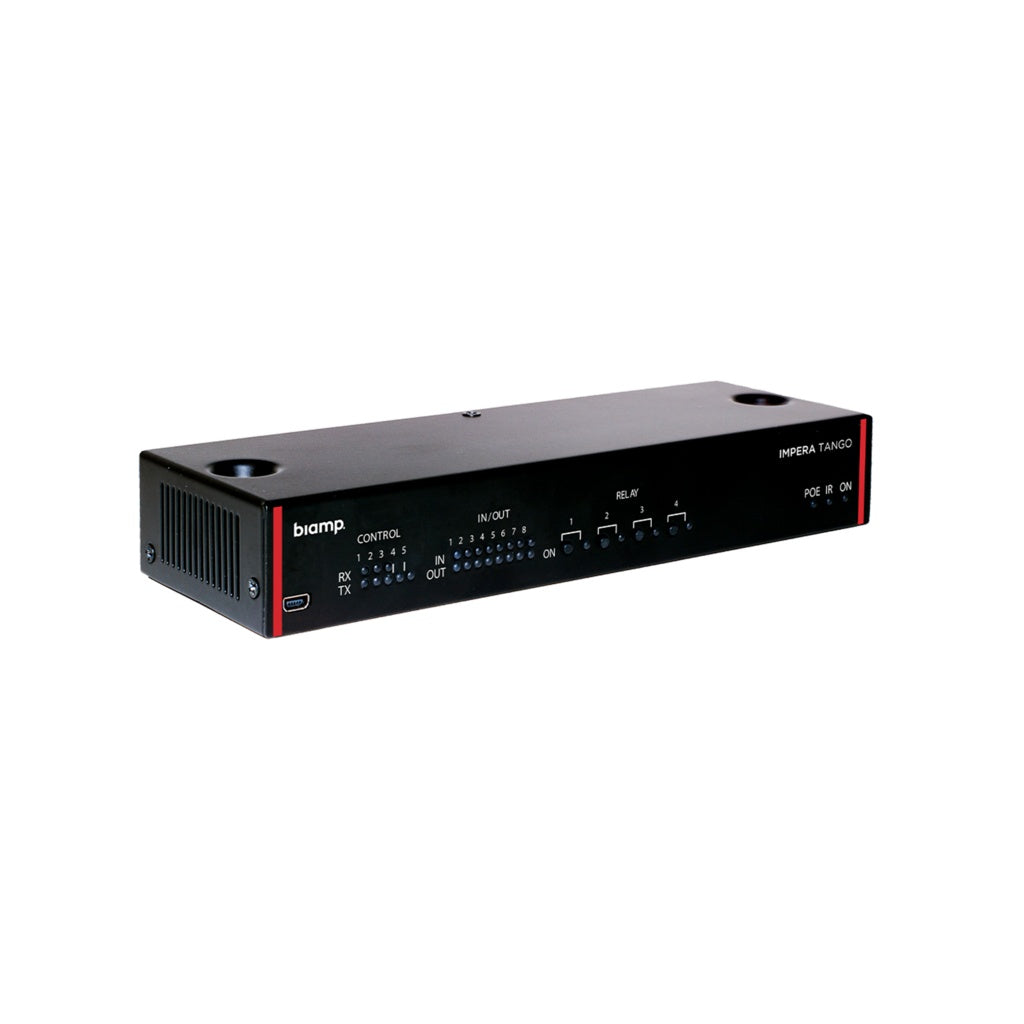

Biamp Impera Tango AV Control Processor With PoE

Biamp Impera Tango AV Control Processor With PoE

SoundPro Item: 129660 | Part Number: 910-01880

$1,386.05
$1,459.00 $1,386.05
Your Price Sold out
MSRP: $1,459.00 | MAP: $1,386.05

Usually ships in 5-7 business days

  • Supports Up To Five Simultaneous Apprimo Touch Panel Interfaces For Expanded Room Coverage
  • Fully Configurable User Interface Design Through Project Designer Software
  • Three Bidirectional RS-232 Ports Enable Two-Way Communication With Displays And Processors
  • Eight GPIO Ports Provide Event-Triggered Automation For Sensors And Switches
  • Four Assignable Relays Control Motorized Screens And Room Lighting Systems
  • IEEE 802.3at Class 3 PoE Eliminates Separate Power Supply Requirements
  • 5-Year Warranty Provides Long-Term Support For Installed Systems
Log in or register for YOUR best price

The Biamp Impera Tango serves integrators deploying scalable, touch-driven control in presentation spaces, classrooms, and conference rooms. Designed as the central processor in the Impera ecosystem, it coordinates multiple Apprimo touch panels—up to five simultaneously—while connecting displays, audio systems, video switchers, lighting, and sensors through a comprehensive set of physical control ports. Its PoE architecture eliminates the need for separate power infrastructure, reducing installation complexity and cable runs.

Configured entirely within Project Designer software, the Tango allows integrators to design custom user interfaces tailored to each room's operational requirements, from single-touch source selection to complex multi-zone automation. The processor's bidirectional and unidirectional RS-232 ports, IR outputs, relays, and GPIO connections ensure compatibility with legacy and modern devices alike, supporting both structured control sequences and event-triggered automation.

Built for permanent installation in equipment racks or behind displays, the Tango delivers consistent performance across commercial environments. Its 5-year warranty provides long-term support for integrators managing deployed systems at scale.

View full details

Specifications

Certifications
Compliance
FCC Part 15B, UL Listed (USA and Canada), CE Marked (Europe), RoHS Directive (Europe)
Dimensions
Height
1.4"
Width
8.7"
Depth
2.8"
Weight
Weight
1.1 lbs
Power
Power Input
15 W
Power Output
12 W (Max)
Connectivity
Network Connection
RJ-45 Ethernet (CAT5e or better)
Bidirectional RS-232 Ports
3
Unidirectional RS-232 Ports
2
RS-232 Connector
3-pin, 0.3" Euroblock
Baud Rate
1200 – 115200 bit/sec
Data Bits
7, 8
Parity
Even, Odd, None
Stop Bits
1, 2
IR Frequency Range
400 Hz to 500 kHz
GPIO Ports
8
GPIO Connector
5-pin, 0.3" Euroblock
GPIO Type
Open drain
GPIO Input Trigger Low
< 1VDC
GPIO Input Trigger High
> 4VDC
GPIO Max Voltage
24VDC
GPIO Max Current
0.5A
Relays
4 (assignable)
Environmental
Operating Temperature
32 - 86° F (0 – 30° C)
Humidity
10-90% relative humidity (non-condensing)
Altitude
0-6,600 ft (0-2000m) MSL
