Specifications
Certifications
Microsoft Teams Certified
Yes
Zoom Certified
Yes
TAA Compliant
Yes
FCC Part 15B
Yes
Canada ICES-003 (A) / NMB-003 (A)
Yes
CE Marked
Yes
UL and C-UL Listed
Yes
RCM (Australia)
Yes
RoHS Directive
Yes
Dimensions
Height
1.47"
Width
8.11"
Depth
8.11"
Weight
Weight
1.9 lbs
Electrical
Power Consumption
100-240VAC 50/60Hz: < 150W
Phantom Power
+48VDC (7mA/input)
Audio
Input Impedance
8kΩ (balanced)
Input Gain Range
0-66dB (6dB steps)
Maximum Input
+24dBu
Output Impedance
207Ω (balanced)
Maximum Output
+24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu (selectable)
THD+N (0dB gain, +4dBu input)
< 0.006%
THD+N (54dB gain, -50dBu input)
< 0.040%
Frequency Response
20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB
EIN (no weighting, 22Hz to 22kHz)
< -125dBu
Dynamic Range (0dB gain)
> 108dB
Crosstalk (0dB gain, +4dBu input, 1 kHz)
< -85dB
Crosstalk (54dB gain, -50dBu input, 1 kHz)
< -75dB
Sampling Rate
48kHz
A/D - D/A Converters
24-bit
USB Bit Depth
16-bit / 24-bit
USB Channels
Up to 2x2
USB Sample Rate
48kHz
Performance
Maximum AVB Channels
128x128
Maximum AVB Streams
64x64
Maximum AVB Stream Passthrough
150
Maximum Dante Channels
32x32
Maximum Dante Flows
32x32
AEC Channels
4

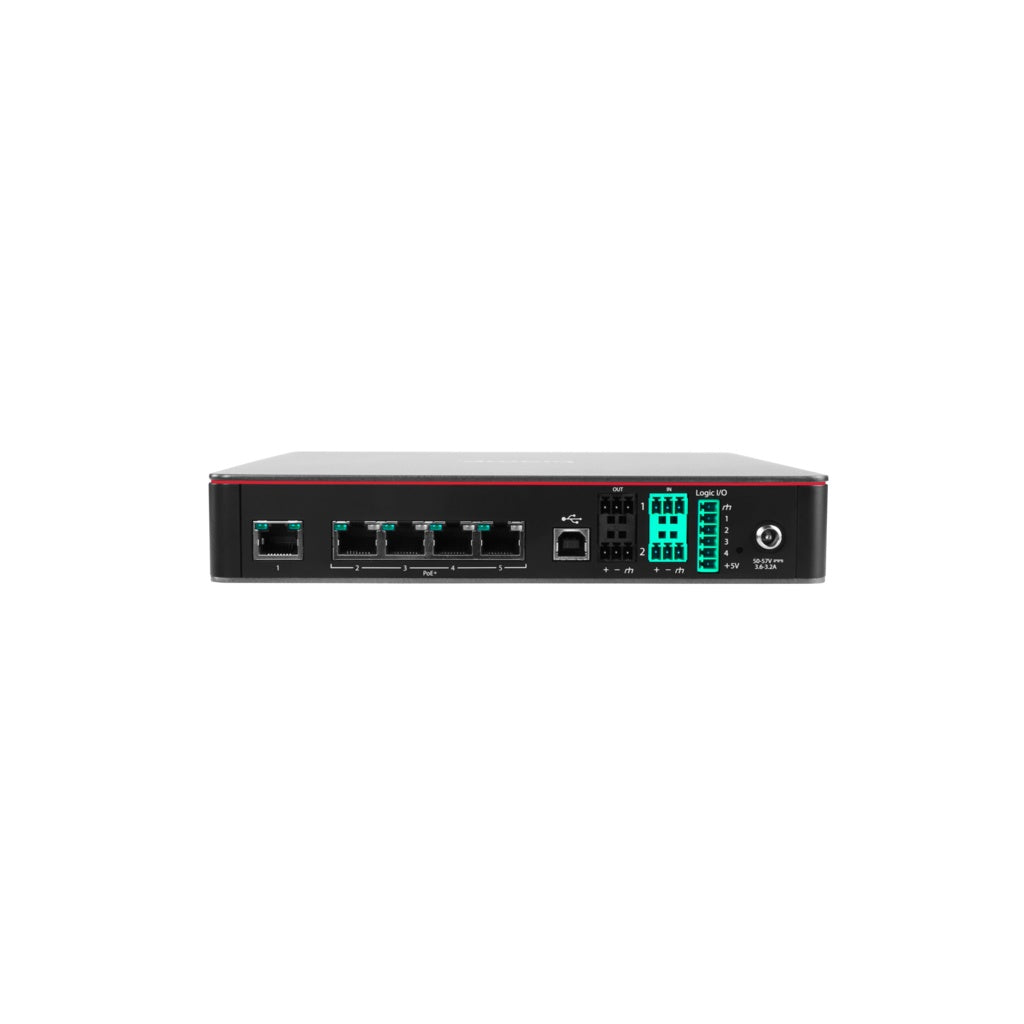

Connectivity
Gigabit Ethernet Ports
5 (4 with PoE+)
Environmental
Ambient Operating Temperature
32-104° F (0–40° C)
Humidity
0–98%, non-condensing
Altitude
0-6,600 feet (0–2000 Meters) MSL
