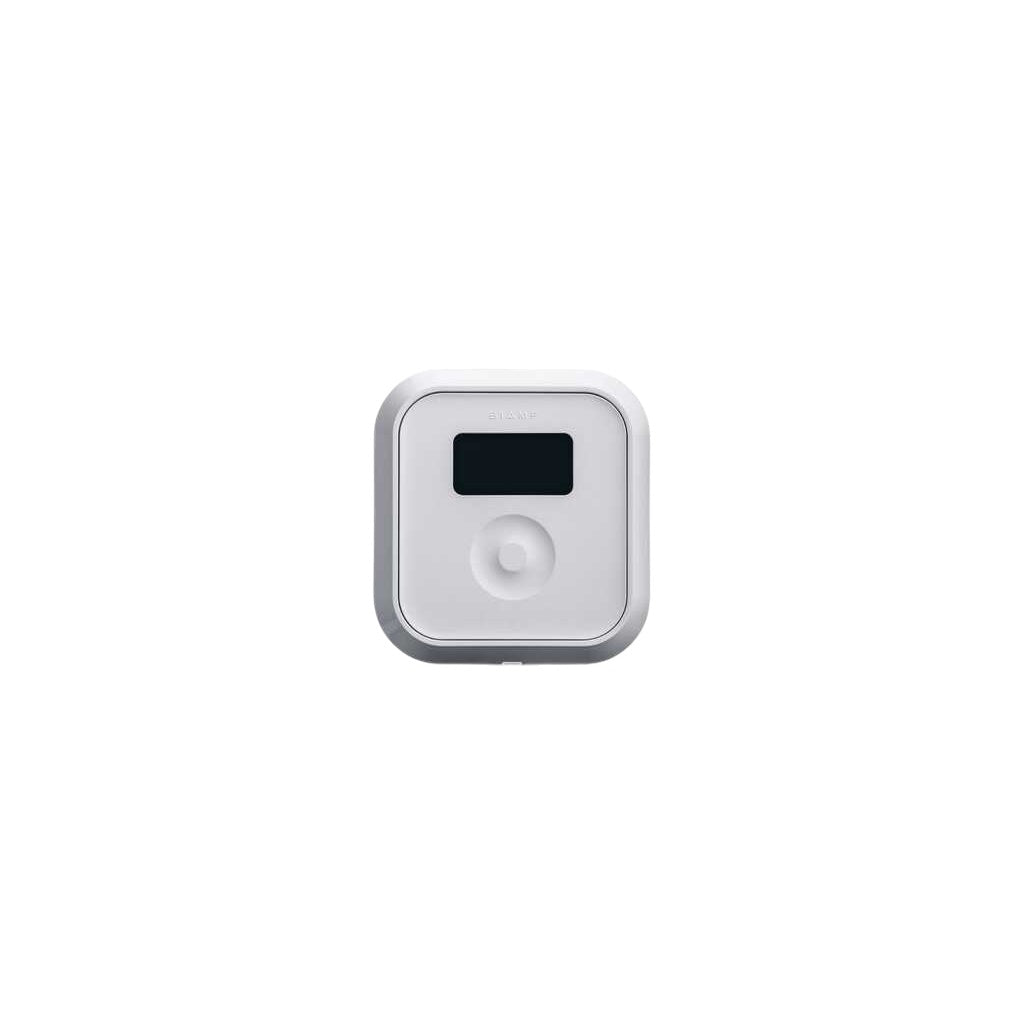

Biamp Tesira TEC-1s PoE Ethernet Control Panel | Surface Mount

Biamp Tesira TEC-1s PoE Ethernet Control Panel | Surface Mount

SoundPro Item: 76446 | Part Number: 920-00316-00001

$772.00
$772.00 $772.00
Your Price Sold out
MSRP: $772.00 | MAP: $772.00

Usually ships in 5-7 business days

  • Capacitive Touch Interface Eliminates Mechanical Wear And Simplifies Sanitation
  • Auto-Dimming OLED Display Adapts Brightness To Ambient Light Conditions
  • IEEE 802.3at PoE Powering Removes Local AC Requirement For Retrofit Flexibility
  • Programmable Volume And Action Channels Support Application-Specific Workflows
  • Surface-Mount Form Factor Integrates With Standard And Custom Enclosure Solutions
Log in or register for YOUR best price

The Biamp Tesira TEC-1s delivers dedicated end-user control for Tesira DSP systems in conference rooms, hospitality zones, and room-combining applications. It simplifies complex system operation by presenting up to 32 user-assigned level and logic functions through a high-contrast OLED display with capacitive touch control. Installation teams program each function in Tesira software to match specific workflows—source routing, preset recall, zone volume, or matrix crosspoint adjustment—then deploy panels across distributed locations using standard Ethernet infrastructure.

The TEC-1s draws power via IEEE 802.3at PoE, eliminating local AC requirements and simplifying retrofit installations. Capacitive touch technology eliminates mechanical failure points while auto-dimming conserves energy and extends display life. Surface-mount hardware accommodates single-gang and custom enclosures. At 330 feet per cable segment, standard network switches and media converters extend control reach well beyond traditional analog wall panels, enabling centralized DSP management in multi-room facilities, corporate campuses, and hospitality properties where consistent user experience and simplified service access are critical.

View full details

Specifications

Certifications
TAA Compliant
Yes
Compliance
RoHS Directive, CE, FCC
Dimensions
Height
5.1"
Width
4.7"
Depth
1.25"
Weight
Weight
0.5 lbs
Electrical
Power
PoE (IEEE 802.3at Class 1, 4W)
Connectivity
Control Cable Type
Unshielded Twisted Pair (UTP), 100BaseT (CAT-5/6/7 Ethernet)
Control Cable Length
330' (extendable with standard PoE network technology)
Connector Types
RJ-45, Insulation Displacement Connector (IDC)
Controls
Programmable Channels
32 (volumes and actions)
Display
High Contrast OLED With Auto-Dimming
Control Topology
Standard Ethernet Network Wiring
Construction
Included Accessories

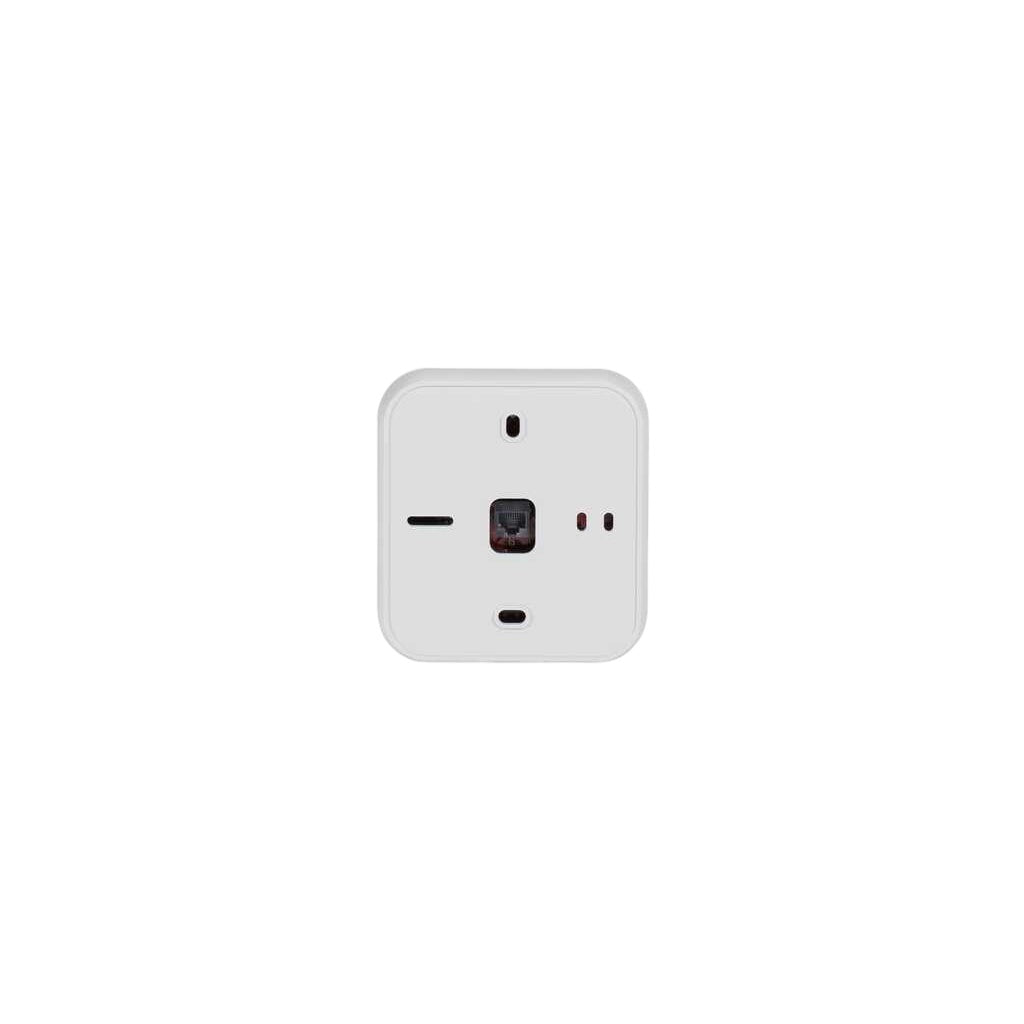

Molded Rear Chassis With Cabling Accommodation And Surface Mounting Hardware
