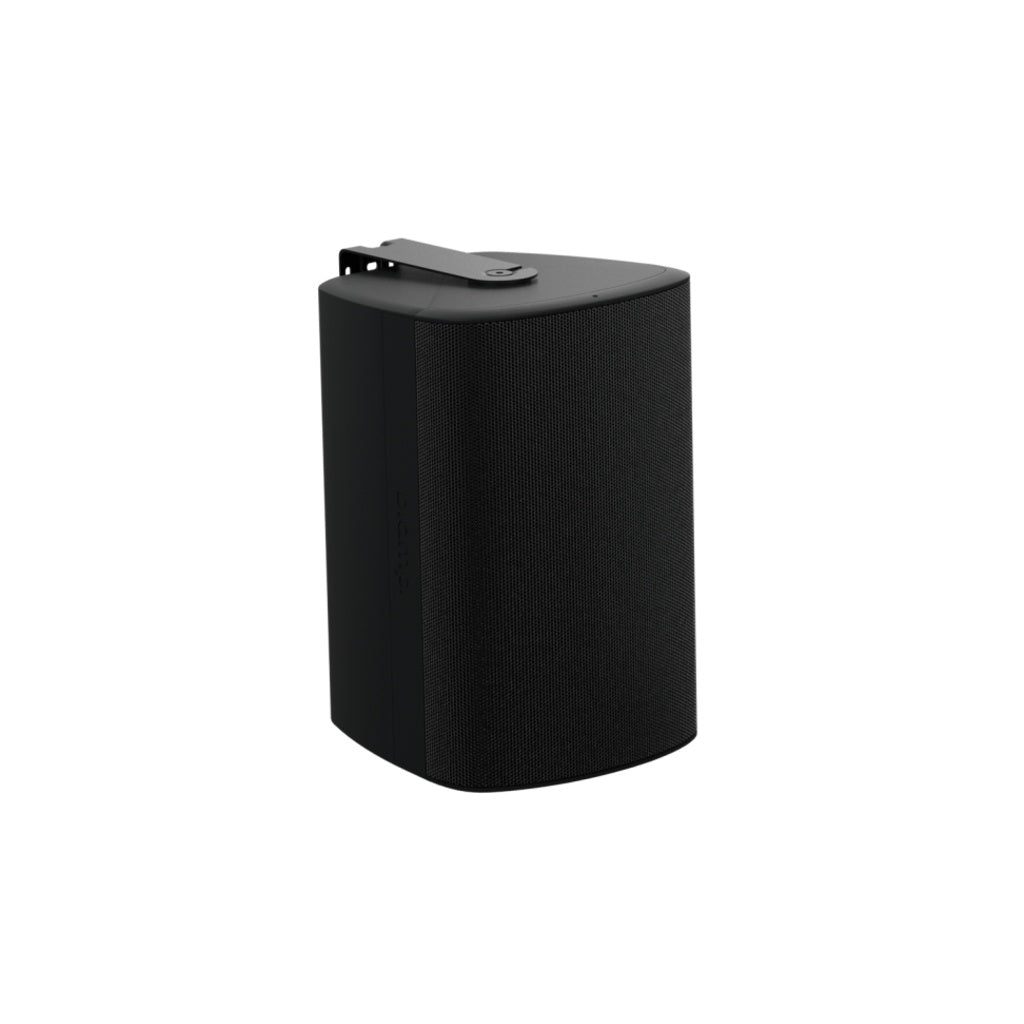

Biamp Desono DX-S8 8" Coaxial Surface Mount Speaker | Black

Biamp Desono DX-S8 8" Coaxial Surface Mount Speaker | Black

SoundPro Item: 201800 | Part Number: 920-00334-10000

$389.50
$410.00 $389.50
Your Price Sold out
MSRP: $410.00 | MAP: $389.50

Usually ships in 5-7 business days

  • Coaxially Mounted HF Compression Driver And LF Woofer Deliver Uniform Coverage Without Tonal Gaps
  • Integrated Autoformer Supports Multi-Tap 70V/100V Distributed Systems Or Direct Low-Impedance Operation
  • IP54 Rating With Salt Mist And Solar Radiation Testing For Direct Outdoor Installation

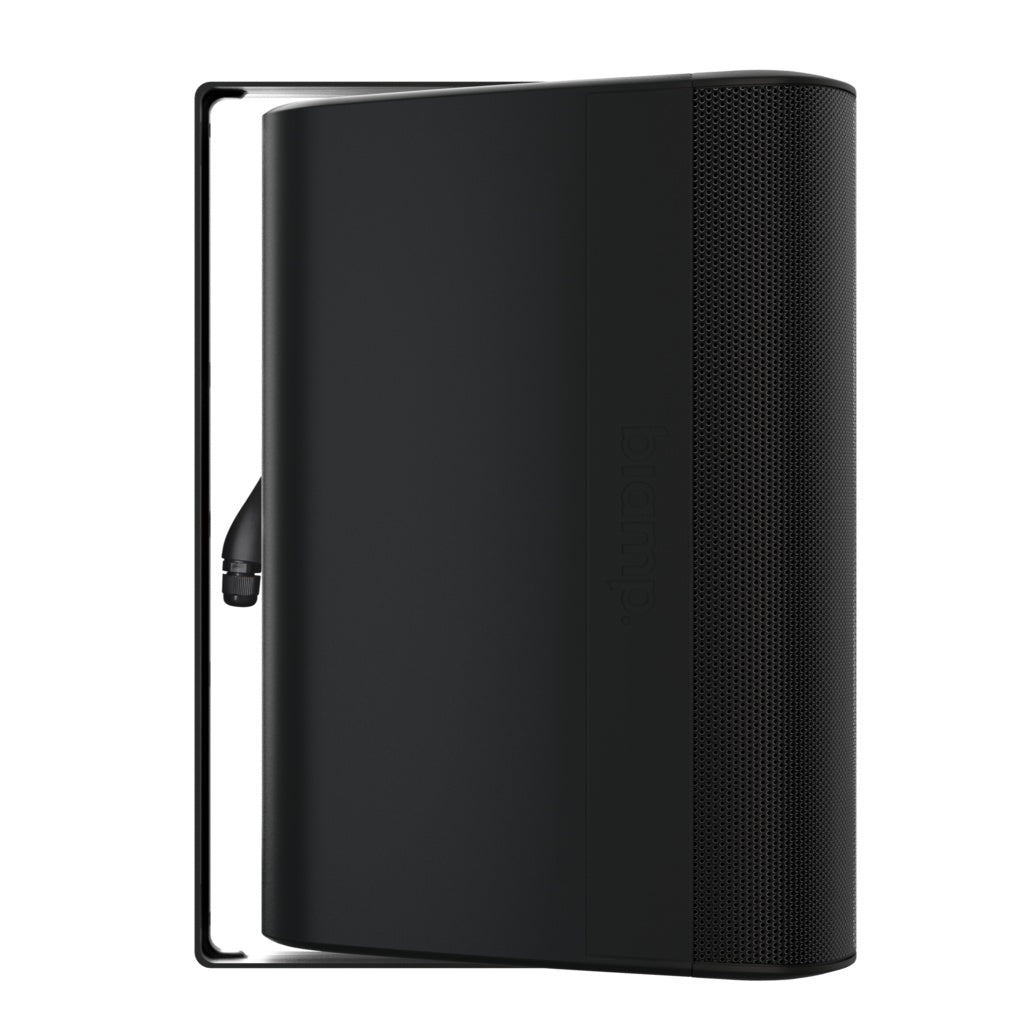

  • U-Bracket With Integrated ClickPlug Provides Weather-Sealed Connection And Theft-Resistant Mounting
  • Uniform Voicing With DX Ceiling Models Enables Seamless Integration Across Recessed And Surface Zones
Log in or register for YOUR best price

The Desono DX-S8 surface mount loudspeaker is engineered for integrators and facility managers who need consistent speech and music reproduction in both indoor and outdoor environments. Its coaxial driver configuration delivers 110° x 110° coverage with uniform frequency response across the listening area, eliminating dead zones common in distributed commercial audio systems.

Built to withstand direct weather exposure while maintaining aesthetic standards for corporate, hospitality, and educational facilities, this speaker transitions seamlessly from climate-controlled lobbies to uncovered outdoor patios. The built-in autoformer supports multi-tap 70V/100V distributed systems or direct low-impedance connection, giving system designers flexibility to match amplifier topology without external transformers.

The included U-Bracket and ClickPlug system provides theft-resistant mounting and weather-sealed connections, reducing installation time and service calls. Uniform voicing with DX ceiling models allows integrators to mix surface and recessed speakers within the same zone without tonal shifts.

View full details

Specifications

Certifications
Environmental Rating
IP54 per IEC 60529
Solar Radiation
IEC 60068-2-5
Salt Mist
IEC 60068-2-11
SO2 Resistance
IEC 60068-2-42
Chlorine Resistance
IEC 60068-2-60
Zoom Certified
Yes
Safety
CSA 62368-1
Dimensions
Height
15.24"
Width
10.04"
Depth
11.57"
Weight
Weight
17 lbs
Electrical
Impedance
7Ω
Continuous Power
175W
Peak Power
700W
70V Taps
120W, 60W, 30W, 15W
100V Taps
120W, 60W, 30W
Audio
Loudspeaker Type
2-way coaxial
Transducer LF
1 x 8" woofer
Transducer HF
1 x 1.25" exit compression driver
Crossover Frequency
1.4 kHz
Operating Range
62 Hz - 18 kHz
Dispersion
110° x 110°
Sensitivity
95 dB (2.83 V)
Continuous SPL
116 dB
Peak SPL
122 dB
Construction
Finish
Black RAL 9017
Grille Material
Powder-coated perforated Marine Grade aluminum with woven fabric backing
Enclosure Material
High-impact ABS plastic with UV-resistant matte finish
Bracket Material
Glass-filled nylon with UV-resistant finish
Mounting
U-Bracket
Included Items
U-Bracket
Included
ClickPlug
Included
