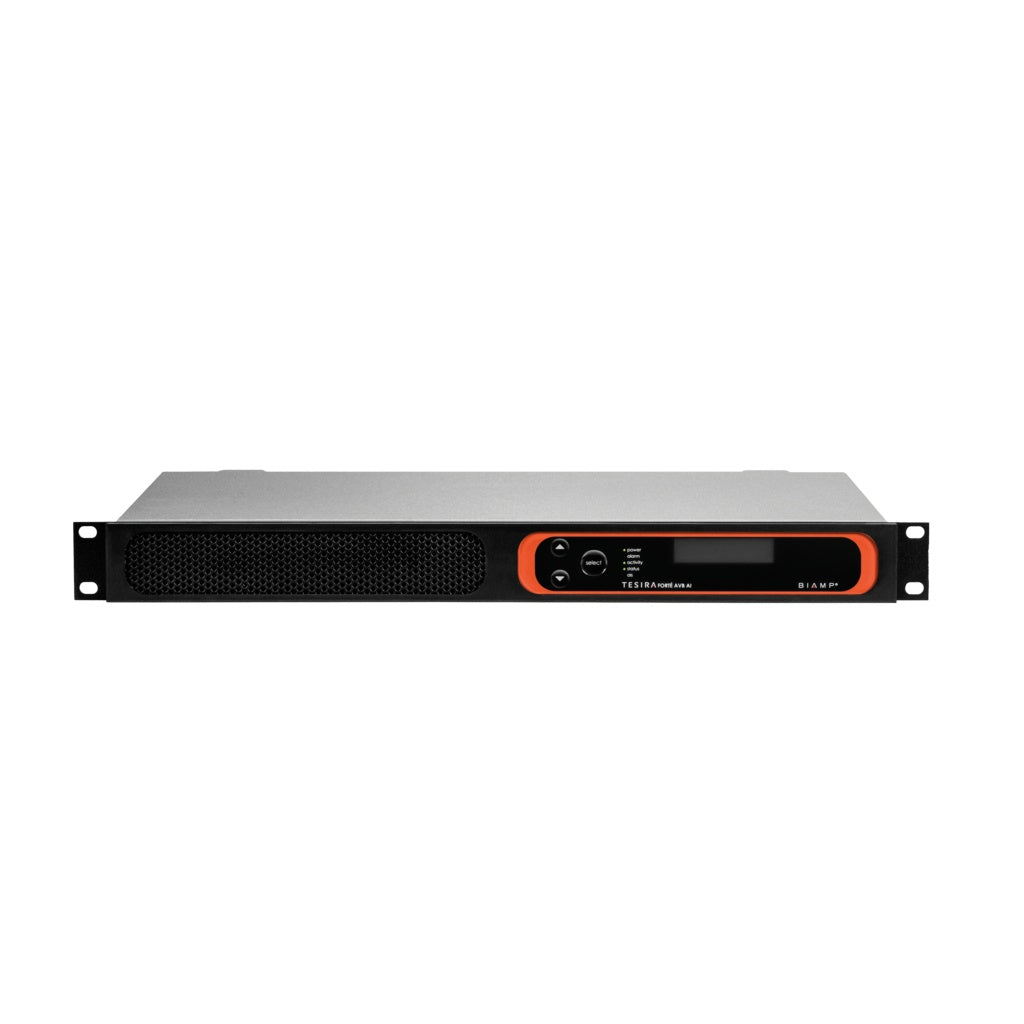

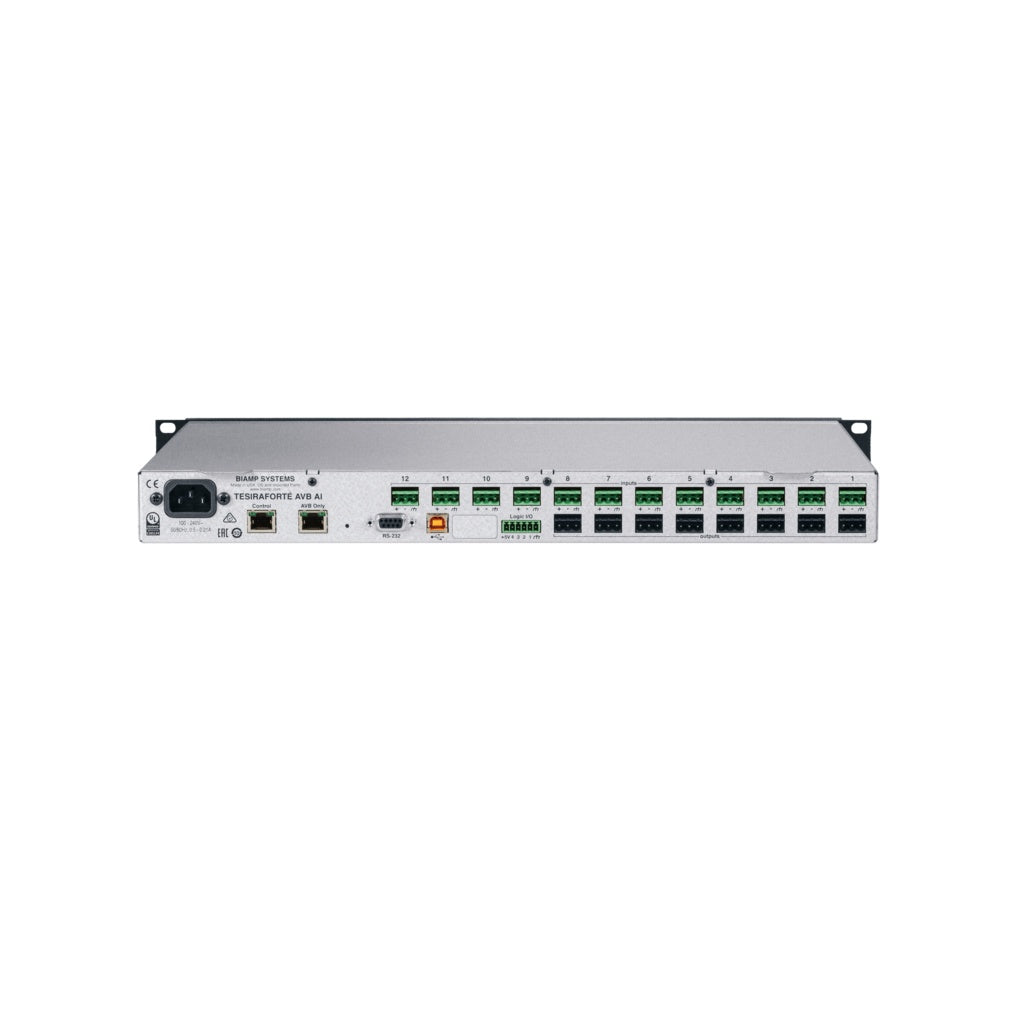

Biamp TesiraFORTÉ AVB AI 12x8 Networked DSP

Biamp TesiraFORTÉ AVB AI 12x8 Networked DSP

SoundPro Item: 76417 | Part Number: 920-00396-00001

$3,657.50
$3,850.00 $3,657.50
Your Price Sold out
MSRP: $3,850.00 | MAP: $3,657.50

Usually ships in 5-7 business days

  • 128×128 AVB Channel Capacity Enables Large-Scale Networked Audio Distribution Across Complex Installations
  • Gigabit Ethernet Connectivity Provides Fast Network Communication And Simplified System Configuration
  • RS-232 And GPIO Ports Deliver Stable Integration With Third-Party Control Systems And Room Automation
  • Two-Line OLED Display With Capacitive-Touch Navigation Offers Intuitive On-Site System Monitoring And Diagnostics
  • Tesira Software Control Grants Full Access To Routing, Mixing, EQ, Dynamics, Filtering, And Delay Processing
  • TAA Compliance And Biamp Workplace Ready Certification Support Federal Procurement And Cloud-Based Management
Log in or register for YOUR best price

The TesiraFORTÉ AVB AI delivers high-channel-count AVB networking for integrators building multi-zone conferencing, presentation, and sound reinforcement systems. With 12 mic/line inputs, 8 mic/line outputs, and support for 128×128 AVB channels, it serves as a central hub for distributed audio architectures that require low-latency networked transport and flexible I/O allocation. Tesira software provides comprehensive access to EQ, dynamics, routing, mixing, and delay, enabling precise system tuning without additional hardware.

Built for control system integration, the processor includes Gigabit Ethernet, RS-232, and GPIO connectivity, allowing seamless communication with automation platforms and room peripherals. An onboard OLED display with capacitive-touch navigation offers immediate visibility into system status and diagnostic data, reducing troubleshooting time during commissioning and service calls. TAA compliance and Biamp Workplace Ready certification make it suitable for U.S. federal projects requiring secure cloud-based monitoring and management.

Backed by a 5-year warranty and equipped with an internal universal power supply, the TesiraFORTÉ AVB AI supports global deployment in commercial environments where network scalability, control flexibility, and long-term reliability are non-negotiable.

View full details

Specifications

Certifications
TAA Compliant
Yes
Compliance
FCC Part 15B, CE, UL/C-UL, RCM, RoHS
Dimensions
Height
1.75"
Width
19.0"
Depth
10.5"
Weight
Weight
8 lbs
Environmental
Ambient Operating Temperature Range
32-104° F (0–40° C)
Humidity
0–98%, non-condensing
Altitude
0-6,600 feet (0–2000 Meters) MSL
Power
Power Consumption
< 35W
Input Voltage
100-240VAC 50/60Hz
Phantom Power
+48VDC (7mA/input)
Audio
Analog Inputs
12
Analog Outputs
8
USB Audio Channels
up to 8
USB Bit Depth
16- or 24-bit
USB Sample Rate
48kHz
Sampling Rate
48kHz
A/D - D/A Converters
24-bit
Input Impedance (balanced)
8kΩ
Input Gain Range
0-66dB (6dB steps)
Maximum Input
+24dBu
Output Impedance (balanced)
207Ω
Maximum Output
+24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu (selectable)
THD+N (0dB gain, +4dBu input)
< 0.006%
THD+N (54dB gain, -50dBu input)
< 0.040%
Frequency Response
20Hz to 20kHz, +0.25 dB/-0.5 dB
EIN (22Hz to 22kHz)
< -125dBu
Dynamic Range (0dB gain)
> 108dB
Crosstalk (0dB gain, +4dBu input)
< -85dB
Crosstalk (54dB gain, -50dBu input)
< -75dB
Connectivity
AVB Channels
128×128
Ethernet
Gigabit
RS-232
Yes
GPIO
Yes
