Biamp Voltera A 300.2 Two-Channel Class D Amplifier

Biamp Voltera A 300.2 Two-Channel Class D Amplifier

SoundPro Item: 151890 | Part Number: 920-01948-00001

$1,007.00
$1,060.00 $1,007.00
Your Price Sold out
MSRP: $1,060.00 | MAP: $1,007.00

Usually ships in 5-7 business days

  • Independent Per-Channel Impedance Selection Accommodates Mixed Low-Z And High-Voltage Loudspeaker Topologies Without External Transformers
  • Manual Gain Trim With Boost Capability Enables Precise Level Matching And Headroom Optimization Without DSP
  • Whisper Mode Fan Operation Maintains Inaudible Cooling Performance In Noise-Sensitive Boardrooms And Classrooms
  • Half-Rack Form Factor With Tandem Mounting Hardware Supports Space-Constrained Equipment Rooms And Remote Installations
  • Advanced Protection Circuitry Safeguards Both Amplifier And Connected Loudspeakers Against Thermal And Electrical Faults
  • Five-Year Warranty And TAA Compliance Meet Procurement Standards For Government And Enterprise Projects
Log in or register for YOUR best price

The Voltera A 300.2 is engineered for commercial integrators who need compact, scalable amplification that adapts to changing load requirements. Independent per-channel impedance selection supports mixed low-Z and high-voltage loudspeaker topologies within a single installation, eliminating the need for multiple amplifier models across a project. Manual gain trim with up to 3 dB of boost enables precise level matching without external DSP, while high-pass filtering protects full-range transducers in distributed applications.

Intelligent thermal management includes a whisper mode fan designed specifically for noise-sensitive environments like boardrooms, classrooms, and worship spaces where equipment must operate unnoticed. The half-rack chassis and included mounting hardware support both traditional rack-mount installations and remote placement under tables, on walls, or above ceilings where rack space is unavailable or undesirable.

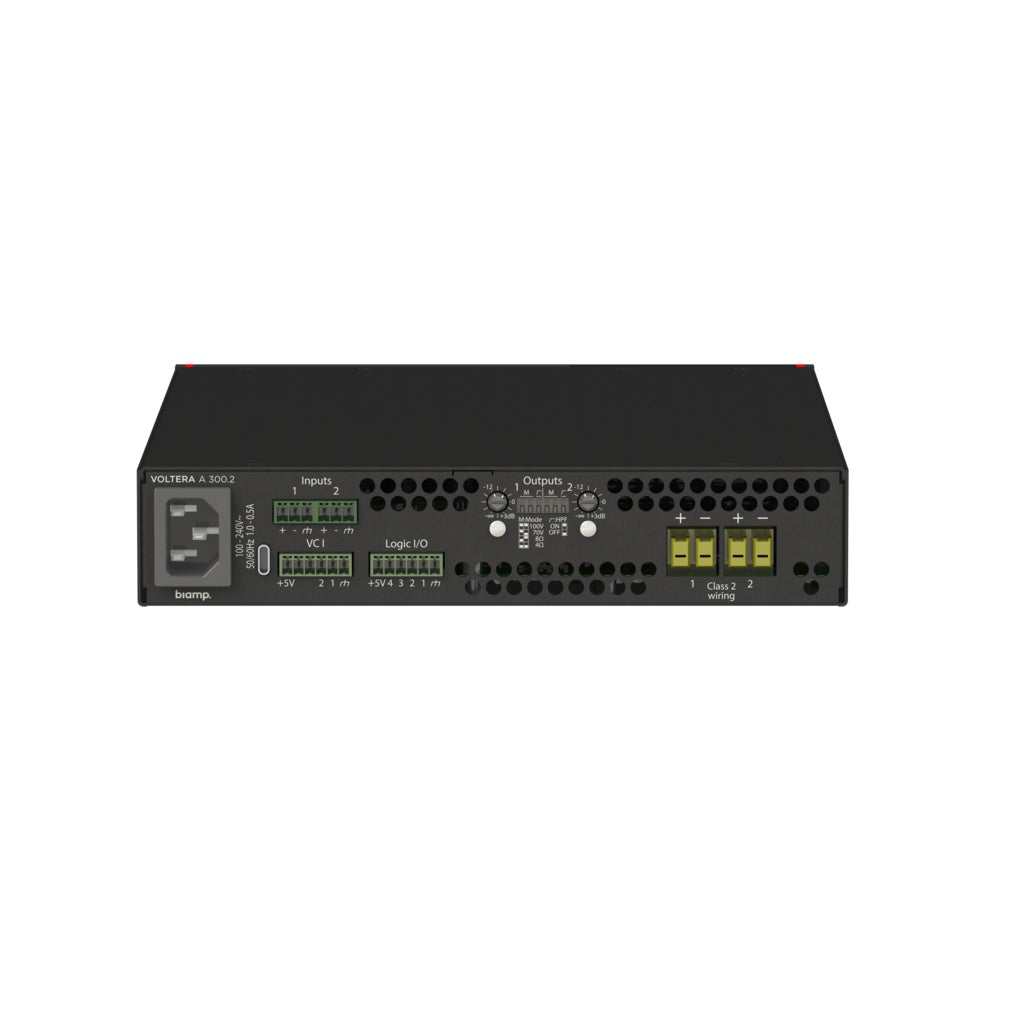

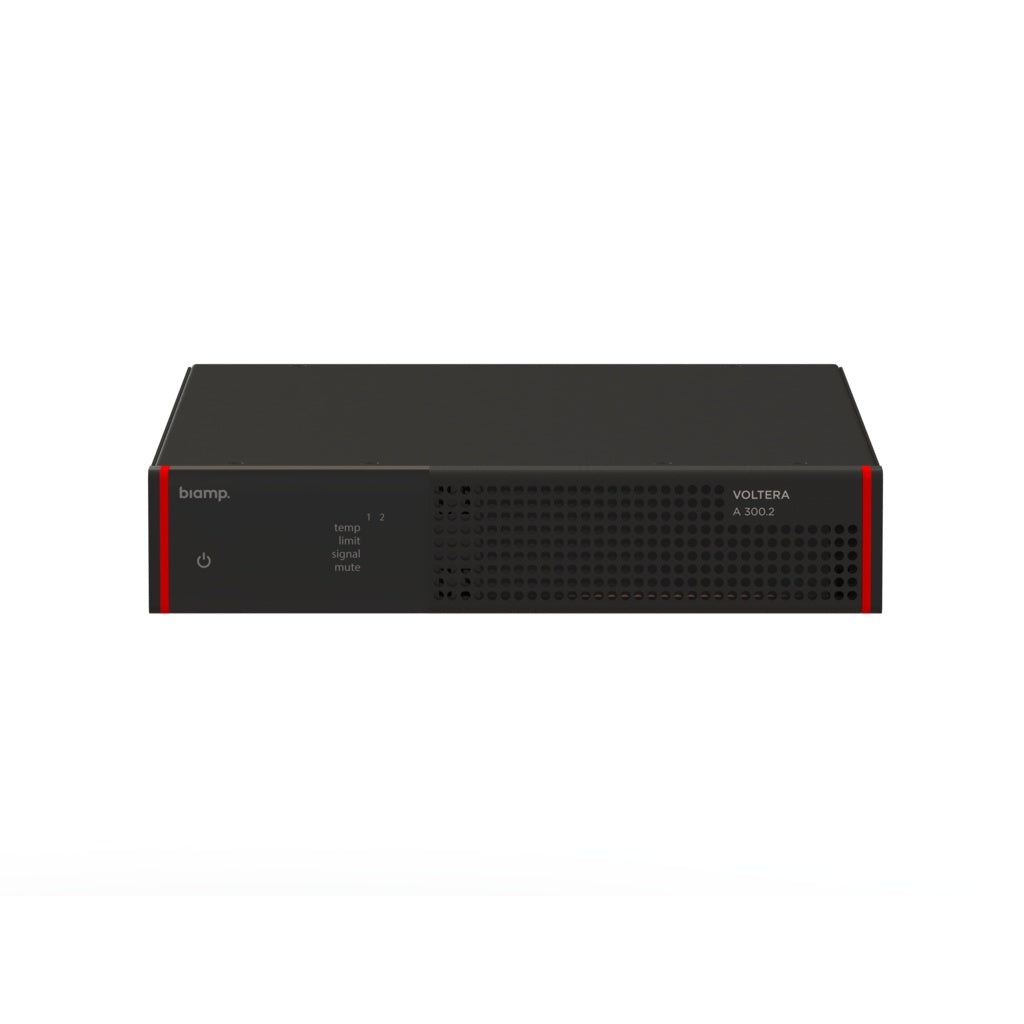

TAA compliance and a 5-year warranty address the procurement and lifecycle requirements of government, education, and enterprise customers standardizing on networked commercial audio infrastructure. Front panel indicators and rear control I/O provide real-time visibility into signal status, limiter engagement, and thermal conditions for proactive system monitoring and troubleshooting.

View full details

Specifications

Certifications
TAA Compliant
Yes
CE Marked
Yes
UL Listed
Yes
RoHS Compliant
Yes
Warranty
5 Years
Dimensions
Height
1.7"
Width
8.7"
Depth
11.4"
Weight
Weight
6.1 lbs
Power
Power Per Channel All Channels Driven 100V/70V
150 W
Power Per Channel All Channels Driven 8 Ohm
150 W
Power Per Channel All Channels Driven 4 Ohm
150 W
Max Power Per Channel Using Power Sharing 100V/70V
300 W
Max Power Per Channel Using Power Sharing 8 Ohm
300 W
Max Power Per Channel Using Power Sharing 4 Ohm
300 W
Total Output All Channels Driven
300 W
Maximum Output Voltage
147 Vpk
Maximum Output Current
16 Apk
Audio
Channels
2 Class D Channels
Input Impedance Balanced
8 kohm
Input Sensitivity
+4 dBu (1.23 Vrms)
Max Input Level
+24 dBu
Gain For 70V
35.2 dB
Gain For 100V
38.2 dB
Gain For 8 Ohm
29 dB
Gain For 4 Ohm
26 dB
THD+N 20-20000 Hz For 1W Into 8 Ohm
<0.5%
THD+N 1 kHz 1 dB Below Clip
<0.008%
Frequency Response 20-20000 Hz 8 Ohm Unweighted
+/-0.5 dB
Channel Separation Crosstalk At 1 kHz
>75 dB
Controls
Mode Switch Per Channel
4 Ohm / 8 Ohm / 70V / 100V
High Pass Filter
70 Hz 12 dB/octave (on/off)
Gain Trim
0 dB default, -infinity to +3 dB
Included Items
Rack Solution
Single/tandem 19-inch 1 RU mount
Mounting Brackets
Under table/wall/ceiling brackets
