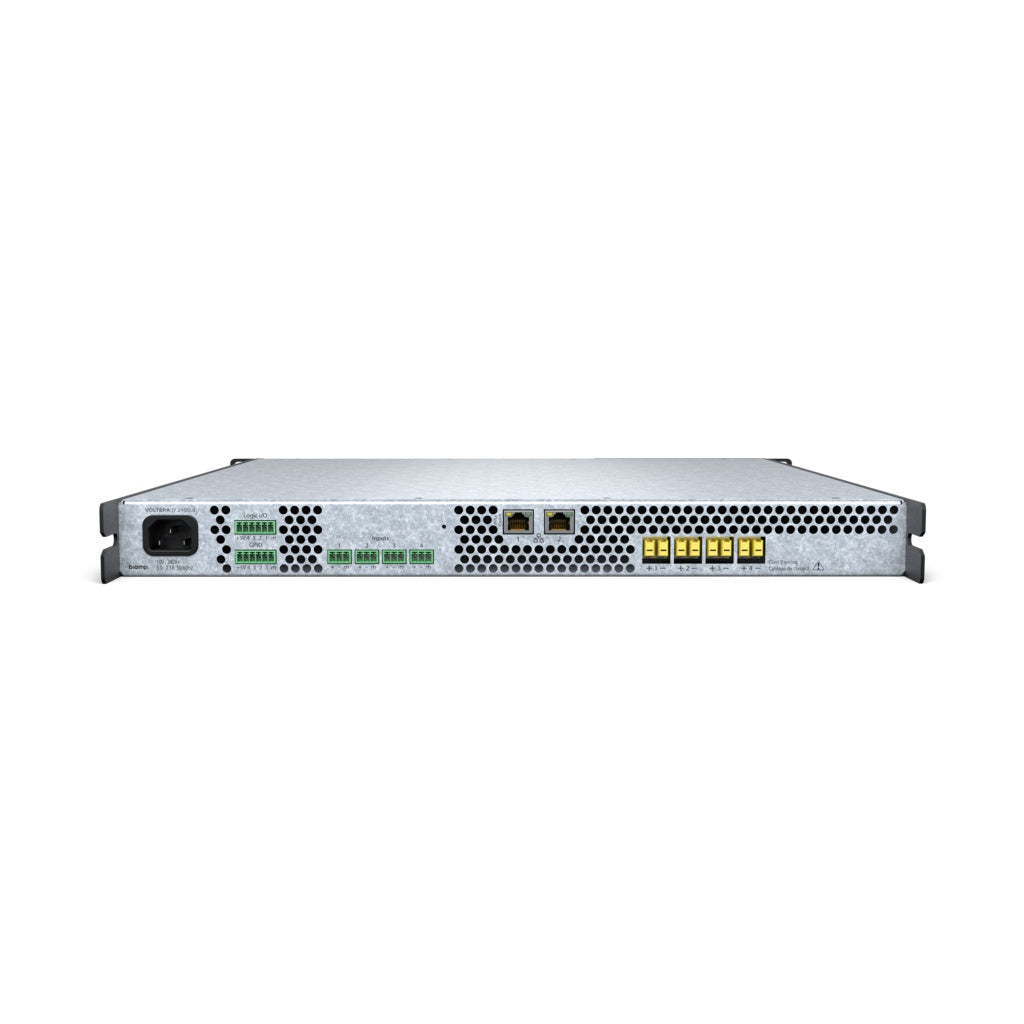

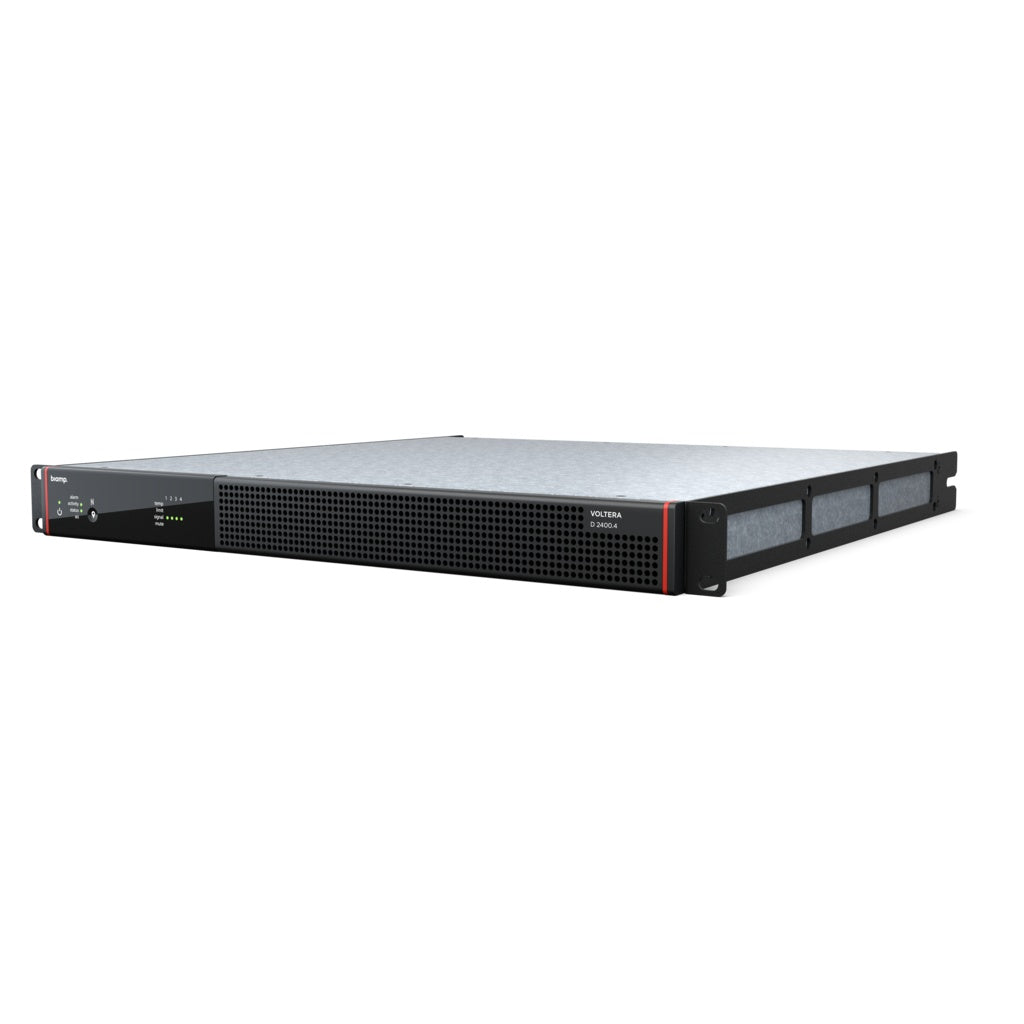

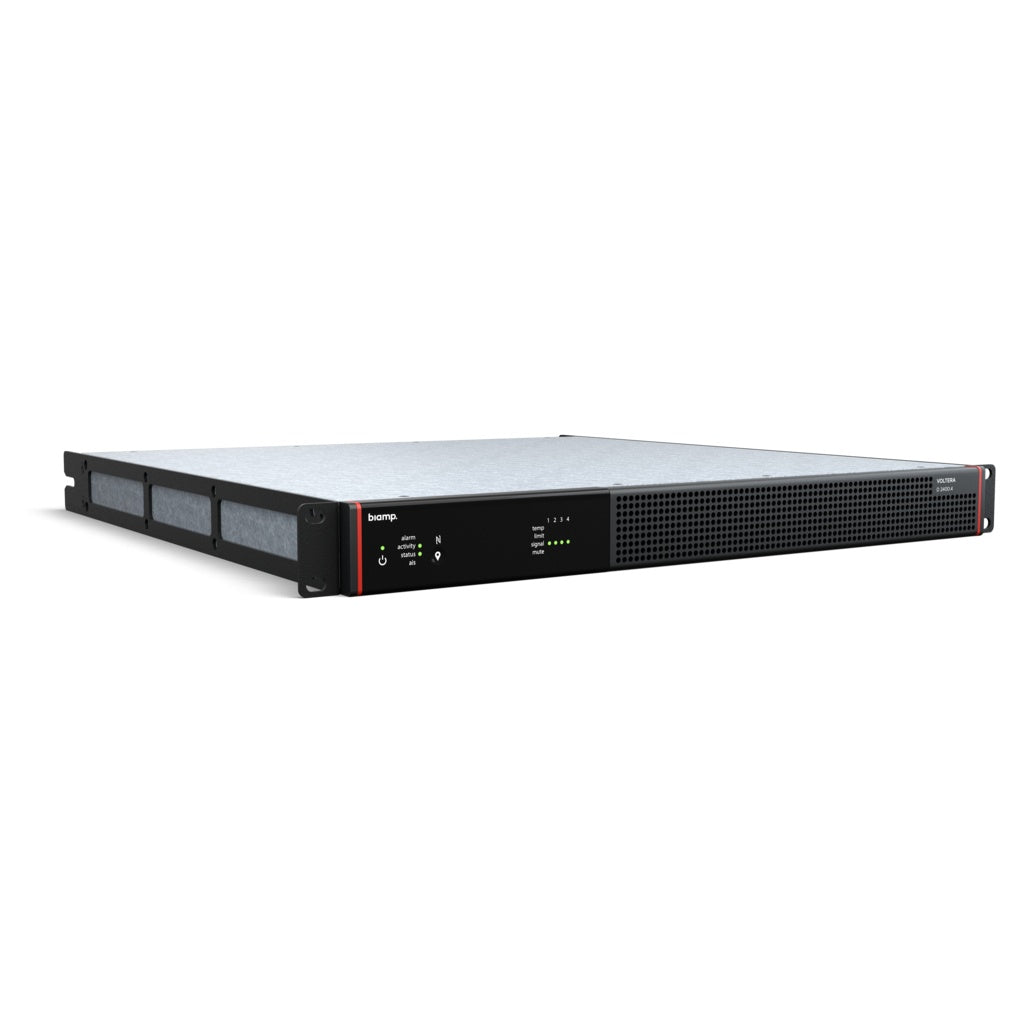

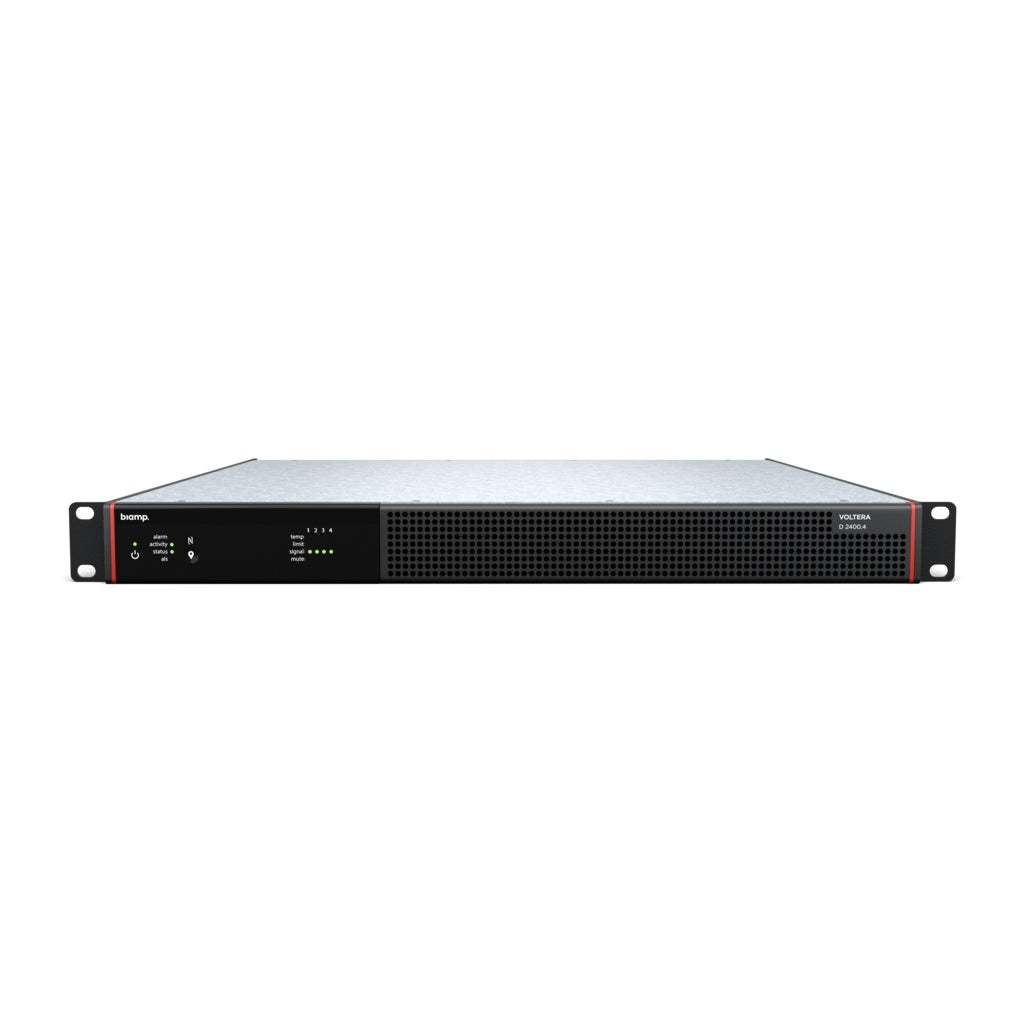

Biamp Voltera D 2400.4 2400W Networked Power Amplifier

Biamp Voltera D 2400.4 2400W Networked Power Amplifier

SoundPro Item: 200162 | Part Number: 920-01955-00001

$4,229.40
$4,452.00 $4,229.40
Your Price Sold out
MSRP: $4,452.00 | MAP: $4,229.40

Usually ships in 5-7 business days

  • Four Class D Channels Deliver 600W Per Channel With 2400W Total System Output In 1RU Chassis
  • Integrated DSP Engine Provides Loudspeaker Management Without External Processing Hardware
  • AVB, Dante, And AES67 Network Support Enables Flexible Deployment Across Networked Infrastructures
  • Power Sharing Architecture Supplies Up To 75% Of Total Output Through Any Single Channel
  • ALAMOS Preset Library With Nearly 700 Loudspeaker Profiles Accelerates Commissioning And Tuning
  • Failover-To-Analog Operation Maintains Audio Continuity During Network Stream Interruptions
  • PoE+ Sustain Capability Prevents Processor Reboots During Mains Power Loss
Log in or register for YOUR best price

The Voltera D 2400.4 provides high-output networked amplification for medium and large commercial sound systems where power, efficiency, and intelligent signal management are critical. Built for corporate campuses, hospitality environments, houses of worship, and public gathering areas, it eliminates the need for external processors through onboard routing, equalization, filtering, delay, and protection algorithms. The integrated ALAMOS library offers nearly 700 optimized loudspeaker profiles for fast commissioning and consistent tonal results across varied models.

Network integration is comprehensive, supporting AVB, Dante, and AES67 for flexible deployment in converged, split, or redundant configurations. Failover-to-analog ensures uninterrupted playback if network streams are lost, while PoE+ input continuity prevents processor reboots during mains power interruptions. The amplifier drives low-impedance loads from 2.7 to 16 ohms as well as 70V and 100V constant-voltage topologies, offering installation versatility across distributed and point-source designs.

High peak-voltage output capability ensures efficient energy transfer to demanding loudspeaker systems, maintaining clean performance at elevated output levels. Power sharing allows any channel to access up to 75% of total system capacity, providing headroom during asymmetric loading conditions. Configuration and monitoring are managed through Tesira or VenueTune software, offering installers and operators complete visibility and control over system behavior in demanding operational environments.

View full details

Specifications

Amplifier
Channels
4 Class D channels
Power Per Channel All Channels Driven
600 W (Hi-Z 70/100V, 16 ohm, 8 ohm, 4 ohm, 2.7 ohm)
Max Power Per Channel Using Power Sharing Hi-Z 70/100V
1800 W
Max Power Per Channel Using Power Sharing 16 Ohm
800 W
Max Power Per Channel Using Power Sharing 8 Ohm
1600 W
Max Power Per Channel Using Power Sharing 4 Ohm
1800 W
Max Power Per Channel Using Power Sharing 2.7 Ohm
1800 W
Total Output All Channels Driven
2400 W
Maximum Output Voltage
160 Vpk
Maximum Output Current
40 Apk
Dimensions
Height
1.7"
Width
17.5"
Depth
16.9"
Weight
Weight
17.2 lbs
Audio
THD+N 1000 Hz At 1 dB Below Max Output
<0.05%
THD+N 20-20000 Hz For 1W
<0.05%
Frequency Response
+/-0.5 dB (20-20000 Hz, 8 ohm, unweighted)
Dynamic Range
117 dB
Crosstalk
>70 dB
Signal Processing
Latency Analog Input To Output
2.65 ms
Default Gain Analog Input To Output
29 dB
FIR Filter Taps Per Input
2048
FIR Filter Taps Per Output
2048
Biquad Filters Per Output
24
Maximum Delay
≤2 s
Network
Network Ports
2 1000Base-T ports
Supported Network Media Formats
Dante, AES67, AVB
Supported Network Modes
Converged, split, redundant
Network Latency AVB
2 ms
Network Latency Dante
1/2 ms
Supported Sample Rates
96 kHz, 48 kHz
PoE+ Support
Port 1
Remote Interface
Tesira, VenueTune
Third Party Interface
TTP
Power
Nominal Voltage
100-240 VAC, 50/60 Hz
Power Connector
3-pin IEC C14 inlet for C13 cables
Cooling
Variable speed fans, front to back airflow
Connectivity
Analog Input Connectors
3-pin terminal block connectors with 0.15" pitch
Output Connectors
2-pin terminal block connectors rated for 41 Arms, up to 8 mm² (8.2 AWG) cables
Control And Monitoring I/O
Mute all channels (input), Health (output), Sleep mode status (output), Sleep mode (input)
Programmable GPIO
4 logic/voltage control pins
Environmental
Ambient Operating Temperature Range
32-104°F (0-40°C)
Humidity
0-95% non-condensing
Altitude
0-2000 m (0-6562 ft)
Certifications
TAA Compliant
Yes
Included Items
Included Accessories
Rear support kit for 19" 1 RU mount
