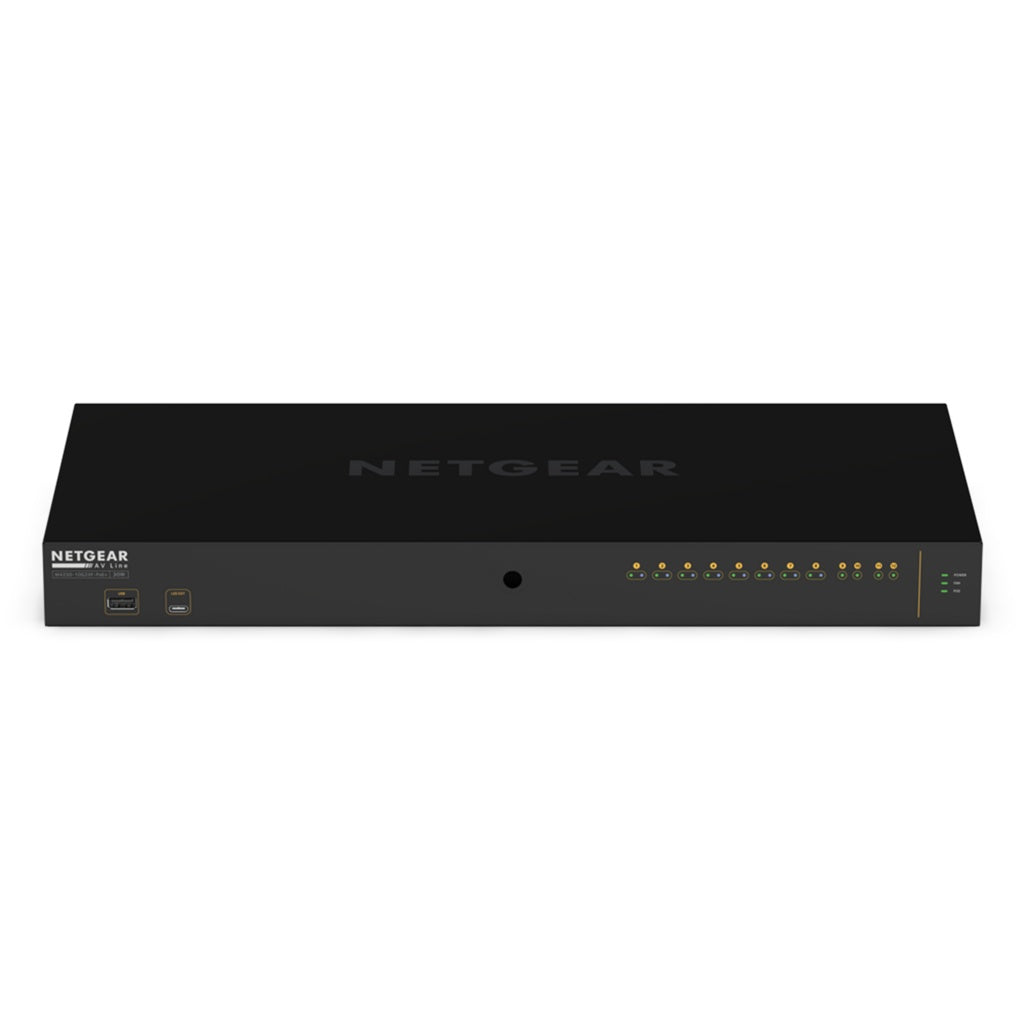

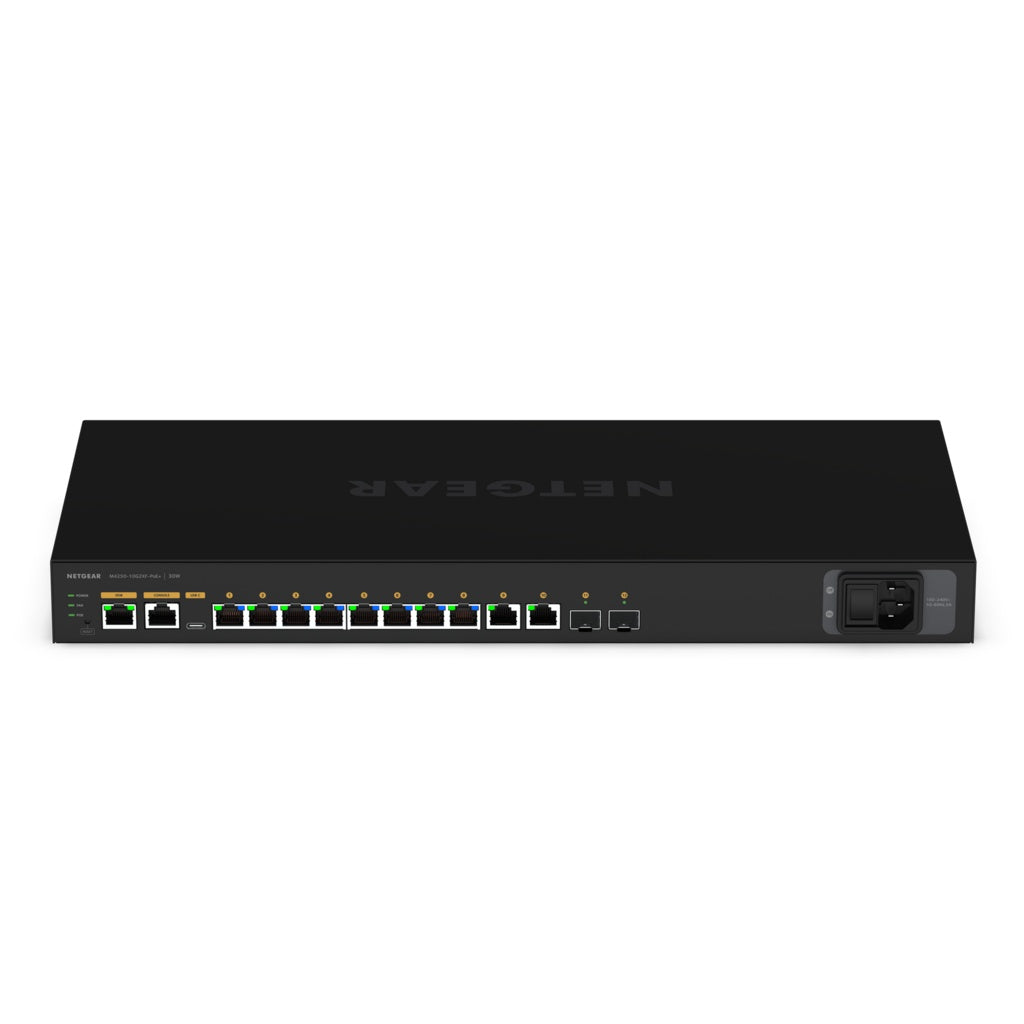

Biamp NMS-NG10GPX-AVB 10-Port Managed AVB Switch With PoE+
Biamp NMS-NG10GPX-AVB 10-Port Managed AVB Switch With PoE+
SoundPro Item: 141694 | Part Number: 920-01966-00001
Usually ships in 5-7 business days
- Preloaded AVB License Eliminates Post-Deployment Configuration For Immediate Audio Network Operation
- Out-Of-Box Dante And AVB Profile Ensures Optimal Qt X 800 Integration Without Manual VLAN Setup
- Eight PoE+ Ports With 240W Shared Budget Enable Ceiling Installation Without Electrical Homerun
- Dual 10G SFP+ Uplinks Support Daisy-Chain Topology For Systems Spanning 48 Masking Zones
- WELL Building Standard Compliance Pathway Documented For Sound Masking Credit Achievement
- Dual Warranty Coverage From Biamp And NETGEAR Provides Five-Year Plus Lifetime Hardware Protection
The NMS-NG10GPX-AVB is a purpose-built managed Ethernet switch for professional AV integrators deploying networked audio systems in corporate, education, and institutional environments. Based on the NETGEAR M4250-10G2XF-POE+ platform, it ships with AVB licensing already activated and a configuration file optimized for Dante and AVB traffic, eliminating the setup burden that generic IT switches impose on AV installers. Eight of the ten 1G copper ports deliver PoE+ with a shared 240W budget, allowing ceiling-mounted Qt X 800 controllers and other powered endpoints to run without dedicated electrical drops.
Two 10G SFP+ uplink ports provide the backbone capacity needed when daisy-chaining up to six units for large-scale masking arrays covering 48 zones. The switch supports WELL Building Standard criteria for sound masking, making it the recommended network infrastructure forQt X installations in open offices, divisible meeting rooms, and educational spaces where speech privacy and acoustic comfort are performance requirements. Backed by both Biamp's five-year warranty and NETGEAR's lifetime hardware coverage, the NMS-NG10GPX-AVB bridges AV engineering and IT infrastructure with vendor support from both sides.
