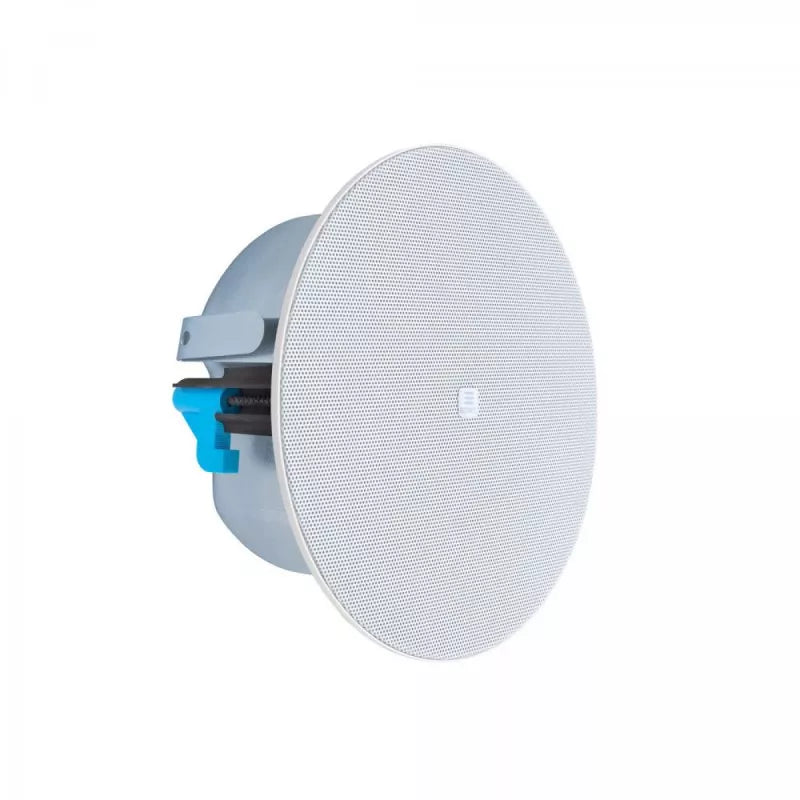

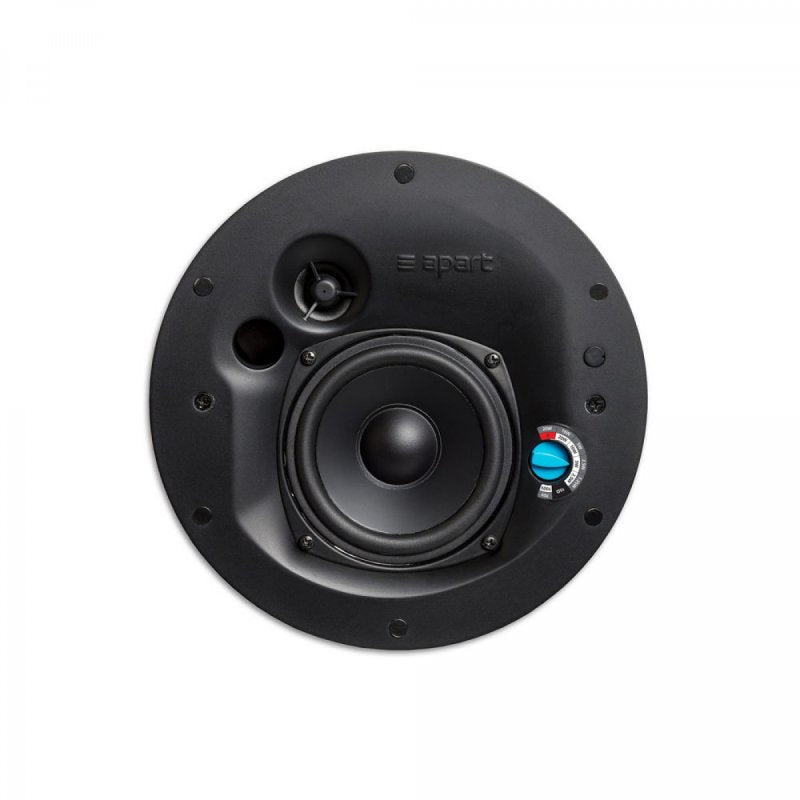

Biamp CM20DTS 4.25" Two-way, Thin-edge Ceiling Loudspeaker, with Back Can

Biamp CM20DTS 4.25" Two-way, Thin-edge Ceiling Loudspeaker, with Back Can

SoundPro Item: 129523 | Part Number: CM20DTS

$160.00
$160.00 $160.00
Your Price Sold out
MSRP: $160.00 | MAP: $160.00

Usually ships in 5-7 business days

  • loudspeaker system: 2-way
  • woofer size: 4.25 inch
  • 70V transformer power taps: 20 - 10 - 5 - 2.5 - 1.25 watts
  • impedance: 16 ohms
  • low impedance dynamic power: 60 watts
Log in or register for YOUR best price

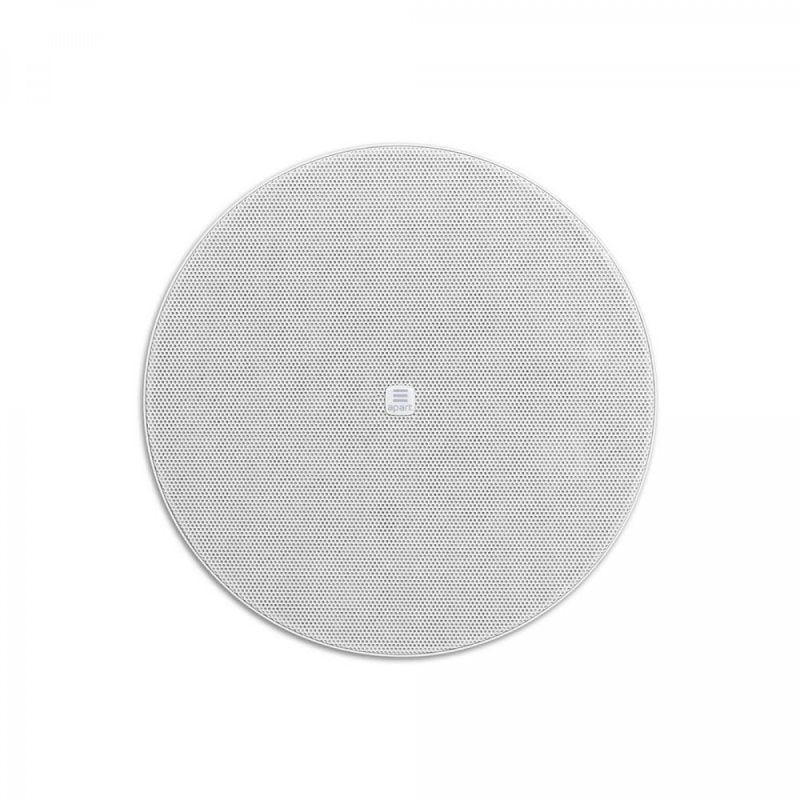

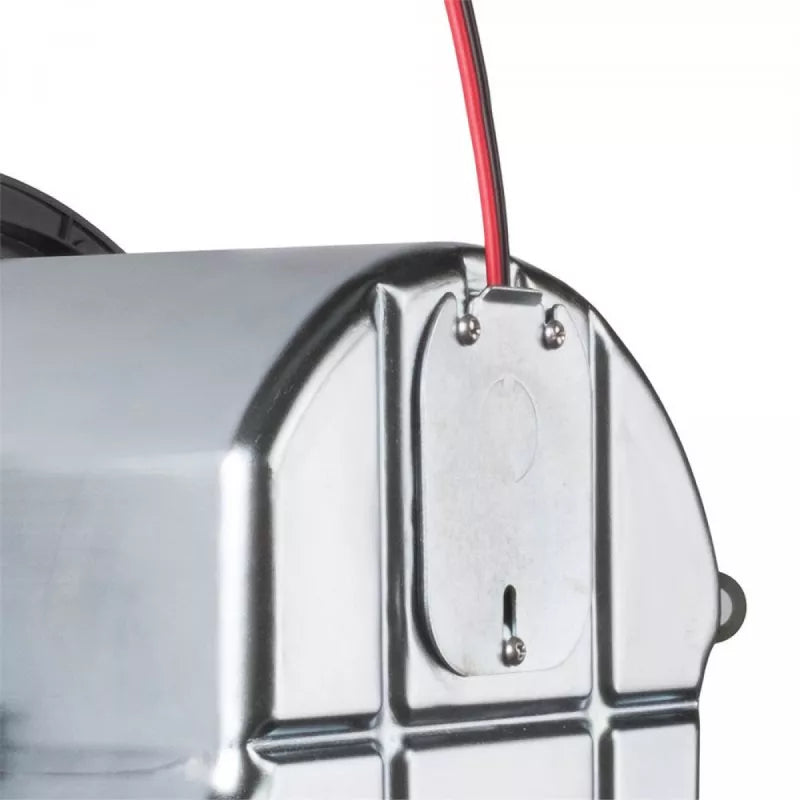

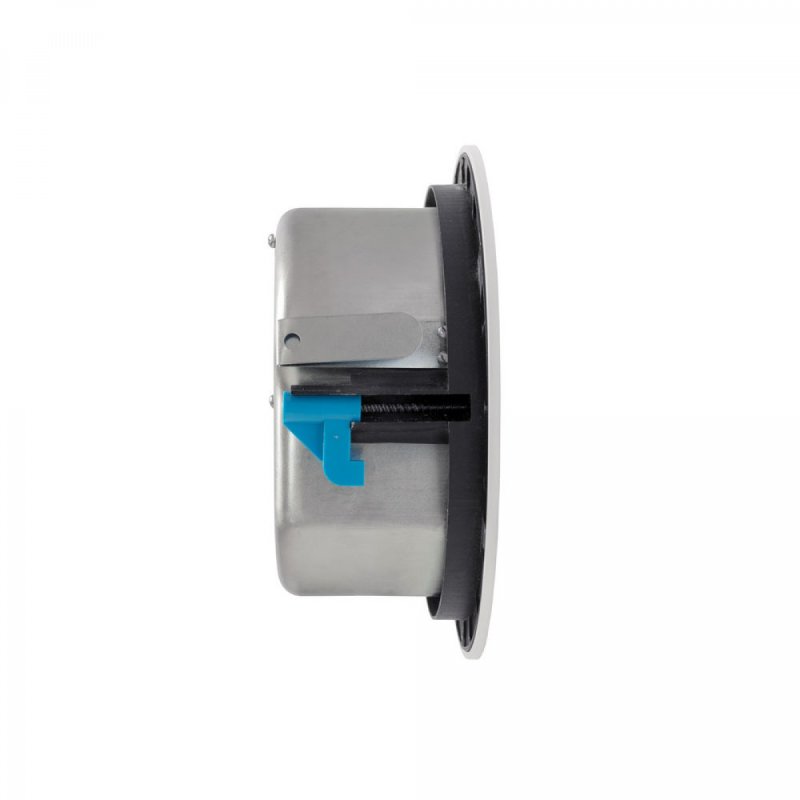

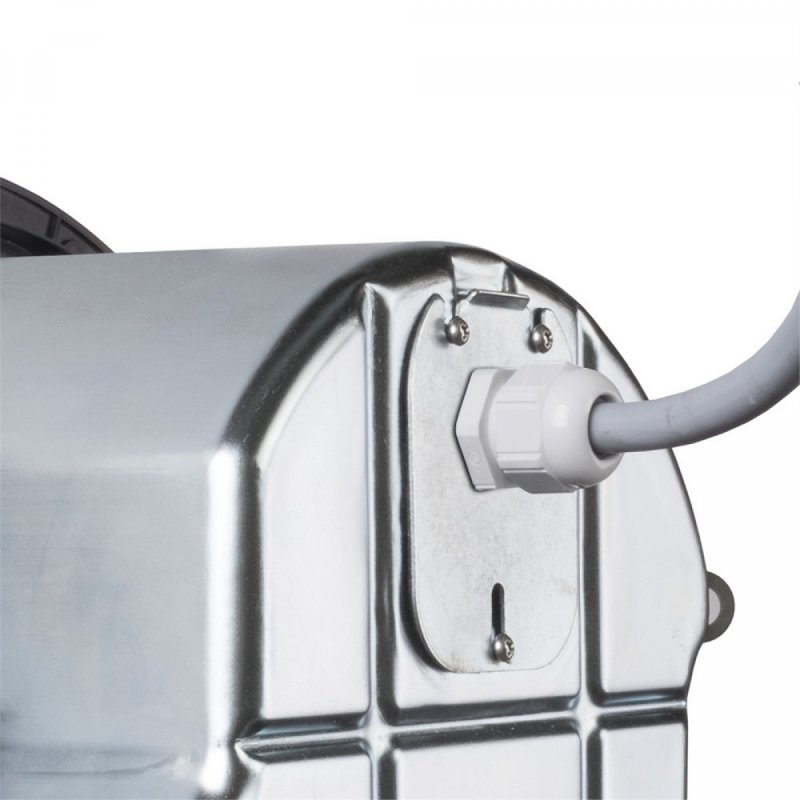

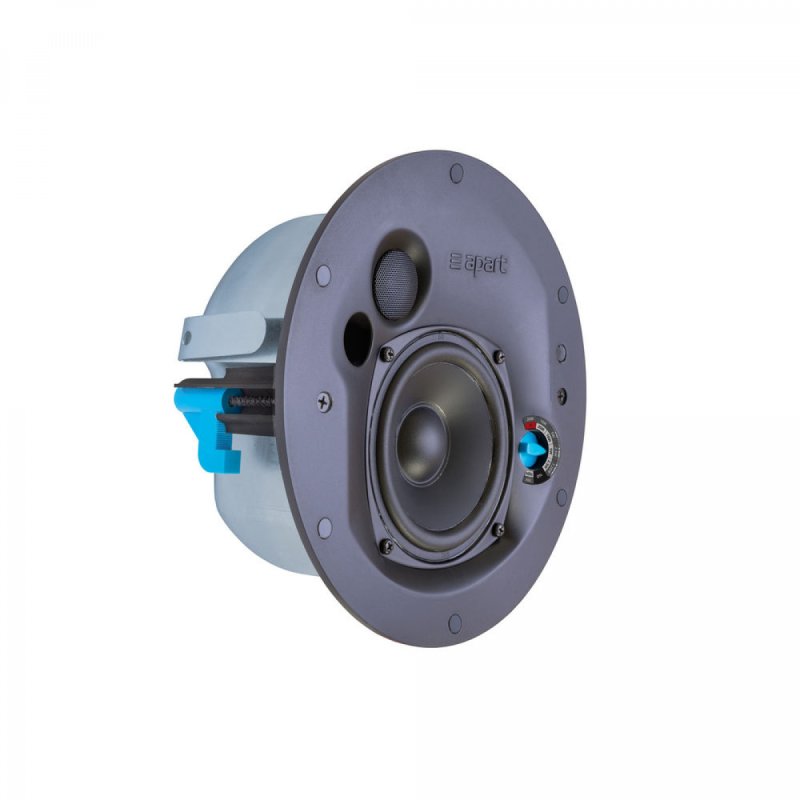

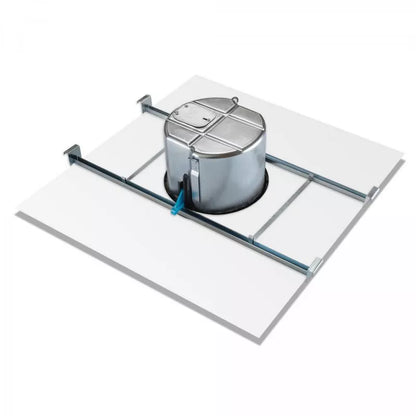

The versatile CM20DTS 4.25" two-way built-in design loudspeaker produces a dynamic and warm sound that is ideal for high-quality background music and voice reproduction. The back can with only 83.5mm (3.287") built-in depth is the shallowest in the US market. The uncompromised sound quality and controlled sound performance makes it suitable for any kind of ceiling structure. The CM20DTS has a rotatable 70/100-volt power tapping selector on the front and offers 16 ohms connectivity. The thin-edge grill with integrated neodymium grille fixing magnets will guarantee an easy, smooth and elegant integration in any environment. Related Products: ALL REVAMP Power Amplifiers, All MA Series Mixer Amplifiers

View full details

Specifications

70 volt
1
70V transformer power taps watts
20 - 10 - 5 - 2.5
applicable in 70V
yes
applicable low impedance
yes
closest RAL colour (subject to deviations)
RAL9010
colour
white
cutout in.
7.6
depth in.
3.31
frequency response Hz
80 - 20K
grille main material
steel
Horizontal dispersion angle 1000 Hz
180°
impedance ohms
16
installation grip range in.
0.12 - 1.61
IP rating
indoor use only
loudspeaker system
2-way
low impedance
1
low impedance dynamic power watts
60
low impedance RMS power watts
40
main construction material
ABS plastic
max SPL 1m dB
104
mounting system
2 screws
Net weight product lb.
4.52
outside diameter in.
8.78
SPL 1W/1m dB
88
tweeter size inch
1
Vertical dispersion angle 1000 Hz
180°
woofer cone material
coated paper
woofer size inch
4.25
