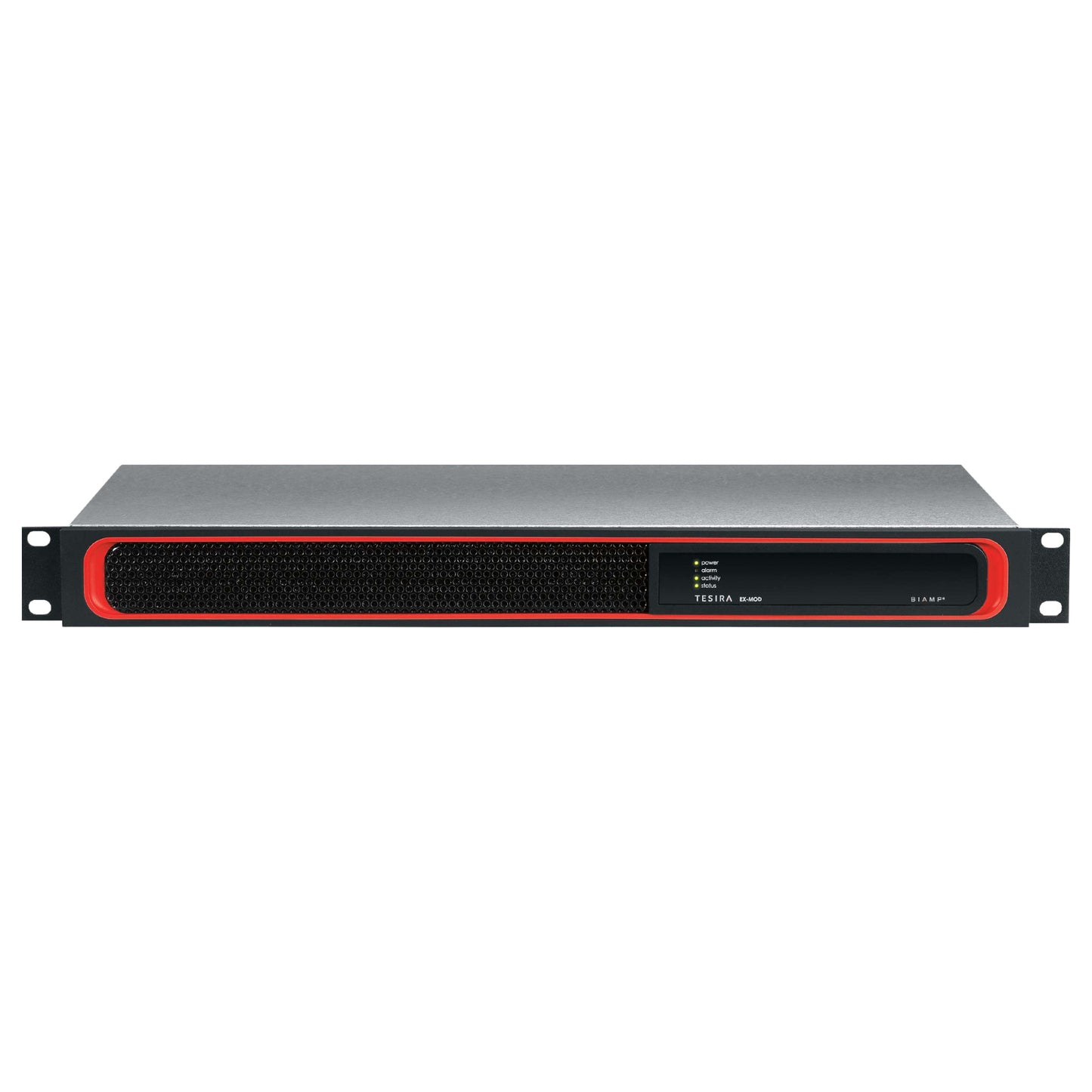

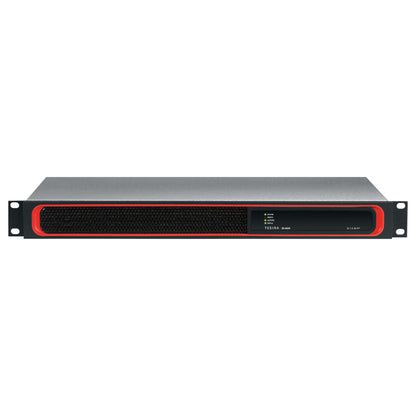

• Biamp Tesira EX-MOD Modular Expander Device

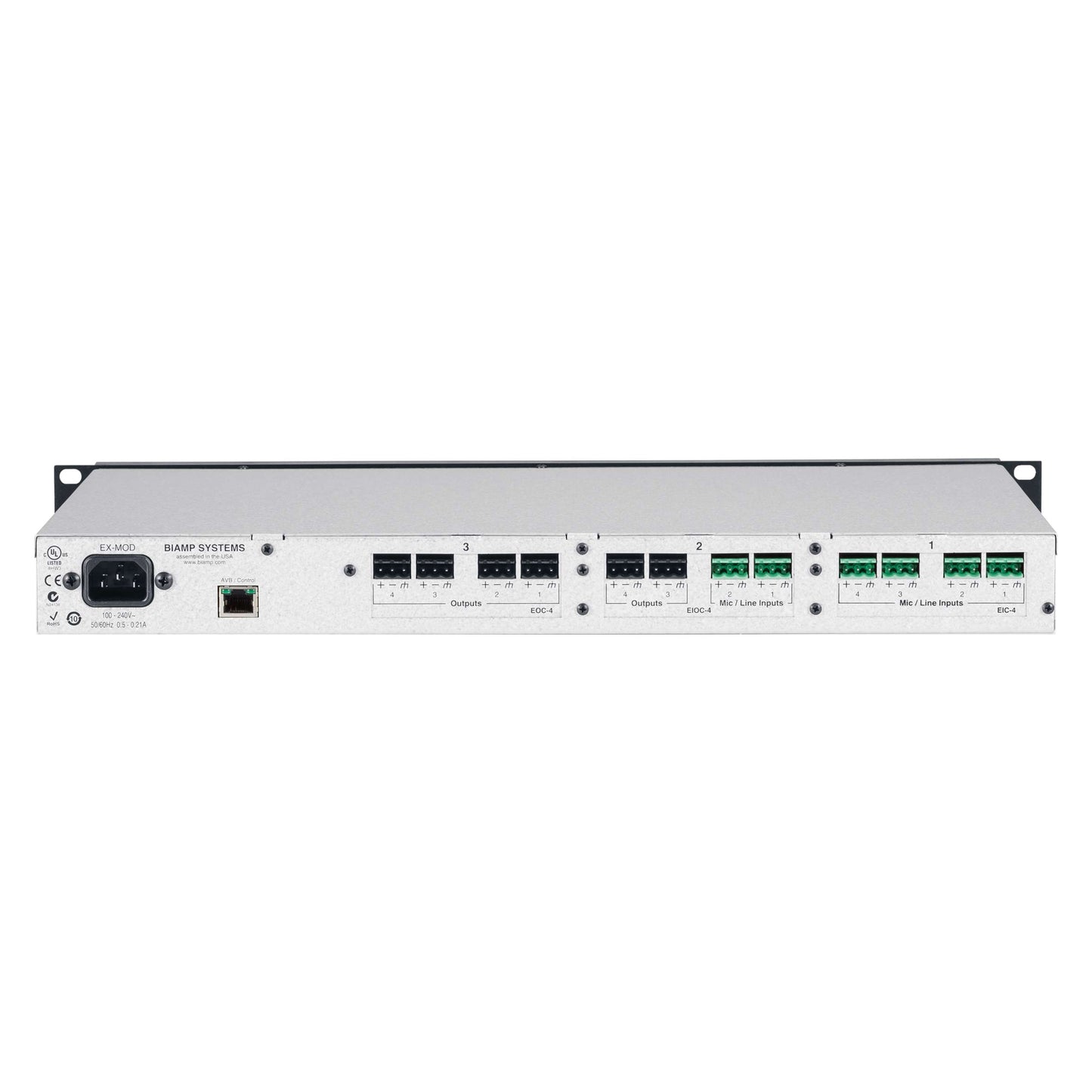

  • Biamp Tesira EX-MOD Modular Expander Device back
1 2

Biamp Tesira EX-MOD Modular Expander Device

Biamp Tesira EX-MOD Modular Expander Device

SoundPro Item: 76493 | Part Number: Tesira EX-MOD

$2,449.00
$2,449.00 $2,449.00
Your Price Sold out
MSRP: $2,449.00 | MAP: $2,449.00

Usually ships in 5-7 business days

  • Can be configured with up to three I/O cards
  • Up to 12 channels of analog audio
  • AVB/TSN connection to Tesira system for audio networking, configuration and control
  • Plug-in barrier strip connections on cards
  • Front panel LEDs for device status indications
  • Internal universal power supply
  • Rack mountable (1RU)
  • CE marked, UL listed, and RoHS compliant
Log in or register for YOUR best price

The Tesira EX-MOD is a modular expander device that is designed for use with AVB-enabled Tesira server-class devices. It can be configured with up to three 4-channel input and/or output cards for a maximum of 12 channels. The expander communicates with the Tesira AVB network for audio networking, configuration, and control.

View full details

Specifications

Certifications
Compliance
FCC Part 15B (USA), CE marked (Europe), UL and C-UL listed (USA & Canada), RCM (Australia), EAC (Eurasian Customs Union), RoHS Directive (Europe)
Dimensions
Tail Length**
up to 300ms
Height
1.75 inches (44 mm)
Width
10.5 inches (267 mm)
Depth
19.0 inches (483 mm)
Electrical
Output Impedance (balanced)***
200Ω
Power Consumption (100~240VAC 50/60Hz)
< 40W
Audio
Frequency Response
(20Hz~20kHz @ +4dBu): +0/-0.25dB
@ 0dB Gain, +4dBu in
< 0.006%
@ 54dB Gain, -50dBu in
< 0.040%
EIN (20Hz~20kHz, 66dB Gain, 150Ω)*
< -125dBu
Dynamic Range (20Hz~20kHz, 0dB)*
> 108dB
Input Impedance (balanced)*
8kΩ
Input Gain Range (6dB Steps)
0 - 66dB
Phantom Power*
+48 VDC, (7mA/input)
Connectivity
Maximum Input*
+24dBu
Maximum Output***
+24dBu
Shipping
Weight
7 lbs (3.2 kg)
General
Convergence**
up to 100dB/sec
Sampling Rate
48kHz
A/D - D/A Converters
24-bit
Notes
* Specification applies to EIC-4, EEC-4, or input channels of EIOC-4, ** Specification applies to EEC-4, *** Specification applies to EOC-4 or output channels of EIOC-4
