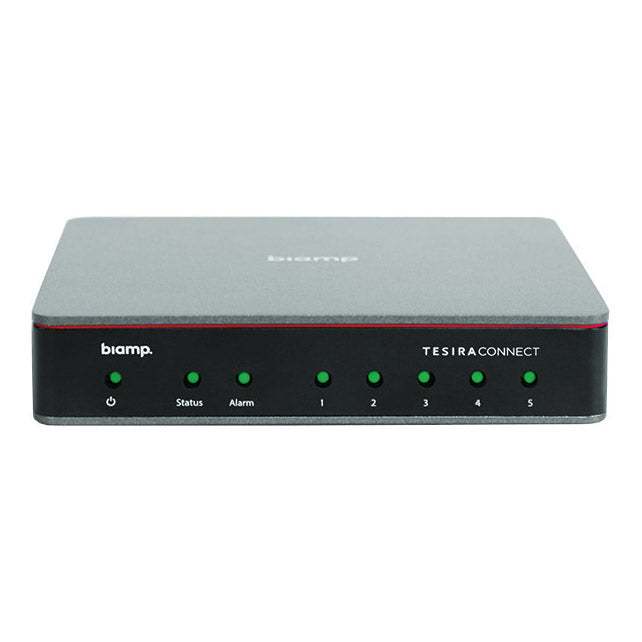

Biamp TesiraCONNECT TC-5 5-Port Network Expansion Device

Biamp TesiraCONNECT TC-5 5-Port Network Expansion Device

SoundPro Item: 45710 | Part Number: TESIRACONNECT TC-5

Regular price $1,486.00
Regular price $1,486.00 Sale price $1,486.00
Your Price Sold out
MSRP: $1,486.00 | MAP: $1,486.00

Usually ships in 5-7 business days

  • Five 1 Gbps RJ-45 ports
  • Four ports support PoE+ power (IEEE 802.3at Class 4, 30W)
  • Up to 4 TesiraCONNECT TC-5 devices can be daisy-chained together
  • Front panel LEDs indicate port connections, device status, and fault conditions
  • Fault reporting and device monitoring supported in SageVue
  • Out-of-the-box compatibility with Tesira conferencing products
  • External universal power supply
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems’ five-year warranty

TesiraCONNECT TC-5 serves as the central connection point for all Biamp devices in a conference room. It simplifies conferencing installations by providing power and media over a single category cable between devices such as Tesira AVB DSPs, USB extenders, PoE+ amplifiers, and microphones. Four of the five Gigabit RJ-45 ports provide PoE+ power (IEEE 802.3at Class 4, 30W) to connected endpoints, while the remaining RJ-45 port is used for DSP connection or daisy-chaining TesiraCONNECT TC-5 devices together. TesiraCONNECT TC-5 eliminates the need for third-party switches; it works out-of-the-box with Tesira products and does not require any device configuration. The small form factor allows it to be easily mounted to a wall or under a table, or placed above the ceiling or inside a credenza in the conference room.

View full details
  • Number of ports5
  • Connector typeRJ-45
  • Supported connection speeds100Mbps, 1Gbps
  • Number of PoE+ powered ports4
  • Supported IEEE protocols802.1, 802.1at, 802.1w, 802.1AS, 802.1BA, 802.1Qav, 802.3ab, 802.3af, 803.3u
  • Total PoE power budget120W
  • Max number of AVB streams150
  • Max daisychain device count4
  • Max number of supported endpoints13
  • Power consumption (100-240VAC 50/60Hz)< 132W
  • Coolingconvection
  • Ambient operating temperature32 - 104° F (0 - 40° C)
  • Humidity0-95% relative humidity (non-condensing)
  • Altitude0-6,600 ft (0-2000m) MSL
  • Dimensions (HxWxD)1.1x5.8x5.8"
  • Weight1.5 pounds (0.7 kg)
