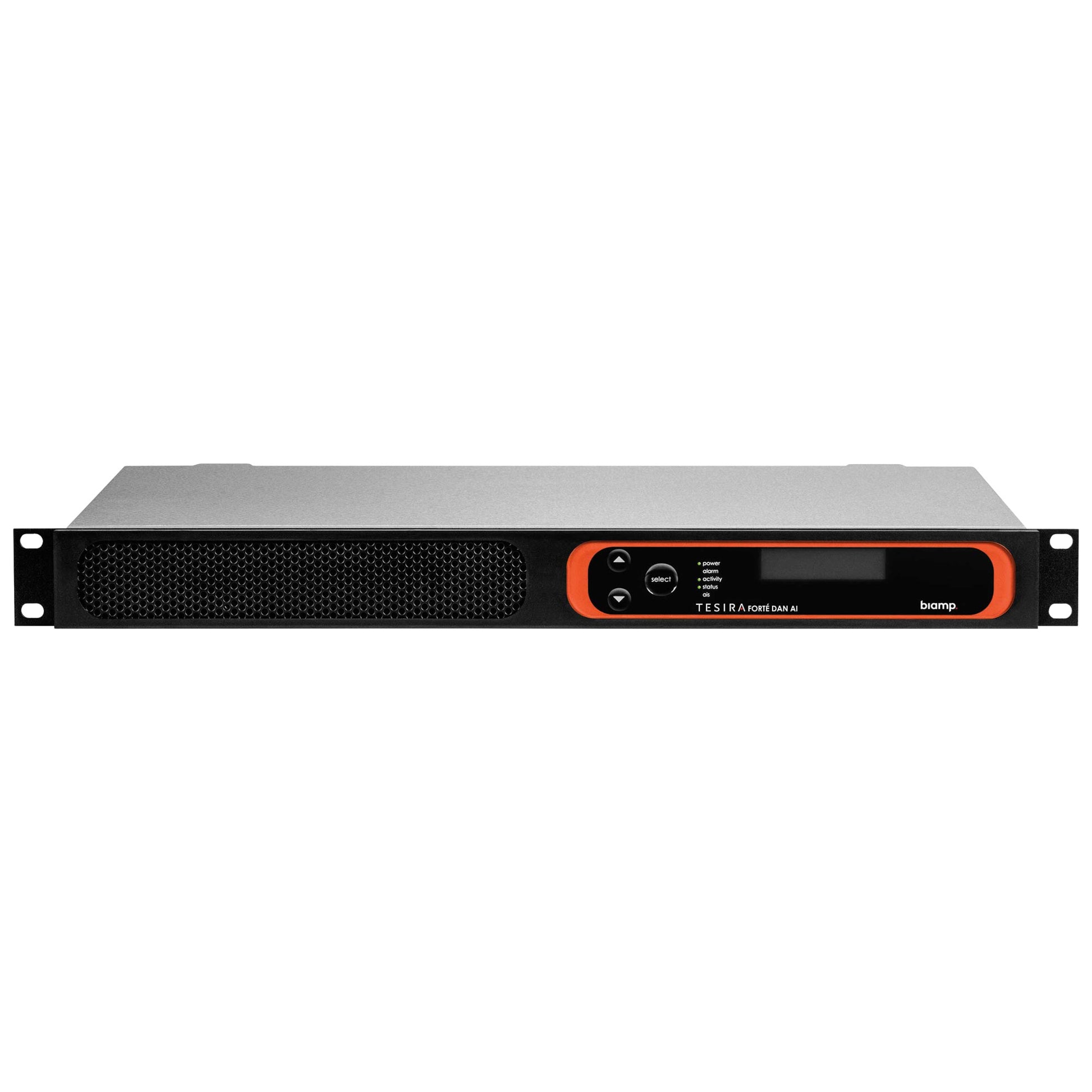

Biamp TesiraFORTE DAN AI Fixed I/O DSP

Biamp TesiraFORTE DAN AI Fixed I/O DSP

SoundPro Item: 129679 | Part Number: TesiraFORTÉ DAN AI

$4,200.00
$4,200.00 $4,200.00
Your Price Sold out
MSRP: $4,200.00 | MAP: $4,200.00

Usually ships in 5-7 business days

  • 32 x 32 channels of Dante
  • AES67-enabled Dante endpoint
  • 12 mic/line level inputs, 8 mic/line level outputs
  • Gigabit Ethernet port
  • RS-232 serial port
  • 4-pin GPIO
  • 2-line OLED display with capacitive-touch navigation
  • Rack mountable (1RU)
  • System configuration and control via Ethernet
  • Internal universal power supply
  • Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalization, filtering, and delay
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems’ five-year warranty
  • Compliant with the US Trade Agreement Act (TAA)
Log in or register for YOUR best price

The TesiraFORTÉ DAN AI is a digital audio server with 12 analog inputs and 8 analog outputs, up to 8 channels of configurable USB audio, and Dante digital audio networking.

The TesiraFORTÉ DAN AI complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

View full details

Specifications

Certifications
Compliance
FCC Part 15B (USA), CE marked (Europe), UL und C-UL listed (USA and Canada), RCM (Australia), RoHS Directive (Europe)
Dimensions
Height
1.75 inches (44 mm)
Width
19.0 inches (483 mm)
Depth
10.5 inches (267 mm)
Bit Depth
16- or 24-bit
Electrical
Output Impedance (balanced)
207Ω
Power Consumption
100-240VAC 50/60Hz: < 35W
Audio
Frequency Response
20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB
0dB Gain, +4dBu Input
< 0.006%
54dB Gain, -50dBu Input
< 0.040%
Dynamic Range (in Presence of signal)
22Hz to 22kHz, 0dB gain: > 108dB
Input Impedance (balanced)
8kΩ
Input Gain Range (6dB steps)
0-66dB
Phantom Power
+48VDC (7mA/input)
Sample Rate
48kHz
Connectivity
Maximum Input
+24dBu
Maximum Output (selectable)
+24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu
Environmental
Temperature Range
32-104°F (0–40°C)
Humidity
0–98%, non-condensing
Shipping
Weight
8 lbs (3.63 kg)
General
EIN (no Weighting, 22Hz to 22kHz)
< -125dBu
Sampling Rate
48kHz
A/D - D/A Converters
24-bit
Environment
Ambient Operating
Altitude
0-6,600 feet (0–2000 Meters) MSL
RF
Number of Channels
up to 8
