Specifications
Imaging
Image Sensor
Sony 1/2.8" CMOS - UHD
Effective Pixels
8.29 Megapixels
Lens
f=3.3~9.9mm
Zoom
Optical 3x, Digital 10x
Horizontal Angle of View
81.4° (W) ~ 31.3° (T)
Vertical Angle of View
50.5° (W) ~ 18.2° (T)
Diagonal Angle of View
92° (W) ~ 35.8° (T)
Aperture
F2 (W) ~ F3.7 (T)
Focus
TOF, Auto, Manual
Exposure
Auto, Shutter Priority, Manual, Bright
Backlight Compensation
Yes
Digital Noise Reduction
2D and 3D Digital Noise Reduction
SNR
>50dB
Preset Number
255
Video
Video Format
2160p @ 30/29.97/25fps, 1080p @ 30/29.97/25fps, 720p @ 30fps
Video Compression Format
H.264 up to 62Mbps
Connectivity

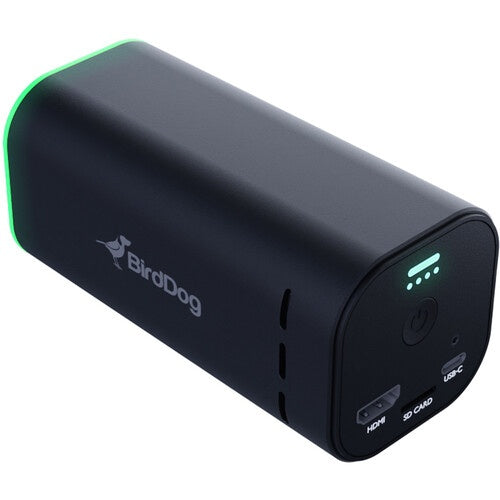

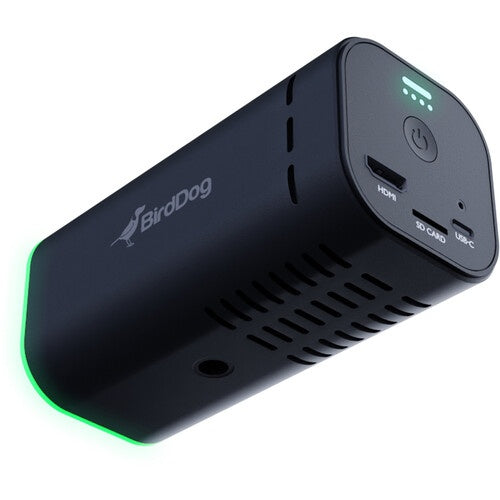

Video Output Interfaces
HDMI, USB-C UVC 1.0, Network (built-in Wi-Fi 6, Optional PoE 802.3af via dongle)
Network Interfaces
Wi-Fi 6 - IEEE 802.11ax
Encoder Network Protocols
NDI|HX2, NDI|HX3, RTSP, RTMP, SRT
Control Interface
Network, USB Type-C (UVC 1.0)
Control Protocol
VISCA IP, NDI, UVC
Memory Card
TF Card (Micro SD)
Electrical
Input Voltage
USB Type-C 5V, PoE IEEE 802.3af (optional via dongle)
Input Current
2.4A (Min) 5V
Power Consumption
5W (mean)
Dimensions
Camera Dimensions (W x H x D)
120mm x 56mm x 56mm
Package Width
13.8"
Package Length
18"
Package Height
12.2"
Weight
Camera Weight
335g
Product Weight
0.73 lbs
Package Weight
11.93 lbs
Environmental
Working Temperature
0°C ~ +40°C
Working Humidity
10% ~ 95%
Included Items

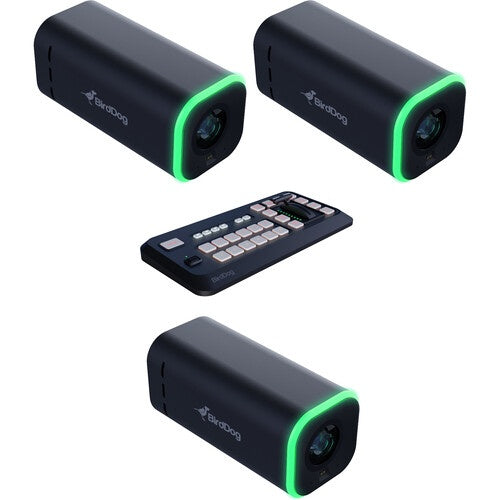

Cameras

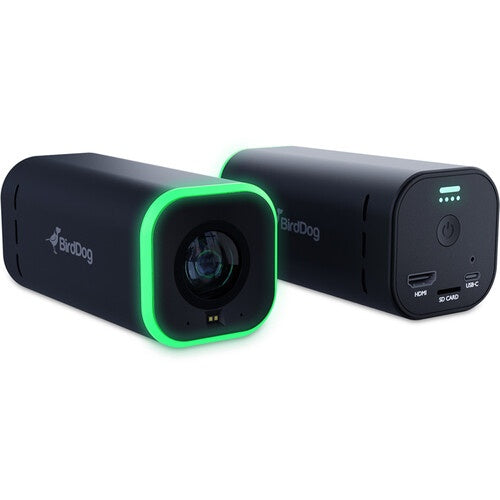

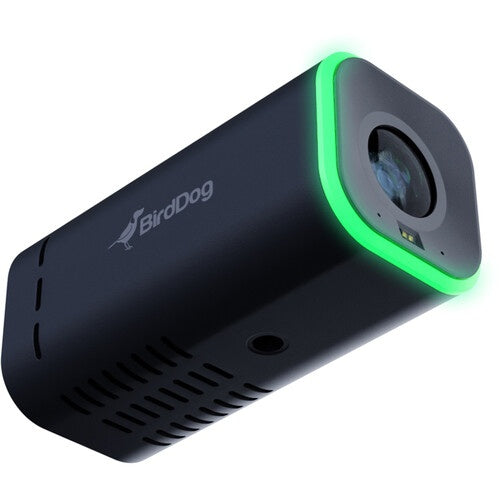

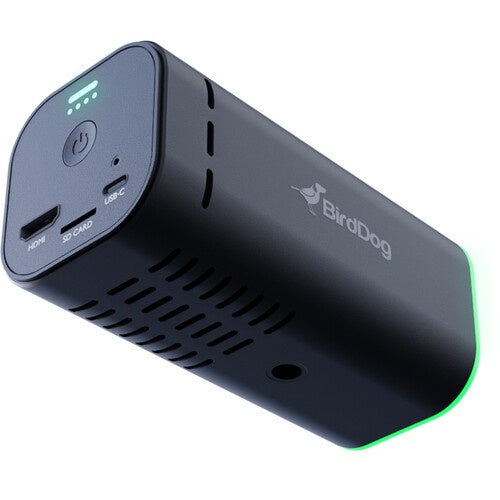

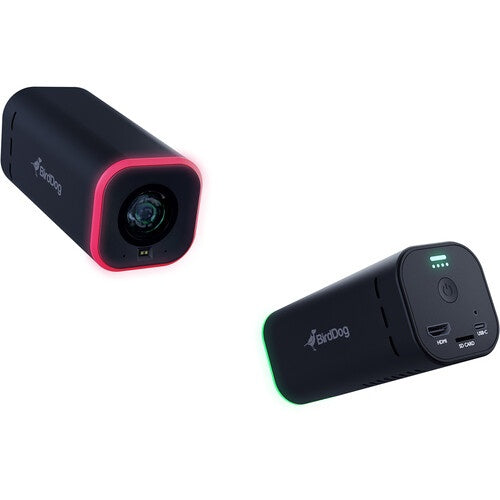

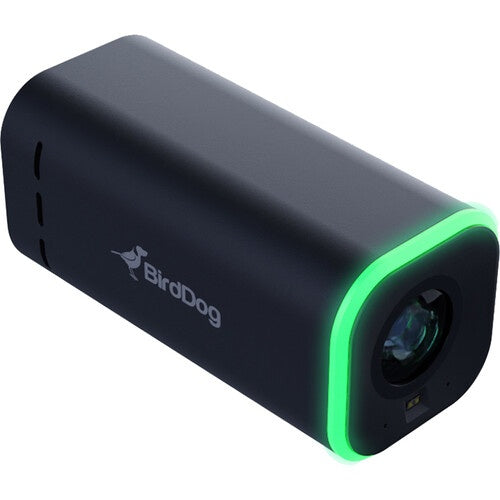

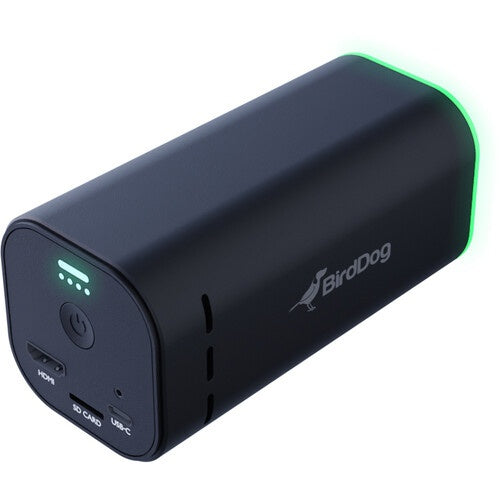

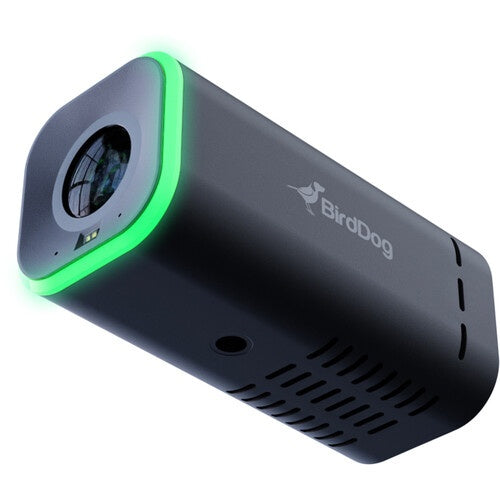

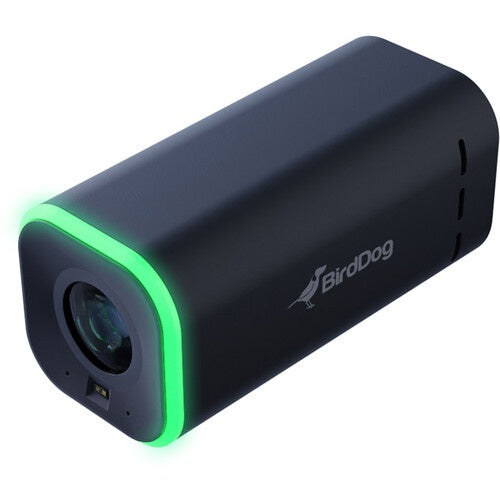

3x Maki Live Cameras

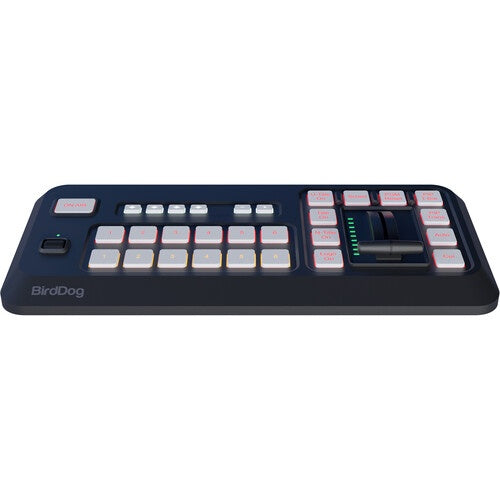

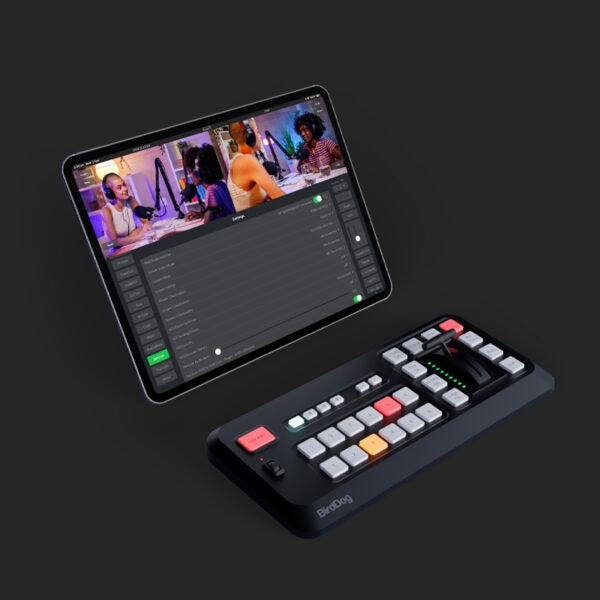

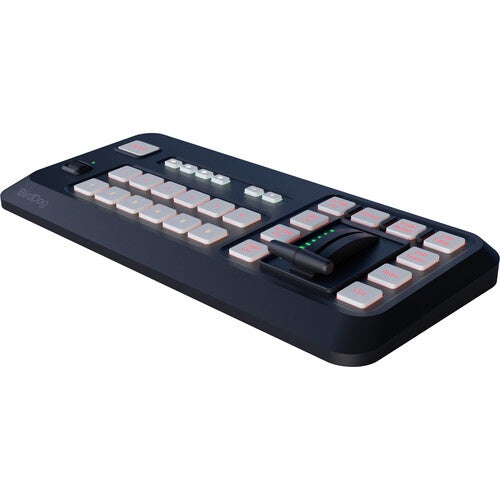

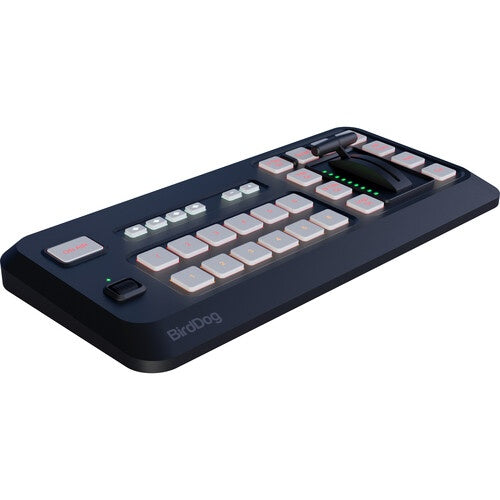

Control Surface
Yes

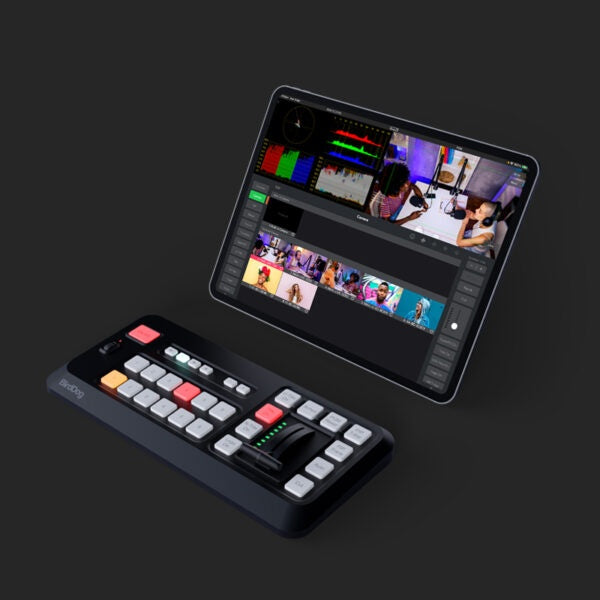

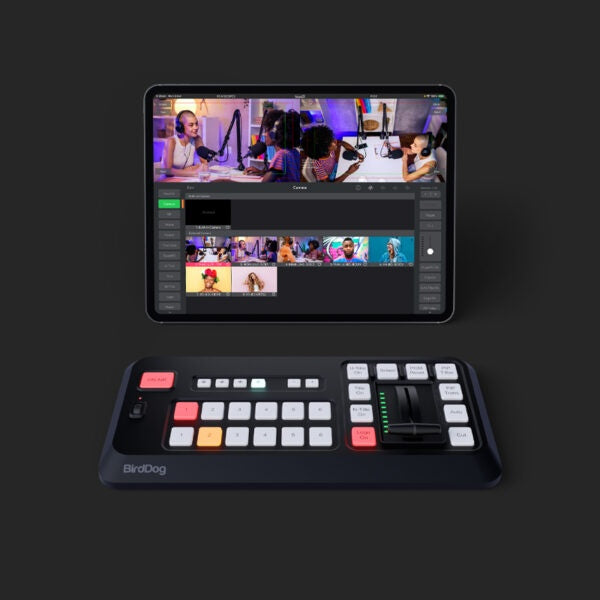

Maki Studio App
Yes
iPad
Not Included
