• BirdDog P4K 4K Full NDI PTZ Camera
1 1

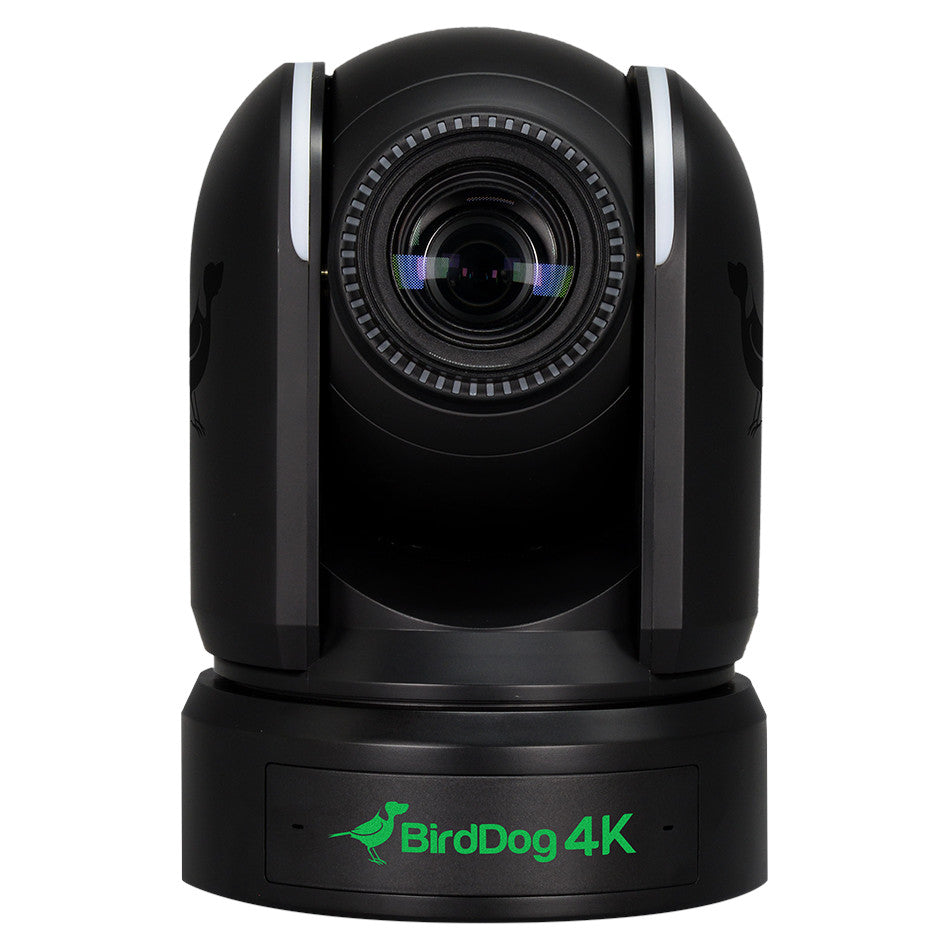

BirdDog P4K 4K Full NDI PTZ Camera | Color: Black

BirdDog P4K 4K Full NDI PTZ Camera | Color: Black

SoundPro Item: 51654 | Part Number: BDOG-BDP4K

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • New Codec Engine
  • Tighter Cam Control Integration
  • Sony 1” Sensor
  • Carl Zeiss Vario-Sonnar T lens
  • Advanced Colour Controls
  • Superfine Robotics
  • 360 degree Tally lights
  • Full NDI. 6G SDI. HDMI 2.0
  • Genlock
  • PTZ Keyboard
  • RESTful API
Log in or register for YOUR best price

BDP4K is the real deal. A huge 1” Sony Exmor R CMOS back lit Sensor and 14.4 million effective pixels enable P4K to deliver stunning pictures in 4K resolutions with Full Bandwidth NDI. Excellent light sensitivity makes P4K perfect for all broadcast applications, sports, remote studios, newsrooms, house of worship and any shoot where quality matters.

Sony 1” Sensor. Size does matter.

The best images come from the best sensors and the P4K is built exclusively around the best sensor in its category. The massive 1” Sony Exmor R CMOS backlit sensor delivers truly stunning pictures in all shoot modes and frame rates whether in HD or 4K.

Full NDI. No compromises.

In the world of NDI® there are two flavours, NDI® and NDI|HX. NDI&regl is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P4K is a Full NDI® camera.

More than just a production PTZ. Shoot true cinematic styles.

P4K is a PTZ designed for the most demanding live production shoots and supports all the traditional frame rates you would expect including 29.97 but now you can use your PTZ as a camera for TVC’s, drama, and shoot 24p for that wonderful cinematic look.

Advanced Colour Controls.

With user selectable gamma settings and black gamma adjustment, fine tuning your shot has never been more flexible in a PTZ. Sony’s legendary sensor technology sets the tone for your next quality production.

10-bit. NDI4.

P4K is a 10-bit sensor and with NDI4 you can have an end to end 10-bit workflow. Perfect for broadcasters and other productions where bit depth matters. With 10-bit support you can record the NDI feeds using free tools such as NewTek NDI Monitor or IsoCorder Pro.

Full NDI. 6G SDI. HDMI 2.0. Life is all about connections.

Full NDI. Two independent 6G SDI outputs and one HDMI 2.0 output, all live all the time to create amazingly flexible workflows.

Genlock. Let that sync in.

With Genlock you can now synchronise multiple cameras using the Genlock input. Now all your cameras can be hitting your NDI enabled vision mixer at the same time and lets you eliminate the need to add frame buffers.

Superfine Robotics. Precise control at your fingers.

P4K’s robotics are super precise and super sensitive. Wind down the panning and tilting speeds to create super professional shots that are dramatic, or crank up the speeds for high action sports to allow you to follow the movements.

360 degree Tally lights.

The front, rear, and side Tally lights combine to create a 360 degree Tally light. Now everyone on the production set can see which camera is live to air.

ePTZ in HD Mode.

In HD Mode you can take advantage of the massive sensor to create Region of Interest for your HD production. Pull any HD frame out of the 4K frame.

View full details

Specifications

Dimensions
Horizontal Angle of View Focal Length
64.6 (Wide) – 6.1 (Tele),f=9.3 to 111.6mm, F2.8(Wide), F4.5(Tele)
Dimension
165x196x247mm
Electrical
Power Consumption Min
24.4W
Audio
Color Gain
Yes (15 step)
Analog Audio I/O
3.5mm audio jack IN (mono) – 3.5mm audio jack OUT (mono)
Audio Output
Embedded with main HDMI, 24bitEmbedded with SDI, 24bitEmbedded with NDI
Optics
Digital Zoom
Digital Zoom 12X, with SRZ feature,18X zoom at 4K, or 24X zoom at FHD.
Focus
Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit
Connectivity
VIDEO OUTPUT
NDI/HDMI/6G-SDI
4K Video Output
Main 4K HDMI Type-A (x1)6G-SDI (x2) or Dual Link 3G-SDI(2SI only) x2
HD Video Output
Main HD HDMI Type-A (x1)3G-SDI x2
HDMI Color Space
YCbCr, 4:2:2 RGB, 4:4:4
Power Input
12V DC, PoE+ (IEEE 802.3at)
Construction
Lens
Optical, 12X
Color Hue
Yes (15 step)
Body Color
Black, White
Controls
Control Protocol
NDI, VISCA, VISCA IP
Environmental
Operating Temperature
-10 to +40 (°C), 32 to 104 (°F)
Operating Humidity
≤80% Suitable for Use
Shipping
Weight
3.4kg
General
Image Sensor
1.0-type back-illuminated Exmor R CMOS sensor
Number of Effective Pixels
14.2 Megapixels
Picture Elements
3840 x 2160, 8.29 Megapixels
Min. Object Distance
80mm (Wide), 1000mm (Tele)
Aperture
F2.8 Constant (W)~(T), 16 Steps
Min. Illumination
0.5 lx (1/30 sec, 50%, High Sensitivity mode On)2.0 lx (1/30 sec, 50%, High Sensitivity mode Off)0.067 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode On)0.267 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode Off)
Shutter Speed
1/10000s to 1/8 (59.94/29.97)
White Balance
AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp(Fix/Auto/Outdoor Auto)
Exposure
Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright,Slow Shutter, Max/Min Shutter Limit, Slow AE
Features
High Sensitivity, Defog mode, Backlight Compensation, HLC,E-FLIP, Mirror, Flicker Control, Day/Night, Defog
WDR
YES(130dB)
ND Filter
YES
Image Stabilizer
YES
Gamma
Standard/Straight/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709//Pattern
Gamma Level
Yes (15 step)
Black Level
Yes (97 step)
Flicker Cancel
Yes
Noise Reduction
On/Off (level 5 to 1 / Off, 6 steps), 2D/3D
S/N Ratio
≥50db
Pan Movement
Horizontal: ±175º (Zoom Adaptive Speed Range: 0.05°~100°/s)
Tilt Movement
Vertical: +90º to -30º (Zoom Adaptive Speed Range: 0.05°~50°/s)
Preset Position
0~5 Level Adjustable
Preset Speed
0~5 Level Adjustable
Preset Memory
YES, ( Picture Profile Preset-Preset Memory for image parameters)
Quietness
45db
Home Position
Supported
Environmental
Indoor
4K VIDEO FORMATS
4Kp 29.97, 25, 24, 23.98, 23.97
HD VIDEO FORMATS
1080p 60, 59.94, 50, 29.97, 25, 24, 23.97 • 1080i 60, 59.94, 50 • 720p 60, 59.94, 50
NDI Video Encode
Full bandwidth NDI
NDI Version
NDI v4.0 (Firmware upgradeable)
IP Video Stream
UP to 4K/30 and 1080p60
Camera Control Interface
RS232/RS-422/RS485(RJ45 x2), NDI/IP Control (RJ45), IR Remote Control
LAN
RJ45X1(1GbE), NDI/IP video streaming, System upgrade, PoE+ (IEEE802.3at)
Tally Light
Front and Back
Mount
Ceiling mount, Wall mount, Tripod
Max
28W (PTZ move simultaneously)
