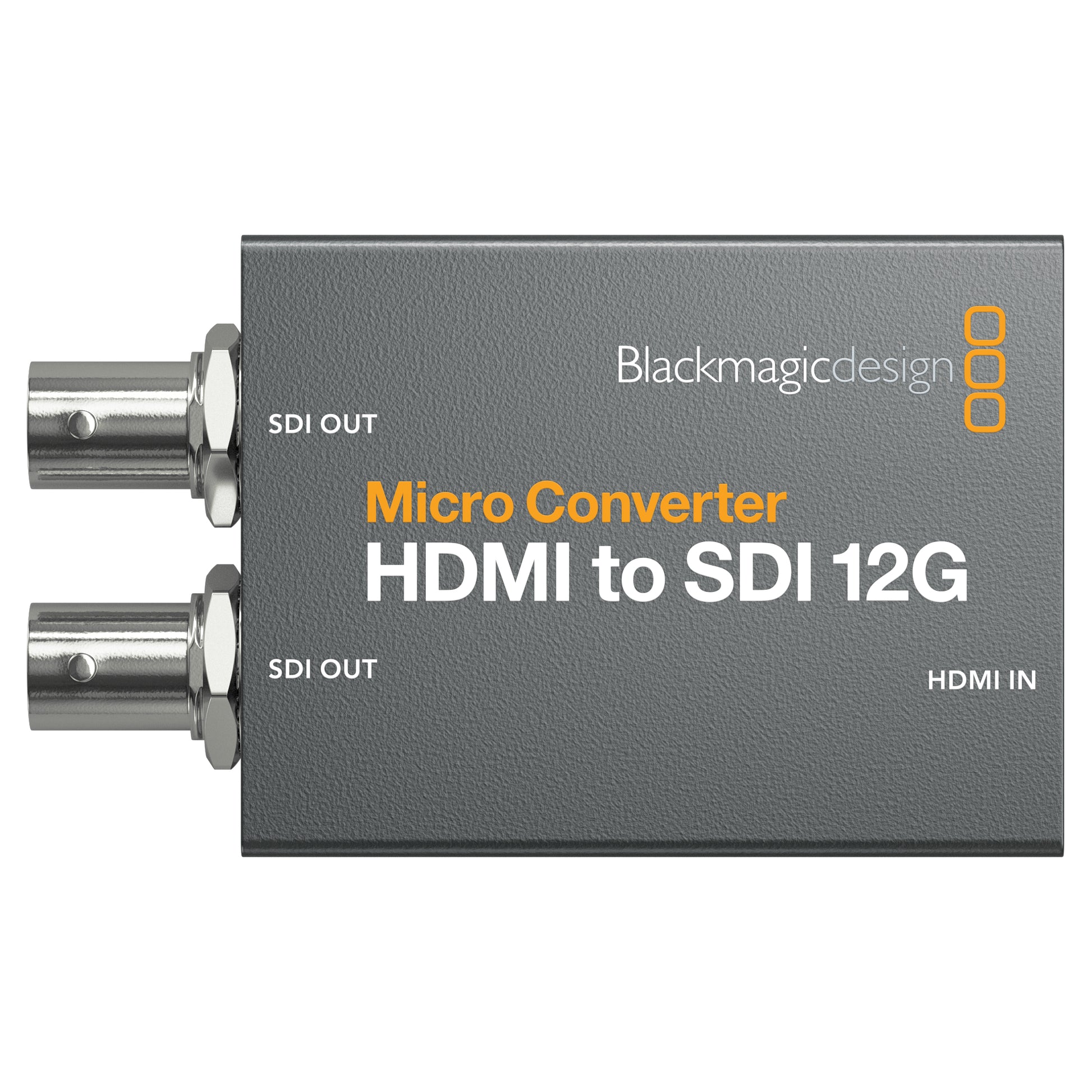

• Blackmagic Design Micro Converter HDMI to SDI 12G

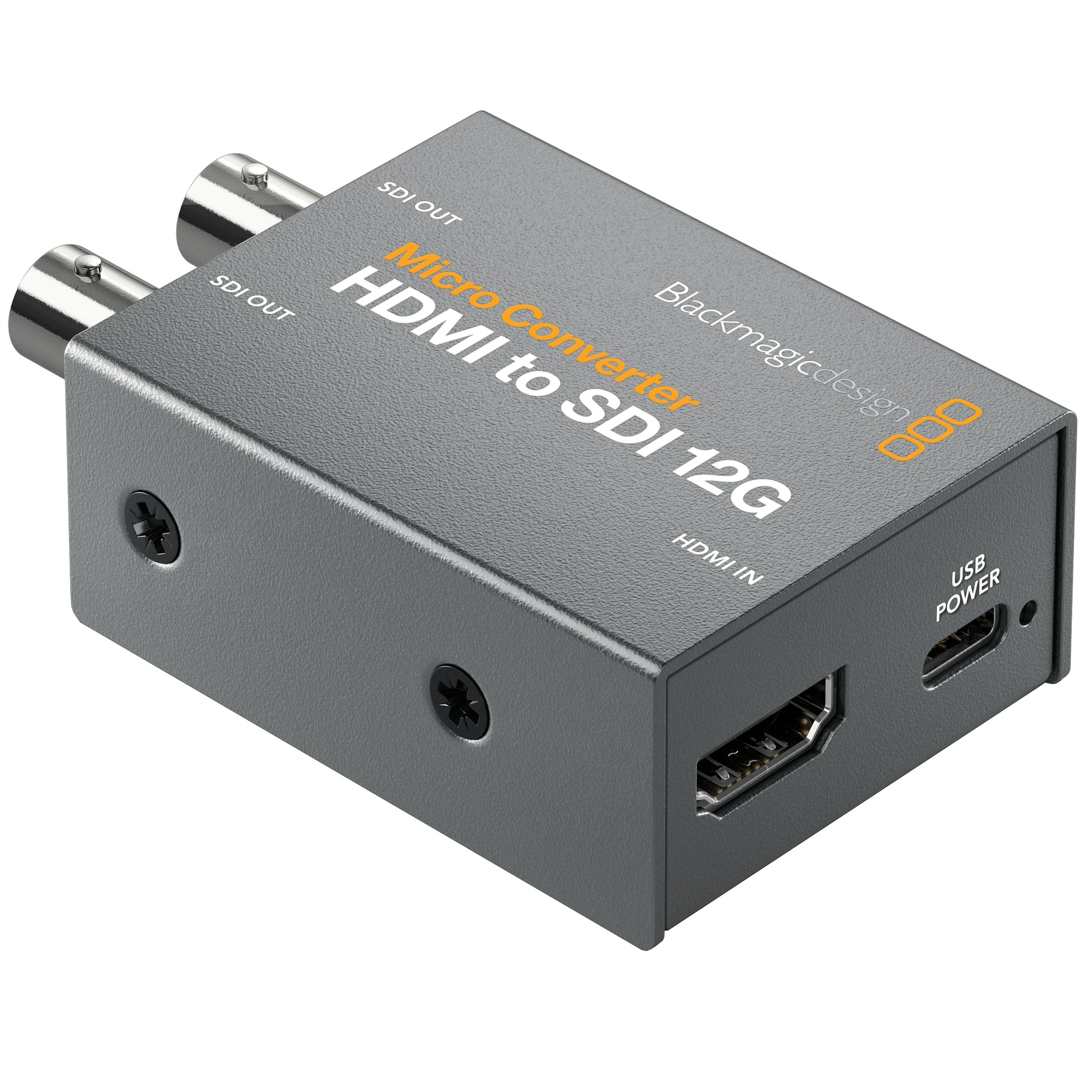

  • Blackmagic Design Micro Converter HDMI to SDI 12G right angle

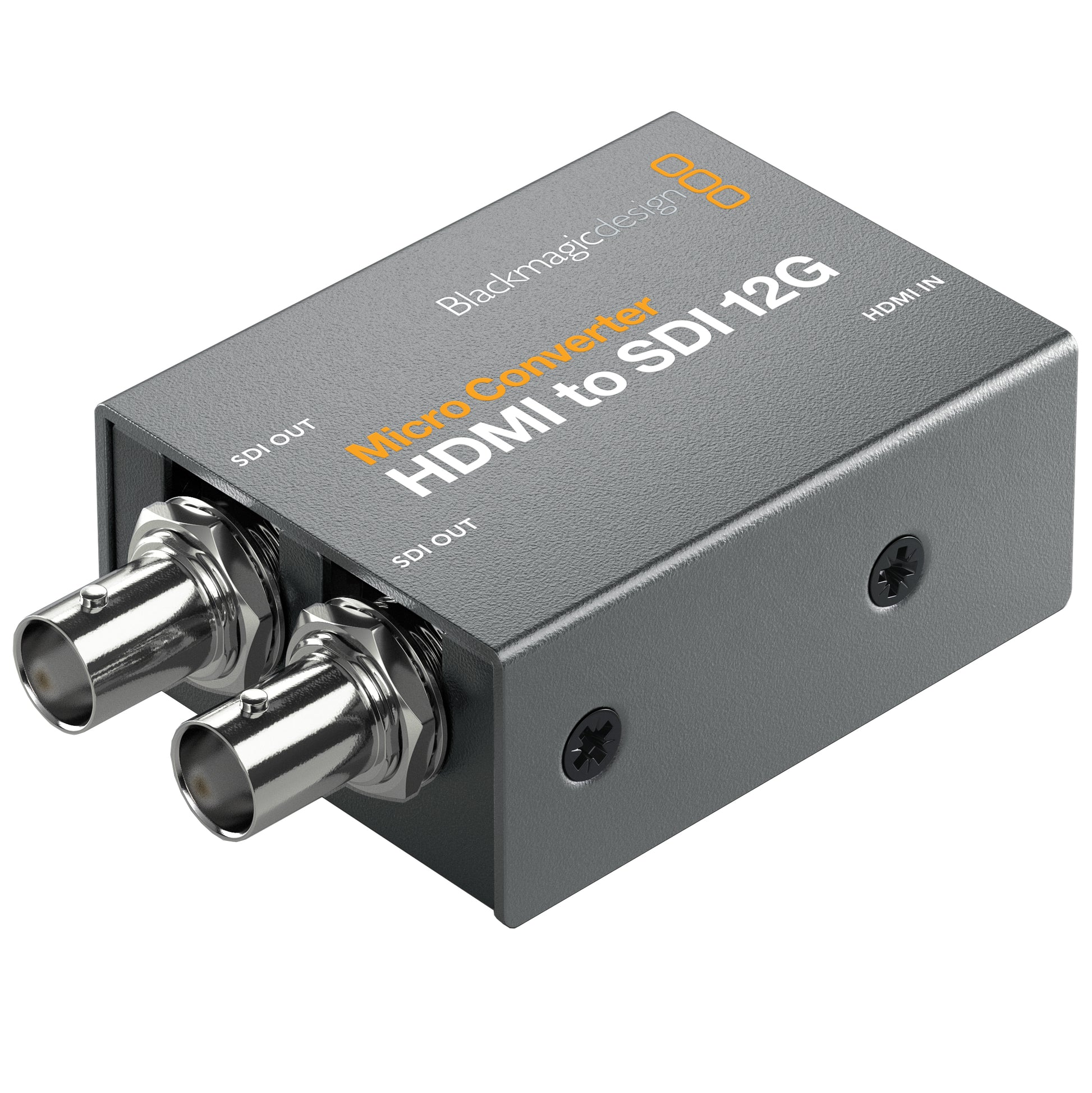

  • Blackmagic Design Micro Converter HDMI to SDI 12G left angle
1 3

Blackmagic Design Micro Converter HDMI to SDI 12G | Configuration: Power Supply Included

Blackmagic Design Micro Converter HDMI to SDI 12G | Configuration: Power Supply Included

SoundPro Item: 129371 | Part Number: BMD-CONVCMIC/HS12G/WPSU

$155.00
$155.00 $155.00
Your Price Sold out
MSRP: $155.00 | MAP: $155.00

Usually ships in 5-7 business days

  • Incredibly small broadcast quality video converter
  • Perfect for connecting HDMI cameras and computers to professional SDI gear
  • Two 12G-SDI outputs
  • Full size HDMI and professional 12G-SDI connections
  • Can be powered over USB from a laptop or mobile phone charger
Log in or register for YOUR best price

Blackmagic Micro Converter HDMI to SDI 12G is a miniaturized broadcast quality video converter that’s perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 12G-SDI outputs which can be set to level A or B for 3G-SDI signals. Micro Converters feature full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080i, 2160p rates, including 4Kp24/47.95/48 DCI. You can power it over USB from a laptop or a mobile phone charger.

View full details

Specifications

Certifications
Standards
HD Video Standards, Ultra HD Video Standards, 4K Video Standards, SDI Compliance, HDMI Video Standards
Dimensions
Dimensions
3.07" x 1.8" x 0.98"
Electrical
Power Consumption
4W max.
Operational Voltage Range
4.4V to 5.25V DC
Connectivity
SDI Video Outputs
2 (automatically matches the HDMI input)
HDMI 2.0 Video Outputs
1 x type A
HDMI Color Precision
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
HDMI Color Space
YUV
Construction
SDI Color Precision
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
SDI Color Space
YUV
Environmental
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
-4°F to 140°F (-20°C to 60°C)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
5.29 oz
General
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G
Multi Rate Support
auto detection of SD, HD, 2K, Ultra HD and 4K
Updates, Configurations and Power
USB Type-C
Reclocking
yes
SD Video Standards
525i59.94 NTSC, 625i50 PAL
SDI Video Rates
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
SDI Auto Switching
Automatically detects SD, HD, Ultra HD and 4K DCI. Level A and B is user selectable on output for 3G-SDI.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Settings Control
Via MacOS™ and Windows™ software utility connected by USB
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10, 64-bit
Software
internal software upgrade via USB
