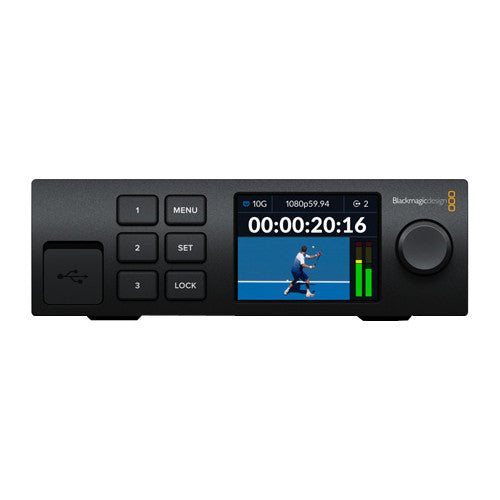

• Blackmagic Design 2110 IP Converter 3x3G

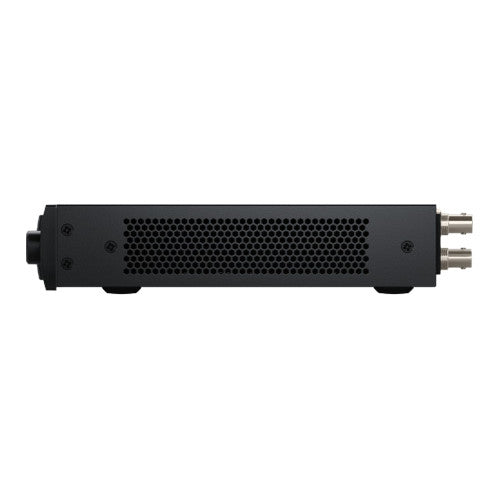

  • Blackmagic Design 2110 IP Converter 3x3G side

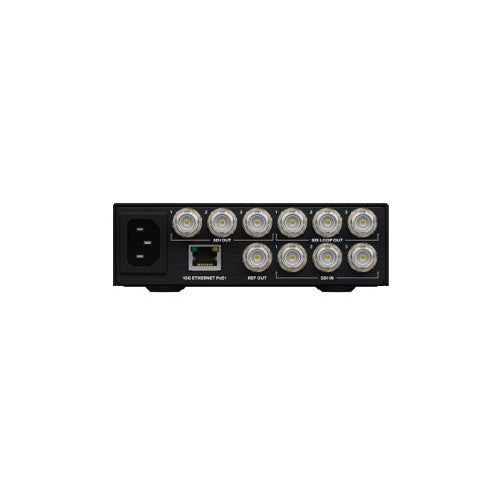

  • Blackmagic Design 2110 IP Converter 3x3G back
1 3

Blackmagic Design 2110 IP Converter 3x3G

Blackmagic Design 2110 IP Converter 3x3G

SoundPro Item: 139657 | Part Number: BMD-CONVNVIPA3/3G

$675.00
$675.00 $675.00
Your Price Sold out
MSRP: $675.00 | MAP: $675.00

Usually ships in 5-7 business days

  • Convert Your SDI Equipment to and from 2110 IP Video Systems!
  • Rack Mount for Installation into Broadcast Systems
  • Compact Rack Mountable Design
  • Connect to any 3G-SDI Equipment
  • 10G Ethernet for Multiple SMPTE 2110 IP Channels
  • Includes NMOS Protocol for Building a Virtual Router
  • Supports Remote Administration for Settings and Updates
  • Supports All SD and HD Formats up to 1080p60!
  • Get True 10-Bit Broadcast Video Quality
  • Flexible and Redundant Power
  • Localized for 13 Popular Languages
Log in or register for YOUR best price

The bi-directional Blackmagic 2110 IP Converter 3x3G lets you convert SDI to IP and at the same time IP to SDI. That’s because its 10G Ethernet connection can handle 3 separate video channels simultaneously. Plus each channel has independent SDI inputs and SDI outputs, so you could even connect to 6 completely different SDI devices! All 3G-SDI inputs feature loop outputs so you can install the converter in line within existing SDI systems. There's also a reference output, timed to the 2110 PTP clock! Blackmagic 2110 IP Converter 3x3G includes an elegant front panel with a color LCD for monitoring, menus and diagnostics. You can even route IP inputs from the panel!

View full details

Specifications

Certifications
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and level B, ITU-R BT.656, ITU-R BT.601.
IP Video Compliance
Precision Time Protocol IEEE 1588-2008 (PTP v2)ST 2059-1ST 2059-2, NMOS IS-04 Discovery and Registration v1.3.2Peer-to-peer via mDNS/DNS-SD
Audio
SDI Audio Inputs
16 channels embedded audio.
Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
Connectivity
SDI Inputs
3
SDI Loop Outputs
3
SDI Outputs
3
SMPTE 2110 Input / Output
10G Ethernet supports 3 x video input channels and 3 x video output channels each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data.
10G Ethernet Port
1 x 10Gb/s PoE+ RJ 45 connector supports 10/100/1000/10G BASE-T.
Reference Output
Tri-Sync or Black Burst.
Construction
Color Precision
8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
Color Space
REC 601, REC 709
Controls
Built in Control Panel
6 buttons with spin knob control and 2.2 inch color display for device control and menu settings.
General
Computer Interface
USB-C for updates, configuration and control.
SD Video Standards
525i59.94 NTSC, 625i50 PAL
Video Standards
HD Video Standards 720p50, 720p59.94, 720p601080i50, 1080i59.94, 1080i601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning.
SMPTE 2110-20 (Uncompressed Video)
IGMP v2
SMPTE 2110-21 (Traffic Shaping) Sender
NarrowReceiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)
Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP-002-01
Natural Grouping
NMOS BCP-004-01
Receiver capabilities
External Control
RJ-45 10Gb/s Ethernet and USB-C.
Indicators
Display
Built in 2.2 inch LCD for video, video standard, audio and timecode monitoring plus menu settings.
