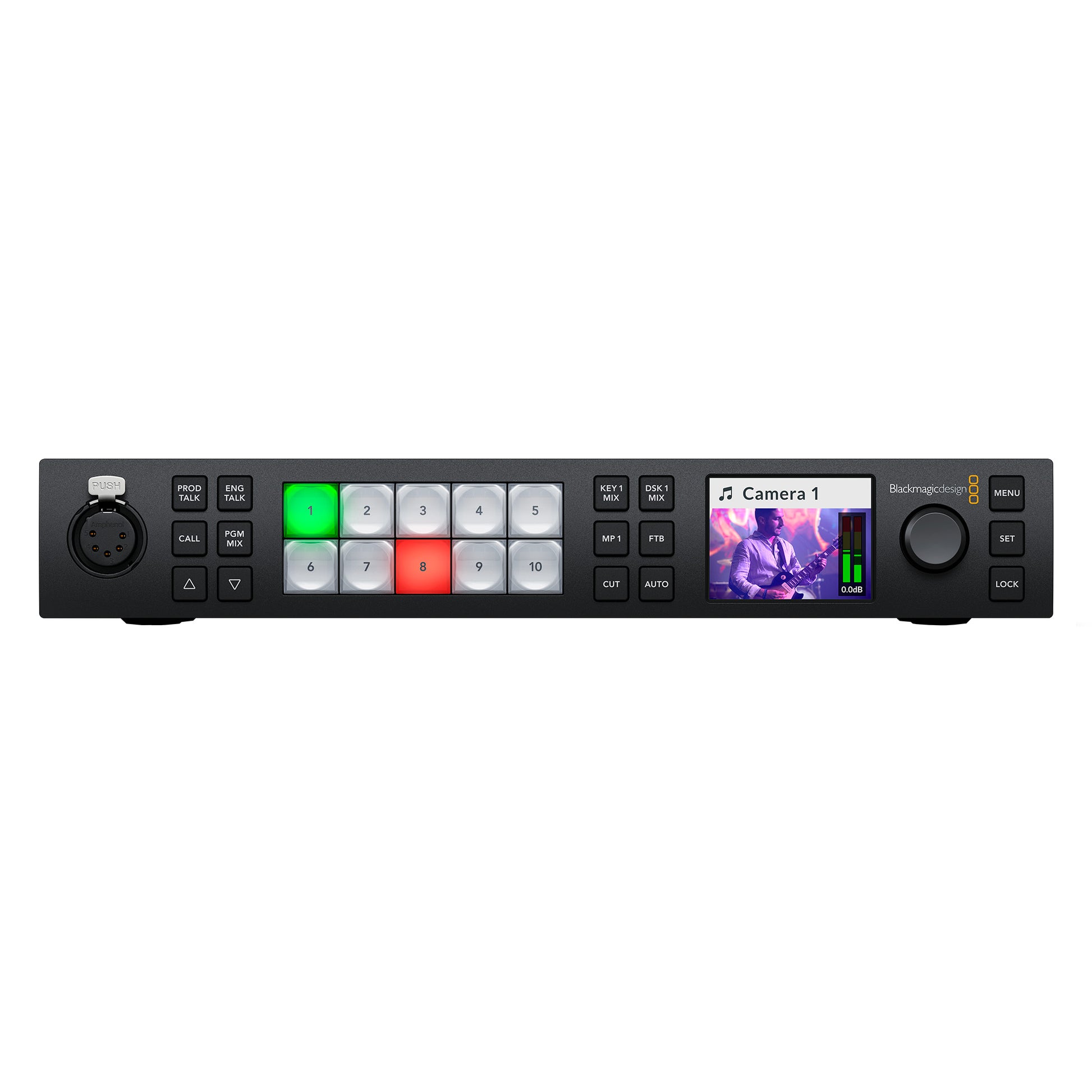

  • Blackmagic Design ATEM 1 M/E Constellation 4K front

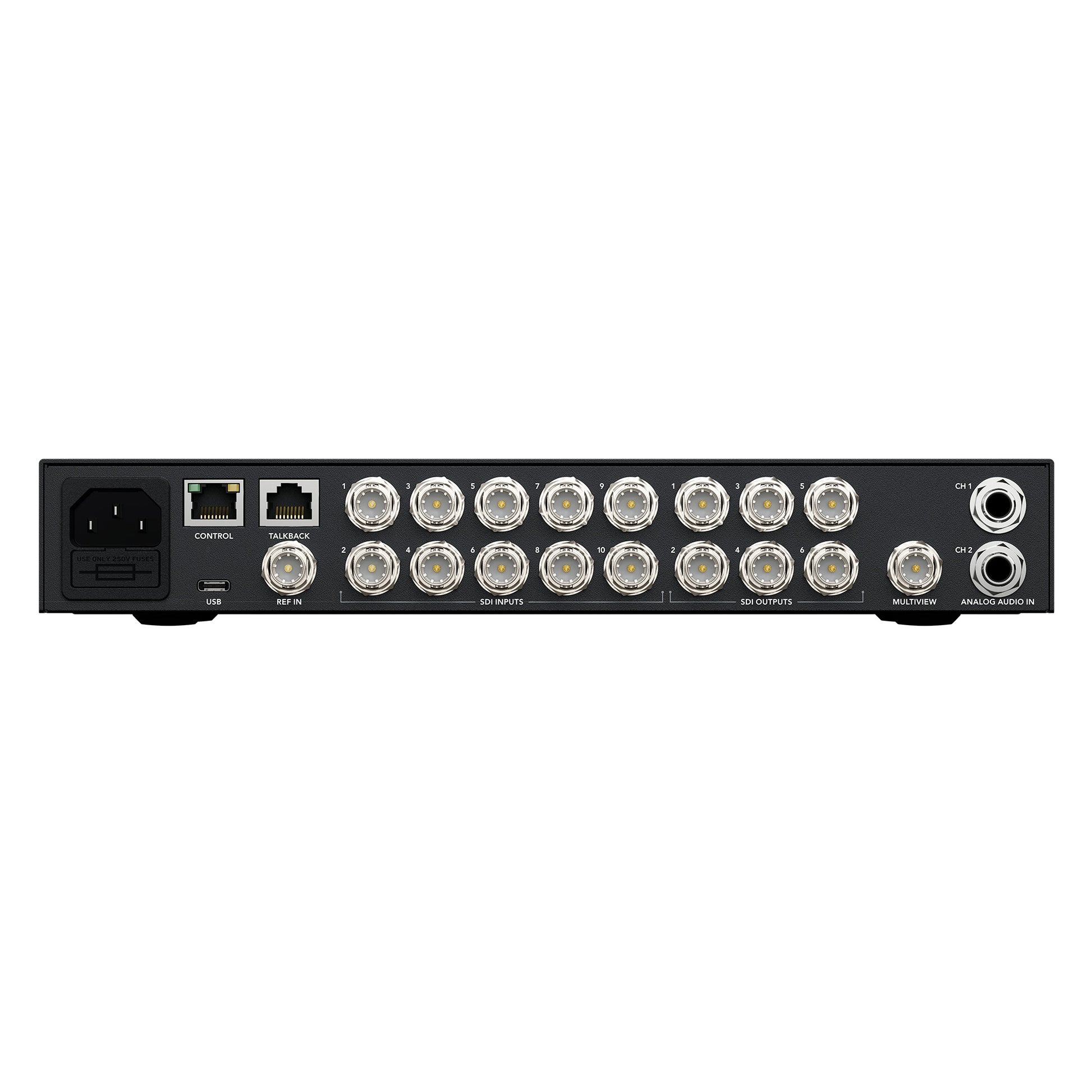

  • Blackmagic Design ATEM 1 M/E Constellation 4K back

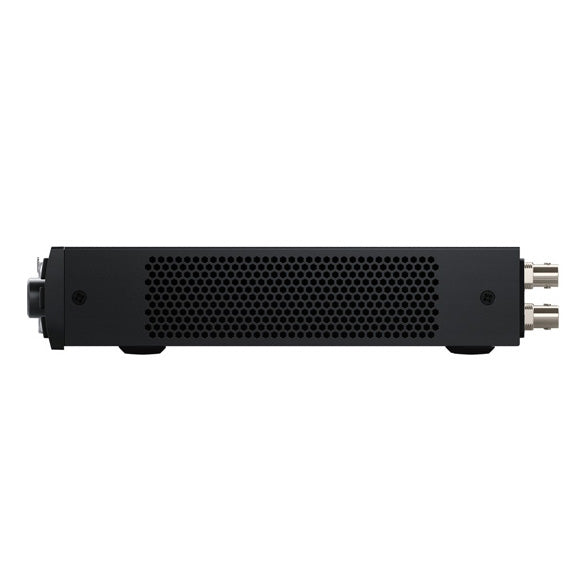

  • Blackmagic Design ATEM 1 M/E Constellation 4K side
1 4

Blackmagic Design ATEM 1 M/E Constellation 4K

Blackmagic Design ATEM 1 M/E Constellation 4K

SoundPro Item: 144341 | Part Number: BMD-SWATEMSCN2/2ME1/4K

$2,135.00
$2,135.00 $2,135.00
Your Price Sold out
MSRP: $2,135.00 | MAP: $2,135.00

Usually ships in 5-7 business days

  • Powerful 1 M/E live production switcher
  • Includes 10 standards converted 12G-SDI inputs, 6 x 12G-SDI outputs, DVE, 4 chroma keyers, a 16-way multiview, media players, talkback and USB webcam output
Log in or register for YOUR best price

The powerful 1 M/E live production switcher includes 10 standards converted 12G-SDI inputs, 6 x 12G-SDI outputs, DVE, 4 chroma keyers, a 16-way multiview, media players, talkback and USB webcam output.

View full details

Specifications

Audio
Total Audio Inputs
2 x balanced 1/4 inch Jack,1 x 5 pin XLR Talkback
Total Audio Outputs
1 x 5 pin XLR Talkback
SDI Audio Inputs
16 Ch embedded audio on all SDI inputs
SDI Audio Outputs
16 Ch embedded audio on all SDI outputs
Connectivity
Total Video Inputs
10
Total Video Outputs
6
Reference Input
Tri-Sync or Black Burst
Video Input Re-Sync
On all 10 inputs
SDI Aux Outputs
Any of the 6 SDI outputs
SDI Preview Outputs
Any of the 6 SDI outputs
SDI Program Outputs
Any of the 6 SDI outputs
Down Converted SDI Program Output
1
Webcam Output
1 x USB-C supporting 720p or 1080p at PGM frame rate
Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Ethernet
Supports 10/100/1000 BASE-T
Controls
Control Panel Connection
Ethernet. Direct connection between panel and chassis, or via network.
General
SDI Rates
1.5G, 3G, 6G, 12G
Timecode Connections
None
Frame Rate and Format Converters
On all 10 inputs
Total Multi Views
1 x 12G-SDI
Internal Timecode Generator
Yes
Talkback
RJ45 for 3rd party talkback systems
Computer Interface
1 x USB-C supports USB 2.0
