Blackmagic Design ATEM 2 M/E Constellation HD
Blackmagic Design ATEM 2 M/E Constellation HD
SoundPro Item: 132821 | Part Number: BMD-SWATEMSCN2/1ME2/HD
In stock and ready to ship
- Seriously advanced broadcast power
- True broadcast style mix effects switching
- Full front panel control familiar to users of ATEM Mini
- USB webcam output for video software
- Choose from hardware or software control panels
- Includes multiview with labels, tally, and meters
- Broadcast transitions, DVE, stingers, and more
- Built-in DVE for video effects
- Professional broadcast talkback
- Internal media for stills and motion graphics
- ATEM advanced chroma keyers
- 4 upstream chroma keyers per M/E row to create amazing virtual sets
- Powerful SuperSource processing
- Multi-rate 3G-SDI for all HD video standards
- Big professional audio with professional Fairlight audio mixer
- Includes free software control panel
- Compatible with Blackmagic cameras, panels, decks and more
- Ideal for massive live events
ATEM 2 M/E Constellation HD is a high definition live production switcher packed with advanced features. The 2 M/E design includes 20 standards converted 3G-SDI inputs and 12 independent 3G-SDI aux outputs. It also includes a USB webcam output, SuperSource processor, DVEs, chroma keyers, media players, multiviews and more. You even get built in talkback and a professional built in Fairlight audio mixer with EQ and dynamics.

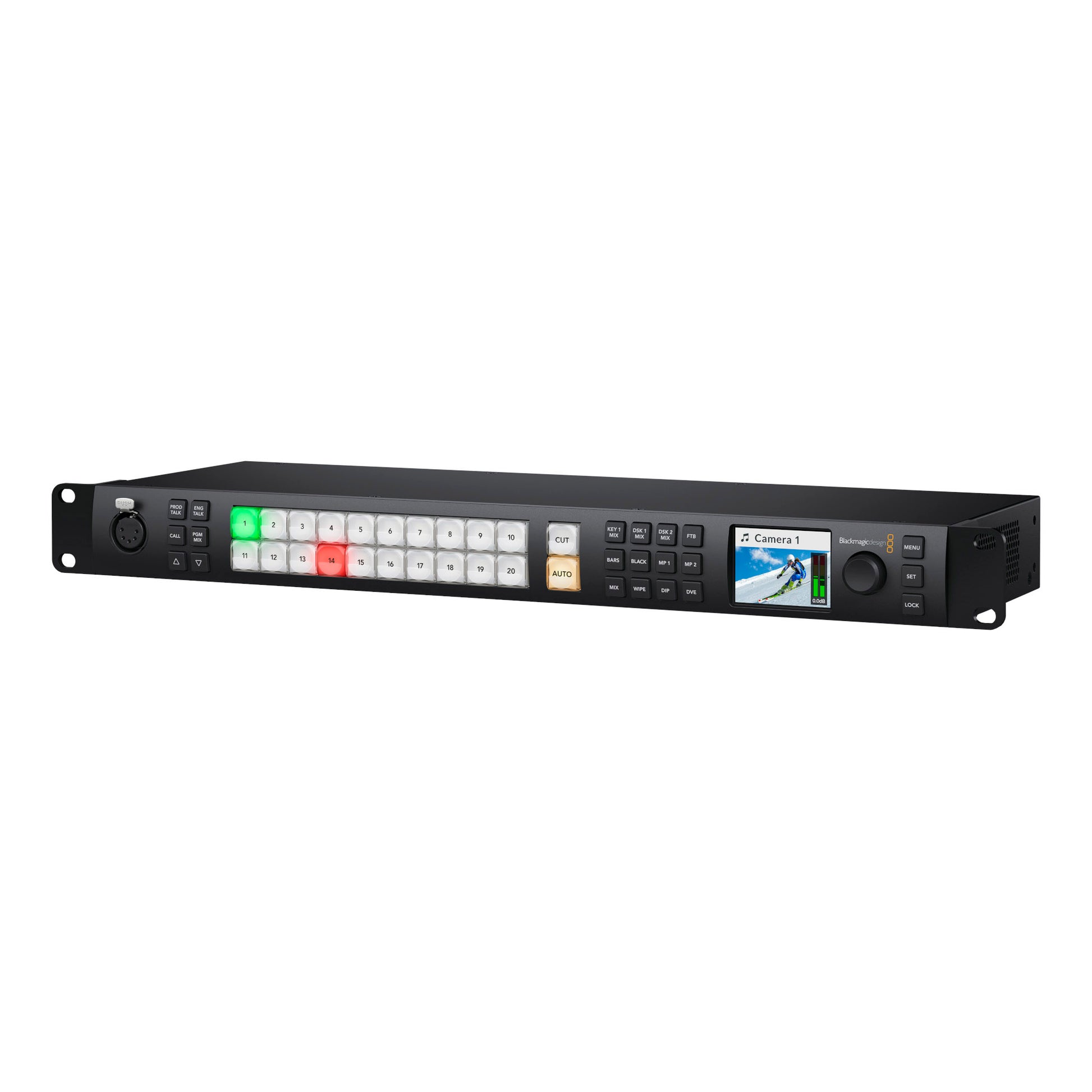

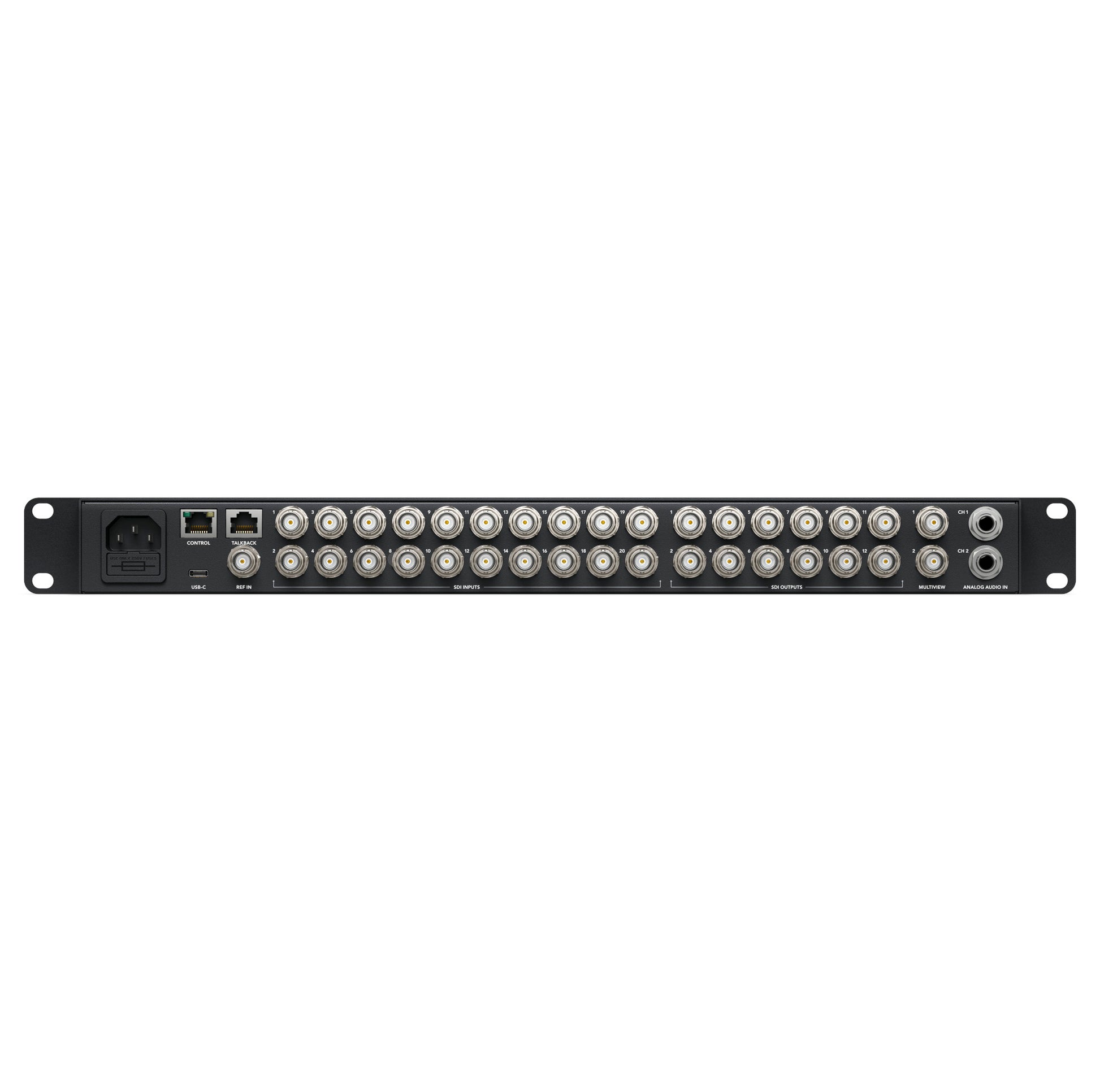

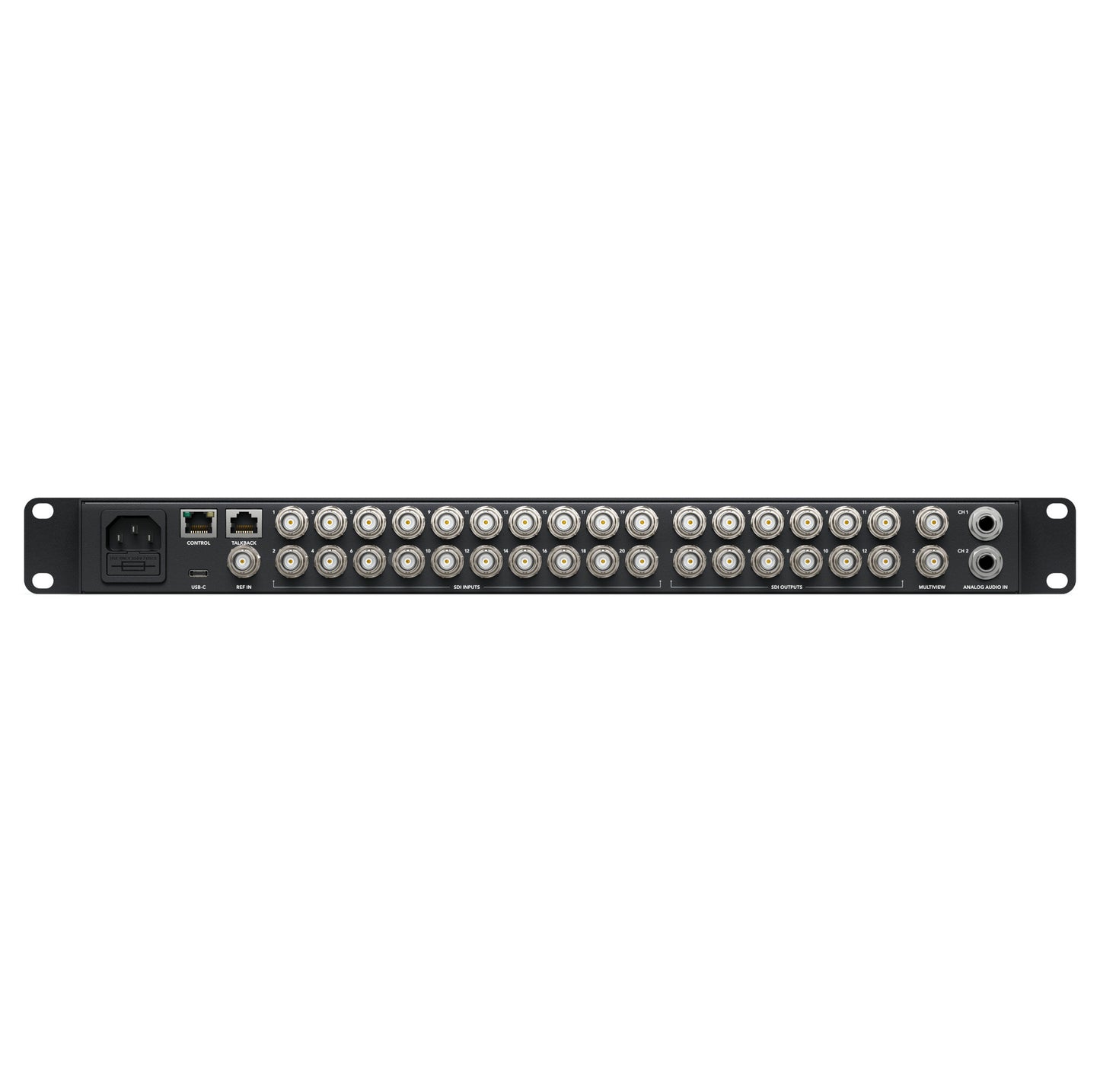

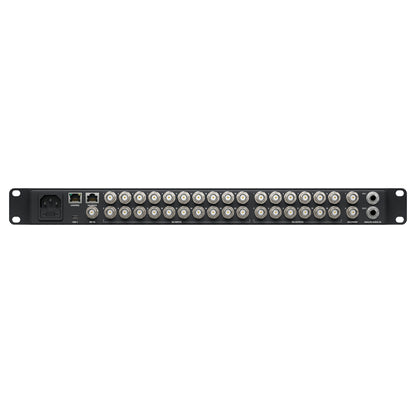

ATEM Constellation HD switchers feature a compact rack mount design with a built in control panel. This allows operation of the switcher, critical during setup or for emergency use. Also included is a large LCD so you can see program output and change switcher settings via on screen menus. The compact design is perfect for portable live production, with the rear of the switcher including the connections for 3G-SDI inputs, 3G-SDI aux outputs, balanced audio and Ethernet for control.
ATEM Constellation HD uses a professional "program/preview" style operation, which is the exact same way large broadcasters use live production switchers. This means you are using the same type of switcher used by the television industry. Both the free ATEM Software Control and the optional hardware ATEM Advanced Panels will allow program/preview style switching. This means you can select a source on the preview bus to ensure it’s correct before pushing the CUT or AUTO button to switch it on air. This 2 step program/preview process means far fewer mistakes! Program/preview operation means ATEM Constellation is the best solution for training students for a career in broadcast television!
The ATEM Constellation HD family features models that have up to 40 independent 3G-SDI inputs, with each input featuring its own dedicated up and cross converter. That means it’s possible to convert any 1080p input source to the video standard of the switcher! That means you could have each switcher SDI input running a different television standard and all the inputs will just work! On the ATEM 4 M/E Constellation HD model, you can even loop out audio channels 1, 2, 3 and 4 from SDI inputs 1 to 30 to the two MADI digital audio outputs, so you can hand off the switcher input audio to an external audio engineer for mixing.
The ATEM Constellation HD family have a massive number of fully independent 3G-SDI outputs.The 2 M/E model has 12 x 3G-SDI outputs. These SDI outputs are very powerful because you can independently route any SDI input or any internal source to each SDI output. That’s perfect for running independent feeds to stage screens, master recorders and streaming processors. Or use the SDI outputs for ISO recorders, where each deck will get a resynchronized switcher input with matching timecode. All SDI outputs contain program audio, RP-188 timecode, SDI camera control, tally and talkback.
In addition to the DVEs in the M/E rows, the 2 M/E and 4 M/E models include powerful SuperSource multi layer processors with 4 extra DVE layers plus a background layer, that all appear to ATEM Constellation HD as an additional input source. Any switcher video input can be used for each SuperSource DVE, then it’s all layered together over a media pool custom background. SuperSource is just like having an extra multi-layer VFX switcher built in! SuperSource is perfect for doing picture in picture displays for interviews because you can set up the effect while keeping the main DVEs free for other tasks. The ATEM 4 M/E Constellation even has 2 completely independent SuperSource processors!
ATEM Constellation HD is the world’s first live production switcher that fully embraces live professional audio production! All SDI inputs are connected to a built in Fairlight audio mixer that features 6 band parametric EQ, compressor, limiter, noise gate and expander on each input. On the ATEM 4 M/E Constellation HD model there are 2 MADI outputs for breaking out channels 1, 2, 3 and 4 of the first 30 SDI inputs out to an external audio engineer, plus a MADI input for allowing an extra 32 external audio channels in to the audio mixer. The Fairlight audio mixer even has additional inputs for mixing audio from analog inputs, talkback microphones for voice over and more! With a built in Fairlight audio mixer, the ATEM Constellation makes it possible to do extremely complex live sound mixing.
