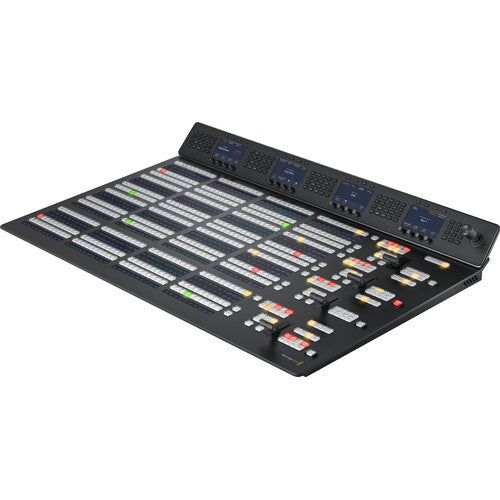

• Blackmagic Design ATEM 4 M/E Advanced Panel 40 broadcast switcher control surface at an angle

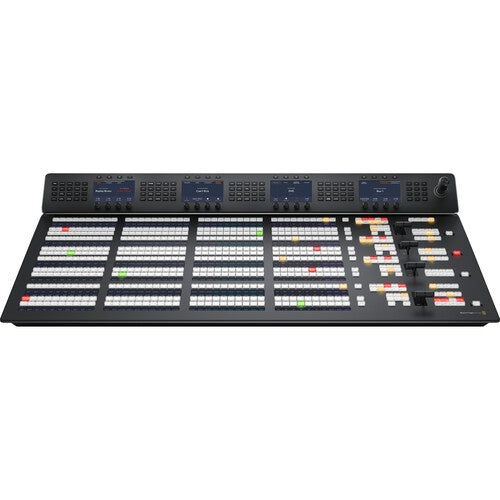

  • Blackmagic Design ATEM 4 M/E Advanced Panel 40 front view with LCD displays and T-bar faders

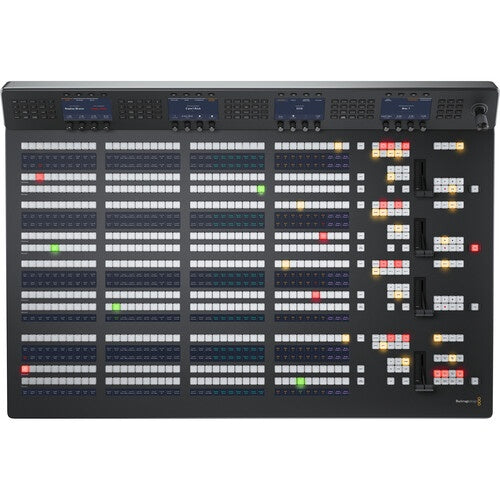

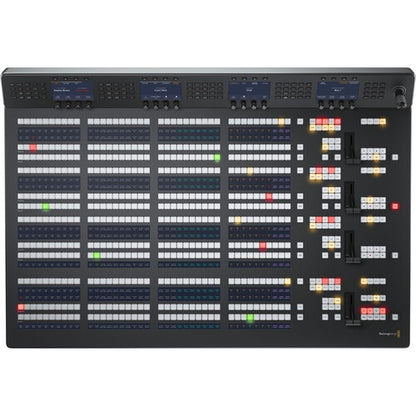

  • Blackmagic Design ATEM 4 M/E Advanced Panel 40 top-down layout of source button rows and joystick
1 3

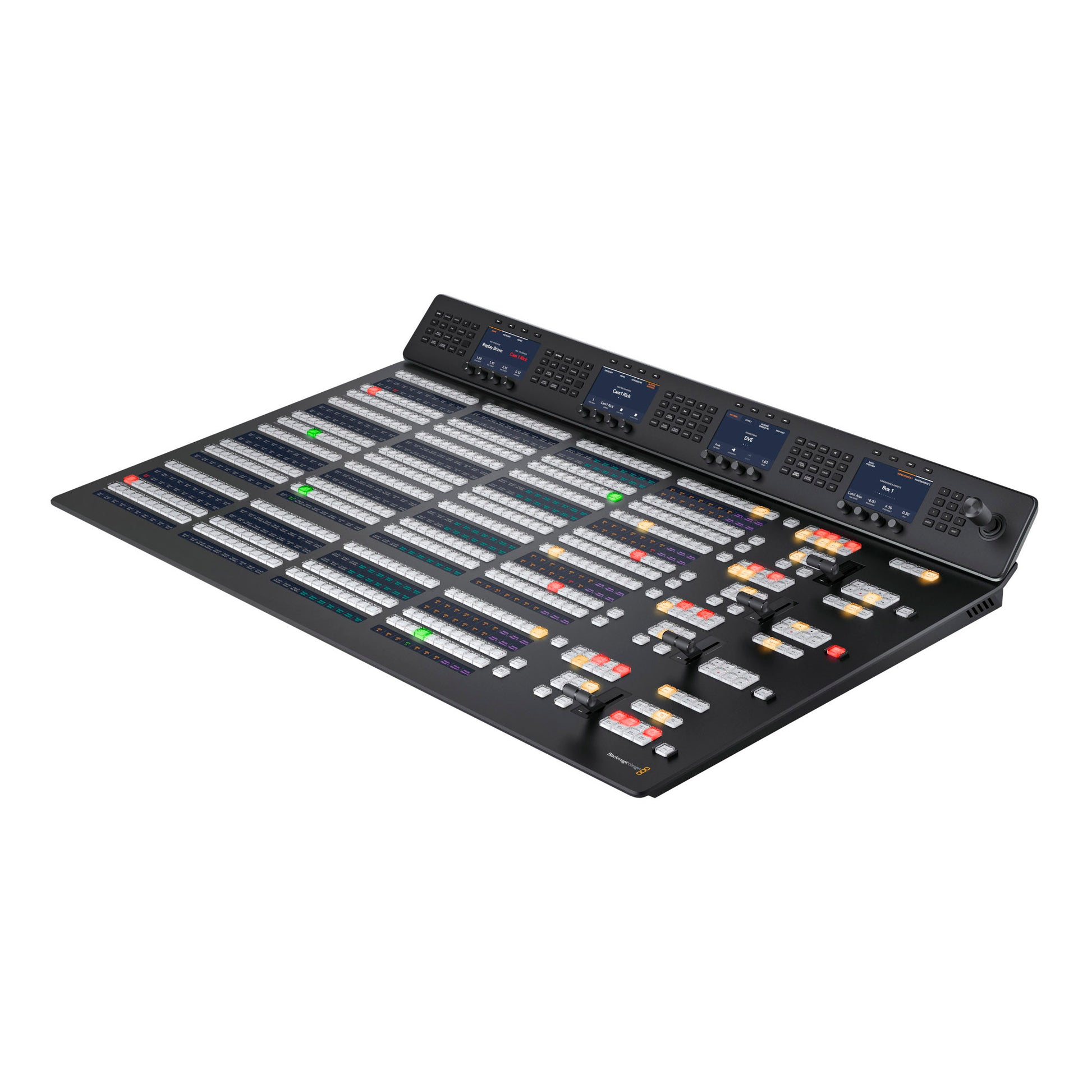

Blackmagic Design ATEM 4 M/E Advanced Panel 40

Blackmagic Design ATEM 4 M/E Advanced Panel 40

SoundPro Item: 134694 | Part Number: BMD-SWPANELADV4ME40

$21,839.00
$21,839.00 $21,839.00
Your Price Sold out
MSRP: $21,839.00 | MAP: $21,839.00

Usually ships in 5-7 business days

  • Big enough to perfectly match the features on the ATEM Constellation switcher
  • 4 M/E rows with 40 input buttons per row and 4 independent system control LCDs for each row
  • Switch cameras to air instantly
  • Select and customize transitions
  • Transition styles include mix, dip, wipe, DVE and more
  • Get perfect green screen keying
  • Manually blend transitions
  • Auto transitions
  • Simulate new effects while on air with PREV TRANS button
  • Fade to black
  • Joystick for precise DVE control
  • Change switcher settings from the menus
  • Change video outputs with a single button press
  • Powerful custom macros
  • Customizable control options
Log in or register for YOUR best price

This massive model is big enough to perfectly match the features on the ATEM Constellation switcher! It features 4 M/E rows with 40 input buttons per row and 4 independent system control LCDs for each row. This massive panel includes 24 LCD's for custom labeling of every button on every row!

View full details

Specifications

Dimensions
Dimensions
43.7" x 29.72" x 6.69"
Connectivity
Ethernet
4 x 10/100/1000 BaseT with loop output for additional control panels or computers
Controls
Transition Rate Displays
via main menu
LCD Menu Displays
4
Environmental
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
-4°F to 140°F (-20°C to 60°C)
Relative Humidity
up to 95%
Shipping
Weight
57.32 pounds
General
Software Updates
1 x USB-C for firmware updates
Number of Mix Effects Rows
4
Direct Cross Points
40
Shifted Cross Points
80
Crosspoint Button Type
tri-color LED
Crosspoint Label
10 rows 24 character LCD
On-Air Indicator
20
Power Status Indicators
none
DSK Transition Selectors
4 x Auto, Cut, Tie/Preview
Preview Transition
4
Menu Control
4 x 20 buttons
Dedicated Macro Buttons
4 x 40
Transport Control Buttons
24
Destination Bus
4
Source Select Bus
4
Fader Bar
4
3 Axis Joystick
1
Numeric Keypad
1
Software Applications
ATEM Software Control Panel
Operating Systems
Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 10, 64-bit
Redundant Power
yes
Power Usage
250W
Power
Input Voltage
2 x Internal 100 - 240V AC
