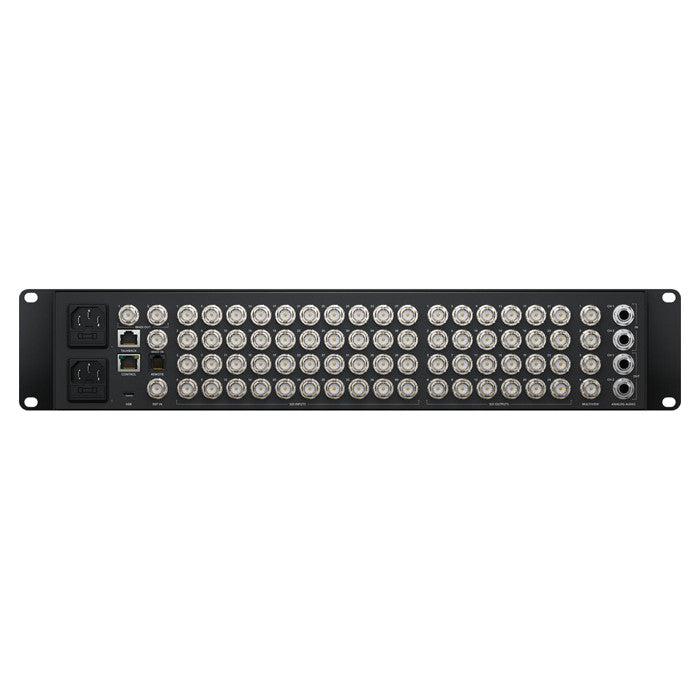

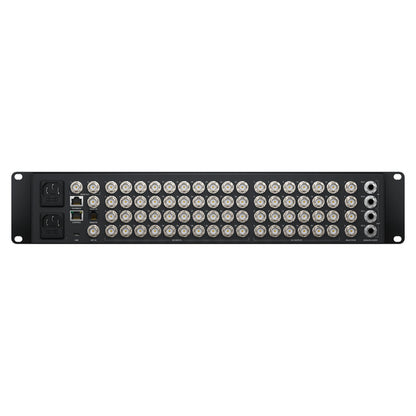

  • Blackmagic Design ATEM 4 M/E Constellation 4K back

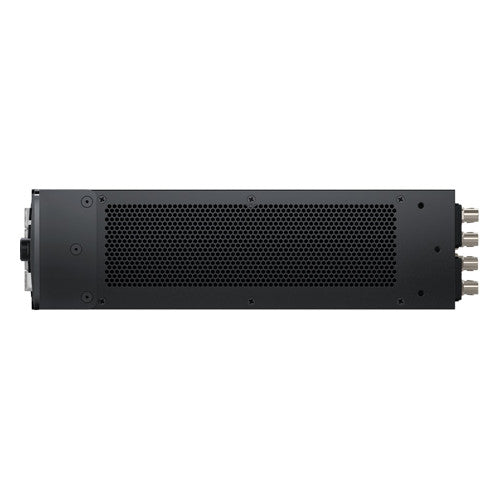

  • Blackmagic Design ATEM 4 M/E Constellation 4K side
1 3

Blackmagic Design ATEM 4 M/E Constellation 4K

Blackmagic Design ATEM 4 M/E Constellation 4K

SoundPro Item: 139629 | Part Number: BMD-SWATEMSCN2/2ME4/4K

$10,515.00
$10,515.00 $10,515.00
Your Price Sold out
MSRP: $10,515.00 | MAP: $10,515.00

In stock and ready to ship

  • 40 standards converted 12G-SDI inputs
  • 24 12G-SDI aux outputs
  • 4 DVEs
  • 16 ATEM Advanced Chroma Keyers
  • 4 media players
  • 4 independent Ultra HD multiviews
  • 2 SuperSource processors
  • Built in talkback
  • Professional 156 channel Fairlight audio mixer with EQ and dynamics
Log in or register for YOUR best price

ATEM 4 M/E Constellation 4K is a massive 4 M/E Ultra HD live production switcher. It features 40 standards converted 12G-SDI inputs, 24 12G-SDI aux outputs, 4 DVEs, 16 ATEM Advanced Chroma Keyers, 4 media players, 4 independent Ultra HD multiviews, 2 SuperSource processors and more. You even get built in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics!

View full details

Specifications

Certifications
Standards
HD Video Standards 720p50, 720p59.94, 720p601080i50, 1080i59.94, 1080i601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
SDI Compliance
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081 1, SMPTE 2081 10, SMPTE 2082 1 and SMPTE 2082 10, SMPTE 2082 12.
Dimensions
Media Player Clip Length in 720 HD
3200 frames.
Media Player Clip Length in 1080 HD
1600 frames.
Media Player Clip Length in Ultra HD
400 frames.
Audio
Channels
Fill and key for each media player.
Media Pool Audio File Format
WAV, MP3 and AIFF.
Construction
Color Precision
10-bit.
Color Space
REC 709, REC 2020.
Color Generators
2
Controls
Control Panel
Front fascia emergency switching, software or optional hardware panel.
Included Items
Front Panel
Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Control Panel Included
ATEM Software Control Panel included free for Mac 12.0 Monterey, Mac 13.0 Ventura or later and Windows 10 and 11.
Environmental
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
General
SD Video Standards
None
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
Video Sampling
4:2:2
SDI Auto Switching
Automatically detects between 1.5G-SDI, level A and level B 3G SDI, 6G SDI and 12G SDI.
Upstream Keyers
16
Downstream Keyers
4
Advanced Chroma Keyers
16
SuperSource
2
Talkback Support
Yes
Mix Minus Support
Yes
Linear/Luma Keyers
21
Transition Keyer (Stinger/DVE)
4 Stinger, 4 DVE.
Total Number of Layers
28
Pattern Generators
21
DVEs
4
Routable Windows
64
Tally
Red for program and green for preview indication.
Windows Source Labels
Yes
Multi View Monitoring
4 x 16 Multi View pattern options for up to 64 total views.
Multi View Video Standard
Select HD or Ultra HD.
Media Players
4
Media Pool Still Image Capacity
64
Media Pool Clip Capacity
4
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format
TGA Sequence.
Interface
Minimum monitor resolution of 1366 x 768.
Processing Delay
TBA
Down Conversion
TBA
Software Updates
Using USB C connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility.
Operating Systems
Mac 12.0 Monterey, Mac 13.0 Ventura or later., Windows 10 and 11.
Power Supply
2 x Internal 100 - 240 AC 50/60Hz.
Power Usage
TBA
Physical Installation
2 rack units height.
Indicators
Processing
Audio Mixer 156 Channel mixerSelectable On/Off/Audio-Follow-Video.Level and Peak metering.Master gain control.6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Cable
Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB C to chassis.
