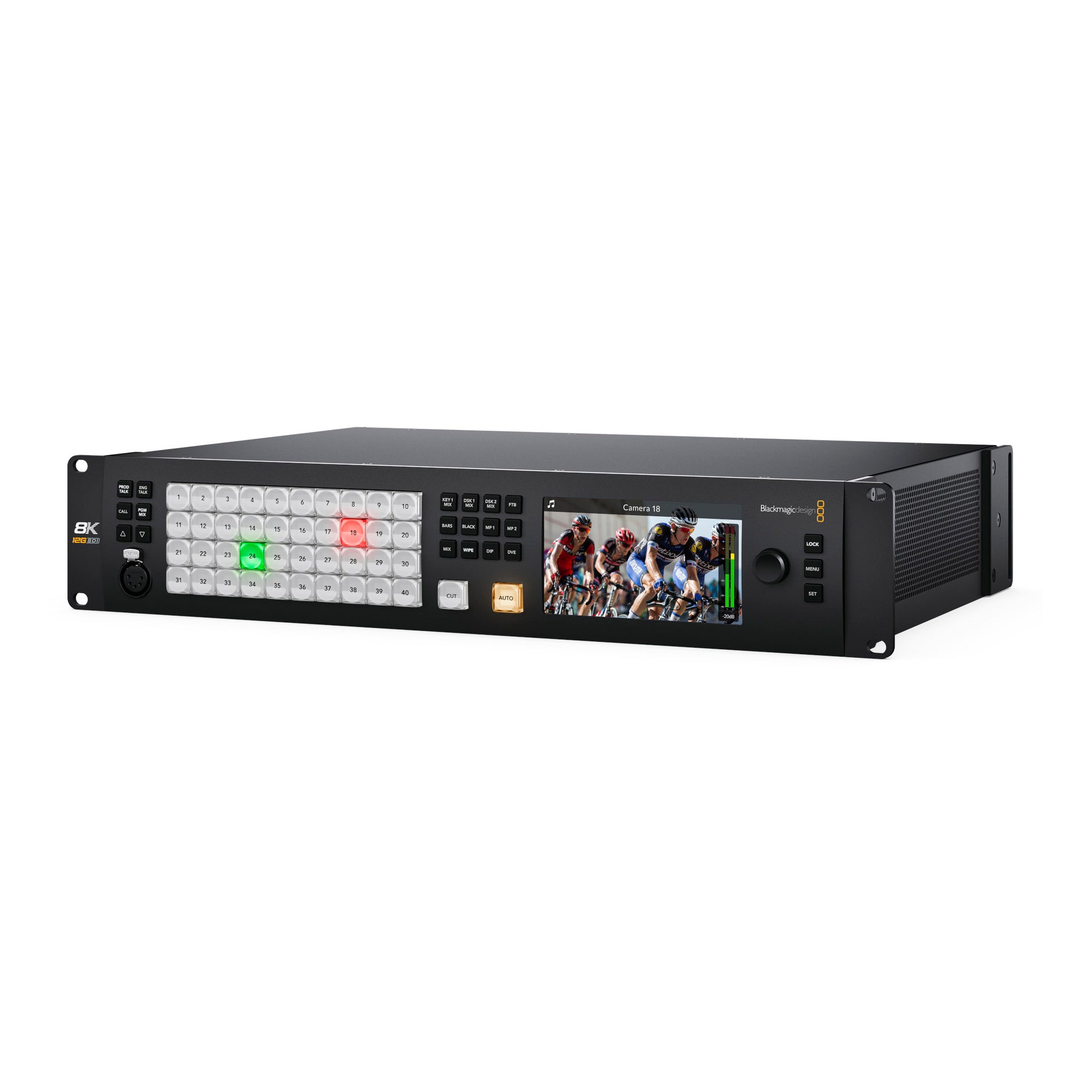

• Blackmagic Design ATEM Constellation 8K live production switcher angled view with LCD preview and rack ears
  • Blackmagic Design ATEM Constellation 8K front panel with numbered source buttons, transition keys and monitor
  • Blackmagic Design ATEM Constellation 8K rear panel with rows of BNC SDI jacks, Ethernet, USB and power inlets
1 3

Blackmagic Design ATEM Constellation 8K

Blackmagic Design ATEM Constellation 8K

SoundPro Item: 41357 | Part Number: BMD-SWATEMSCN4/1ME4/8K

$12,825.00
$12,825.00 $12,825.00
Your Price Sold out
MSRP: $12,825.00 | MAP: $12,825.00

Usually ships in 5-7 business days

  • 16 upstream keyers in Ultra HD, 4 in 8K supporting chroma, linear, and luma keying
  • 4 downstream keyers in Ultra HD, 2 in 8K.
  • 16 advanced chroma keyers in Ultra HD, 4 in 8K
  • Talkback communication is supported
  • Mix-minus is supported
  • There are 4 transition keyers (Stinger/DVE)
  • Supports up to 28 layers in UHD and 7 layers in 8K
  • 21 pattern generators are available in Ultra HD, while only 9 are available in 8K
  • Support for 2 color generators
  • 4 DVE with 3D borders and drop shadow are supported in Ultra HD; one is supported in 8K
Log in or register for YOUR best price

Power supply not included - requires IEC cable.

Blackmagic Design’s ATEM switcher series create stunning multi camera live production. ATEM switches between SD, HD, or Ultra HD video standards so your live production can use cameras, disk records, slide shows from computers, and more video sources. Features include 16 advanced chroma keyers four independent Ultra HD multi viewers, two SuperSource processors, and even standards conversion on all inputs. Switchover to 8K to combine these features into a powerful native 8K switcher, including built in talkback and a 156 channel Fairlight audio mixer. ATEM live production switchers can meet live production needs at live concerts, sporting events, theater productions, conferences and more.

The ATEM Constellation 8K has 40 video inputs that support up to Ultra HD, ten of which can be switched to 8K. There are 28 video outputs (7 in 8K) and 24 aux outputs (6 in 8K). Two balanced audio inputs and outputs are also included on the switcher.

Let your creative expression take the lead. Creative transitions can be used in all resolutions, and the transition type, pattern, and length are customizable. Powerful digital video effects processor gives you the ability to position, resize, rotate, and scale live video in real time. Built in chroma, luminance, linear and pattern keyers, and two independent downstream keyers all come standard. Advanced chroma keyers enable massive multi-layer effects. On-screen adjustable controls can select and sample a region of color. Chroma keyers also feature foreground, background and edge adjustment controls, and chroma correction tools.

Add multi box compositions quickly and easily with SuperSource’s separate five layer switcher. SuperSource can be assigned to any ATEM video input, so you can produce multi camera interviews or picture in picture while the M/Es, keyers, and DVE are available for other uses. Compositions from SuperSource can be saved and automatically recalled.

Software control panel can be used on Mac or Windows computers. This included software panel offers a full visual switcher control panel and parameter palettes. For greater control access, add an ATEM advanced panel.

View full details

Specifications

Certifications
SDI Compliance
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, SMPTE 2082-12.
Dimensions
Media Player Clip Length in 720 HD
3200 frames.
Media Player Clip Length in 1080 HD
1600 frames.
Media Player Clip Length in Ultra HD
400 frames.
Media Player Clip Length in 8K
100 frames.
Audio
Total Audio Inputs
2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADI in.
Total Audio Outputs
2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADI out.
Extra Audio Outputs
1 x 5 pin XLR Talkback.
SDI Audio Outputs
2 Ch embedded into SDI output on all outputs.
Extra Audio Inputs
1 x 5 pin XLR Talkback.
Channels
Fill and key for each media player.
Media Pool Audio File Format
WAV, MP3 and AIFF.
Connectivity
Total Video Inputs
40 x up to Ultra HD / 10 x in 8K
Total Video Outputs
28 x up to Ultra HD / 7 x in 8K
Total Aux Outputs
24 x up to Ultra HD / 6 x in 8K
Reference Input
Tri-Sync or Black Burst.
Video Input Re-sync
On all 40 inputs.
SDI Video Inputs
40 x 10-bit 720p, 1080i, 1080p, 2160p and 10 x 4320p switchable.
SDI Program Outputs
Any of the 24 SDI outputs.
Down Converted SDI Program Output
None
SDI Preview Outputs
Any of the 24 SDI outputs.
SDI Multi View Outputs
4
HDMI Multi View Outputs
None
Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Construction
Color Precision
10-bit.
Color Space
REC 601, REC 709, REC 2020.
Color Generators
2
Controls
Control Panel Connection
Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
Control Panel
Front fascia emergency switching, software or optional hardware panel.
Included Items
Front Panel
Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Control Panel Included
ATEM Software Control Panel included free for Mac 10.13 High Sierra, Mac 10.14 Mojave or later and Windows 8.1 64-bit or Windows 10 64-bit.
Environmental
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
General
SDI Rates
1.5G, 3G, 6G, 12G
Timecode Connections
None
Frame Rate and Format Converters
On all 40 inputs.
Total Multi Views
4 x up to Ultra HD / 1 x in 8K
Internal Timecode Generator
Yes
Computer Interface
1 x USB 2.0 port.
SD Video Standards
None
HD Video Standards
720p50, 720p59.94, 1080i50, 1080i59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94
8K Video Standards
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p50, 4320p59.94
Video Sampling
4:2:2
SDI Auto Switching
Automatically detects between level A and level B 3G-SDI, 6G-SDI and 12G-SDI. Requires 2SI in 8K mode.
Upstream Keyers
16 x up to Ultra HD / 4 x in 8K with Chroma/Linear/Luma key.
Downstream Keyers
4 x up to Ultra HD / 2 x in 8K.
Advanced Chroma Keyers
16 x up to Ultra HD / 4 x in 8K.
Talkback Support
Yes
Mix Minus Support
Yes
Linear/Luma Keyers
21 x up to Ultra HD / 7 x in 8K
Transition Keyer (Stinger/DVE)
4 Stinger, 4 DVE.
Total Number of Layers
28 x up to Ultra HD / 7 x in 8K
Pattern Generators
21 x up to Ultra HD / 9 x in 8K
DVE with 3D Borders & Drop Shadow
4 x up to Ultra HD / 1 x in 8K
Routable Windows
64 x up to Ultra HD / 16 x in 8K
Tally
Red for program and green for preview indication.
Windows Source Labels
Yes
Multi View Monitoring
4 x 16 Multi View pattern options for up to 64 total views.
Multi View Video Standard
Select HD, Ultra HD or 8K.
Media Players
4 x up to Ultra HD / 1 x in 8K
Media Pool Still Image Capacity
64 x up to Ultra HD / 24 x in 8K with fill and key.
Media Pool Clip Capacity
4 x up to Ultra HD / 2 x in 8K with fill and key.
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format
TGA Sequence.
Interface
Minimum monitor resolution of 1366 x 768.
Processing Delay
< 7 lines in up to Ultra HD / in 10 lines in 8K
Down Conversion
None
Software Updates
Using USB 2.0 connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility.
Operating Systems
Mac 10.14 Mojave, Mac 10.15 Catalina or later., Windows 8.1 and 10, both 64-bit.
Power Supply
2 x Internal 100 - 240 AC.
Power Usage
300W
Physical Installation
2 Rack Unit Size
Indicators
Processing
Audio Mixer
Cable
Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
