Blackmagic Design ATEM Microphone Converter
Blackmagic Design ATEM Microphone Converter
SoundPro Item: 138490 | Part Number: BMD-SWATEMTVSTDMC
Usually ships in 5-7 business days
- High End Converter Style Design
- Connects via MADI for Multi Channel Audio
- Innovative Analog to Digital Conversion
- Extremely Low -129dBV Noise Floor
- Digital Preamplifier Design for Stability
- Precisely Matched Analog Inputs
- Includes HDMI Monitoring with Scrolling Audio Waveforms

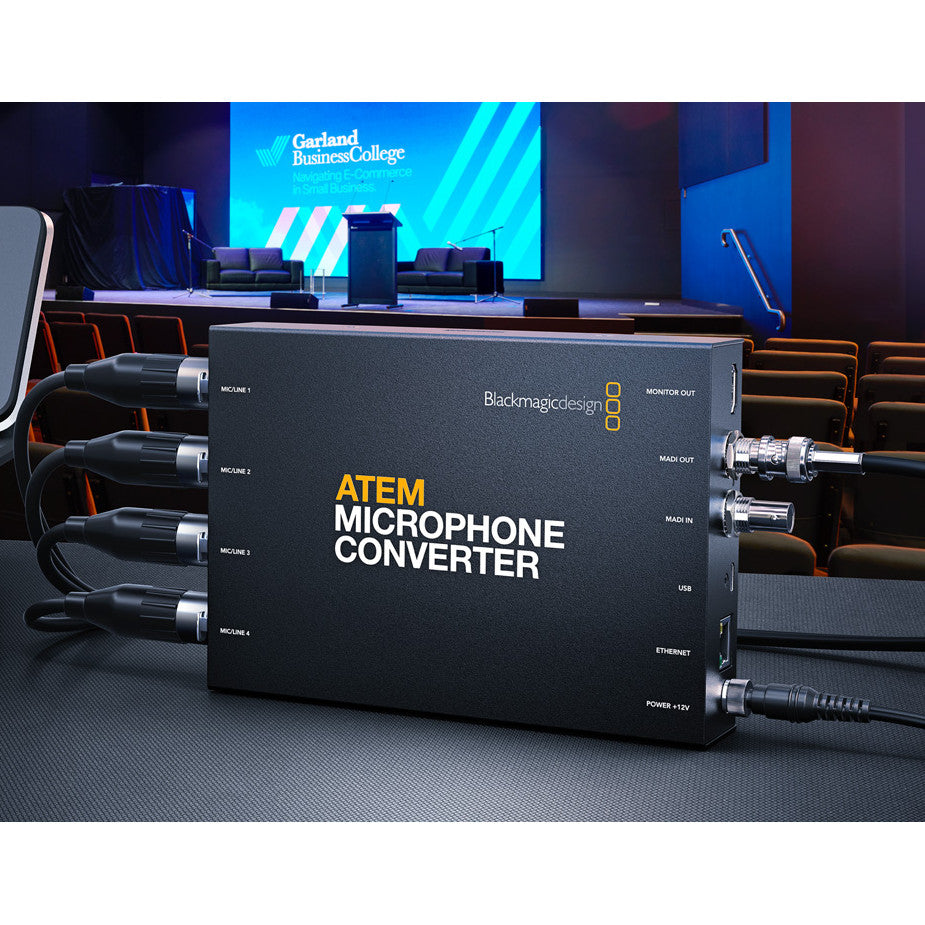

Now it’s easy to expand the MADI input on ATEM switchers so you can add multiple microphones or external audio mixers. The ATEM Microphone Converter simply plugs into the ATEM Television Studio MADI port, so there's no complex setup required and additional units can even be daisy chained for more sources. Each converter has 4 analog inputs that are mic/line selectable and have 48V phantom power. The design features amazing audio quality with an extremely low noise floor, a wide dynamic range and very low distortion. The design even uses 8 separate ADCs on each separate input that work together to extend dynamic range! There is also an HDMI monitoring output with scrolling audio waveforms.

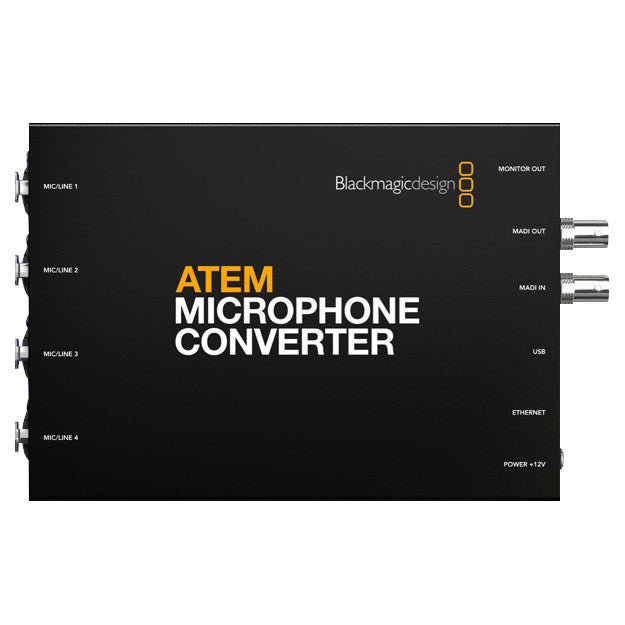

- Connections

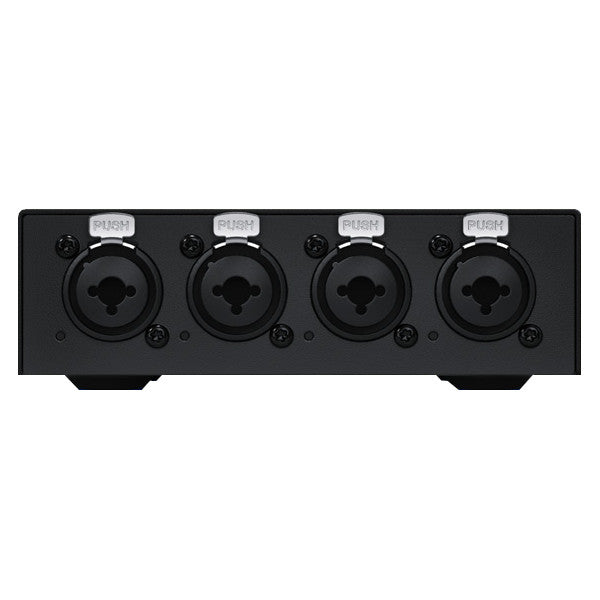

- Analog Audio Inputs: 4 x Combination 3-pin XLR and TRS 1/4 inch Jack switchable between +24dB line and mic level with support for +48V phacntom power.

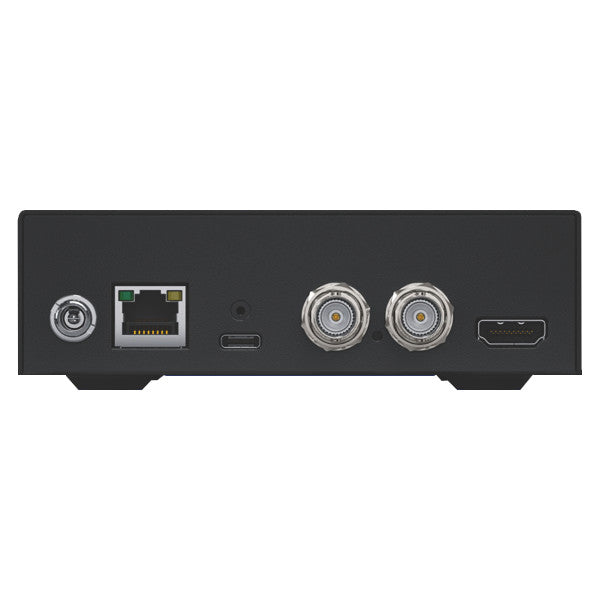

- MADI Inputs: 1 x BNC supports 64 channel MADI digital audio
- MADI Outputs: 1 x BNC supports 64 channel MADI digital audio
- HDMI Video Outputs: 1 x monitor out.
- Computer Interface: 1 x USB-C with locking screw
- Ethernet: Supports 10/100/1000 BASE T.
- HDMI Output Standards
- HD Video Standards: 1080p24, 1080p25, 1080p30, 1080p48, 1080p50, 1080p60
- HDMI Monitoring: Displays ATEM Microphone Converter name and 4, 8, 12 or 16 audio channels with 60 second waveform history. Also includes individual channel name, VU meters, mic or line level setting and phantom power status.
- Audio
- ADCs Per Input: 8
- Digital Preamp: 32-bit
- Dynamic Range: 131dB(A)
- Noise Floor: -129dBV
- Total Harmonic Distortion at full scale: 0.002%
- Output Sample Depth: 24-bit
- Output Sampling Rate: 48KHz
- MADI Compliance: AES10-2020
- Software
- Software Control: Mac™ and Windows™ software upgrade via USB or Ethernet.
- Internal Software Upgrade: Via downloadable utility application.
- Operating Systems
- Mac 12.0 Monterey, Mac 13.0 Ventura or later.
- Windows 10, 64-bit.
- Windows 11.
- Settings Control
- Software Settings Control: USB and Ethernet via free software utility.

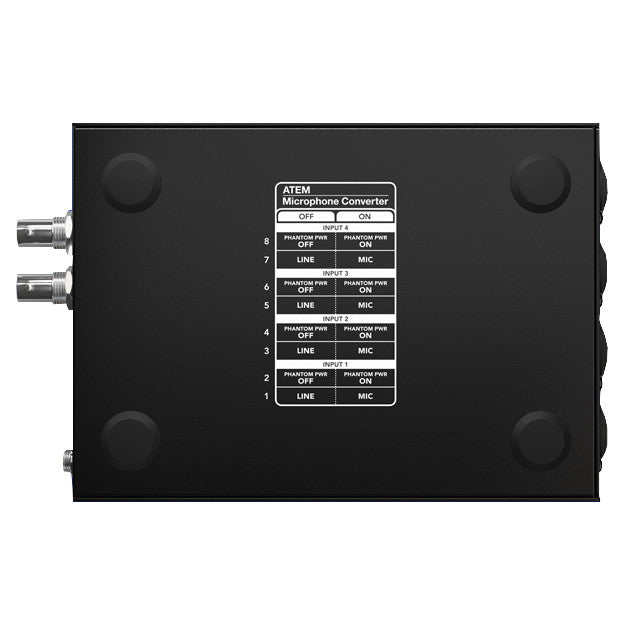

- Hardware Switches: Mini switches for selecting mic or line level and setting +48V phantom power on/off.
- Power Requirements
- Power Supply: 1 x External 12V power supply with locking connector.
- Power Consumption: 12W max.
- Operational Voltage Range: 12V to 17.5V DC
- PhysicalDimensions (WxDxH): 7.87x1.6x4.92”
- Environmental
- Operating Temperature: 0° to 40°C (32° to 104°F)
- Storage Temperature: -20° to 60°C ( 4° to 140°F)
- Relative Humidity: 0% to 90% non condensing
