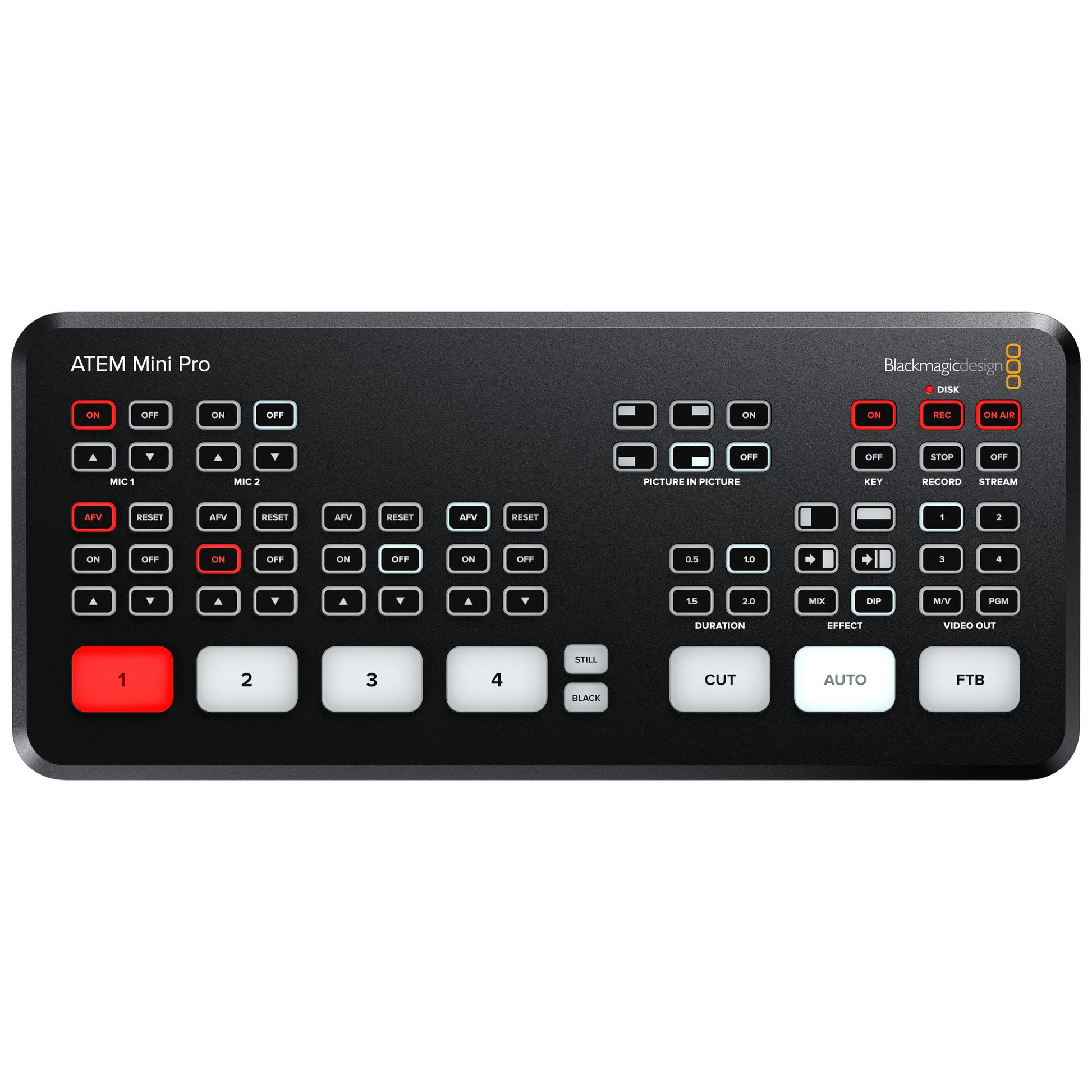

• Blackmagic Design ATEM Mini Pro top

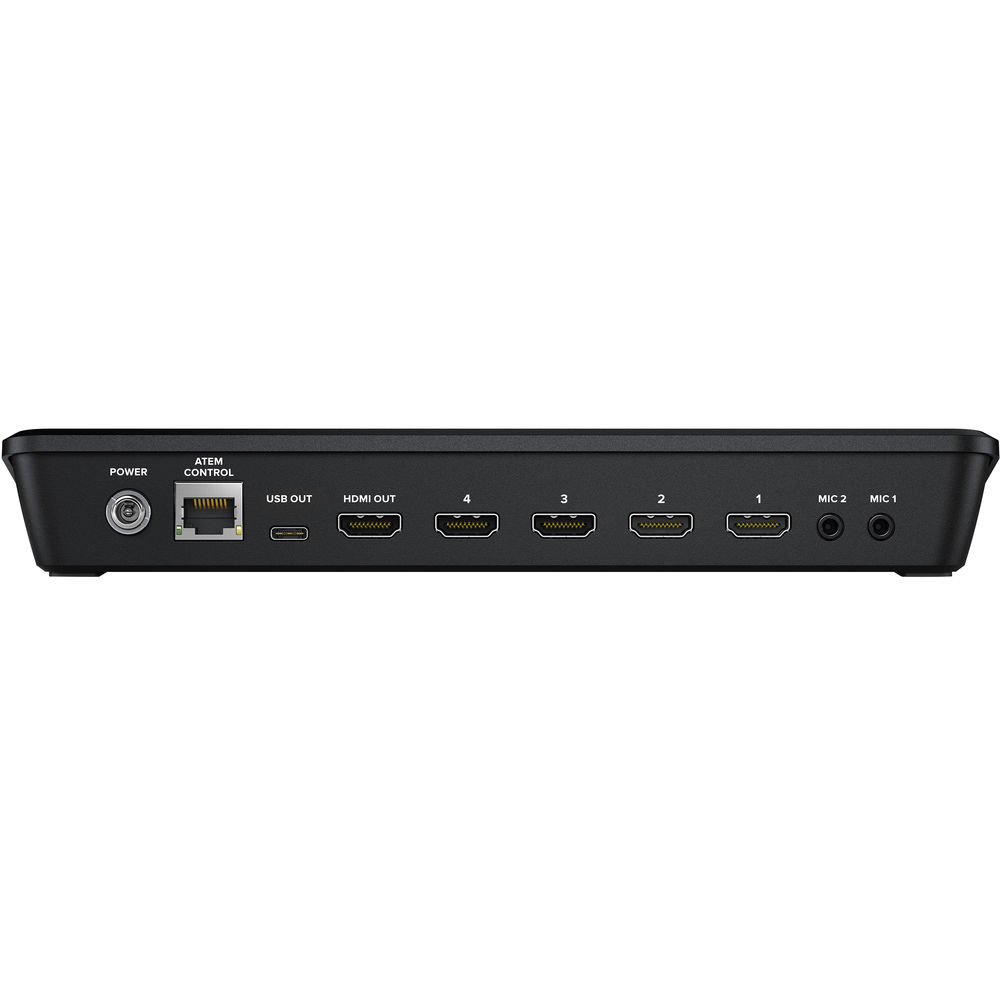

  • Blackmagic Design ATEM Mini Pro rear panel with power, ATEM control, USB out, HDMI out, 4 HDMI inputs, mic jacks

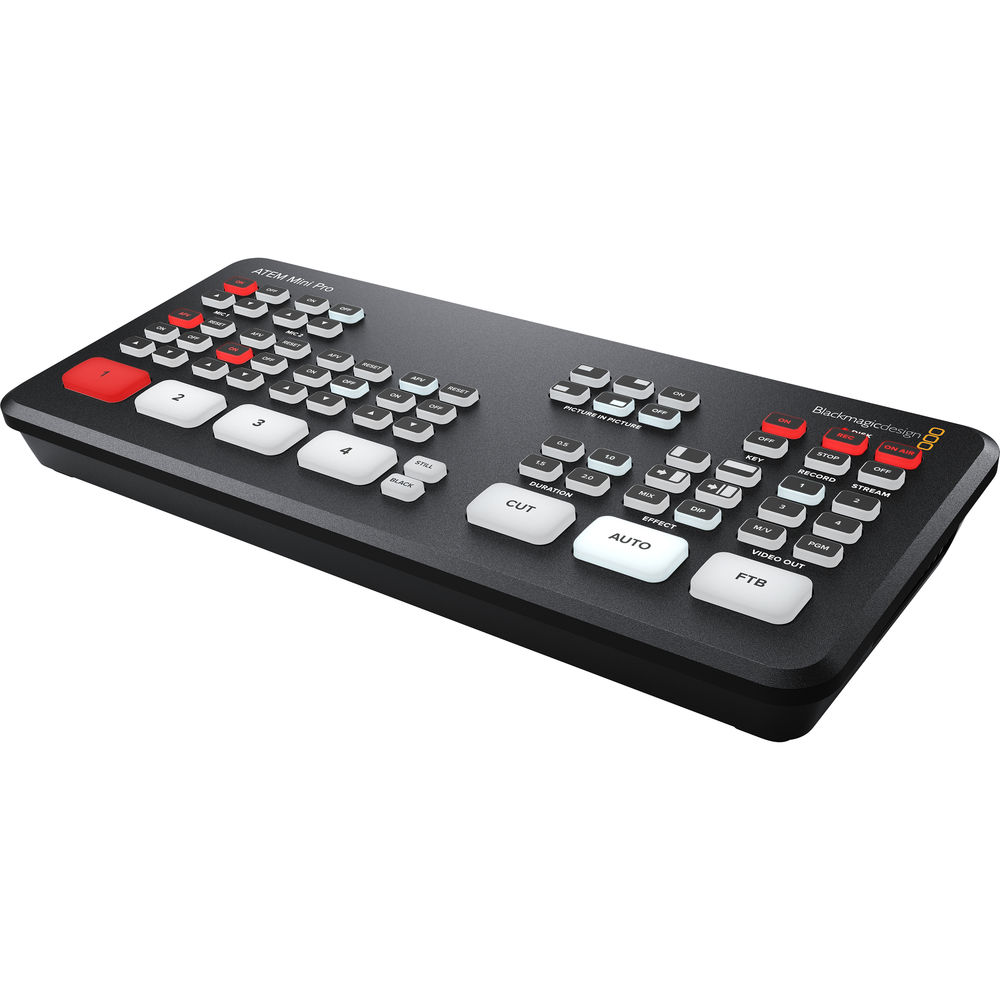

  • Blackmagic Design ATEM Mini Pro angled view showing input, cut, auto, FTB, record and stream buttons

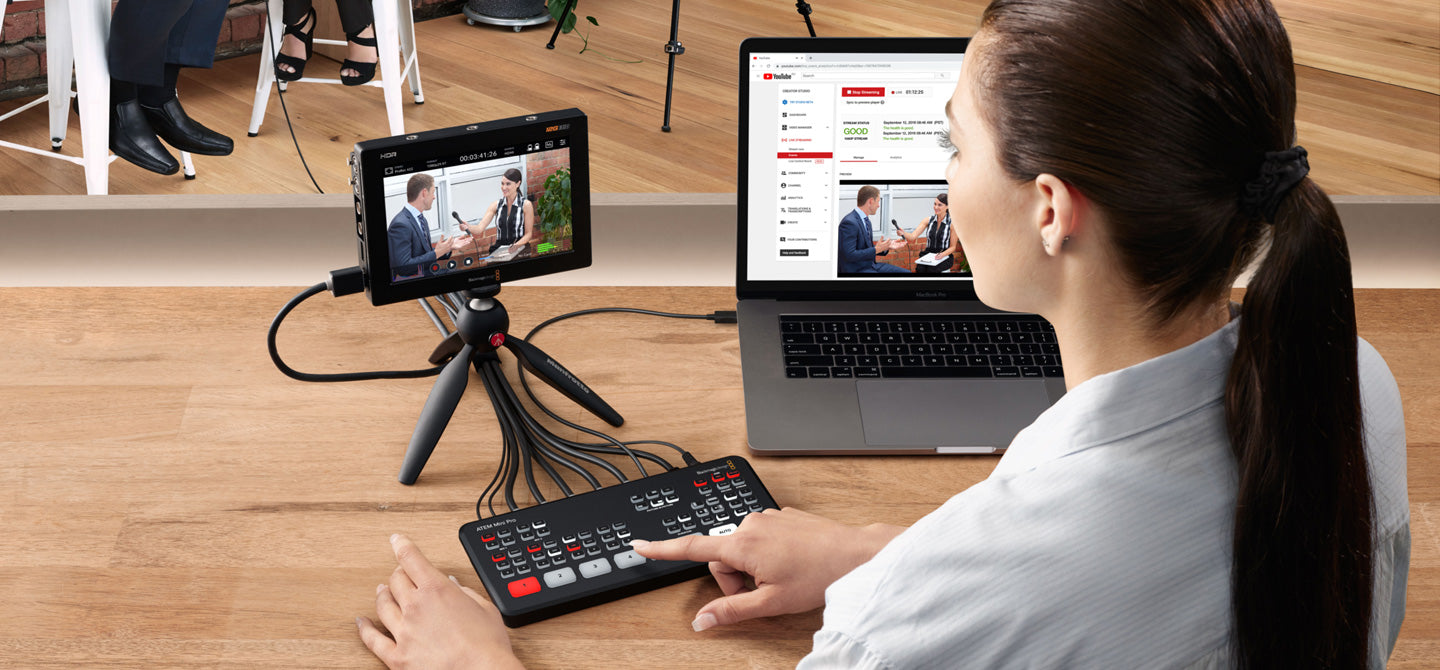

  • Operator pressing ATEM Mini Pro buttons beside a camera monitor and laptop running a live stream

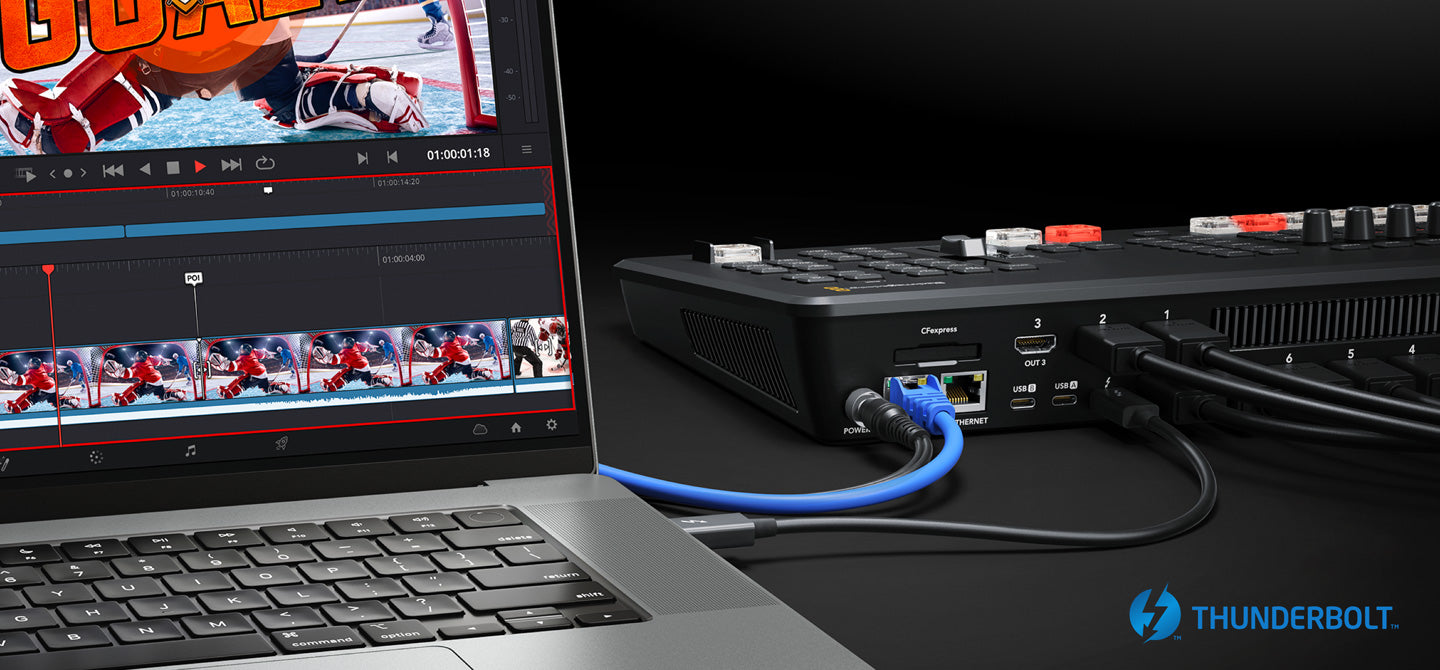

  • Blackmagic Design ATEM switcher rear ports cabled to a laptop running an editing timeline

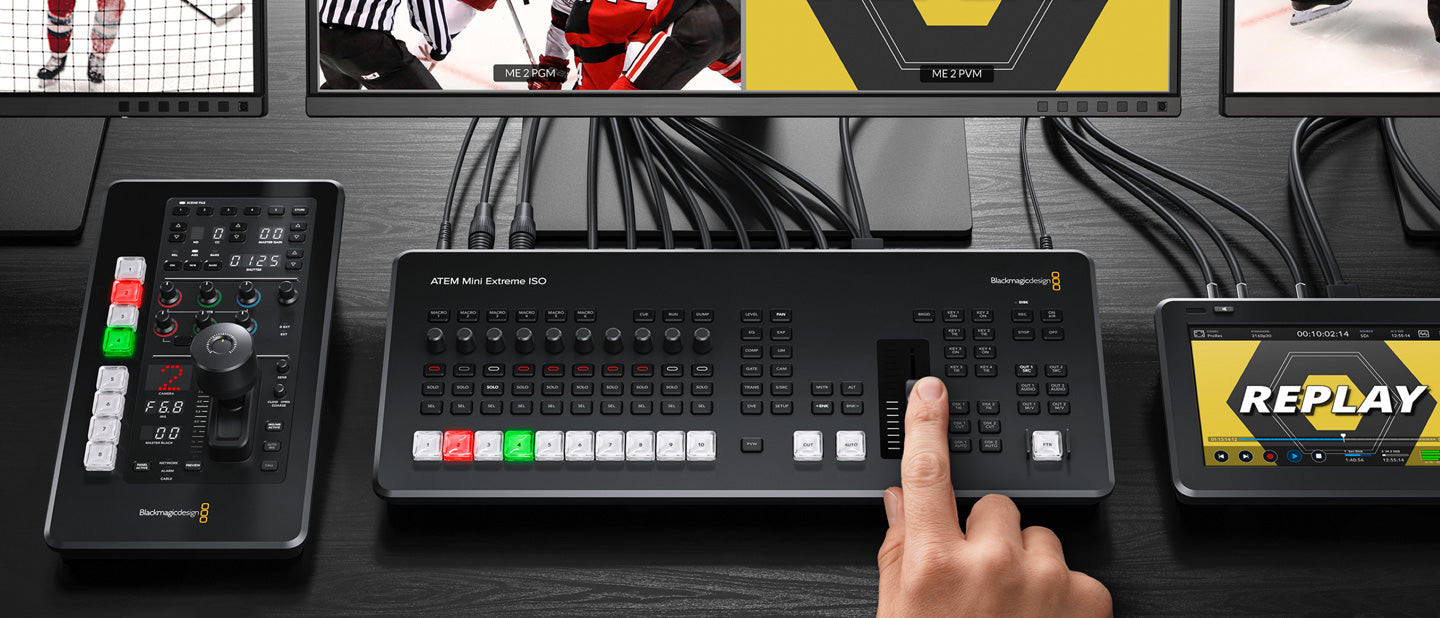

  • Hand on Blackmagic Design ATEM Mini Extreme ISO switcher with multiview monitors and replay panel
1 6

Blackmagic Design ATEM Mini Pro

Blackmagic Design ATEM Mini Pro

SoundPro Item: 50114 | Part Number: BMD-SWATEMMINIBPR

$349.00
$349.00 $349.00
Your Price Sold out
MSRP: $345.00 | MAP: $345.00

In stock and ready to ship

  • Mini video switcher with 4 inputs
  • Great for live streaming interviews, business presentations, videogame competitions, investor updates, education, and training
  • USB output lets you work with any streaming software
  • Large source buttons can be operated by feel
  • Sources operating at different video standards re-sync to the switcher
  • Connect microphones and adjust audio level from the switcher
  • Dissolve, dip to color, wipe, and more
  • DVE for picture in picture effects, squeeze and push advanced transitions
  • Add more effects with the free ATEM Software Control app on Mac or Windows
  • Remote control your cameras from the switcher
  • Multiview displays all video sources on one monitor
  • Live stream to social media via ethernet
  • Record direct to USB flash disks
  • Connect 5G or 4G phones for mobile data
Log in or register for YOUR best price

Live streaming is easy with the ATEM Mini – simply connect the switcher for real time switching of up to 4 high quality video camera inputs. USB output on the switcher functions as a webcam so you can use any streaming software. Built in DVE and a wide array of effects make the ATEM Mini Pro great for live streaming interviews, business presentations, videogame competitions, investor updates, education, and training.

View full details

Specifications

Dimensions
Dimensions
9.35x4.07x1.38"
Audio
Total Audio Inputs
2 x 3.5mm stereo mini jack
Total Audio Outputs
None, embedded audio only
Audio Mixer
6 input x 2 channel mixer
Connectivity
Total Video Inputs
4
Total Outputs
2
Total Aux Outputs
1
HDMI Video Inputs
4 x HDMI type A, 10-bit HD switchable, 2 channel embedded audio
HDMI Program Outputs
1
Ethernet
Supports 10/100/1000 BaseT
Construction
Color Generators
2
Shipping
Weight
1.21 pounds
General
Video Format
1080p/60fps
Computer Interface
1 x USB Type-C 3.1 Gen 1
Upstream Keyers
1
Downstream Keyers
1
Advanced Chroma Keyers
1
Linear/Luma Keyers
2
Transition Keyer
DVE only
Total Number of Layers
5
Pattern Generators
1
DVE with Borders and Drop Shadow
1
Media Players
1
Software
ATEM Software Control Panel
Operating Systems
Mac 10.14 Mojave, Mac 10.15 Catalina or later., Windows 10, 64-bit.
Power Supply
1 x External 12V power supply
Power Usage
30W
