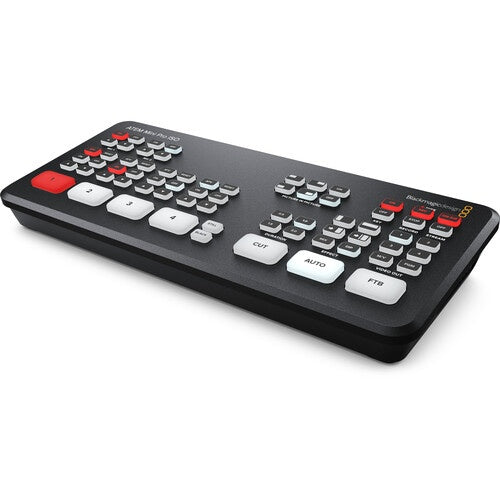

• Blackmagic Design ATEM Mini Pro ISO live production switcher in angled view showing control surface

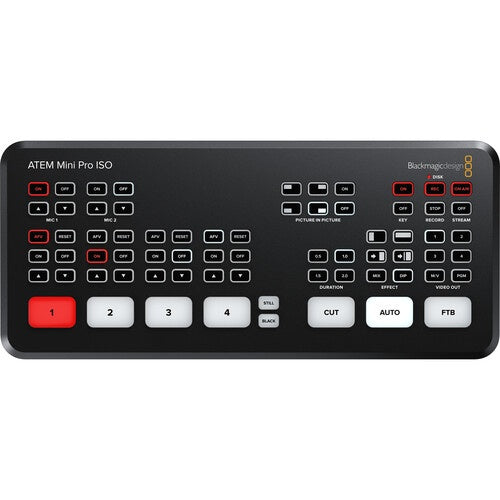

  • Blackmagic Design ATEM Mini Pro ISO top panel with source buttons, CUT, AUTO and FTB controls
  • Blackmagic Design ATEM Mini Pro ISO rear panel with HDMI inputs, HDMI out, USB out, Ethernet and mic jacks
1 3

Blackmagic Design ATEM Mini Pro ISO

Blackmagic Design ATEM Mini Pro ISO

SoundPro Item: 57468 | Part Number: BMD-SWATEMMINIBPRISO

$585.00
$585.00 $585.00
Your Price Sold out
MSRP: $575.00 | MAP: $575.00

In stock and ready to ship

  • 4 inputs
  • USB output lets you work with any streaming software
  • Large source buttons can be operated by feel
  • Sources operating at different video standards re-sync to the switcher
  • Connect microphones and adjust audio level from the switcher
  • Dissolve, dip to color, wipe, and more
  • DVE for picture in picture effects, squeeze and push advanced transitions
  • Add more effects with the free ATEM Software Control app on Mac or Windows
  • Remote control your cameras from the switcher
  • Multiview displays all video sources on one monitor
  • Live stream to social media via ethernet
  • Record direct to USB flash disks
  • Connect 5G or 4G phones for mobile data
  • Records 5 H.264 video streams in real time
  • DaVinci Resolve project file lets you go back later for adjustments to the live production
Log in or register for YOUR best price

Create professional multi camera live productions with the low cost ATEM Mini series of switchers. Live streaming is easy with the ATEM Mini – simply connect the switcher for real time switching of up to 4 high quality video camera inputs. USB output on the switcher functions as a webcam so you can use any streaming software. Built in DVE and a wide array of effects make the ATEM Mini Pro ISO great for live streaming interviews, business presentations, videogame competitions, investor updates, education, and training.

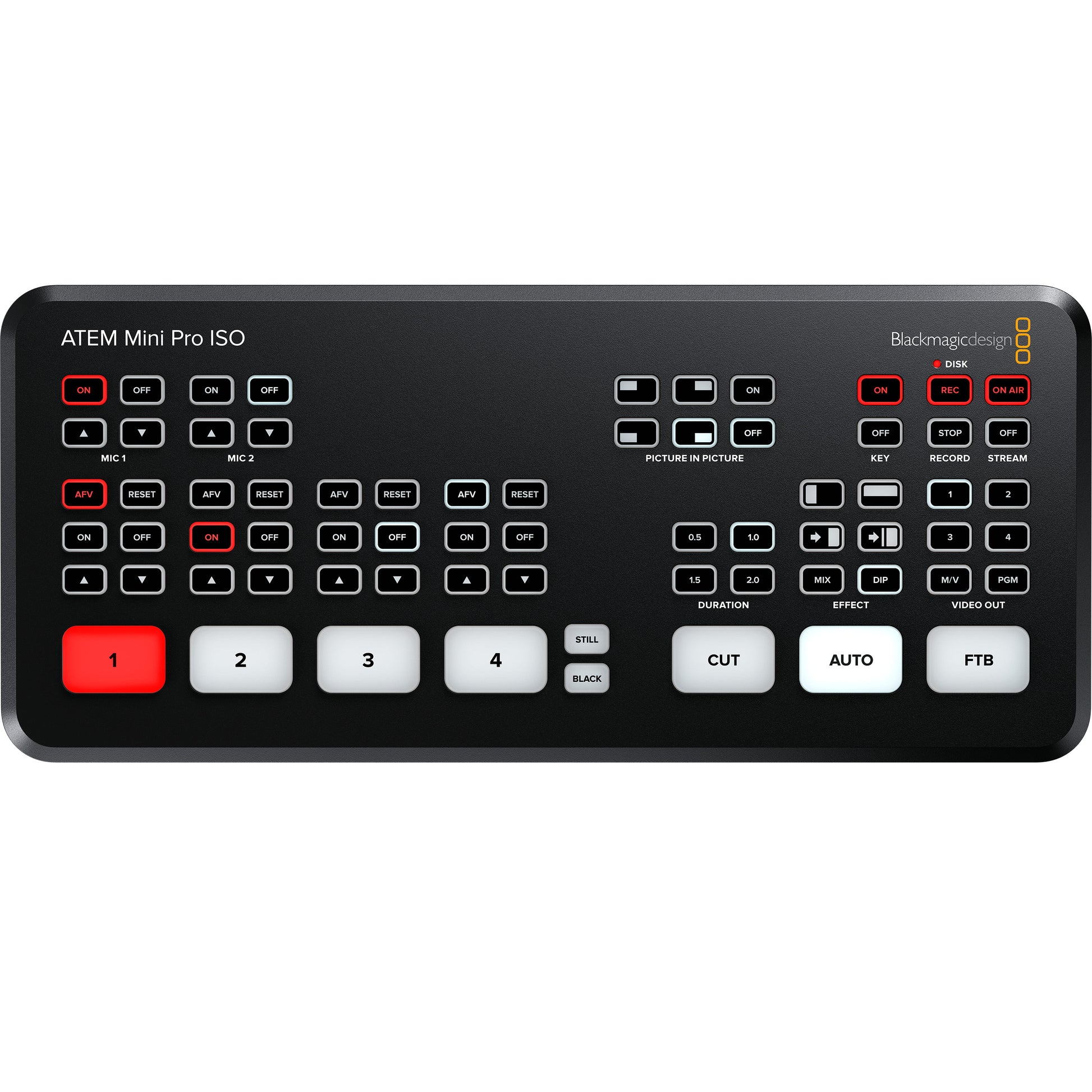

Front panel controls offer easy navigation with large source buttons, audio mixing buttons, and controls for video effects and transitions. Rear panel has all the connections needed to support cameras, computers, extra mic inputs, USB for webcam out, and an HDMI output for program video. Sources operating at different video standards is no longer a problem, as they re-sync to the switcher. Easily cut between sources by pressing the corresponding input button on the front panel.

The ATEM Mini Pro ISO provides lots of effects to choose from. Access cut transitions from the cut button, and use the auto button for a video effect when switching inputs. Duration buttons change the timing of any effects. Transitions include dissolve, dip to color, wipe, and DVE capabilities. DVE allows picture in picture effects and advanced transitions with DVE squeeze and push effects. Access more broadcast-style effects with the free ATEM Software Control app.

Load up to 20 separate RGBA graphics with the built in media pool. Advanced chroma key powers green screen keying effects. Sample background colors to automatically generate key parameters, enjoy precise controls for edge and flare, and match foreground to background with foreground color corrector.

The ATEM Mini Pro ISO has buttons for record and streaming control, and multiview function. Built in hardware streaming engine sends live streams to social media platforms via the switcher's ethernet connections. Direct recording of streaming data to USB flash disks is supported for saved video files of your live streams. Another new feature is phone tethering. 5G and most common 4G Apple or Android phones can be connected to the USB port to use the phone’s data for mobile production solutions. The switcher automatically switches its internet connection to the phone, and the phone stays charged from the USB port.

A new feature to the ATEM Mini Pro ISO is the ability to record five H.264 video streams in real time. This provides a clean feed of all inputs plus the live program. Recreate or edit the project later with the saved DaVinci Resolve project file.

View full details

Specifications

Dimensions
Dimensions
9.35" x 4.07" x 1.38"
Audio
Total Audio Inputs
2 x 3.5mm stereo mini jack
Total Audio Outputs
None, embedded audio only
Audio Mixer
6 input x 2 channel mixer
Connectivity
Total Video Inputs
4
Total Outputs
2
Total Aux Outputs
1
HDMI Video Inputs
4 x HDMI type A, 10-bit HD switchable, 2 channel embedded audio
HDMI Program Outputs
1
Ethernet
Supports 10/100/1000 BaseT
Construction
Color Generators
2
Shipping
Weight
1.21 pounds
General
Video Format
1080p/60fps
Computer Interface
1 x USB Type-C 3.1 Gen 1
Upstream Keyers
1
Downstream Keyers
1
Advanced Chroma Keyers
1
Linear/Luma Keyers
2
Transition Keyer
DVE only
Total Number of Layers
5
Pattern Generators
1
DVE with Borders and Drop Shadow
1
Media Players
1
Software
ATEM Software Control Panel
Operating Systems
Mac 10.14 Mojave, Mac 10.15 Catalina or later., Windows 10, 64-bit.
Power Supply
1 x External 12V power supply
Power Usage
36W
