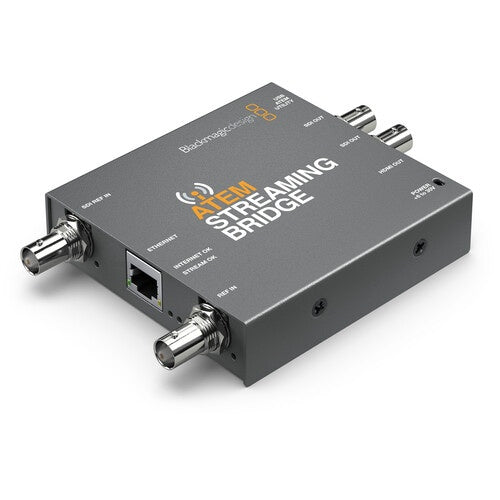

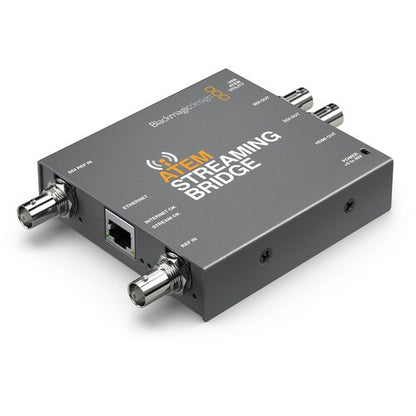

• Blackmagic Design ATEM Streaming Bridge angled view showing SDI REF IN, Ethernet port, and BNC connectors

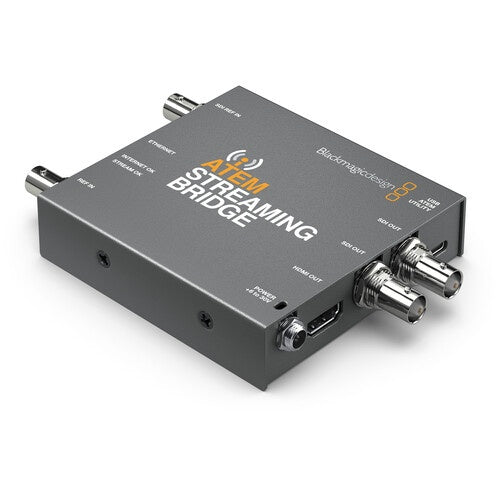

  • Blackmagic Design ATEM Streaming Bridge rear angle with HDMI OUT, dual SDI OUT, and power input

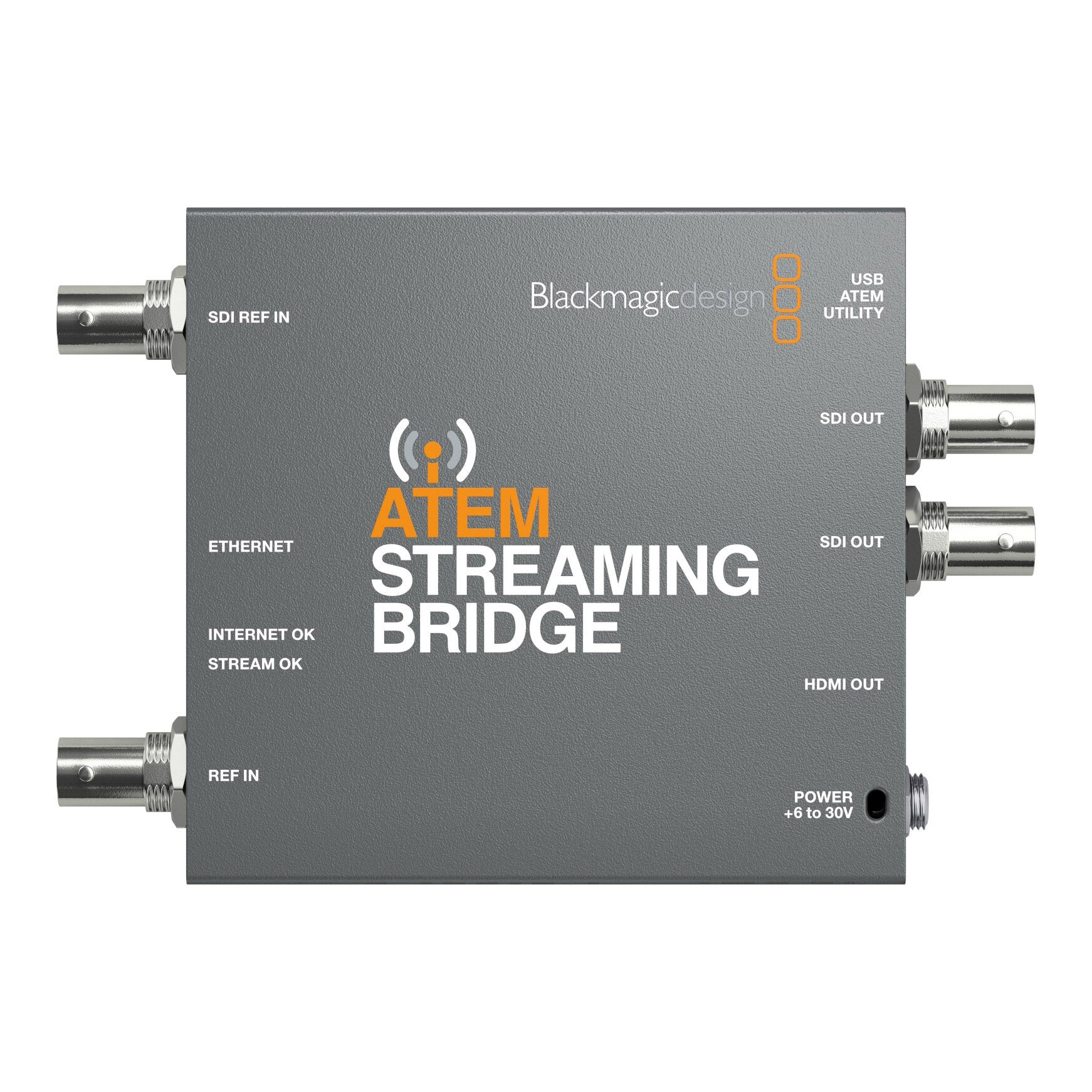

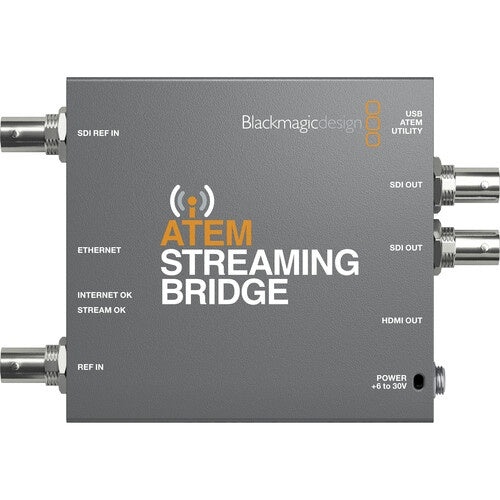

  • Blackmagic Design ATEM Streaming Bridge top view with labeled Ethernet, REF IN, SDI OUT, and HDMI OUT ports

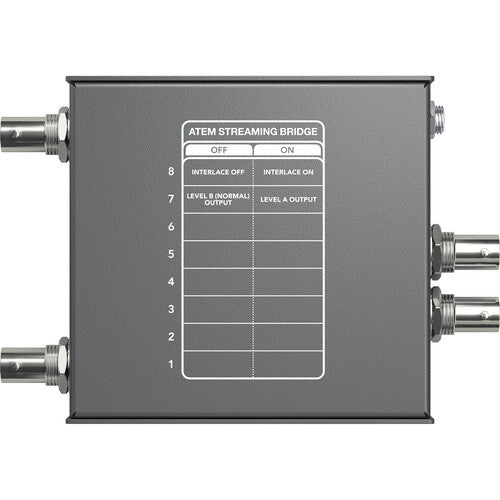

  • Blackmagic Design ATEM Streaming Bridge underside showing DIP switch setting chart for interlace and output level
1 4

Blackmagic Design ATEM Streaming Bridge

Blackmagic Design ATEM Streaming Bridge

SoundPro Item: 57467 | Part Number: BMD-SWATEMMINIS

$305.00
$305.00 $305.00
Your Price Sold out
MSRP: $305.00 | MAP: $305.00

Usually ships in 5-7 business days

  • Add the ATEM Streaming Bridge to support distance collaborations with ATEM Minis
  • 2 SDI outputs, 1 HDMI output
  • Convert a H.264 stream back to SDI and HDMI for high quality at low data rates
  • Includes 12V universal power supply with international socket adapters
Log in or register for YOUR best price

Create professional multi camera live productions with the low cost ATEM Mini series of switchers. Live streaming is easy with any ATEM Mini – simply connect the switcher for real time switching of high quality video camera inputs. USB output on the switcher functions as a webcam so you can use any streaming software. Built in DVE and a wide array of effects make ATEM Minis great for live streaming interviews, business presentations, video game competitions, investor updates, education, and training.

Add the ATEM streaming bridge to an ATEM Mini Pro or ATEM Mini Extreme for SDI and HDMI video conversion. Two SDI outputs and one HDMI output support resolutions up to 1080p60.

Send video remotely, whether that’s locations around your local Ethernet network or globally via the internet. The ATEM streaming bridge lets you receive a H.264 stream from the ATEM switcher, and converts it back to SDI and HDMI video. This delivers high quality at low data rates for worldwide collaboration.

Setup is easy with the ability to email setup files to remote studios. The streaming bridge connects directly to the streaming output of your ATEM Mini.

View full details

Specifications

Connectivity
Tally Output
Embedded via SDI. Added via ethernet connection to Blackmagic Design GPI and Tally Interface product (not included).
Construction
Color Generators
2
General
Upstream Keyers
1 with Chroma/Linear/Luma key
Downstream Keyers
2
Chroma Keyers
1
Linear/Luma Keyers
3
Talkback Support
Built in, uses aviation headset
Mix Minus Support
Yes, on 8 camera PGM outputs
Transition Keyer (Stinger/DVE)
Stinger and DVE
Total Number of Layers
5
Pattern Generators
2
DVE with 3D Borders and Drop Shadow
1
Interface
Minimum monitor resolution of 1366 x 768
Number of Windows
1 x 10
Routable Windows
8 routable and 2 fixed for Program and Preview
Tally
Red for program and green for preview indication
Windows Source Labels
Yes
