Blackmagic Design ATEM Television Studio HD8
Blackmagic Design ATEM Television Studio HD8
SoundPro Item: 138486 | Part Number: BMD-SWATEMTVSTA/HD08/0
Regular price
$2,965.00
Regular price
$2,965.00
Sale price
$2,965.00
Unit price
per
MSRP: $2,965.00
| MAP: $2,965.00
Usually ships in 5-7 business days
- Self Contained Broadcast Quality Switcher
- Portable All-In-One Television Studio
- Includes Production, Post Production, and Distribution
- Easy to Use and Fast to Learn
- Connect up to 8 Independent Cameras
- True Broadcast Style Mix Effects Switching
- Includes Loads of Extremely Creative Transitions
- Built in DVE for Broadcast Video Effects
- Supports Internal Media for Stills and Motion Graphics
- Includes 4 ATEM Advanced Chroma Keyers
- Powerful SuperSource Processing
- Up to 8 Standards Converted 3G-SDI Inputs
- Professional 3G-SDI Outputs with 16 Channel Embedded Audio
- Built In Audio Mixer with 6 Band EQ, Compressor and Limiter
- Built-in Multiview Supports 16 Sources on a Single Monitor

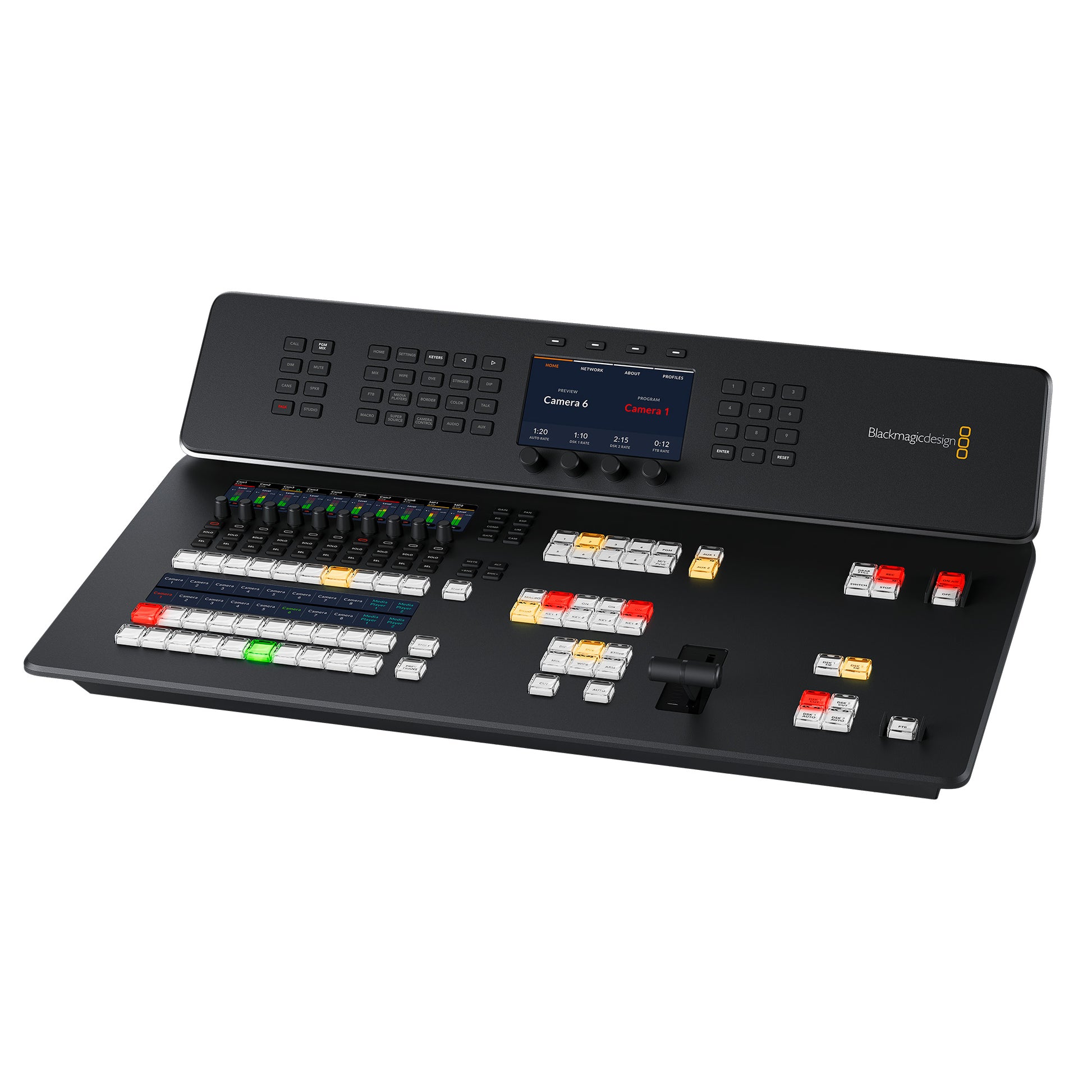

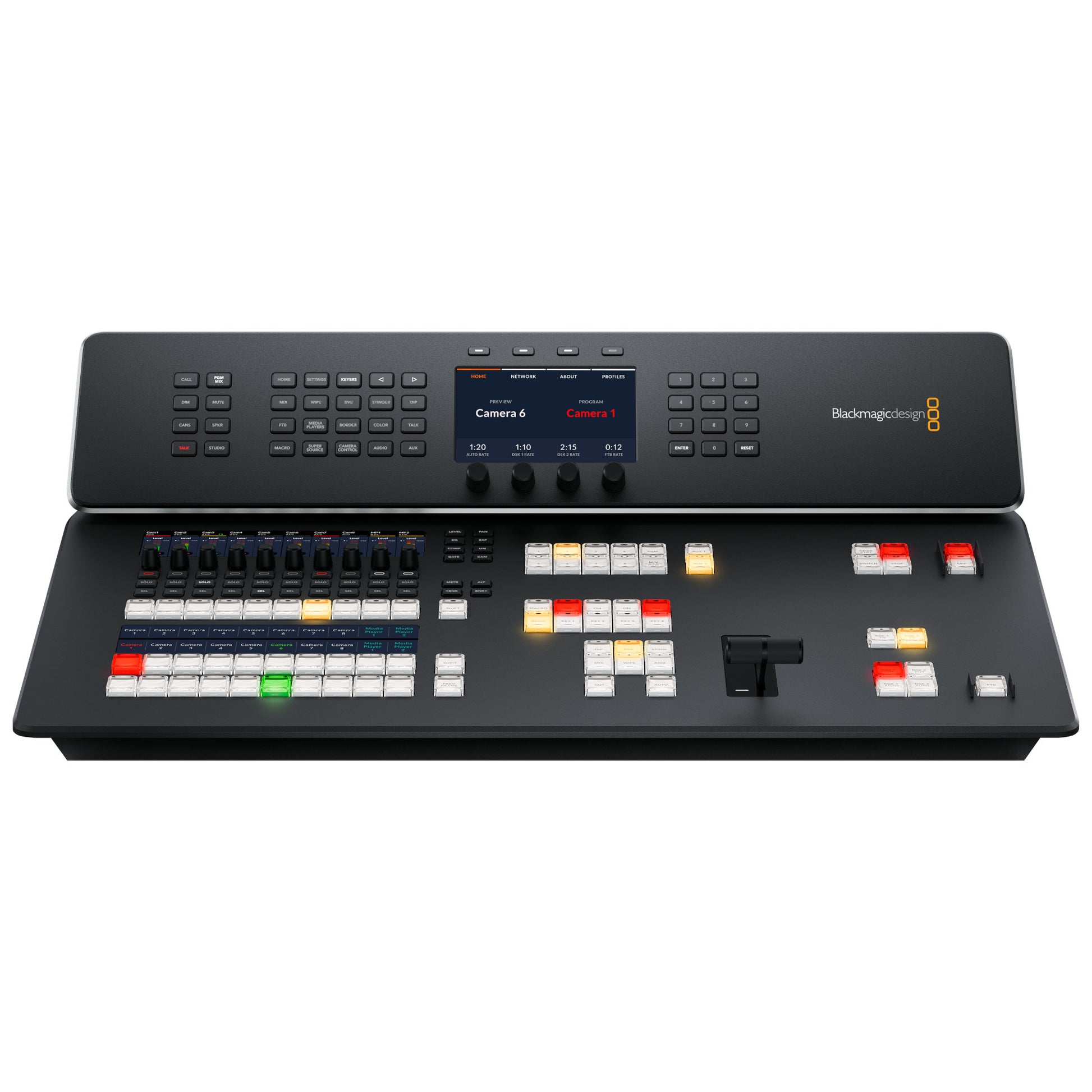

ATEM Television Studio HD8 is a compact live production switcher with built in broadcast control panel. Get a fully featured broadcast quality live production studio with 8 standards converted 3G-SDI inputs, built in streaming, master recorder, multiview, USB webcam support, DVE, 4 ATEM Advanced Chroma Keyers, media players, talkback, 4 way Ethernet switch and optional internal cloud media storage.
Specifications
Certifications
Standards
HD Video Input Standards 720p50, 720p59.94, 720p601080i50, 1080i59.94, 1080i601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
SDI Compliance
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Dimensions
Media Player Clip Length in 720 HD
400 frames.
Media Player Clip Length in 1080 HD
200 frames.
Dimensions (WxDxH)
23x14.8x6.35”
Electrical
Power Requirements
Power Supply 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket.1 x 4 pin XLR 12V DC In for external power supply or battery use.
Audio
Total Audio Inputs
2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback.
Total Audio Outputs
4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback.
SDI Audio Inputs
4 Ch embedded audio on all SDI inputs.
SDI Audio Outputs
2 Ch embedded audio on all SDI outputs.
Direct Recording Video and Audio
USB-C expansion port can record directly to external media.
Channels
Fill and key for each media player.
Media Pool Audio File Format
WAV, MP3 and AIFF.

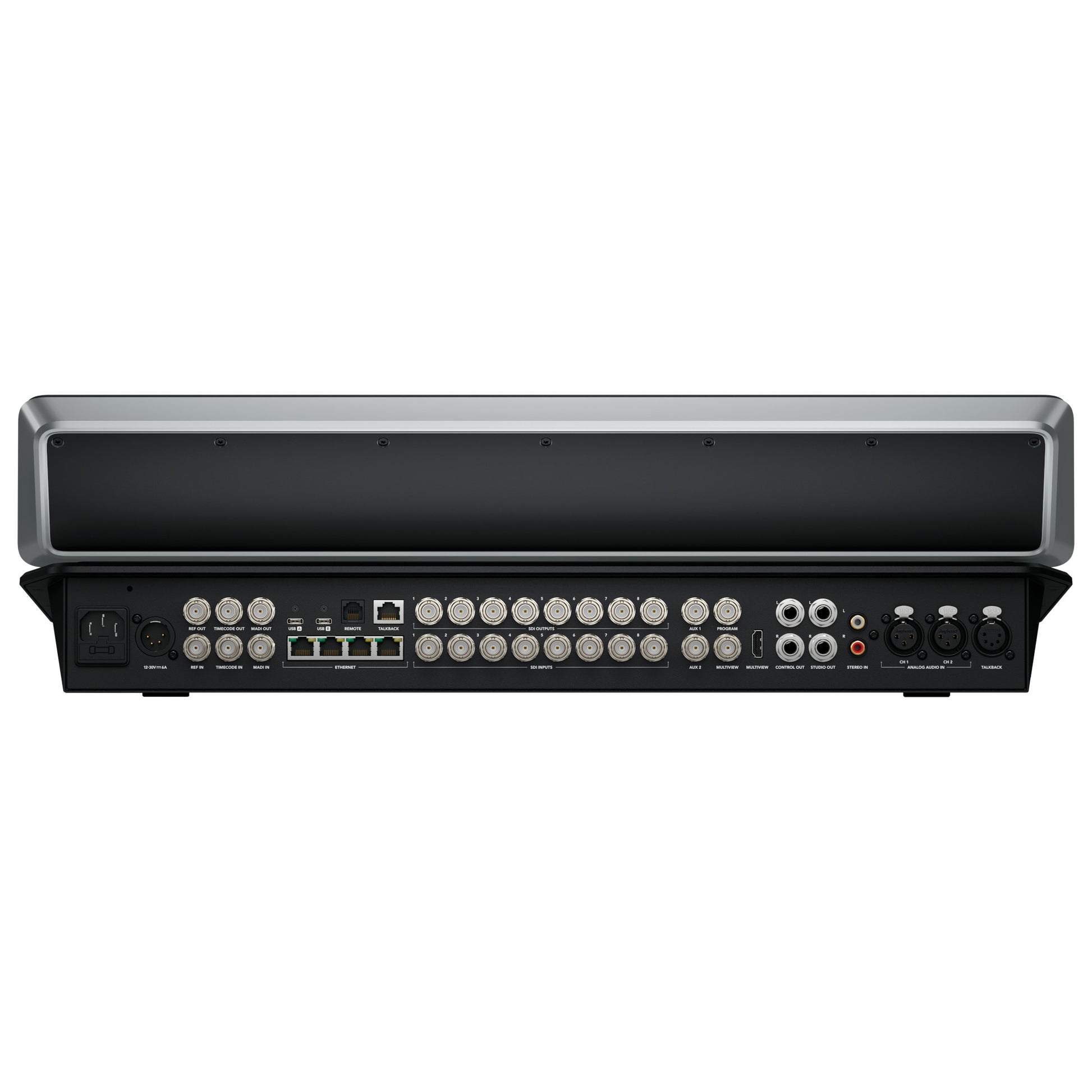

Connectivity
SDI Video Inputs
8
SDI Video Outputs
12
HDMI Video Outputs
1
Connections
Reference Input 1 x BNC In, 1 x BNC Out.Tri-Sync or Black Burst., Total Multi Views 1 x 3G-SDI1 x HDMI
Video Input Re-Sync
On all 8 inputs.
SDI Aux Outputs
2
SDI Program Outputs
1
Webcam Output
2 x USB-C supporting 720p or 1080p at PGM frame rate.
Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Ethernet
4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T.
Construction
Color Precision
10-bit.
Color Space
REC 709
Color Generators
2
Controls
Control Panel Connection
Ethernet. Direct connection between panel and chassis, or via network.

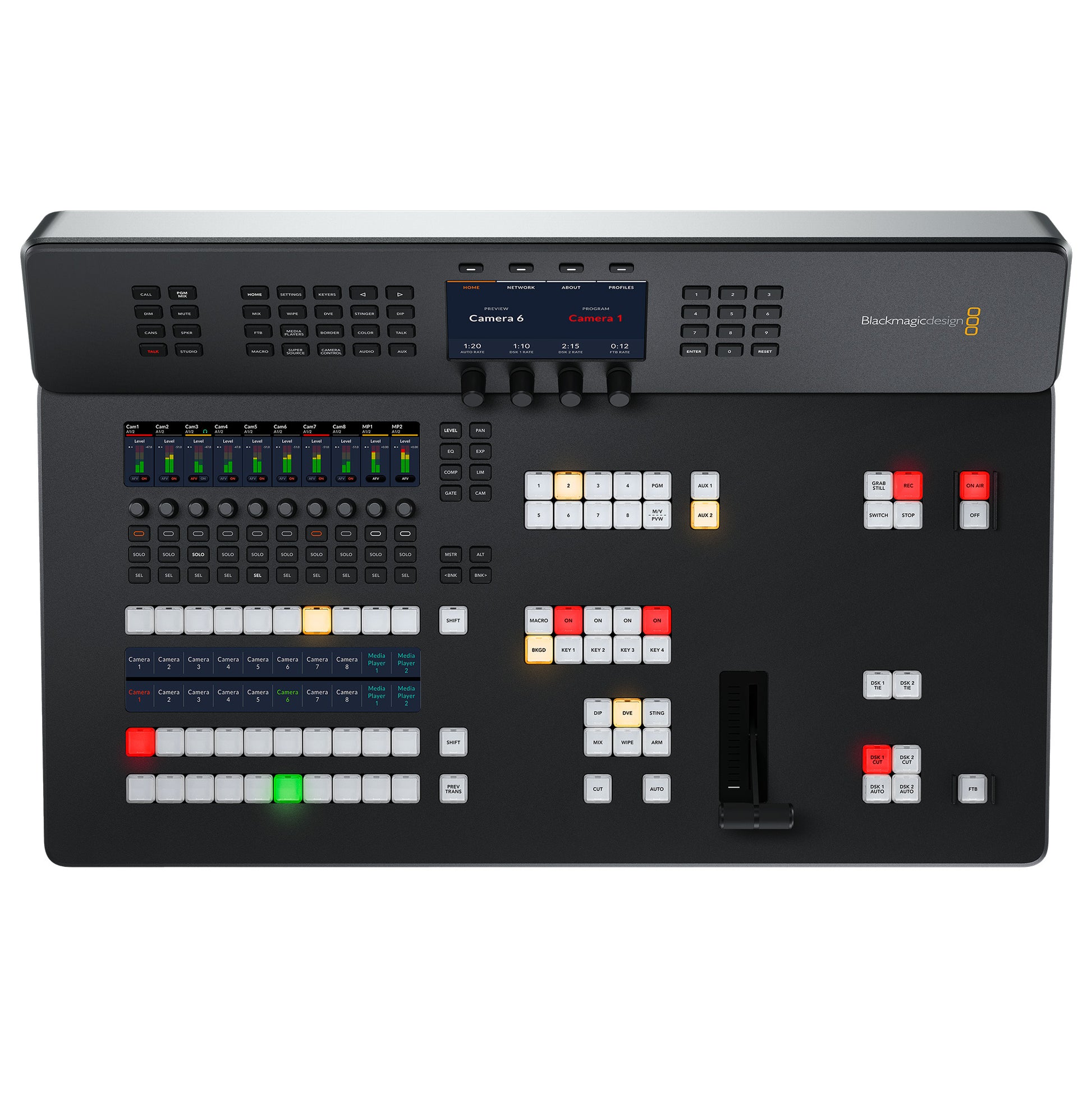

Control Panel
Integrated panel with full control of switching and settings.
Display Minimum Resolution
1366 x 768
Included Items
Control Panel Included
ATEM Software Control Panel included free for Mac 12.0 Monterey, Mac 13.0 Ventura or later. and Windows 10 or 11.
Environmental
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
14.9 lbs
General
SDI Rates
1.5G, 3G
Timecode Connections
1 x BNC In, 1 x BNC Out.
Frame Rate and Format Converters
On all 8 inputs.
Remote
RJ12 supports RS-422
Internal Timecode Generator
Yes
Talkback
RJ45 for 3rd party talkback systems.
Computer Interface
2 x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates and switcher connection.
SD Video Standards
None
Video Sampling
4:2:2
SDI Auto Switching
Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Upstream Keyers
4
Downstream Keyers
2
Advanced Chroma Keyers
4
SuperSource
1
Linear/Luma Keyers
7
Transition Keyer (Stinger/DVE)
1 Stinger, 1 DVE.
Total Number of Layers
8
Pattern Generators
7
Routable Windows
16
Windows Source Labels
Yes
Tally
Red for program and green for preview indication.
Talkback Support
Yes
Mix Minus Support
Yes
Streaming
Direct Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB C.
Video Recording
Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio.
Media Format
Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).

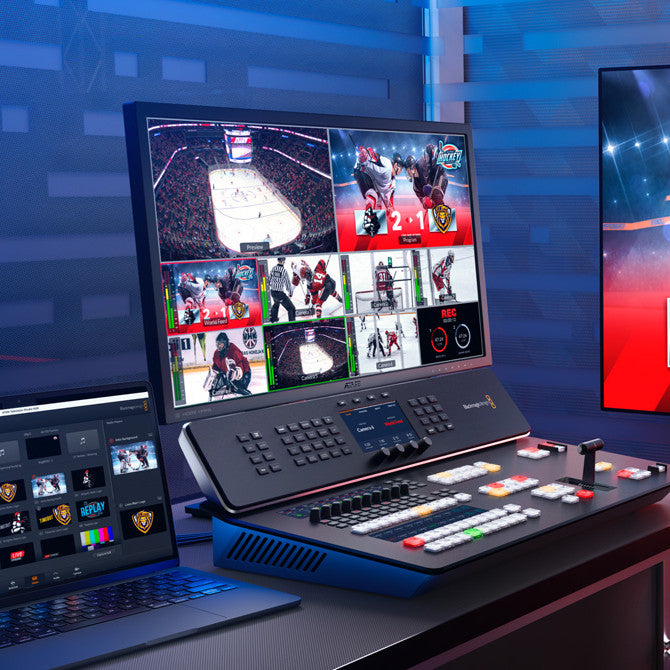

Multi View Monitoring
1 x multi view via SDI and HDMI configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed with optional labels and audio meters.
Multi View Video Standard
HD
Media Players
2
Media Pool Still Image Capacity
20
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Clip Capacity
2 x up to 1080p60.
Media Pool Video File Format
TGA sequence.
Processing Delay
< 10 lines when genlocked and in the same format as the switcher.
Camera Control
When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Down Conversion
None
Software Updates
Using USB or Ethernet connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility.
Operating Systems
Mac 12.0 Monterey, Mac 13.0 Ventura or later., Windows 10 and 11.
Power Usage
100 W max.
Physical Installation
Desktop or in-desk mount.
Indicators
Processing
Audio Mixer 58 Channel mixer.Selectable On/Off/Audio-Follow-Video.Level and Peak metering.Master gain control.6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
