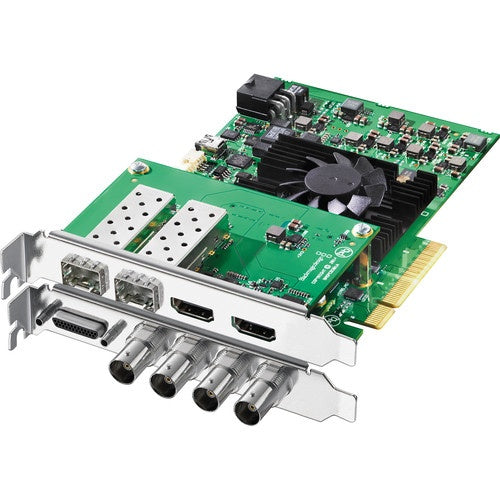

• Blackmagic Design DeckLink 4K Extreme 12G PCIe capture card with BNC, HDMI and SFP connectors
1 1

Blackmagic Design DeckLink 4K Extreme 12G

Blackmagic Design DeckLink 4K Extreme 12G

SoundPro Item: 23766 | Part Number: BMD-BDLKHDEXTR4K12G

$1,245.00
$1,245.00 $1,245.00
Your Price Sold out
MSRP: $1,245.00 | MAP: $1,245.00

Usually ships in 5-7 business days

  • 2x 12G-SDI in and out supports SD, HD up to 1080p60, 2K, Ultra HD and up to DCI 4K
  • HDMI 4K in and out supports SD and HD formats up to 1080p60
  • Component analog in and out supports SD and HD formats up to 1080p60, s-video and composite
  • 4 channels of balanced analog audio in and out on jack connectors
  • 2 channel AES/EBU balanced audio in and out on jack connectors
  • Genlock/tri-sync input
  • Sony™ compatible RS-422 deck control
  • Dual optical fiber sockets for adding optical fiber modules, up to 12 Gb/s speeds
  • Supports uncompressed 8, 10 and 12 bit and compressed video capture and playback
  • Plugs into older model MacPro, Windows and Linux computers
  • Supports DaVinci Resolve, Final Cut Pro™, Adobe Premiere Pro™, Photoshop™, After Effects™ and more
  • Includes free developer SDK for Windows, Mac and Linux
  • Includes free Media Express capture and playback software for Windows, Mac and Linux
Log in or register for YOUR best price

Blackmagic Design’s DeckLink cards support embedded SDI audio for use with professional broadcast decks, monitors, projectors, and more. DeckLink products are often used for work on feature films, episodic TV shows, music videos, and commercials.

The DeckLink 4K Extreme 12G is a top of the line digital cinema capture card. A variety of connections support SD, HD, 2K, Ultra HD, DCI 4K, s-video, and composite formats. Experience accurate color with 8, 10 and 12-bit RGB, and 10-bit YUV.

A new mezzanine card design is added to this DeckLink model. This provides HDMI in and out on a second daughter card, and has sockets to add two optical fiber modules for Dual Link optical fiber SDI in and out. Add SMPTE compatible optical modules up to 12G-SDI speeds when you want to connect equipment at longer distances via optical fiber connections.

When used with DaVinci Resolve 11, simultaneous capture and playback support lets you capture direct from cameras, grade live video, and output the video to a monitor – all live and in real time. OEM developers enjoy the ability to customize system development with features including full frame genlock timing, closed captioning, automatic input detection support, improved CRC input checking, low latency, and direct GPU support. You can also write pixels directly into the card’s frame buffers or write your own custom drivers.

DeckLink 4K Extreme 12G is ideal for work on feature films, commercials, visual FX, and TV productions requiring high resolution, deep color, stereoscopic 3D and high frame support.

View full details

Specifications

Electrical
Power Consumption
30 Watts
Audio
Analog Audio Inputs
2 Channels of professional balanced analog audio via XLR connectors
Analog Audio Outputs
2 Channels of professional balanced analog audio via XLR connectors
AES/EBU Audio Inputs
2 Channels unbalanced with sample rate converter
AES/EBU Audio Outputs
2 Channels unbalanced
SDI Audio Inputs
16 Channels embedded in SD/HD/2K/4K
SDI Audio Outputs
16 Channels embedded in SD/HD/2K/4K
HDMI Audio Inputs
8 Channels embedded in SD/HD/4K
HDMI Audio Outputs
8 Channels embedded in SD/HD/4K
Audio Sampling
television standard sample rate of 48 kHz at 24-bit
Connectivity
SDI Video Inputs
2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable
SDI Video Outputs
2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable
Analog Video Inputs
1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD
Analog Video Outputs
1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD
Optical Fiber Inputs/Outputs (optional)
2 x 12Gb/s Optical Fiber
HDMI Video Inputs
HDMI type A connector with support for 2160p60
HDMI Video Outputs
HDMI type A connector with support for 2160p60
Sync Input
Tri-Sync or Black Burst
HDMI Video Sampling
4:4:4, 4:2:2 and 4:2:0
HDMI Color Precision
8, 10 and 12-bit (Deep Color)
HDMI Configuration
HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display
Construction
SDI Color Precision
8, 10, 12-bit RGB 4:4:4 in all modes up to UHD 30p, and 8, 10-bit YUV 4:2:2 in all modes
Color Space
REC 601, REC 709, REC 2020
Environmental
Operating Temperature
41° to 104°F (5° to 40°C)
Storage Temperature
-4° to 113°F (-20° to 45°C)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
0.66 pounds
Identifiers
Length
6.69"
General
Device Control
Sony™ compatible RS422 deck control port. Serial ports TxRx direction reversible under software control
Computer Interface
PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots with HDMI or SDI mezzanine card
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
Software
Included Software, Software Applications
Internal Software Upgrade
firmware built into software driver; loaded at system start or via updater software
Physical Installation
PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots
SD Video Standards
525i59.94 NTSC, 625i50 PAL
Video Standards
HD Video Standards, 2K Video Standards (SDI Only), 3D Video Standards SDI, 3D Video Standards HDMI, SDI Compliance
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p (playback only)
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning
SDI Video Sampling
4:2:2 and 4:4:4
HDR Support
HDR metadata packing, HLG and PQ transfer characteristics. (HDMI supports static HDR metadata only)
Multiple Rate Support
HDMI and SDI video connections are switchable between SD/HD/2K and 4K. Component analog video connections are switchable between SD and HD
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
Ultra HD Down Conversion
Built in, high quality hardware down converter outputs Ultra HD to HD with down converted signal on SDI outputs C & D and HDMI output when connected to an HD only TV
HD to SD Down Conversion
HD to SD with down converted signal on SDI output B, Component and Composite NTSC/PAL. SD output selectable between letterbox, anamorphic 16:9 and center cut 4:3
HD Up Conversion
Built in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom. HD outputs via HD-SDI, HDMI and component analog
HD Cross Conversion
Built in, high quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback
Colorspace Conversion
hardware based real time on output
3D Processing
dual stream and frame packed capture and playback
Operating Systems
Mac 11.1 Big Sur, Mac 12.0 Monterey or later, Windows 8.1, 10 and 11, all 64-bit, Linux
