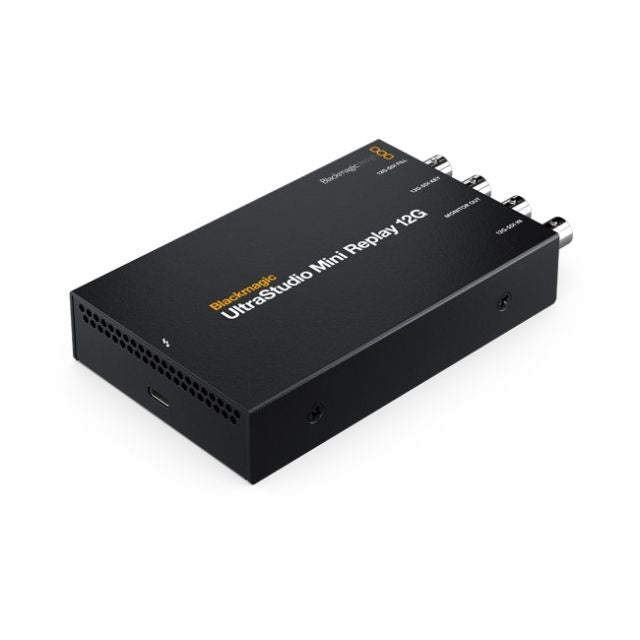

Blackmagic Design BMD-BDLKULSDZMINREP12G UltraStudio Mini Replay 12G

Blackmagic Design BMD-BDLKULSDZMINREP12G UltraStudio Mini Replay 12G

SoundPro Item: 208715 | Part Number: BMD-BDLKULSDZMINREP12G

$559.00
$559.00 $559.00
Your Price Sold out
MSRP: $559.00 | MAP: $559.00

Usually ships in 5-7 business days

  • Multi-Rate 12G-SDI Covers SD Through Ultra HD 4K In A Single Connection
  • Dedicated Fill And Key SDI Outputs Enable Direct Graphics Keying Into Switchers
  • Separate SDI Monitor Output Keeps Operator Feed Independent From Program
  • Hardware Colorspace Conversion Offloads Real-Time Processing From The Host CPU
  • HDR Support With HLG And PQ Transfer Characteristics For Modern Broadcast Standards
  • Broad Codec Compatibility Spans ProRes, DNxHR, HEVC, XDCAM, DPX, And Uncompressed
  • Powered Entirely Over Thunderbolt Cable For A Minimal Desktop Footprint
Log in or register for YOUR best price

UltraStudio Mini Replay 12G is built for broadcast engineers, live production operators, and post facilities that need reliable capture and playback from a Thunderbolt-connected workstation without a bulky chassis. A single Thunderbolt 4 cable handles both data and power, keeping the desktop clean and the signal path short during live events, broadcast graphics integration, or AI-assisted image processing workflows.

The device's multi-rate 12G-SDI connections cover the full range from SD and HD through 2K, Ultra HD, and 4K DCI up to 2160p60, making it equally at home in an SD-era facility handling archival material and a modern UHD production truck. Dedicated fill and key SDI outputs allow direct keying of graphics into a production switcher, while a separate monitor output keeps the operator feed independent. Sixteen channels of embedded audio travel on both input and output, and hardware-based colorspace conversion removes that processing burden from the host CPU.

Broad codec support covers Apple ProRes, DNxHR, HEVC, XDCAM, DPX, and uncompressed formats up to 10-bit 4:4:4, ensuring compatibility across DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, After Effects, Avid Media Composer, and Fusion. The included software suite adds Media Express and LiveKey for immediate deployment. Thunderbolt 4 and Thunderbolt 5 compatibility on Apple Silicon Macs and Windows PCs gives integrators flexibility when specifying workstation hardware for live action replay or broadcast graphics positions.

View full details

Specifications

Connectivity
SDI Video Inputs
1
SDI Video Outputs
2
SDI Fill Outputs
1
SDI Key Outputs
1
SDI Monitor Outputs
1
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G
SDI Audio Inputs
16 channels embedded audio on SDI input
SDI Audio Outputs
16 channels embedded audio on SDI output
Computer Interface
Thunderbolt 4 (Mac OS Apple Silicon Macs, Windows, and Linux)
Audio
SDI Audio Sampling
48 kHz, 24-bit
Performance
SDI Video Sampling
4:2:2, 4:4:4
SDI Color Precision
8, 10, 12-bit RGB 4:4:4 up to 2160p30; 8, 10-bit YUV 4:2:2 in all standards
SDI Color Space
Rec. 601, Rec. 709, Rec. 2020
HDR Support
HDR static metadata packing, HLG and PQ transfer characteristics
Colorspace Conversion
Hardware based real time
Hardware Frame Buffer
2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), Ay10 (10-bit YUVA), r210 (10-bit RGB), v210 (10-bit YUV), R12B, R12L (12-bit RGB)
Multiple Rate Support
Switchable between SD, HD, 2K, Ultra HD, and 4K
SDI Video Standards
SD
525i59.94 NTSC, 625i50 PAL
HD
720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60; 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K DCI
2Kp23.98-2Kp60 DCI; 2KPsF23.98-2KPsF30 DCI
Ultra HD
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K DCI
4Kp23.98-4Kp60 DCI
Certifications
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084, SMPTE ST2108-1
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning
Warranty
1 Year Limited Manufacturer's Warranty
Electrical
Power Input
Powered by Thunderbolt cable; requires Thunderbolt 4 USB-C port
Power Usage
15 W
Software
Video Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
Software Included (Mac/Windows)
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility, Blackmagic driver
Software Included (Linux)
Media Express, Blackmagic Desktop Video Utility, Blackmagic driver
Compatible Applications
DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro, Adobe After Effects, Avid Media Composer
Compatible OS
Mac OS 15.0 Sequoia, Mac OS 26.0 Tahoe or later; Windows 10 64-bit, Windows 11; Linux
Environmental
Operating Temperature
5 to 40 C (32 to 104 F)
Storage Temperature
-20 to 45 C (-4 to 113 F)
Relative Humidity
0% to 90% non-condensing
Dimensions
Product Width
5.83"
Product Length
3.19"
Product Height
1"
Weight
Product Weight
0.66 lbs
Shipping
Package Width
4.25"
Package Length
7.1"
Package Height
1.5"
Package Weight
0.86 lbs
Included Items
In The Box
UltraStudio Mini Replay 12G; Welcome wallet with QR code for software download
