Blackmagic Design BMD-BDLKULSTMP010G Thunderbolt Capture and Playout Device

Blackmagic Design BMD-BDLKULSTMP010G Thunderbolt Capture and Playout Device

SoundPro Item: 144343 | Part Number: BMD-BDLKULSTMP010G

$1,075.00
$1,075.00 $1,075.00
Your Price Sold out
MSRP: $1,075.00 | MAP: $1,075.00

Usually ships in 5-7 business days

  • Dual 12G-SDI Fill And Key Outputs Enable Direct Playout To Live Production Switchers
  • Thunderbolt 3 Interface Carries Video, Audio, Ethernet, And Computer Power Over One Cable
  • 10G Ethernet Port Supports High-Speed Access To Network Storage During Live Sessions
  • Balanced XLR Analog Audio Monitoring Outputs Deliver Professional-Grade Signal Confidence
  • Front-Panel Color Display And Spin Knob Allow On-Device Menu Control Without Software
  • RS-422 Deck Control Input Enables Remote Operation Via Advanced Media Protocol
  • HDR Static Metadata, HLG, And PQ Support For Broadcast-Standard High Dynamic Range Output
Log in or register for YOUR best price

The Blackmagic Media Player 10G is built for broadcast engineers and live production operators who need a reliable Thunderbolt-connected capture and playout interface optimized for live switching environments. By consolidating dual 12G-SDI fill and key outputs, a 12G-SDI capture input, 10G Ethernet, extended desktop outputs, and local monitoring into a single Thunderbolt 3 connection, it eliminates the need for multiple breakout devices at the playout position.

Designed for integration with live production switchers, the unit supports the full range of HD and Ultra HD frame rates up to 2160p60, along with HDR metadata packing and HLG/PQ transfer characteristics, making it suitable for demanding broadcast and live event workflows. The 10G Ethernet port enables direct access to high-throughput network storage, reducing reliance on local disk capacity during long-form playout sessions.

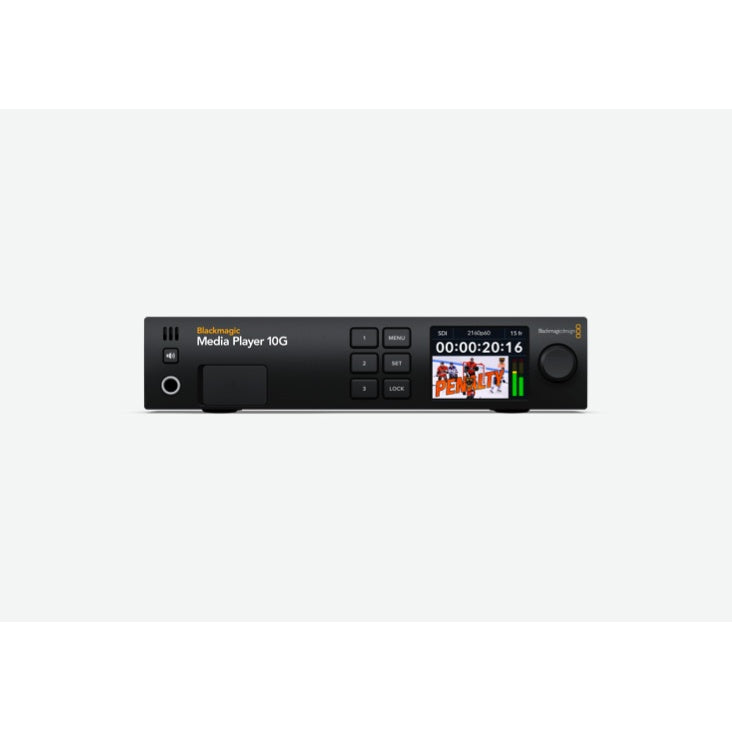

Operators benefit from onboard monitoring via HDMI and 12G-SDI outputs, balanced XLR analog audio, and an RS-422 deck control port for remote software operation. The front-panel control interface with a 2.2-inch color display and spin knob provides hands-on access to settings without requiring a software menu dive, an advantage in fast-paced production environments where time at the rack is limited.

Downloads

View full details

Specifications

Connections
SDI Video Inputs
1
SDI Fill Outputs
1
SDI Key Outputs
1
SDI Loop Outputs
1
SDI Extended Desktop Outputs
1
SDI Monitor Outputs
1
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G
HDMI Extended Desktop Outputs
1
HDMI Monitor Outputs
1
Analog Audio Outputs
2 channels of professional balanced analog audio with 3-pin XLR connectors
SDI Audio Inputs
16 Channels embedded in HD and Ultra HD
SDI Audio Outputs
16 Channels embedded in HD and Ultra HD
HDMI Audio Outputs
8 Channels embedded in HD and Ultra HD
Device Control
1 x Sony compatible RS-422 deck control input port
USB
1 x USB-C 3.1 Gen 1 (up to 5 Gb/s)
Computer Interface
1 x Thunderbolt 3 (Mac OS, Windows and Linux)
Ethernet
1 x 10Gb/s RJ-45 connector supporting 1000/10G BASE-T
SDI Video Standards
HD Video Standards
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 259M, 292M, 424M, 425M level A and B, 2081-1, 2081-10, 2082-1, 2082-10, 2084, ST2108-1
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning
Multiple Rate Support
Switchable between HD and Ultra HD
SDI Audio Sampling
48 kHz, 24-bit
SDI Video Sampling
4:2:2, 4:4:4
SDI Color Precision
8, 10, 12-bit RGB 4:4:4 up to 2160p30; 8, 10-bit YUV 4:2:2 in all modes
SDI Color Space
REC 601, REC 709, REC 2020
HDR Support
HDR static metadata packing, HLG and PQ transfer characteristics
HDMI Video Standards
HD Video Standards
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
HDMI Audio Sampling
48 kHz, 24-bit
HDMI Video Sampling
4:4:4, 4:2:2 and 4:2:0
HDMI Color Precision
8, 10 and 12-bit
HDMI Color Space
REC 601, REC 709 and REC 2020
HDR Support
HDR static metadata packing, HLG and PQ transfer characteristics
HDR Configuration
HDMI 2.0b supports Deep Color and HDR; auto-configures to connected display
Multiple Rate Support
Switchable between HD and Ultra HD
Performance
Hardware Frame Buffer
v210 (10-bit YUV), 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), r210 (10-bit RGB), Ay10 (10-bit YUVA), R12B, R12L (12-bit RGB)
Supported Video Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
Controls
Built-In Control Panel
6 buttons, spin knob, and 2.2 inch color display for menu and settings; front speaker on/off button
External Control
RS-422 deck control input; supports Advanced Media Protocol
Software
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility, Blackmagic driver (Mac OS, Windows); Media Express, Blackmagic Desktop Video Utility, Blackmagic driver (Linux)
Firmware Upgrade
Firmware built into software driver; loads at system start or via updater software
Construction
Physical Installation
Half rack unit width, 1 rack unit height
Power
Power Supply
Internal 100-240V AC, 50/60Hz, IEC C14 socket
Power Usage
85.2 W
Environmental
Operating Temperature
5° to 40° C (41° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
Compatibility
Operating Systems
Mac 15.0 Sequoia, Mac 26.0 Tahoe or later; Windows 10 64-bit, Windows 11; Linux
Included Items
In The Box
Blackmagic Media Player 10G, welcome wallet with QR code for software download
Certifications
Warranty
1 Year Limited Manufacturer's Warranty
