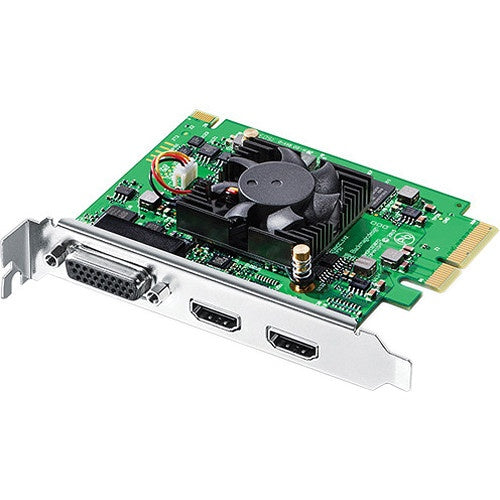

• Blackmagic Design Intensity Pro 4K PCIe capture card angled view with HDMI ports and cooling fan

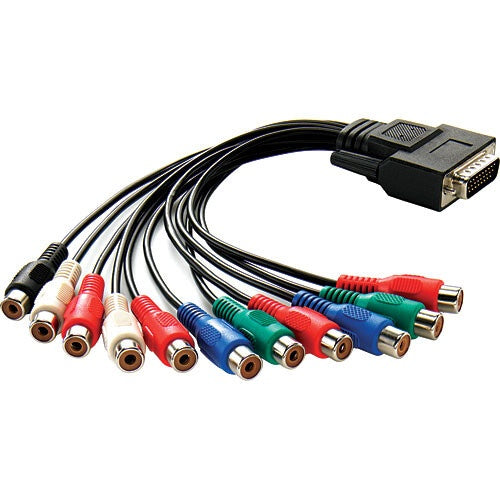

  • Blackmagic Design Intensity Pro 4K included breakout cable with color-coded RCA connectors
  • Intensity Pro 4K card shown beside its multi-connector breakout cable fanned out
  • Studio production set with camera operator and editor at a workstation using a capture system
1 6

Blackmagic Design Intensity Pro 4K

Blackmagic Design Intensity Pro 4K

SoundPro Item: 23784 | Part Number: BMD-BINTSPRO4K

$305.00
$305.00 $305.00
Your Price Sold out
MSRP: $305.00 | MAP: $305.00

Usually ships in 5-7 business days

  • Capture and playback in SD, HD, and Ultra HD for HDMI, YUV, S-Video and NTSC/PAL devices
  • Runs at 1080HD up to 60 frames per second, ideal for video game capture
  • Ultra HD images up to 30 frames per second
  • 1080p60 high frame rate support
  • Connect equipment from older VHS decks to new big screen 4K TVs
  • Save files in compressed or uncompressed formats
  • PCIe card for Mac, Windows, and Linux computers
  • Save files as QuickTime or Windows Media formats to edit with popular applications
  • Includes Media Express software and DaVinci Resolve
Log in or register for YOUR best price

Enjoy quality capture and playback in SD, HD, and Ultra HD for HDMI, YUV, S-Video and NTSC/PAL devices with the Intensity Pro 4K. The Intensity Pro 4K capture card has the same features as the Intensity Pro, and adds Ultra HD and 1080p60 high frame rate support. Capture Ultra HD images at up to 30 frames per second, or 1080HD at up to 60 frames per second. Save files with or without compression to use with popular Mac and Windows video software.

Analog and digital connections allow you to connect anything from older VHS decks to the newest big screen 4K TVs. High quality connections ensure you get the best looking video in any format. HDMI connectors work with HD and Ultra HD equipment. Analog YUV, S-Video, and NTSC/PAL connections work with older analog TVs, videotape players, and more. Connect your cameras to use Intensity Pro 4K for live streaming, video conferencing, presentations, and more.

The Intensity Pro 4K is built with video components used in professional film and TV equipment. Files can be saved in compressed formats like ProRes and DNxHD for visible steps in color gradient, or as fully uncompressed 10-bit video for a smooth color gradient preferred by professional TV production studios.

Use the capture and playback card with your preferred video software. It is a PCIe card for Mac, Windows, and Linux computers, and includes Media Express software and DaVinci Resolve. Save files in QuickTime or Windows Media format to use with other popular applications.

HD gaming consoles run up to 60 frames per second (double the rate of ordinary HD) to make sure motions are smooth during the fastest gameplay. The Intensity Pro 4K is built to keep up with your gaming, able to capture 1080 HD video at the same 60 frames per second rate. Or slow down a little and use the Intensity Pro 4K to make digital archives of VHS, BetaMax video tapes and DVDs.

View full details

Specifications

Electrical
Power Consumption
17 Watts
Audio
HDMI Audio Inputs
8 Channels embedded in SD, HD and Ultra HD
HDMI Audio Outputs
8 Channels embedded in SD, HD and Ultra HD
Analog Audio Inputs
2 Channel RCA HiFi audio in 24-bit
Analog Audio Outputs
2 Channel RCA HiFi audio in 24-bit
Audio Sampling
Television standard sample rate of 48kHz and 24-bit
Connectivity
HDMI Video Inputs
1 x HDMI type A connector
HDMI Video Outputs
1 x HDMI type A connector
Analog Video Inputs
Component, Composite or S-Video
Analog Video Outputs
Component, Composite or S-Video
HDMI Video Sampling
4:4:4, 4:2:2 & 4:2:0
HDMI Color Precision
8, 10-bit (Deep Color) RGB 4:4:4 in all modes up to 1080p60, 8, 10-bit YUV 4:2:2 in all modes
HDMI Configuration
HDMI 1.4b supports Deep Color and automatically configures to connected display
Construction
Color Space
REC 601, REC 709
Included Items
Software Included
DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Environmental
Operating Temperature
5° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
0.22 lb
Identifiers
Length
3.42 inches
General
Multiple Rate Support
HDMI video connections are switchable between SD, HD and Ultra HD. Component analog video connections are switchable between SD and HD.
Computer Interface
PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Software Applications
DaVinci Resolve, Fusion, Final Cut Pro X, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects CC, Avid Pro Tools, Steinberg Cubase, Autodesk Smoke, Adobe Photoshop CC
Other Supported Applications Include
The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite
Tools on Air Just
Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video Webclip2Go & [REC]Marker.
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Video Standards
Processing Ultra HD/HD Down ConversionSoftware based down conversion during video playback
HD Up Conversion
Real time SD to 1080HD and 720HD during video capture
Real Time Effects
DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Operating Systems
Mac 11.1 Big Sur, Mac 12.0 Monterey or later, Windows 8.1, 10 and 11, all 64-bit, Linux
