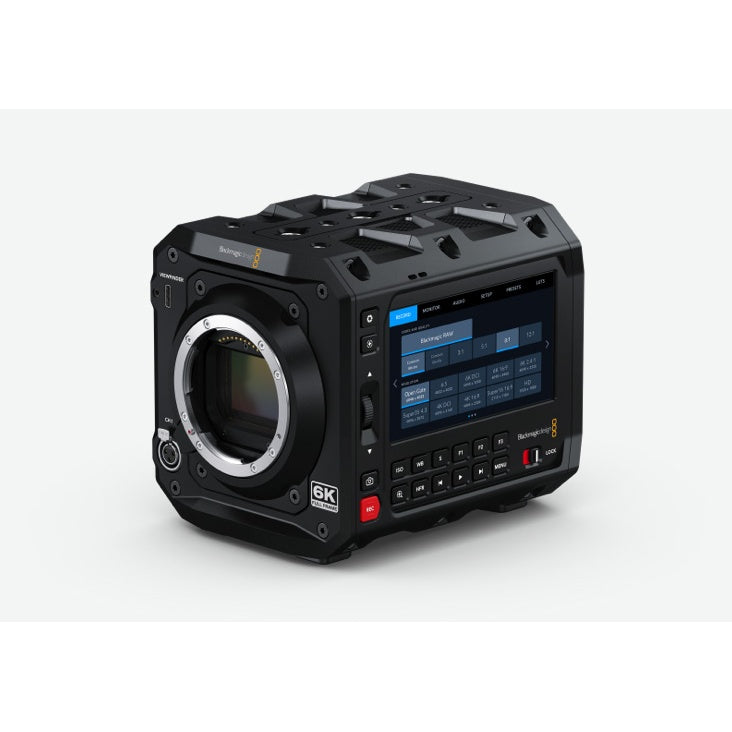

Blackmagic Design PYXIS 6K Cinema Camera Full Frame Riggable Digital Film Camera | L-Mount

Blackmagic Design PYXIS 6K Cinema Camera Full Frame Riggable Digital Film Camera | L-Mount

SoundPro Item: 144308 | Part Number: BMD-CINECAMCPYXA60LFL

$3,389.00
$3,389.00 $3,389.00
Your Price Sold out
MSRP: $3,389.00 | MAP: $3,389.00

Usually ships in 5-7 business days

  • World's Most Riggable Full Frame Cinema Camera With Multiple Accessory Mounting Points
  • Active L-Mount Enables Full Autofocus Including Continuous, Object, And Face Tracking
  • Simultaneous Blackmagic RAW And H.264 Proxy Recording Streamlines On-Set Workflow
  • Dual Native ISO Extends Usable Sensitivity Across Controlled And Low-Light Environments
  • Ethernet With Blackmagic Cloud Integration Enables Networked Media Sharing On Set
  • Built-In Optical Low Pass Filter Matched To Sensor For Accurate Image Rendering
  • DaVinci Resolve Studio Included For A Complete Capture-To-Grade Production Pipeline
Log in or register for YOUR best price

The Blackmagic PYXIS 6K is built for cinematographers, studio operators, and production teams who need a modular, high-resolution cinema camera capable of adapting to demanding rigs and varied production environments. Its full frame sensor delivers organic color science and wide dynamic range suited to narrative film, commercial production, and high-end broadcast work where image quality cannot be compromised.

The camera's extreme riggability sets it apart from fixed-body alternatives in the cinema camera market. Multiple mounting points, side plates, and compatibility with the optional URSA Cine EVF give operators the flexibility to configure the camera for handheld, gimbal, or studio setups without swapping platforms. Dual CFexpress Type B slots combined with simultaneous 12-bit Blackmagic RAW and H.264 proxy recording eliminates the need for a separate proxy workflow on set, saving time in both production and post.

Ethernet connectivity with Blackmagic Cloud integration, a Camera Control REST API, and web-based media management make the PYXIS 6K a practical choice for networked production environments where remote control and rapid media offload matter. DaVinci Resolve Studio is included, providing an end-to-end pipeline from capture to color grade without additional software investment.

Downloads

View full details

Specifications

Camera Features
Effective Sensor Size
36mm x 24mm (Full Frame)
Pixel Pitch
5.94 microns
Lens Mount
Active L-Mount
Lens Control
Iris and focus on supported lenses
Dynamic Range
13 Stops
Dual Native ISO
400 and 3200
Shooting Resolutions
6048 x 4032 (Open Gate 3:2) up to 36 fps; 4832 x 4032 (Anamorphic 6:5) up to 36 fps; 6048 x 3408 (6K 16:9) up to 46 fps; 6048 x 3200 (6K DCI 17:9) up to 48 fps; 6048 x 2520 (6K 2.4:1) up to 60 fps; 4096 x 3072 (Super 35 4:3) up to 50 fps; 4096 x 2304 (4K 16:9) up to 60 fps; 4096 x 2160 (4K DCI 17:9) up to 60 fps; 2112 x 1184 (Super 16 16:9) up to 100 fps; 1920 x 1080 (1080 HD 16:9) up to 120 fps
Project Frame Rates
23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
Focus
Single shot, continuous, object tracking, and face tracking autofocus with compatible L-Mount lenses
Iris Control
Iris wheel, touchscreen slider, and auto iris button on compatible lenses
Screen Dimensions
4" 1920 x 1080
Screen Brightness
1500 nits
Screen Type
LCD capacitive touchscreen
Controls
Touchscreen menus, push buttons, 3 assignable shortcut keys
Timecode Clock
Less than 1 frame drift every 8 hours
Connectivity
Video Inputs
None
Video Outputs
1 x 12G-SDI up to 2160p60
Analog Audio Input
1 x mini XLR, switchable mic with phantom power or line level (up to +14dBu)
Analog Audio Output
1 x 3.5mm headphone jack
Reference Inputs
Tri-Sync/Black Burst and Timecode
Computer Interface
USB Type-C (external drive recording, PTP camera control, software updates)
Ethernet
1 x 1Gb/s RJ-45, 10/100/1000 BASE-T
Audio
Microphone
Integrated stereo microphone
Speaker
1 x mono speaker
SDI Audio Sampling
48 kHz, 24-bit
Media
Media Slots
2 x CFexpress Type B card slot; 1 x 5 Gbps USB-C port for external media
Media Format
ExFAT (Windows/Mac) or HFS+ (Mac)
Storage Type
2 x CFexpress Type B
Recording Modes
Standard record mode
Codecs
Supported Codecs
Blackmagic RAW CBR 3:1, 5:1, 8:1, 12:1; Blackmagic RAW CQ Q0, Q1, Q3, Q5; H.264 Proxy 1920 x 1080, 8-bit 4:2:0
Standards
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
Electrical
Power Supply
1 x External 12V DC, 60W
External Power Input
1 x 2-pin Lemo compatible locking connector
Battery Type
BP-U series
Power Input Range
11–19.5V
Software
Included Software
Blackmagic OS, DaVinci Resolve Studio (Mac/Windows), Blackmagic Camera Setup, Blackmagic RAW Player, Blackmagic RAW QuickLook Plugin, Blackmagic RAW SDK, Blackmagic RAW Speed Test
Compatible OS
Mac 13.0 Ventura, Mac 14.0 Sonoma or later; Windows 10 and 11
Environmental
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 45°C (-4° to 113°F)
Relative Humidity
0% to 90% non-condensing
Certifications
Warranty
1 Year Limited Manufacturer's Warranty
Included Items
In the Box
Blackmagic PYXIS 6K, Lens turret dust cap, PYXIS Standard Plate, PYXIS SSD Plate, 60W power supply with locking connector and international adapters, Welcome booklet, DaVinci Resolve Studio activation key
