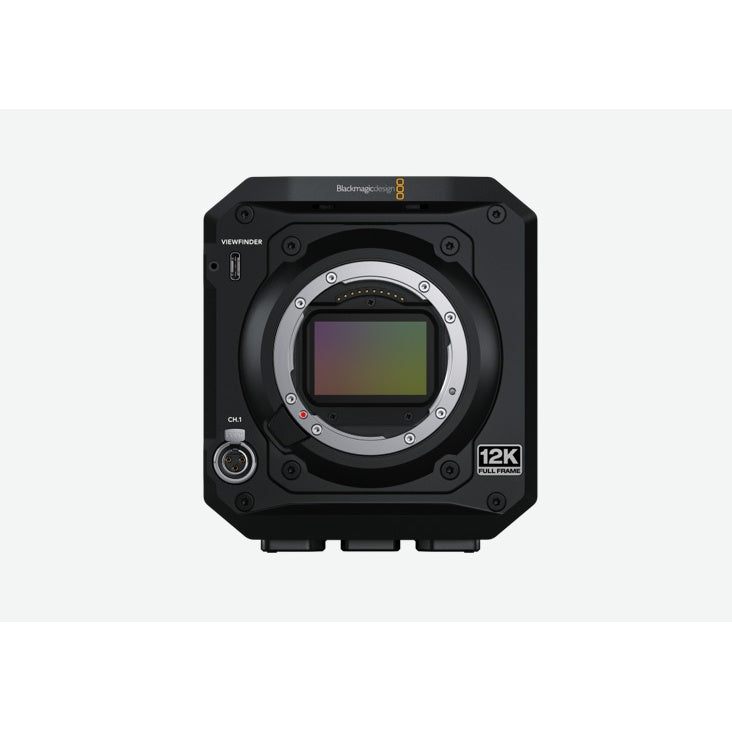

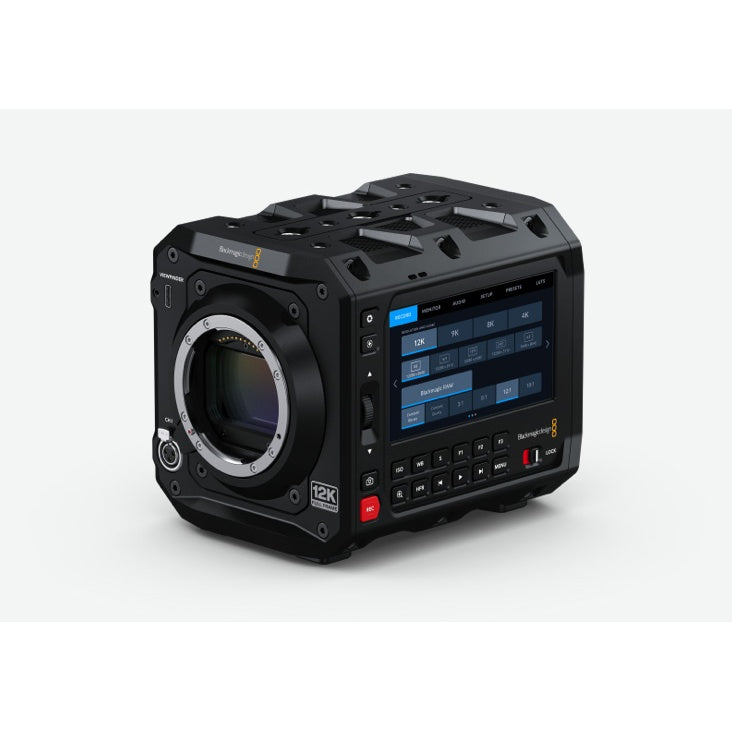

Blackmagic Design PYXIS 12K Cinema Camera Full Frame 12K Body | L-Mount

Blackmagic Design PYXIS 12K Cinema Camera Full Frame 12K Body | L-Mount

SoundPro Item: 200753 | Part Number: BMD-CINECAMCPYXM12LFL

$5,699.00
$5,699.00 $5,699.00
Your Price Sold out
MSRP: $5,699.00 | MAP: $5,699.00

Usually ships in 5-7 business days

  • Active L-Mount Enables Use Of Full Frame And Vintage Cine Lenses Via Adapters
  • Multi-Scale Sensor Architecture Supports Native 12K, 8K, And 4K At Full Sensor Size
  • Dual CFexpress Type B Slots Plus USB-C External Drive For Flexible Recording Options
  • 10Gb Ethernet Port Enables REST API Control, FTP, SMB, And Web Media Management
  • Blackmagic RAW Recording Integrates Directly Into DaVinci Resolve Post Pipelines

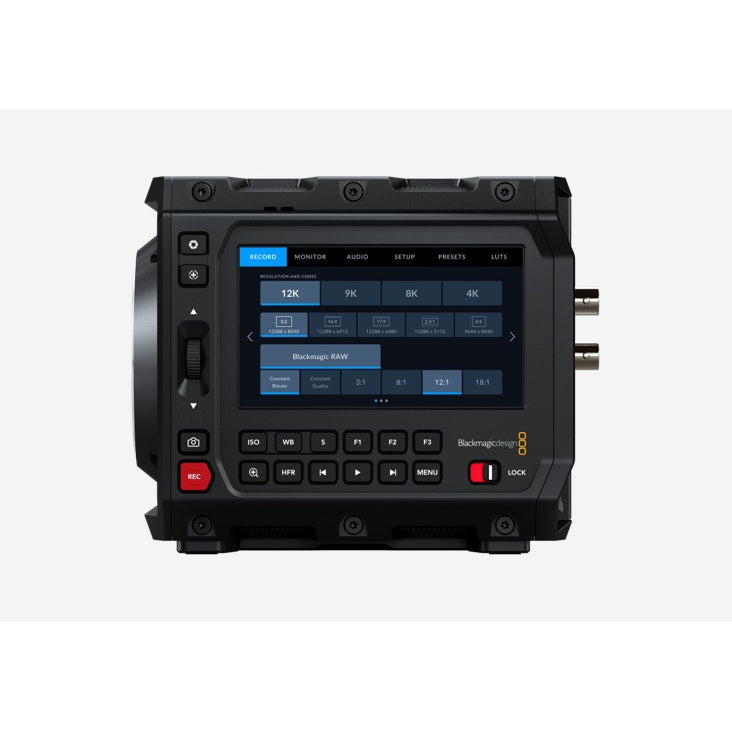

  • High-Brightness Touchscreen Provides Accurate On-Camera Monitoring In Daylight
  • BP-U Battery Compatibility And Locking DC Input Support Extended Field Operation
Log in or register for YOUR best price

The Blackmagic Design PYXIS 12K is built for cinematographers, directors of photography, and production teams who need a modular, high-resolution digital cinema body that adapts to demanding acquisition workflows. The large format RGBW sensor with built-in optical low pass filter delivers remarkable detail and color fidelity across narrative, commercial, and documentary productions, while the customizable body with multiple mounting points and interchangeable side plates allows integrators to configure the camera precisely to their rig requirements.

Recording natively in Blackmagic RAW across a full range of constant bitrate and constant quality codecs, the PYXIS 12K slots directly into DaVinci Resolve-based post pipelines without transcoding overhead. The 12G-SDI output handles up to 2160p60 for on-set monitoring and switcher integration, while 10Gb Ethernet enables web-based media management, FTP transfers, REST API camera control, and NTP time sync — capabilities that matter on larger multi-camera productions and remote shooting scenarios. The dual CFexpress Type B slots and USB-C external drive port provide redundant or extended recording options suited to long-form shoots.

Compared to fixed-mount cinema cameras in this class, the PYXIS 12K's multi-scale sensor architecture allows native 12K, 8K, and 4K acquisition at full sensor size, preserving field of view and optical characteristics across resolution choices. The 4-inch 1500-nit HDR touchscreen, BP-U battery compatibility, integrated stereo microphone, and optional URSA Cine EVF attachment round out a body designed for both handheld runs and fully rigged studio or field configurations.

Downloads

View full details

Specifications

Camera Features
Effective Sensor Size
35.64mm x 23.32mm (Large Format)
Pixel Pitch
2.9 microns
Lens Mount
Active L-Mount
Lens Control
Iris and focus on supported lenses
Dynamic Range
16 Stops
Native ISO
800
Shooting Resolutions
12,288 x 8040 (12K 3:2 open gate); 12,288 x 6912 (12K 16:9); 12,288 x 6480 (12K 17:9); 12,288 x 5112 (12K 2.4:1); 9648 x 8040 (12K 6:5)
Project Frame Rates
23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
High Frame Rates
12K 3:2 up to 40 fps; 12K 16:9 up to 45 fps; 12K 17:9 up to 50 fps; 12K 2.4:1 up to 60 fps; 8K/4K 16:9 up to 84 fps; 8K/4K 2.4:1 up to 112 fps
Focus
Autofocus available with compatible lenses
Iris Control
Iris wheel, touchscreen slider, and auto iris button
Timecode Clock
Less than 1 frame drift every 8 hours
Screen Dimensions
4" 1920 x 1080
Screen Brightness
1500 nits
Screen Type
LCD capacitive touchscreen
Assignable Shortcut Keys
3
Connections
Video Outputs
1 x 12G-SDI up to 2160p60
Analog Audio Input
1 x mini XLR, switchable mic (phantom power) / line level (up to +14dBu)
Analog Audio Output
1 x 3.5mm headphone jack
Reference Inputs
Tri-Sync/Black Burst and Timecode
Computer Interface
USB Type-C (external drive recording, PTP camera control, software updates)
Ethernet
1 x 10Gb/s RJ-45, supporting 10/100/1000/10G BASE-T
Audio
Microphone
Integrated stereo microphone
Built-In Speaker
1 x mono speaker
SDI Audio Sampling
48 kHz, 24-bit
Media
Media Slots
2 x CFexpress Type B; 1 x 10 Gbps USB-C external media port
Media Format
ExFAT (Windows/Mac) or HFS+ (Mac)
Recording Formats
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, 18:1, Q0, Q1, Q3, Q5; H.264 Proxy 1920 x 1080 8-bit 4:2:0
Power
Power Supply
1 x External 18V DC 90W
External Power Input
1 x 2-pin Lemo compatible locking connector
Battery Type
BP-U series
Power Range
12V - 18V
Environmental
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
–20° to 45°C (–4° to 113°F)
Relative Humidity
0% to 90% non-condensing
Software
Included Software
Blackmagic OS, DaVinci Resolve Studio (Mac/Windows), Blackmagic Camera Setup, Blackmagic RAW Player, Blackmagic RAW QuickLook Plugin, Blackmagic RAW SDK, Blackmagic RAW Speed Test
Compatible OS
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later; Windows 10 and 11
Standards
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
Included Items
In The Box
Blackmagic PYXIS 12K, Lens turret dust cap, PYXIS Standard Plate, PYXIS SSD Plate, 90W power supply with locking connector and international adapters, Welcome booklet, DaVinci Resolve Studio activation key
Warranty
Product Warranty
1 Year Limited Manufacturer's Warranty
