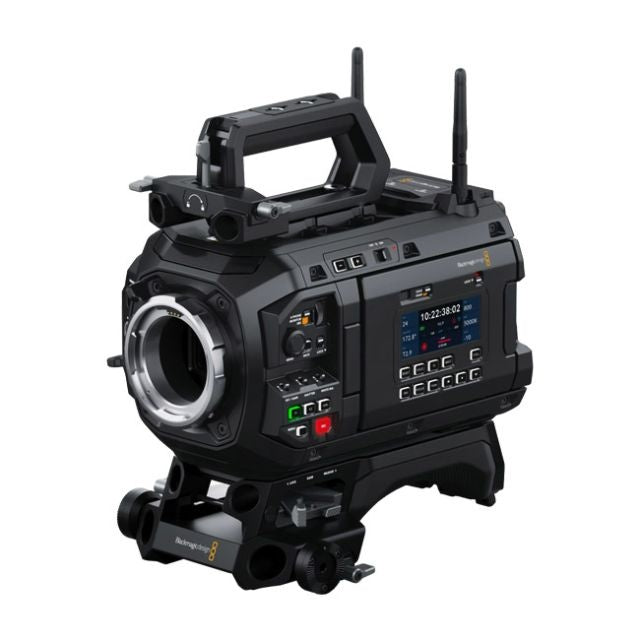

Blackmagic Design BMD-CINEURSAAA12KLFB URSA Cine 12K Large Format Cinema Camera

Blackmagic Design BMD-CINEURSAAA12KLFB URSA Cine 12K Large Format Cinema Camera

SoundPro Item: 144312 | Part Number: BMD-CINEURSAAA12KLFB

$17,045.00
$17,045.00 $17,045.00
Your Price Sold out
MSRP: $17,045.00 | MAP: $17,045.00

Usually ships in 5-7 business days

  • Large Format 36 x 24mm RGBW Sensor For Maximum Image Detail And Light Capture
  • Button-Activated Built-In ND Filters Eliminate The Need For Matte Box ND Solutions
  • Dual 5" HDR LCD Touchscreens Support Simultaneous Operator And Assist Monitoring
  • Interchangeable PL And EF Mounts With Active Lens Control And Metadata Population
  • 8TB Removable Media Module Reduces Card Management On Long Shooting Days
  • 10G Ethernet And WiFi Enable Direct Cloud Upload And Remote Camera Control
  • DaVinci Resolve Studio Included For Immediate Post-Production Readiness
Log in or register for YOUR best price

The Blackmagic Design URSA Cine 12K is engineered for professional cinematographers, digital imaging technicians, and high-end production teams who require maximum image latitude and resolution without sacrificing on-set workflow efficiency. The 36 x 24mm large format RGBW sensor with enlarged photo-sites captures 16 stops of dynamic range across resolutions from 4K up to 12K, in aspect ratios spanning open gate 3:2 through 2.4:1 anamorphic, with high-speed options reaching up to 224 fps at select formats. PL and EF lens mounts are both included, with active lens control and automatic i/Technology metadata population for compatible glass, making the camera a practical fit for narrative film, episodic television, and high-budget commercial production.

On-set efficiency is addressed through a dedicated assist station with a second 5" HDR LCD touchscreen, button-activated ND filters in 2, 4, and 6-stop steps, and seven assignable shortcut keys. The 8TB removable Blackmagic Media Module eliminates the card-juggling common to competing large format cameras, while 10G Ethernet and integrated WiFi enable direct Blackmagic Cloud uploads, FTP transfers, SMB file sharing, and Web Media Management from any networked browser. Industry-standard Lemo and Fischer connectors, dual SDI outputs supporting up to 12G, and REST API control over Ethernet or WiFi round out the connectivity profile for integration into complex multi-camera or remote-operation setups.

DaVinci Resolve Studio is included with an activation key, and Blackmagic RAW recording at constant bitrate or constant quality settings covers everything from archival acquisition to delivery-ready proxy workflows. The camera ships in a custom-foamed Pelican 1510 case with handle, baseplate, battery plate, WiFi antennas, and both PL and EF body caps, providing a production-ready kit from day one.

View full details

Specifications

Sensor
Effective Sensor Size
35.64mm x 23.32mm (Large Format)
Sensor Format
36 x 24mm RGBW
Dynamic Range
16 Stops
Shooting Resolutions
12K Open Gate
12,288 x 8,040 (3:2)
12K 16:9
12,288 x 6,480
12K 17:9
12,288 x 6,912
12K 2.4:1
12,288 x 5,112
12K 6:5
9,648 x 8,040
9K 3:2
9,408 x 6,264
9K 16:9
8,688 x 4,896
9K 17:9
9,312 x 4,896
9K 2.4:1
9,312 x 3,864
9K 6:5
7,680 x 6,408
8K Open Gate
8,192 x 5,360
8K 16:9
8,192 x 4,608
8K 17:9
8,192 x 4,320
8K 2.4:1
8,192 x 3,408
8K 6:5
6,432 x 5,360
4K Open Gate
4,096 x 2,680
4K 16:9
4,096 x 2,304
4K 17:9
4,096 x 2,160
4K 2.4:1
4,096 x 1,704
4K 6:5
3,216 x 2,680
Frame Rates
Project Frame Rates
23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
12K 3:2 Open Gate Max
80 fps
12K 17:9 Max
100 fps
12K 2.4:1 Max
120 fps
9K 3:2 Super 35 Max
100 fps
8K / 4K 3:2 Open Gate Max
144 fps
8K / 4K 2.4:1 Max
224 fps
Lens Mount
Primary Mount
PL
Included Alternate Mount
Lockable EF
Lens Control
Active EF and PL mount lens control with compatible lenses
Built-In ND Filters
ND Steps
Clear, 2-stop, 4-stop, 6-stop IR ND
Activation
Button activated
Displays
Monitoring Screens
2 x 5"
Camera Status Screen
1
Monitoring Screen Resolution
1,920 x 1,080 px
Monitoring Screen Brightness
1,500 nits
Monitoring Screen Type
LCD capacitive touchscreen
Audio
Analog Audio Inputs
2 x XLR switchable mic/line/AES with phantom power
Analog Audio Output
1 x 3.5mm headphone jack
Integrated Microphone
Stereo
Built-In Speaker
1 x mono
SDI Audio Sampling
48 kHz, 24-bit
Connectivity
SDI Outputs
2
SDI Rates
1.5G, 3G, 6G, 12G
SDI Compliance
SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
Reference Input
Tri-Sync/Black Burst and Timecode
Ethernet
1 x 10Gb/s RJ-45 (10/100/1000/10G BASE-T)
USB-C Expansion
2 x USB Type-C side expansion ports
Viewfinder Connector
1 x USB-C with power, data, video, locking connector
Accessory Connector
1 x 7-pin Lemo EXT
Run/Stop Connector
1 x 3-pin Fischer RS
WiFi
Yes
Storage
Storage Type
1 x Blackmagic Media Module
Built-In Capacity
8TB
Codecs
Blackmagic RAW
Constant Bitrate 3:1, 5:1, 8:1, 12:1, 18:1; Constant Quality Q0, Q1, Q3, Q5
Proxy
H.264 1,920 x 1,080, 8-bit 4:2:0
Streaming
Protocols
SRT, RTMP
Network Management
NTP, FTP, SMB, Web Media Manager
External Control
Control Protocols
REST API over Ethernet, WiFi, or serial via 7-pin Lemo
Bluetooth
Yes
Run/Stop
Via 3-pin Fischer and 7-pin Lemo
Power
External Power Supply
+24V DC, 100-240V AC, 50/60Hz, IEC C14 socket
External Power Input
1 x 8-pin socket
Battery Plate
B-Mount
Power Output
1 x 7-pin Lemo +12V or +24V DC; 1 x 3-pin Fischer +12V or +24V DC; 2-pin Lemo +12V regulated from B-Mount plate
Environmental
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 45°C (-4° to 113°F)
Relative Humidity
0% to 90% non-condensing
Software
Included Software
URSA Cine Blackmagic OS, DaVinci Resolve Studio (Mac/Windows with activation key), Blackmagic Camera Setup, Blackmagic RAW Player, Blackmagic RAW QuickLook Plugin, Blackmagic RAW SDK
Compatible OS
Mac 13.0 Ventura, Mac 14.0 Sonoma or later; Windows 10 and 11
Warranty
Warranty
12-Month Limited Manufacturer's Warranty
Included Items
What's Included
URSA Cine 12K Body, URSA Cine Mount PL (installed), URSA Cine Mount EF and screws, URSA Cine Handle and bolts, URSA Cine Top Rod Mount 15, URSA Cine Baseplate 19, Plastic folding screen hood for 5" assist station, URSA Cine Battery Plate B Mount, WiFi Antennas, URSA Cine PL Body Cap, URSA Cine EF Body Cap, Rubber caps for connectors, +24V DC 250W power supply, DaVinci Resolve Studio with activation key, Welcome wallet with QR code, Blackmagic Sticker, Custom foamed Pelican 1510 case
Shipping
Weight
30 lbs
Identifiers
UPC
9338716008647
