Blackmagic Design PYXIS Monitor 5" HDR Touchscreen Camera Control | Monitor Kit

Blackmagic Design PYXIS Monitor 5" HDR Touchscreen Camera Control | Monitor Kit

SoundPro Item: 200754 | Part Number: BMD-CINEURSABB/AMKIT

$505.00
$505.00 $505.00
Your Price Sold out
MSRP: $505.00 | MAP: $505.00

Usually ships in 5-7 business days

  • Dovetail Mount System Enables Tool-Free Attachment And Removal Between Camera Setups
  • Swivel And Fixed Mount Options Included For Flexible Rig Positioning
  • Locking USB-C Connection Carries Video, Power, And Camera Control On One Cable
  • Rear-Facing LED Tally Light Provides On-Set Record Status At A Glance
  • Accelerometer Auto-Rotates Display When Monitor Is Mounted Inverted
  • Three Assignable Function Buttons For Rapid Access To Preset Or Toggled Parameters
  • Capacitive Touchscreen Enables Full Camera Menu And Parameter Control
Log in or register for YOUR best price

The Blackmagic PYXIS Monitor is built for cinematographers and camera operators who need a dedicated monitoring and control surface beyond the camera's built-in display. Whether rigging a complex cage, working with a follow-focus system, or shooting in positions where the internal screen is obstructed, this monitor delivers full camera control from wherever it's mounted on the rig.

At 1500 nits, the HDR touchscreen remains legible in direct sunlight without squinting or improvised shade solutions — the included clip-on sunshade handles the rest. Operators can tap through overlays, adjust frame rate, shutter, ISO, white balance, and iris, or trigger record start/stop without touching the camera body. Three assignable function buttons give quick recall of preset parameters or toggled functions like clean feed, keeping critical tools within reach during a take.

The Monitor Kit configuration is the right choice for PYXIS 6K and URSA Cine operators who want a ready-to-deploy mounting solution without sourcing hardware separately. The included Swivel Mount, Fixed Mount, and Dovetail Shoe use a tool-free dovetail design for rapid attachment and removal between setups, while the locking USB-C cable handles video, power, and camera control over a single connection. The accelerometer automatically corrects the image when the monitor is flipped upside down, accommodating unconventional rig orientations without manual adjustment.

Downloads

View full details

Specifications

Display
Display Size
5"
Display Resolution
1920 x 1080
Display Type
LCD capacitive touchscreen
Display Brightness
1500 nits
Performance
Frame Rates
Up to 60fps
Tally
Rear-facing LED tally light
Accelerometer
Yes
Connectivity
Connection
USB-C with locking connector (video, power, data, software updates)
Mounting
Mounting Points
1 x 1/4-20 bottom mounting point with ARRI locating pin pattern
Mounting Brackets
Blackmagic PYXIS Monitor Swivel Mount, Fixed Mount, Dovetail Shoe
Controls
On-Screen Controls
Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate, camera menus
Button Controls
F1, F2, F3 assignable function buttons
Function Button Presets
FPS: Preset Value
Function Button Toggle
Clean Feed
Compatibility
Compatible Cameras
Blackmagic PYXIS 6K, Blackmagic URSA Cine
Operating Systems
Mac 13.0 Ventura, Mac 14.0 Sonoma or later; Windows 10 and 11
Power
Power Requirements
Powered over USB-C
Environmental
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
Included Items
Includes

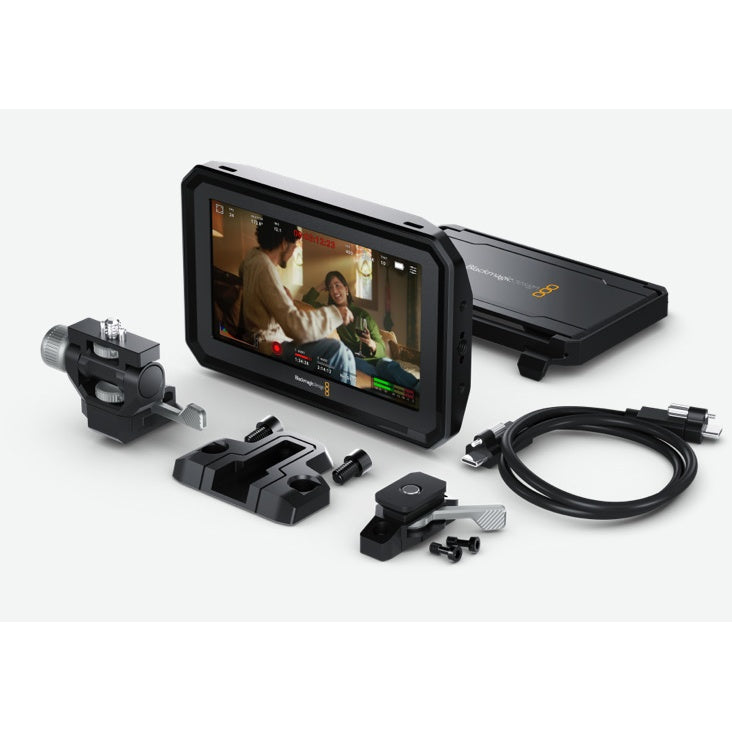

Blackmagic PYXIS Monitor, Blackmagic PYXIS Clip On Sunshade, Blackmagic PYXIS Monitor Swivel Mount, Blackmagic PYXIS Monitor Fixed Mount and screws, Blackmagic PYXIS Monitor Dovetail Shoe and screws, 1 x USB-C Viewfinder Cable, Welcome wallet with QR code for software download, Blackmagic Design Sticker
Certifications
Warranty
1 Year Limited Manufacturer's Warranty
