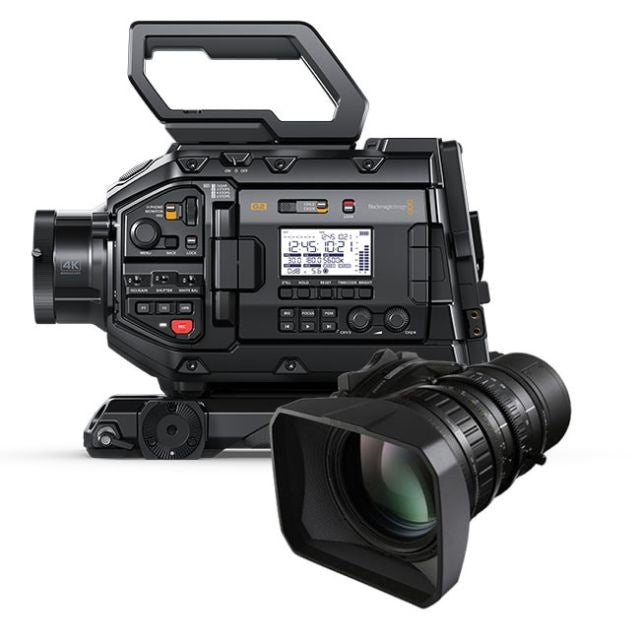

Blackmagic Design BMD-CINEURSAMWC6KG2-LA16x8BRM-XB1A-CB URSA Broadcast G2 With Fujinon Lens

Blackmagic Design BMD-CINEURSAMWC6KG2-LA16x8BRM-XB1A-CB URSA Broadcast G2 With Fujinon Lens

SoundPro Item: 204500 | Part Number: BMD-CINEURSAMWC6KG2-LA16x8BRM-XB1A-CB

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 6K Sensor With Generation 5 Color Science For Film-Quality Broadcast Images
  • Dual Native ISO Settings Optimize Exposure In Studio And Low-Light Field Conditions
  • Fujinon LA16x8BRM-XB1A Servo Zoom Lens Enables Electronic Focus, Iris, And Zoom Control
  • Interchangeable Lens Mount Accepts B4, PL, EF, And F Mount Optics
  • Multi-Rate 12G-SDI Connects Directly Into ATEM Switcher Control Ecosystems
  • Built-In Optical ND Filters Provide Latitude Across Varied Lighting Conditions
  • DaVinci Resolve Studio License Included For End-To-End Post Production

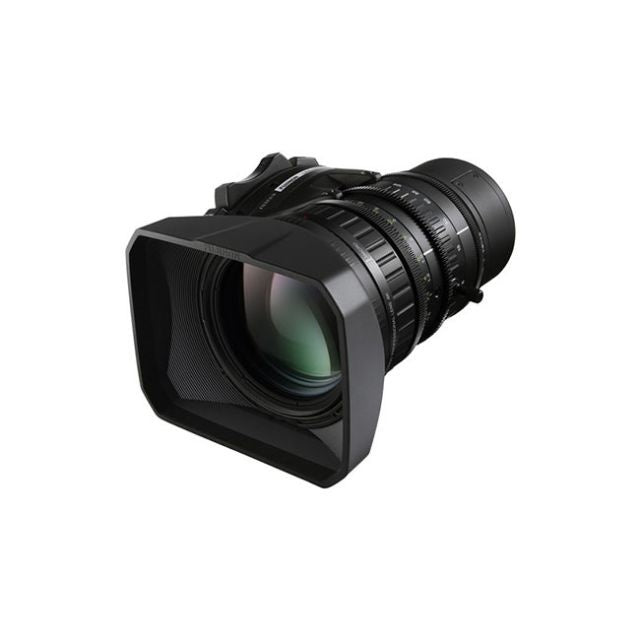

The Blackmagic Design URSA Broadcast G2 paired with the Fujinon LA16x8BRM-XB1A lens is built for broadcasters, live production engineers, and cinematographers who need a single platform that crosses between ENG acquisition, live studio operation, and 6K digital cinema capture. The 6K sensor with generation 5 color science delivers 13 stops of dynamic range and dual native ISO settings of 400 and 3200, making it a practical tool for controlled studio environments and challenging low-light field conditions alike. The Fujinon LA16x8BRM-XB1A contributes an 8-128mm zoom range in a 2/3-inch B4 mount with an integrated focus and zoom servo unit, electronic back focus adjustment, and a macro function, directly complementing the camera's built-in electronic lens control and remote iris, focus, and zoom capability via SDI tally protocol.

For live production integrators, the URSA Broadcast G2 connects directly into ATEM switcher ecosystems using 12G-SDI multi-rate connections that carry embedded camera control, color correction commands, and tally without additional cabling infrastructure. Program return monitoring, a built-in timecode generator, and SMPTE fiber converter compatibility make this camera viable for large-scale multi-camera events as well as fixed studio installations. The interchangeable B4 mount can be swapped for PL, EF, or F mounts, and recording flexibility spans CFast 2.0, SD UHS-II, USB-C external media, and optional SSD via the URSA Mini Recorder, supporting ProRes, H.265, and 12-bit Blackmagic RAW. A full license of DaVinci Resolve Studio is included, closing the loop from capture through color and finishing without additional software investment.

View full details

Specifications

General
MPN
BMD-CINEURSAMWC6KG2-LA16x8BRM-XB1A-CB
Manufacturer
Blackmagic Design
Product Type
Studio Camera
Sensor
Sensor Resolution
6144 x 3456 (6K)
Dynamic Range
13 stops
Primary Native ISO
400
Secondary Native ISO
3200
Gain Range
-12dB (100 ISO) to +36dB (25,600 ISO)
Lens (Fujinon LA16x8BRM-XB1A)
Lens Mount
2/3" B4
Focal Length
8-128mm
Maximum Aperture
f/1.9 to f/2.8
Filter Thread
M82 x 0.75
Focus/Zoom Servo
Included
Back Focus Adjustment
Electronic
Macro Function
Yes
Recording
Recording Formats
Blackmagic RAW, ProRes 422 HQ, ProRes 422, H.265
H.265 Compression Ratio
60:1 to 285:1
Blackmagic RAW Bit Depth
12-bit
H.265 Bit Depth
10-bit
Media Types
CFast 2.0, SD UHS-II, USB-C External Disk
Connectivity
Video Output
12G-SDI (multi-rate, HD to 2160p60)
Program Return Input
12G-SDI
Monitoring Output
HD-SDI
Audio Inputs
Balanced XLR with 48V phantom power
Headphone Output
Yes
USB
USB-C
Timecode/Reference Input
BNC
Lens Control Connector
12-pin Hirose (front)
Power Connector
4-pin XLR 12V DC
Power
External Power Input
12V to 18V (4-pin XLR)
Bluetooth Range
Up to 30 feet
Included Items
Shoulder Mount Kit
Included
V-Lock Battery Plate
Included
Top Handle
Included
Spare EF Lens Mount
Included
DaVinci Resolve Studio License
Included
Fujinon LA16x8BRM-XB1A Lens
Included
Localization
Supported Languages
English, German, French, Spanish, Portuguese, Italian, Russian, Polish, Ukrainian, Turkish, Chinese, Japanese, Korean
