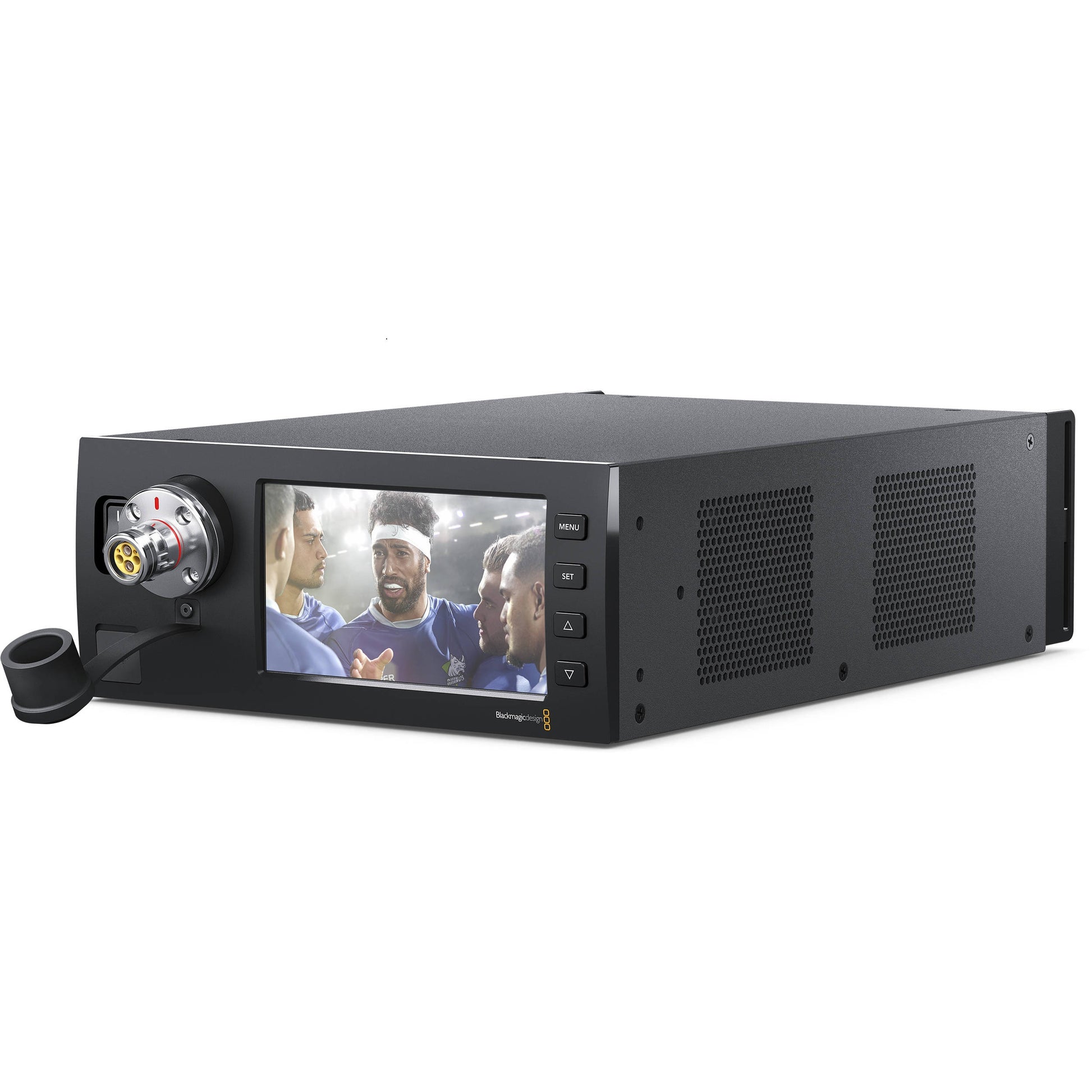

• Blackmagic Design Studio Fiber Converter angled view with LCD preview screen and side vents

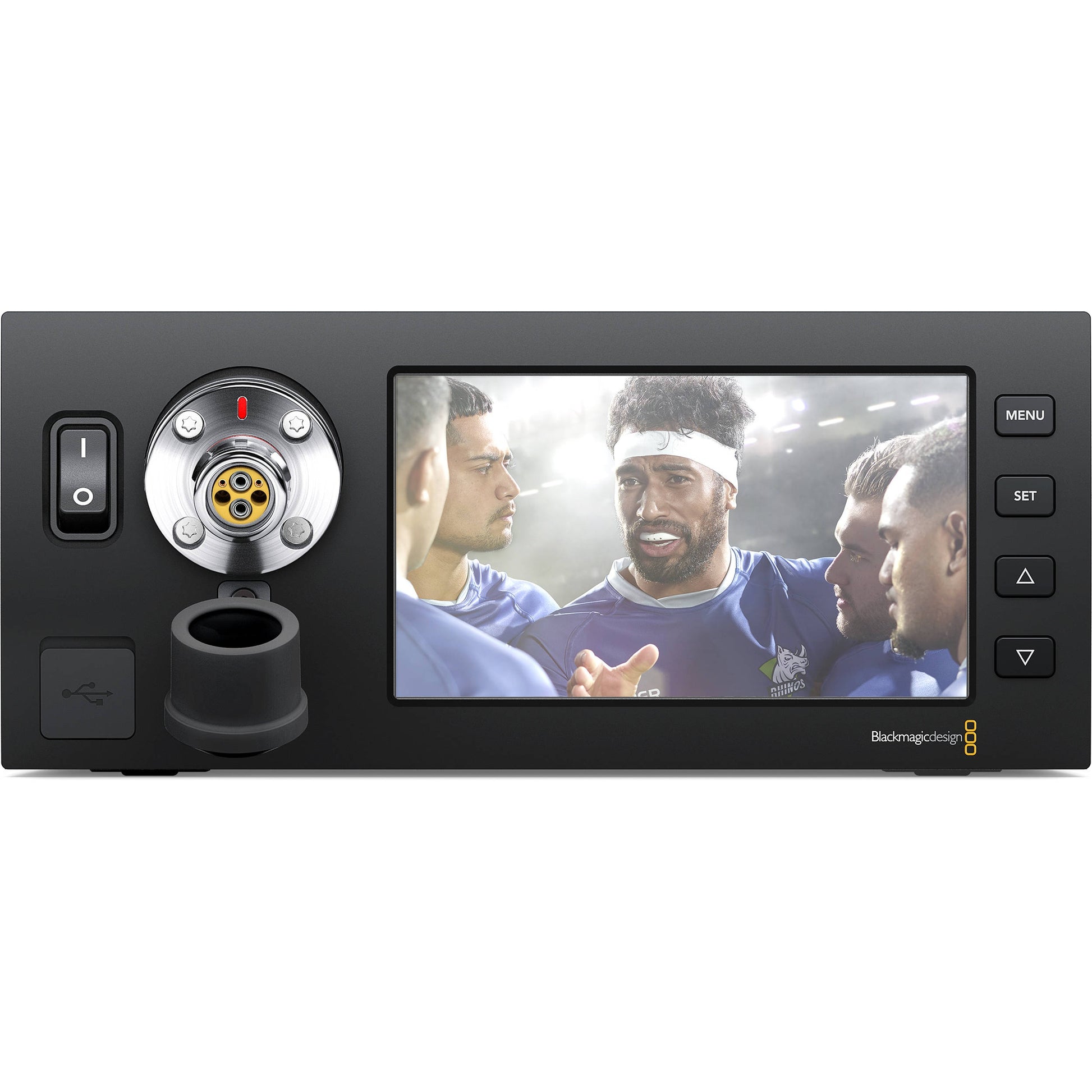

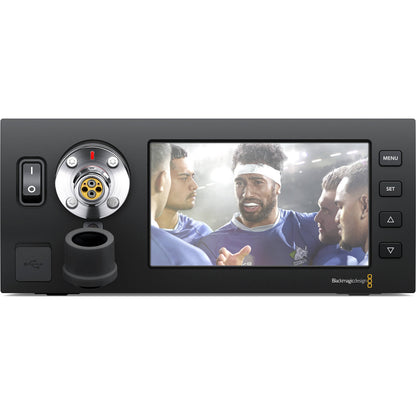

  • Blackmagic Design Studio Fiber Converter front panel with fiber connector, power switch, and menu buttons

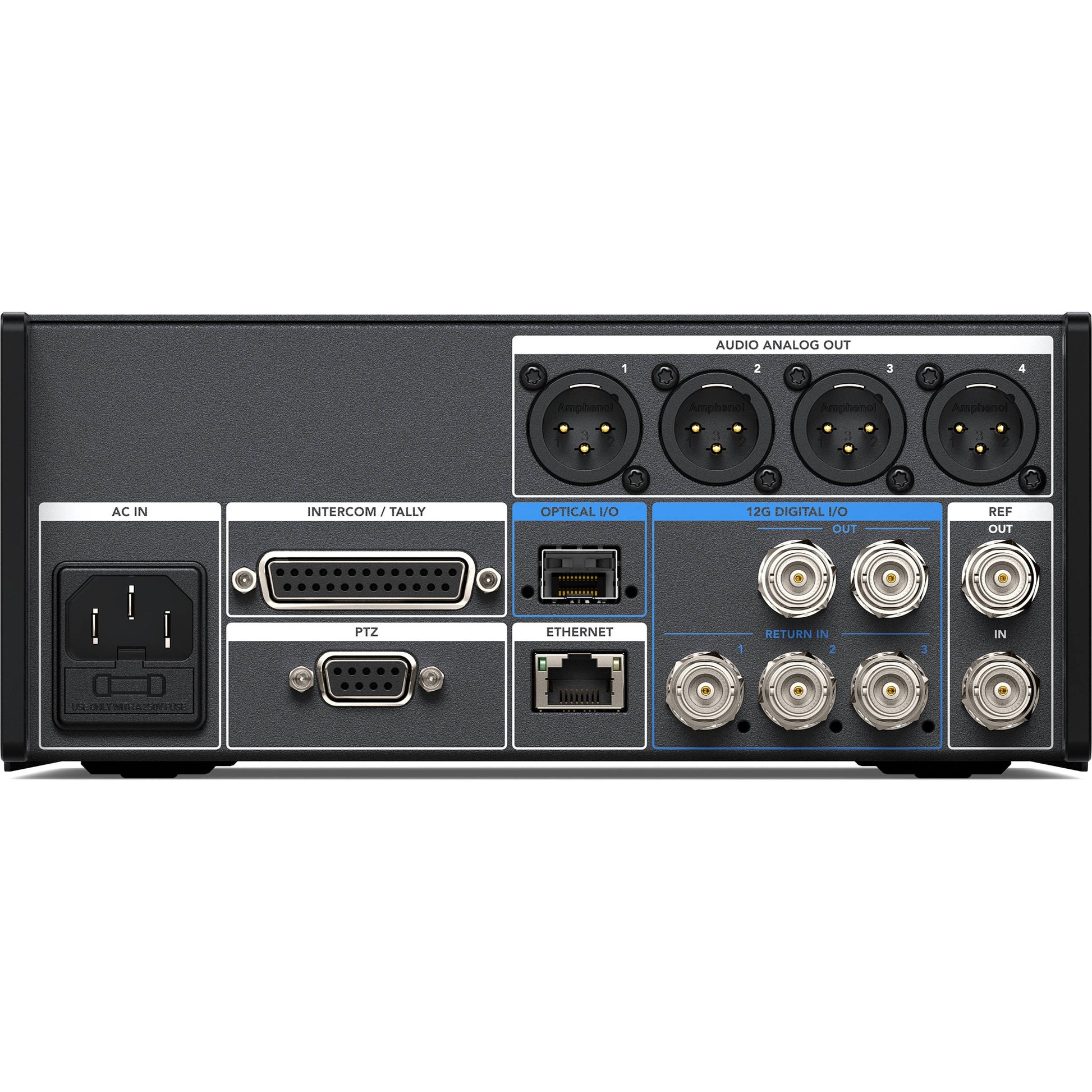

  • Blackmagic Design Studio Fiber Converter rear panel with XLR audio outs, BNC 12G digital I/O, and Ethernet

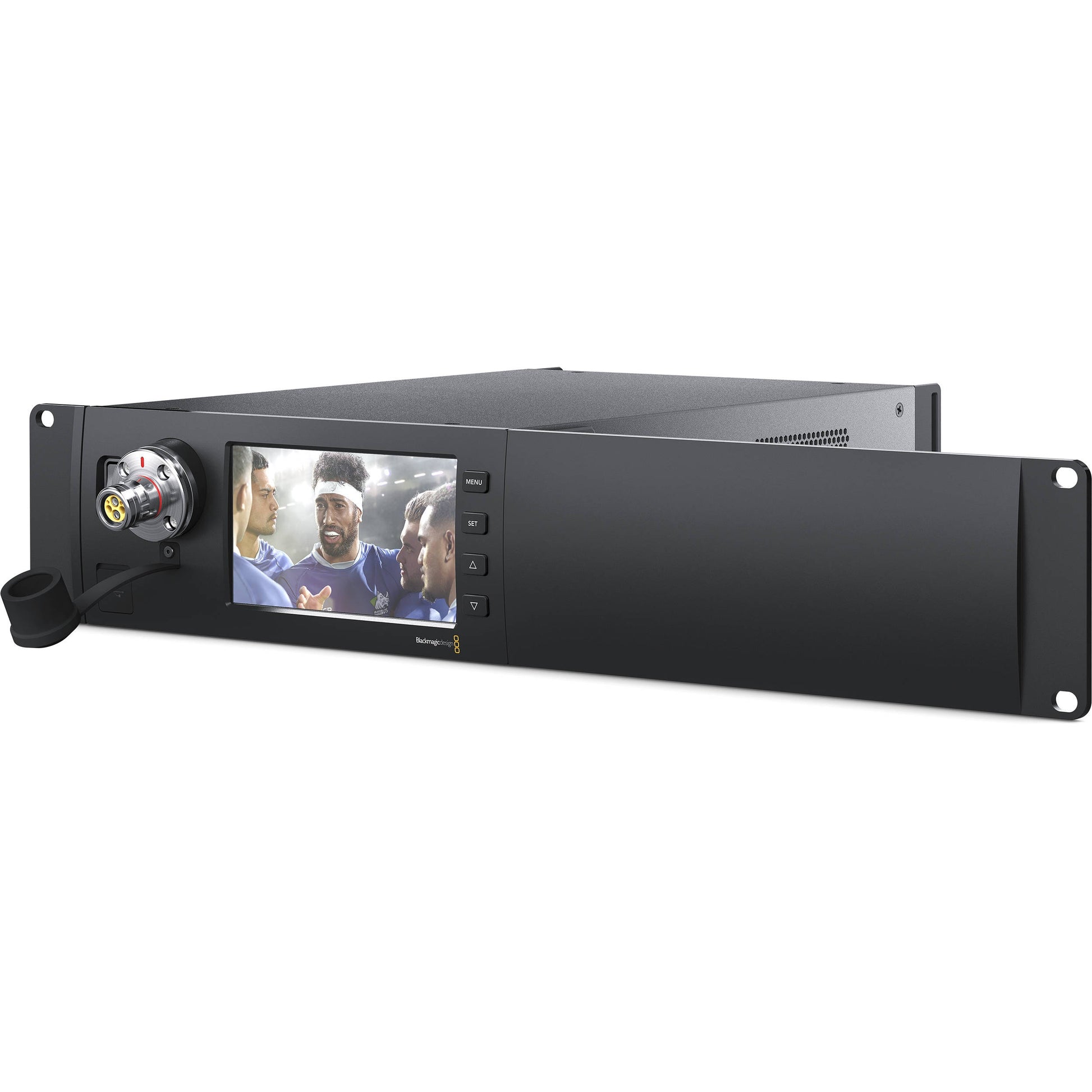

  • Blackmagic Design Studio Fiber Converter shown with rack ears fitted for rackmount installation
1 4

Blackmagic Design Studio Fiber Converter

Blackmagic Design Studio Fiber Converter

SoundPro Item: 31627 | Part Number: BMD-CINEURSANWFRSTUD

$3,659.00
$3,659.00 $3,659.00
Your Price Sold out
MSRP: $3,659.00 | MAP: $3,659.00

Usually ships in 5-7 business days

  • Work with remote cameras up to 2 km away using SMPTE fiber
  • Converts SDI video, audio, and remote camera control connections into a single optical fiber cable
  • All video and data are transmitted using standard IP for extremely low latency broadcast quality video
  • Get 12G-SDI for an HD or Ultra HD camera feed and 3 independent HD return feeds, along with standard connections
  • For camera control, PTZ, two dual channel talkback intercoms, tracker talkback, tally and a 5 inch LCD screen for monitoring camera and return feeds.
  • Provides power for your remote cameras and accessories
Log in or register for YOUR best price

Work with remote cameras up to 2 km away from your studio or outside broadcast truck using SMPTE fiber. The Blackmagic Studio Fiber Converter converts SDI video, audio, and remote camera control connections into a single optical fiber cable, which connects to a Blackmagic Camera Fiber Converter attached to a remote camera. All video and data are transmitted using standard IP for extremely low latency broadcast quality video. You get 12G-SDI for an HD or Ultra HD camera feed and 3 independent HD return feeds, along with standard connections for camera control, PTZ, two dual channel talkback intercoms, tracker talkback, tally and a 5 inch LCD screen for monitoring camera and return feeds. The Blackmagic Studio Fiber Converter also provides power for your remote cameras and accessories.

View full details

Specifications

Certifications
Standards
HD Video Standards
SDI Compliance
SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M
Dimensions
Dimensions
14.64" x 8.28" x 3.48"
Audio
Talkback Audio
SDI Channels 15 and 16 for Production, Analogue in and out supported via 25-pin connector for Production and Engineering talkback support
Balanced XLR Audio Outputs
4x camera analogue audio outputs
Audio Sampling
television standard sample rate of 48kHz, 24 bit A/D conversion
Connectivity
Optical Fiber Input
1x SMPTE Hybrid Fiber Optic with Female SMPTE 304 connector
SDI Video Input
3x 12G SDI Return feeds with Program, Camera Control, Tally, Genlock and Intercom on Return 1
SDI Video Output
2x 12G SDI for Ultra HD up to 60p
Optical Fiber Outputs
1x Optical I/O via 10 Gb-E (not currently active)
Construction
Color Precision
10-bit
Color Space
REC 709, REC 2020
Included Items
Software (included)
Camera Utility for firmware update
Environmental
Storage Temperature
-4° to 113° F (-20° to 45° C)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
6.17 pounds
General
Computer Interface
1x USB-C
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Video Sampling
4:2:2
Multiple Rate Support
SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI
Operating Systems
Mac 10.14 Mojave, Mac 10.15 Catalina or later; Windows 8.1 and 10
Power Supply
100-240V AC input
