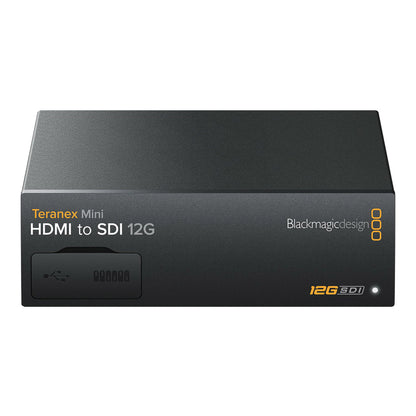

• Blackmagic Design Teranex Mini HDMI to SDI 12G Converter

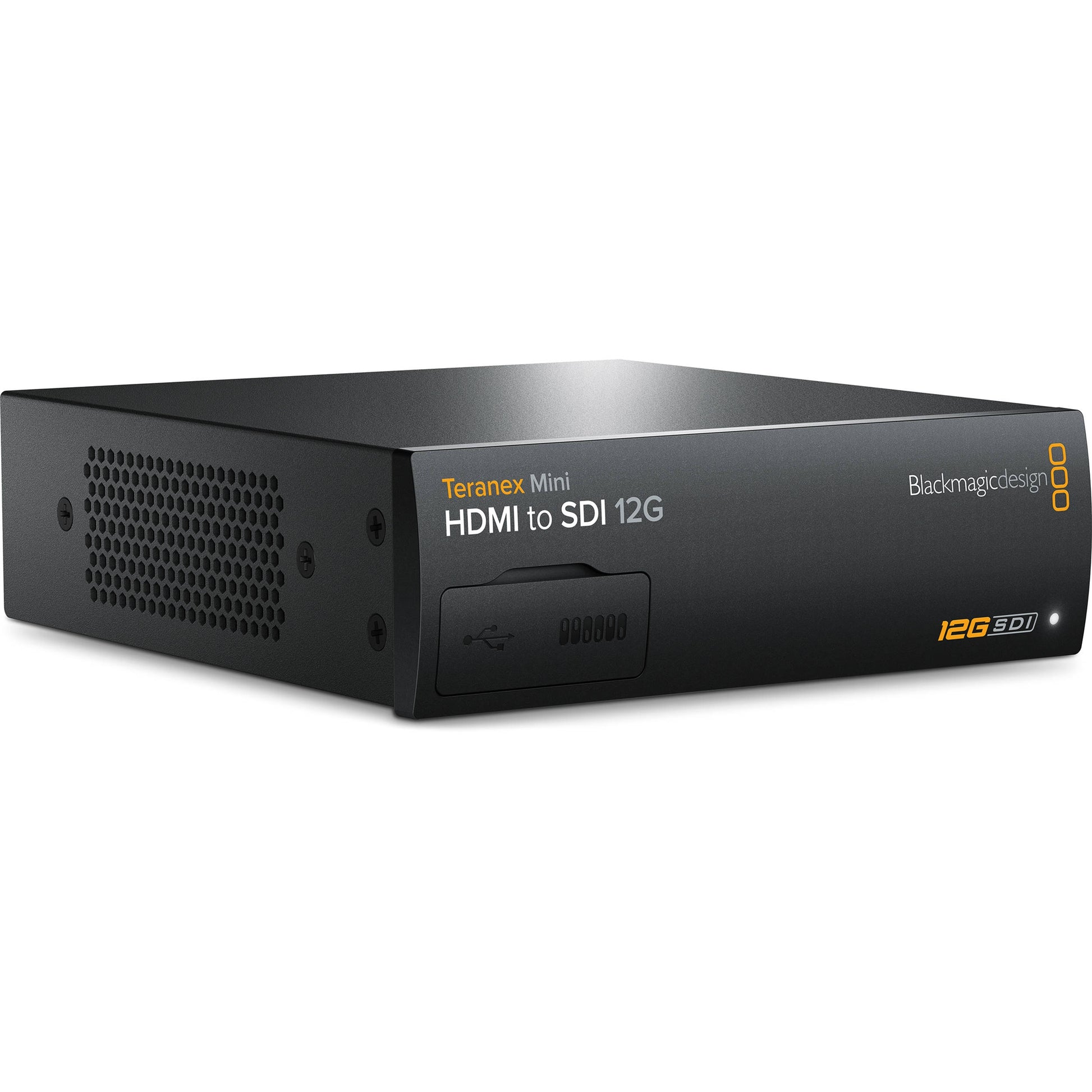

  • Blackmagic Design Teranex Mini HDMI to SDI 12G converter angled front view with USB port and vented side

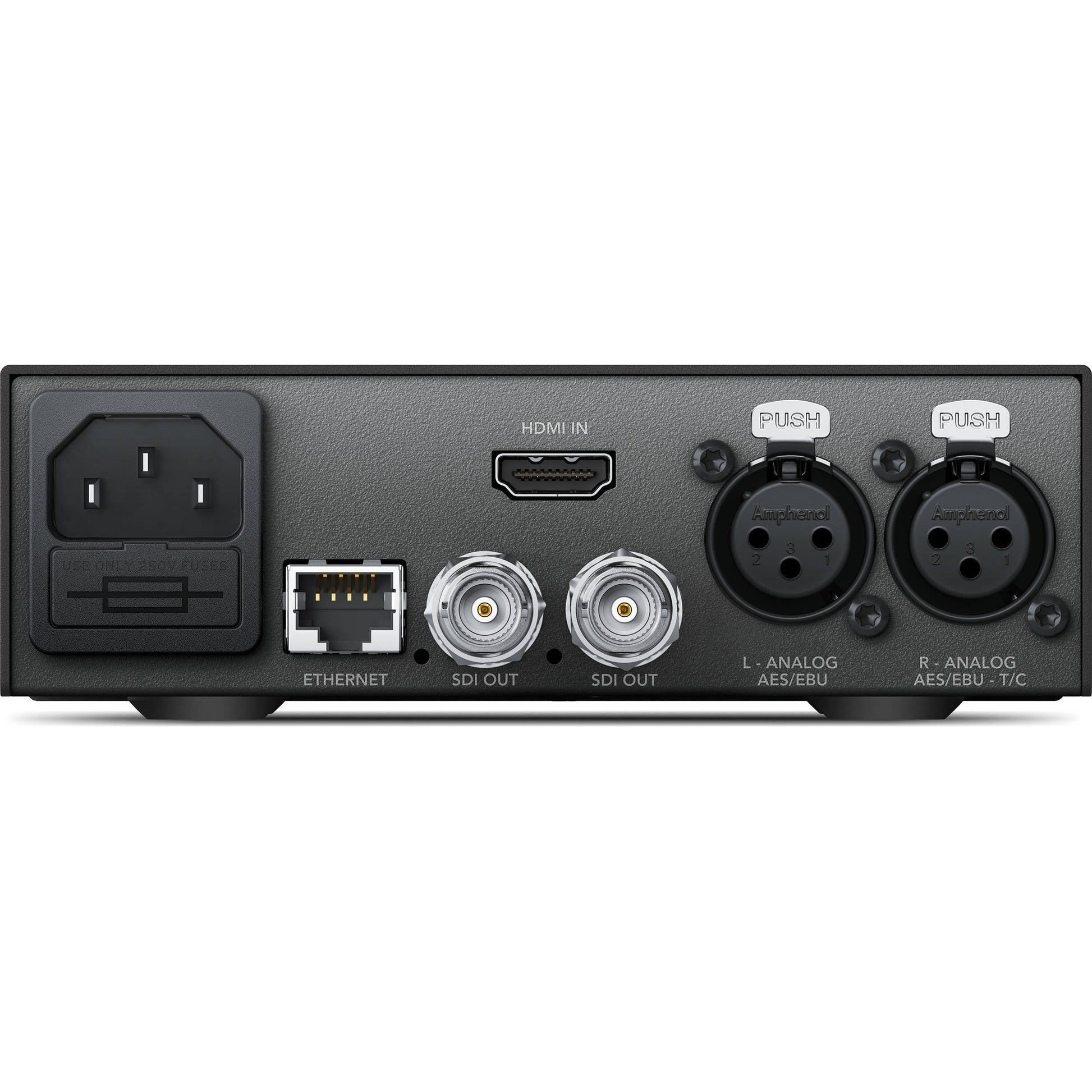

  • Teranex Mini HDMI to SDI 12G rear panel with HDMI in, two SDI out BNCs, Ethernet, XLR audio and IEC power
1 3

Blackmagic Design Teranex Mini HDMI to SDI 12G Converter

Blackmagic Design Teranex Mini HDMI to SDI 12G Converter

SoundPro Item: 23869 | Part Number: BMD-CONVNTRM/AB/HSDI

$675.00
$675.00 $675.00
Your Price Sold out
MSRP: $675.00 | MAP: $675.00

Usually ships in 5-7 business days

  • Power supply not included - requires IEC cable
  • Supports all SD, HD, and Ultra HD formats up to 2160p60
  • Internal AC power supply
  • Professional XLR analog and AES/EBU audio connections
  • XLR connections can switch between balanced analog or AES/EBU digital audio for connecting to different equipment
  • Control with mini switches or remotely via ethernet connection
  • Compact size works well in portable racks, and you still get full-sized professional XLR audio connections
  • Up to 8 times faster than regular HD-SDI
  • Smart thermal design
  • HDMI instant lock continuously sends active HDMI signal to the display
  • High quality patented Teranex image processing
  • 33 point 3D LUT support for color control and customization
Log in or register for YOUR best price

Power supply not included - requires IEC cable.

Teranex Mini HDMI to SDI 12G supports SD, HD, 6G and 12G-SDI rates, and an up converter converts HD to Ultra HD. These supports are ideal for converting HDMI cameras to SDI, or adding SDI outputs to computers with HDMI connections. Audio can be embedded from balanced analog or AES/EBU and timecode input. Multi-rate design enables the converter to automatically detect and change between all SD, HD, and Ultra HD video formats, so the converter can be connected to any existing SD and HD equipment. The Teranex Mini is a great solution for broadcast, postproduction, and professional video applications.

The HDMI to SDI 12G is ideal for broadcast installations with its rack mountable design. Compact and durable construction makes the converter well-suited for portable racks as well, often used at live events or in broadcast trucks. The converter also pairs with audio gear from its professional XLR audio connections and can be used in editing and color grading suites to drive big screen displays and projectors.

Standard, broadcast quality connectors are featured, including full size professional XLR audio connections and high speed BNC connections. Regular power cables can be used since the converter has a built-in multi volt 90V-240V AC power supply and standard IEC AC power connector. Remote control is a convenient feature from the built-in ethernet connection, which can also power the converter when connected to PoE switch. Connect to any pro audio equipment whether analog or digital by switching the professional XLR connections between balanced analog or AES/EBU digital audio. Analog audio on the converter has an extremely low noise floor to give analog audio background the quiet associated with digital.

Built-in mini switches and a diagram on the converter make it quick and easy to change settings. Managing settings over ethernet is helpful for setups using several converters. Innovative thermal design uses crossflow cooling to keep the converter running perfectly even in tough environments. Air flow is continuous with minimal noise, and in rack mounted setups all the converters work together to stay cool and provide redundancy in each converter. Full SDI re-clocking and low jitter help the converter work with longer cables.

Create custom looks and enjoy accurate color representation with 33 point 3D LUT support. The LUTs can also be used to configure the converter as a 3D LUT processor, and DaVinci Resolve is supported. HDMI instant lock continuously sends an active HDMI signal to the display even with the SDI input disconnected. This ensures HDMI projectors and TVs take less time to lock onto a signal when a new source is connected.

View full details

Specifications

Certifications
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
Electrical
Power Consumption
16 Watts
Operational Voltage Range
100 - 240V AC
Audio
Analog Audio Inputs
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input
Digital Audio Inputs
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input
Embedded Audio Support
16 channels
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit
Connectivity
SDI Video Outputs
2 x 12G SDI outputs. Automatically matches the SD, HD and 12G-SDI HDMI video input
HDMI Video Inputs
1 x HDMI 2.0 type A
SDI Output Standards
HD Video Standards 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25 , 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080i50, 1080i59.94, 1080i60
HDMI Input Standards
HD Video Standards 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080i50, 1080i59.94, 1080i60
HDMI Color Space
REC 601, REC 709
HDMI Color Precision
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K
Construction
SDI Color Precision
4:2:2
SDI Color Space
YUV
Environmental
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
General
Multi Rate Support
Automatic switching between SD/HD/2K and 4K
Updates and Configuration
USB or Ethernet
Reclocking
Yes
SD Video Standards
525i59.94 NTSC, 625i50 PAL
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Video Rates
SDI video connections are auto switching between standard definition SDI, high definition 3G-SDI, 6G-SDI, and 12G-SDI
SDI Video Sampling
4:2:2
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
Format Conversion
HD up and down conversion
Software Control
Mac™ and Windows™ software upgrade via USB and Ethernet
Software
Internal Software Upgrade Via included updater application
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10, 64-bit
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power Supply
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input
Power Over Ethernet (PoE)
Can be powered via 48V DC using PoE+ (power over ethernet)
