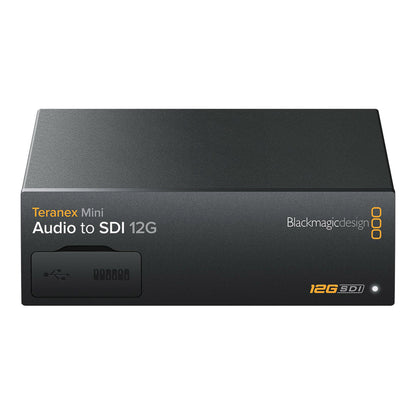

• Blackmagic Design Teranex Mini Audio to SDI 12G Converter

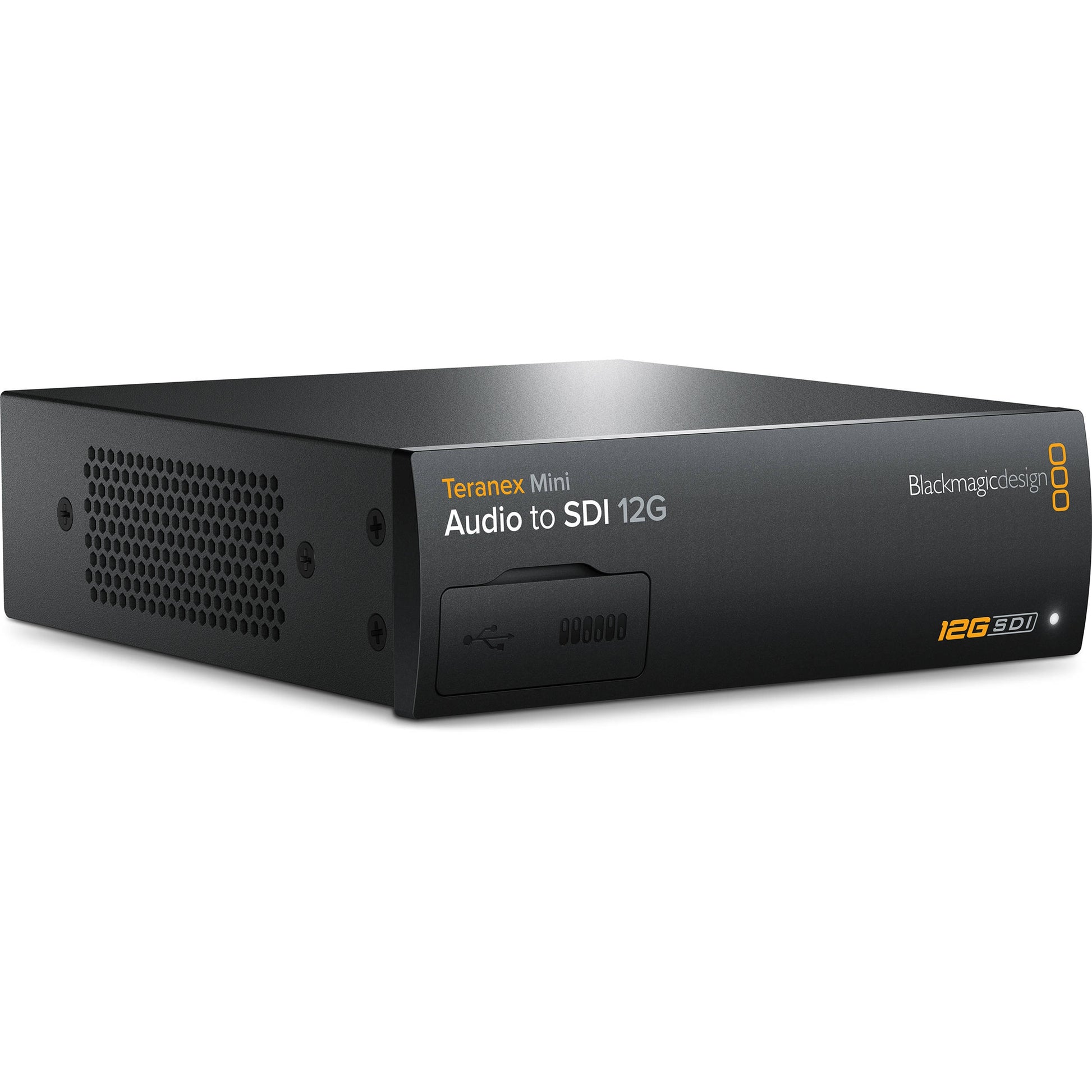

  • Blackmagic Design Teranex Mini Audio to SDI 12G converter angled view showing top and vented side panel

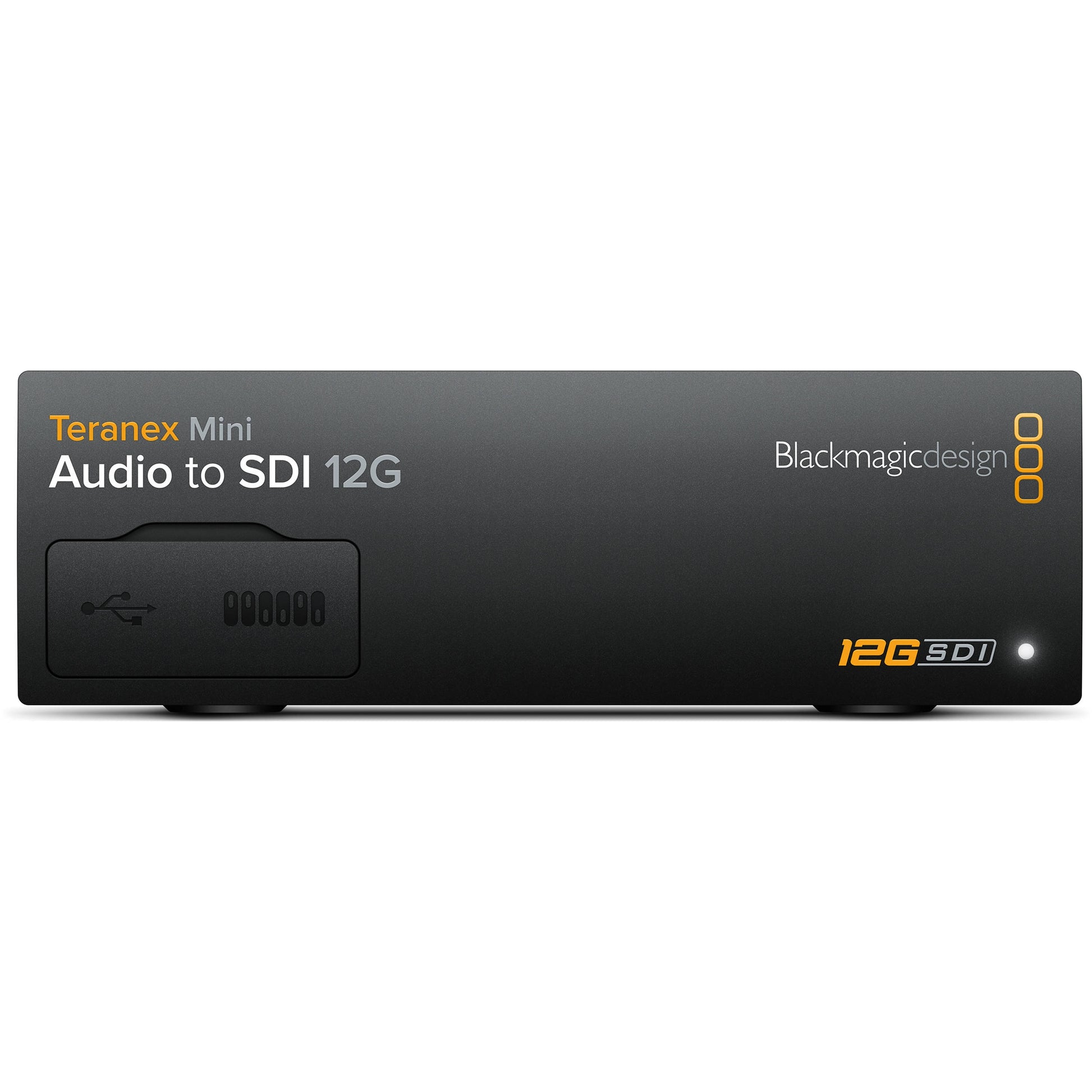

  • Blackmagic Design Teranex Mini Audio to SDI 12G front panel with USB port cover and status indicator

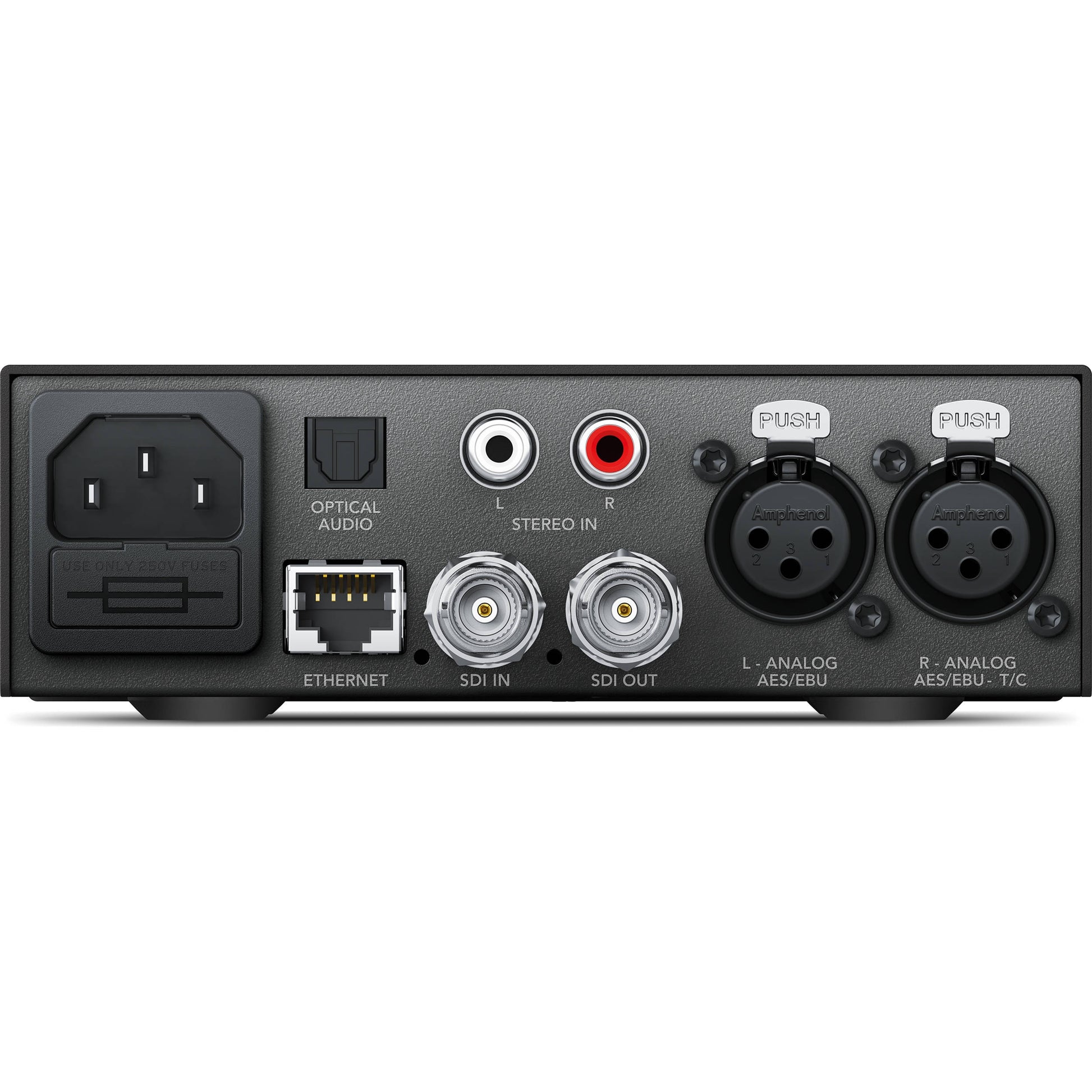

  • Teranex Mini Audio to SDI 12G rear panel with XLR, RCA, optical audio, SDI in and out, and Ethernet
1 4

Blackmagic Design Teranex Mini Audio to SDI 12G Converter

Blackmagic Design Teranex Mini Audio to SDI 12G Converter

SoundPro Item: 23873 | Part Number: BMD-CONVNTRM/CB/AUSDI

$665.00
$665.00 $665.00
Your Price Sold out
MSRP: $665.00 | MAP: $665.00

Usually ships in 5-7 business days

  • Supports all SD, HD, and Ultra HD formats up to 2160p60
  • Internal AC power supply
  • Professional XLR analog and AES/EBU audio connections
  • XLR connections can switch between balanced analog or AES/EBU digital audio for connecting to different equipment
  • Control with mini switches or remotely via ethernet connection
  • Compact size works well in portable racks, and you still get full-sized professional XLR audio connections
  • Up to 8 times faster than regular HD-SDI
  • Smart thermal design
  • HDMI instant lock continuously sends active HDMI signal to the display
  • High quality patented Teranex image processing
  • 33 point 3D LUT support for color control and customization
Log in or register for YOUR best price

Power supply not included - requires IEC cable.

Teranex Mini audio to SDI 12G can embed audio from audio mixers, iPods, analog decks, and more into any SD, HD, Ultra HD or DCI 4K SDI video connection. Up to two chanels of audio from balanced analog, optical or HiFi RCA can be embedded, and up to four channels of AES/EBU digital audio can be embedded. Multi-rate design enables the converter to automatically detect and change between all SD, HD, and Ultra HD video formats, so the converter can be connected to any existing SD and HD equipment. The Teranex Mini is a great solution for broadcast, postproduction, and professional video applications.

The audio to SDI 12G is ideal for broadcast installations with its rack mountable design. Compact and durable construction makes the converter well-suited for portable racks as well, often used at live events or in broadcast trucks. Standard, broadcast quality connectors are featured, including full size professional XLR audio connections and high speed BNC connections. Regular power cables can be used since the converter has a built-in multi volt 90V-240V AC power supply and standard IEC AC power connector. Remote control is a convenient feature from the built-in ethernet connection, which can also power the converter when connected to PoE switch. Connect to any pro audio equipment whether analog or digital by switching the professional XLR connections between balanced analog or AES/EBU digital audio. Analog audio on the converter has an extremely low noise floor to give analog audio background the quiet associated with digital.

Built-in mini switches and a diagram on the converter make it quick and easy to change settings. Managing settings over ethernet is helpful for setups using several converters. Innovative thermal design uses crossflow cooling to keep the converter running perfectly even in tough environments. Air flow is continuous with minimal noise, and in rack mounted setups all the converters work together to stay cool and provide redundancy in each converter. Full SDI re-clocking and low jitter help the converter work with longer cables.

Create custom looks and enjoy accurate color representation with 33 point 3D LUT support. The LUTs can also be used to configure the converter as a 3D LUT processor, and DaVinci Resolve is supported. HDMI instant lock continuously sends an active HDMI signal to the display even with the SDI input disconnected. This ensures HDMI projectors and TVs take less time to lock onto a signal when a new source is connected.

View full details

Specifications

Certifications
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
Electrical
Power Consumption
16 Watts
Operational Voltage Range
100 - 240V AC
Audio
Analog Audio Outputs
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output.
Digital Audio Outputs
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output.
Embedded Audio Support
8 channels.
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
Connectivity
SDI Video Inputs
1 x 12G-SDI SD/HD/2K/4K auto switching.
SDI Video Outputs
1 x 12G-SDI loop output.
HDMI Video Outputs
1 x HDMI 2.0 type A connector with support for 2160p60.
SDI Input Standards
HD Video Standards 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF301080i50, 1080i59.94, 1080i60, 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
HDMI Output Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
HDMI Color Space
REC 601, REC 709
HDMI Color Precision
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
Construction
SDI Color Precision
4:2:2 and 4:4:4
SDI Color Space
YUV and RGB. 33 point LUTs can be loaded via Teranex Utility.
Environmental
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
General
Multi Rate Support
270MB, 1.5G, 3G, 6G and 12G.
Updates and Configuration
USB or Ethernet.
Reclocking
Yes
SD Video Standards
525i59.94 NTSC, 625i50 PAL
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Video Rates
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4
HD Video Standards
720p50, 720p59.94, 720p60
Software Control
Mac™ and Windows™ software upgrade via USB or Ethernet.
Software
Internal Software Upgrade Via included updater application.
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10, 64-bit
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility.
Settings Control
Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power Supply
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
Power Over Ethernet (PoE)
Can be powered via 48V DC using PoE+ (power over ethernet).
