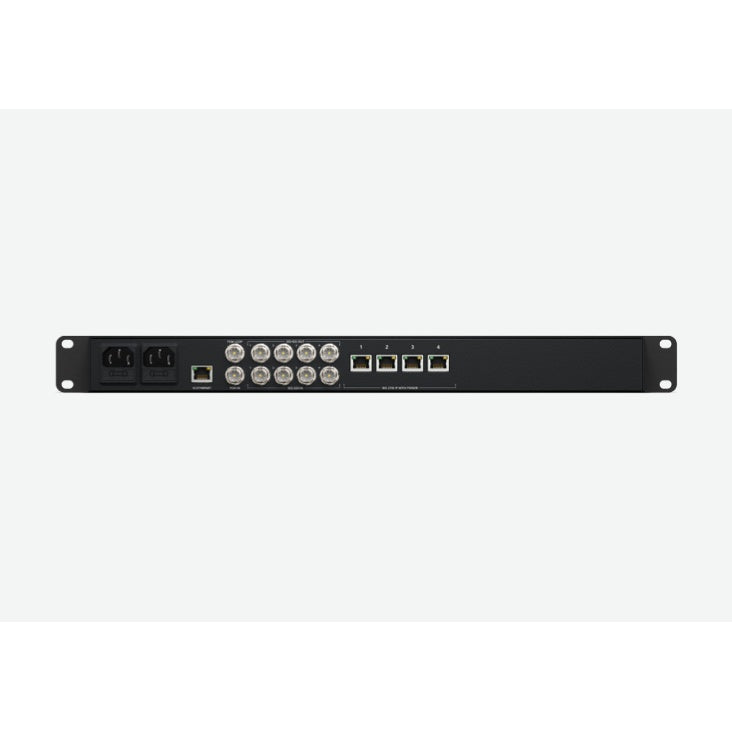

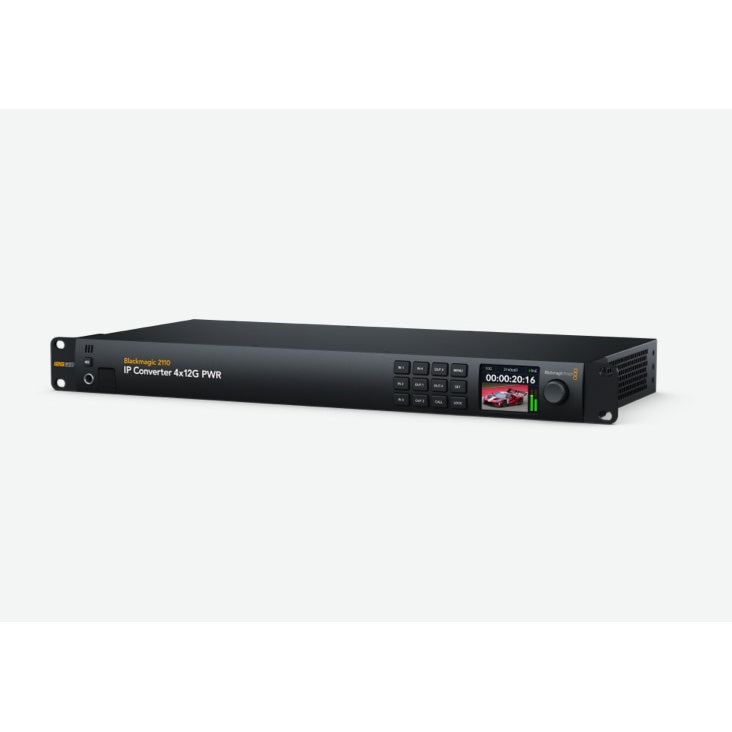

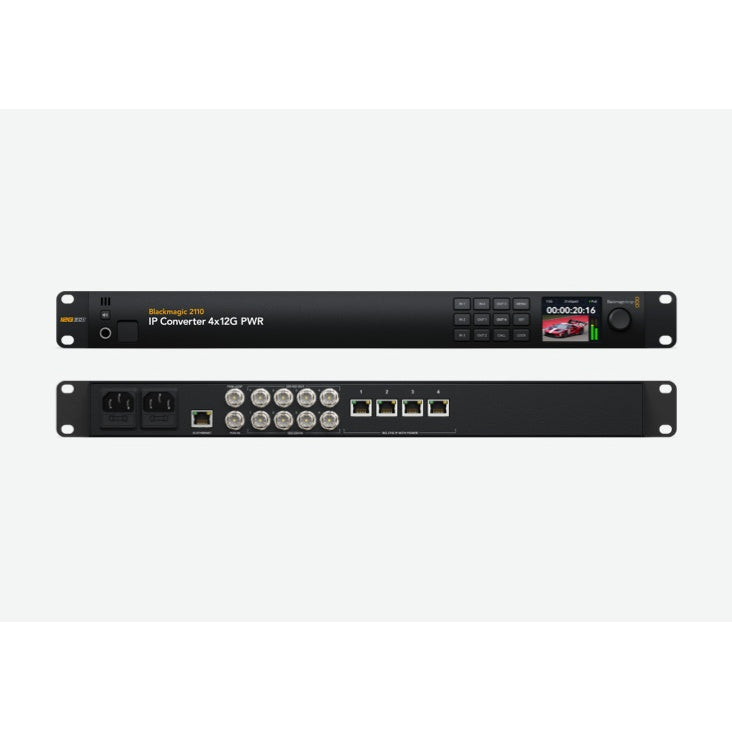

Blackmagic BMD-CONVNVIPB4/12GPWR 4-Channel 12G-SDI SMPTE-2110 IP Converter

Blackmagic BMD-CONVNVIPB4/12GPWR 4-Channel 12G-SDI SMPTE-2110 IP Converter

SoundPro Item: 144328 | Part Number: BMD-CONVNVIPB4/12GPWR

$2,285.00
$2,285.00 $2,285.00
Your Price Sold out
MSRP: $2,285.00 | MAP: $2,285.00

Usually ships in 5-7 business days

  • Four Independent Bidirectional Channels Convert 12G-SDI And SMPTE-2110 IP Simultaneously
  • PoE++ On All Four 10G Ethernet Ports Powers Connected Cameras And Converters Concurrently
  • Dedicated Program Return Input Distributes Return Video To All Input Channels
  • Dual Internal AC Power Supplies Provide Full Redundancy For Mission-Critical Deployments

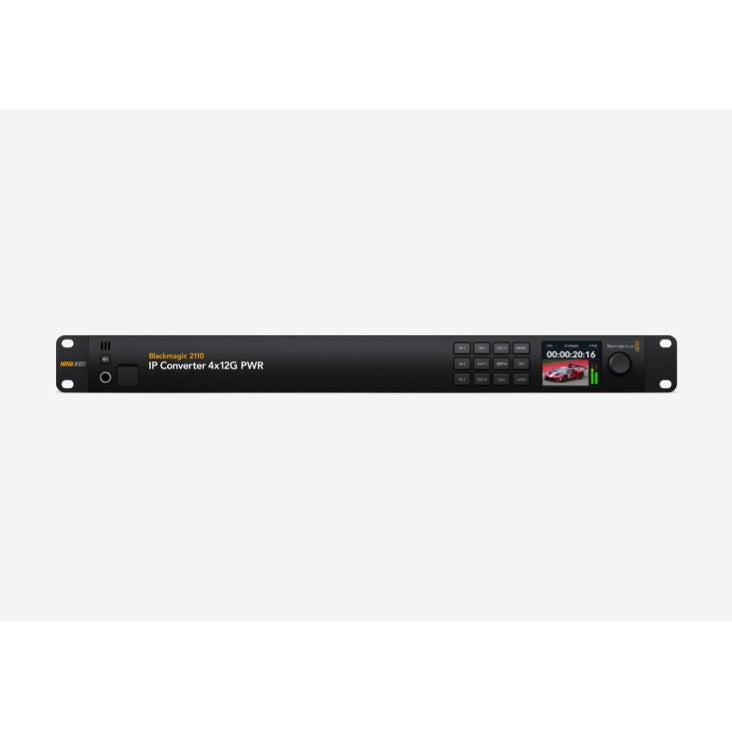

  • Front Panel LCD, Speaker, And Control Panel Enable Local Setup Without A Connected Computer
  • NMOS IS-04 And IS-05 Support Enables Integration With IP Orchestration And Discovery Systems
  • Precision Time Protocol PTP v2 Ensures Frame-Accurate Sync Across The IP Network
Log in or register for YOUR best price

The Blackmagic 2110 IP Converter 4x12G PWR is built for broadcast engineers and systems integrators migrating SDI infrastructure to IP-based production workflows. Each of its four independent channels handles simultaneous bidirectional conversion between 12G-SDI and SMPTE-2110 IP over 10G Ethernet, supporting Ultra HD and 4K DCI formats without requiring external media converters or additional network switches for camera power.

The unit's PoE++ output capability is a practical differentiator for live production environments: all four 10G Ethernet ports can deliver high power simultaneously, allowing a full complement of Blackmagic Studio Camera 6K Pros to be connected, powered, and controlled from a single 1RU device. A dedicated 12G-SDI program return input feeds video back to all input channels, which simplifies confidence monitoring in complex multi-camera setups where return feeds are critical.

Dual internal AC power supplies provide full redundancy, making this converter suitable for broadcast trucks, permanent install control rooms, and live event production where downtime is not an option. The front panel LCD, speaker, and 12-button control panel allow local configuration without a connected laptop, while USB-C and NMOS IS-04/IS-05 support enable remote management and integration into modern IP orchestration systems. Support for Precision Time Protocol (PTP v2) ensures frame-accurate synchronization across the IP network.

Downloads

View full details

Specifications

Connections
Total SDI Inputs
5
SDI Video Inputs
4
SDI Main Program Inputs
1
Total SDI Outputs
5
SDI Video Outputs
4
SDI Main Program Outputs
1 Loop Out
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G
SMPTE ST-2110 IP Video Inputs
4 x 10G Ethernet
SMPTE ST-2110 IP Video Outputs
4 x 10G Ethernet
Analog Audio Outputs
1 x 6.35 mm headphone socket
SDI Audio Inputs
16 Ch embedded audio on SDI input
SDI Audio Outputs
16 Ch embedded audio on SDI loop output
SMPTE ST-2110 IP Audio Inputs
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet
SMPTE ST-2110 IP Audio Outputs
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet
Ethernet
4 x 10Gb/s RJ-45 PoE++ connectors supporting 10/100/1000/10G BASE-T
Computer Interface
1 x USB-C 3.0
Reclocking
Yes
Multi Rate Support
Auto detection of SD, HD, Ultra HD and 4K
SDI Video Standards
HD Video Standards
720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98–1080p60; 1080PsF25, 1080PsF29.97, 1080PsF30
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98–4Kp60 DCI
SDI Compliance
SMPTE 292M, 296M, 424M, 425M, 2081-1, 2081-10, 2082-1, 2082-10, 2084, 2108-1, ST2110-20, ST2110-21, ST2110-30, ST2110-40
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI; Level A and B auto-detected on 3G-SDI input
IP Video Compliance
SMPTE 2110-20 Uncompressed Video
IGMP v3
SMPTE 2110-21 Traffic Shaping
Sender: Narrow
SMPTE 2110-30 PCM Audio
Conformance Level C
SMPTE 2110-40 Ancillary Data
Full access including RP 188/SMPTE 12M-2, closed captioning, HDR static metadata
Codec
Blackmagic IP10 codec for converting 12G-SDI rates to 10G 2110 IP video
Precision Time Protocol
IEEE 1588-2008 (PTP v2)
NMOS IS-04
v1.3.2
NMOS IS-05
v1.1.2
NMOS BCP-002-01
Natural Grouping
NMOS BCP-004-01
Receiver Capabilities
Controls
Control Panel
12-button panel with 2.2" color display and spin knob
Audio Monitor
Front panel speaker with control button and 6.35 mm headphone socket
Power
Power Supply
2 x Internal 100-240V AC 50/60Hz with IEC C14 mains input
Power Usage
410 W max
Environmental
Operating Temperature
5° to 40° C (41° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
Physical
Rack Height
1 rack unit
Compatibility
Operating Systems
Mac 13.0 Ventura, Mac 14.0 Sonoma or later; Windows 10 and 11
Warranty
Warranty
1 Year Limited Manufacturer's Warranty
Included Items
In the Box
Blackmagic 2110 IP Converter 4x12G PWR, Welcome wallet with QR code for software download
