Blackmagic BMD-CONVNVIPC8/12GSFP 8-Channel 12G-SDI to SMPTE-2110 IP Converter
Blackmagic BMD-CONVNVIPC8/12GSFP 8-Channel 12G-SDI to SMPTE-2110 IP Converter
SoundPro Item: 144329 | Part Number: BMD-CONVNVIPC8/12GSFP
Usually ships in 5-7 business days
- Eight Independent Bidirectional Channels Convert 12G-SDI and SMPTE-2110 IP Simultaneously
- SFP Socket Design Supports Optical Fiber Ethernet Modules For Long-Distance Facility Runs
- Single 12G-SDI Program Return Input Distributes One Source To All Eight Channels At Once
- NMOS IS-04 And IS-05 Support Enables Integration With IP Orchestration And Control Systems
- Dual Internal AC Power Supplies Provide Full Redundancy For Mission-Critical Broadcast Use
- Front Panel Color LCD, Spin Knob, And Audio Monitor Speaker Allow Direct Local Operation
- Precision Time Protocol IEEE 1588-2008 PTP v2 Ensures Synchronized IP Video Timing
The Blackmagic 2110 IP Converter 8x12G SFP addresses the core challenge broadcast engineers face when migrating SDI-based infrastructure to IP workflows without replacing existing equipment. Housed in a 1RU chassis, it provides eight independent bidirectional converters that simultaneously handle 12G-SDI and SMPTE ST-2110 IP video using SFP sockets, enabling optical fiber connections for long-distance facility runs where copper would be impractical. An additional 12G-SDI program return input distributes a single source to all eight connected devices simultaneously, reducing cabling complexity for common distribution tasks like sending a clean feed to remote cameras or monitors.
This converter is purpose-built for live broadcast, OB trucks, and IP-native control rooms where engineers need to bridge legacy 12G-SDI routers, cameras, and monitors into SMPTE-2110 IP fabrics. It supports the full SDI format range from SD through Ultra HD and 4K DCI, with auto-detection of format and level, making it compatible with mixed-generation equipment in the same signal chain. NMOS IS-04 and IS-05 support enables seamless integration with IP orchestration systems for large-scale live production environments.

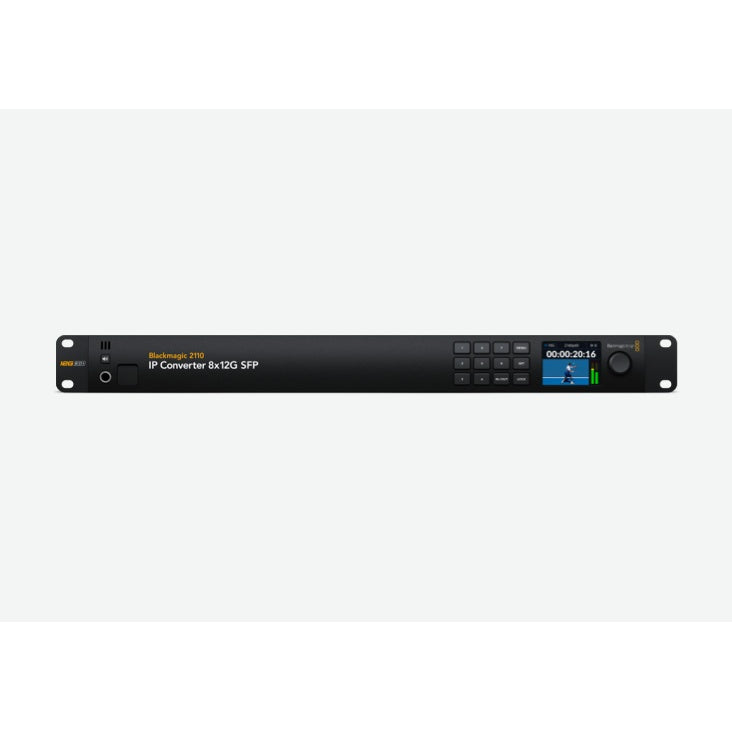

Dual internal AC power supplies with full redundancy eliminate single points of failure in mission-critical broadcast scenarios. The front panel provides a color LCD, 12-button control panel, and a built-in audio monitor speaker with headphone output, giving operators direct local access without requiring a networked control surface. The Blackmagic IP10 codec handles conversion when bridging 12G-SDI rates to 10G 2110 IP video, preserving signal integrity across the format boundary.
