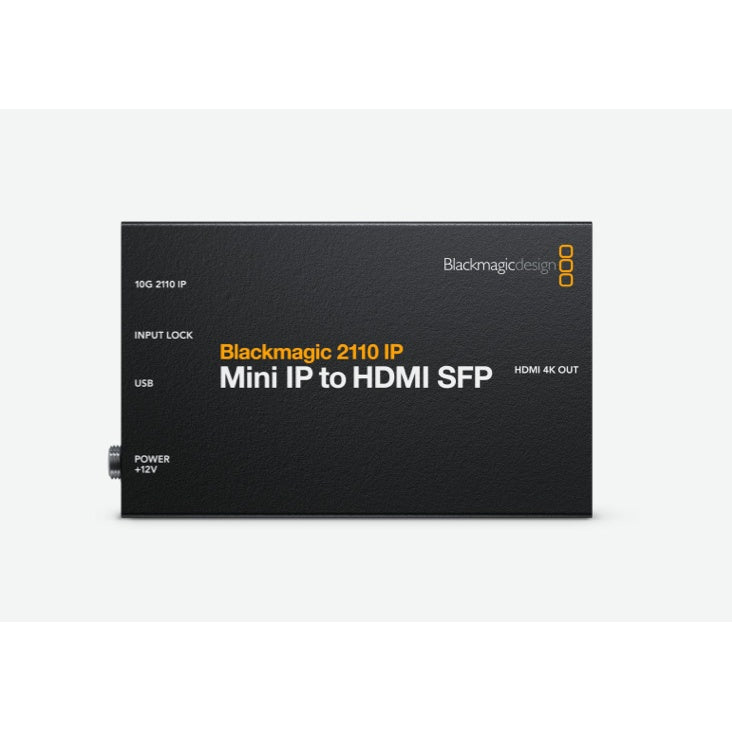

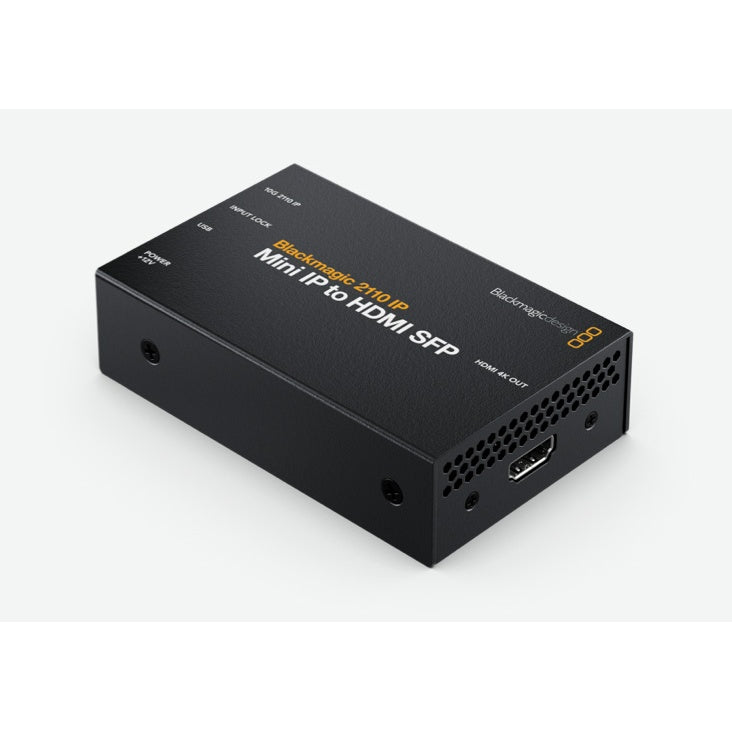

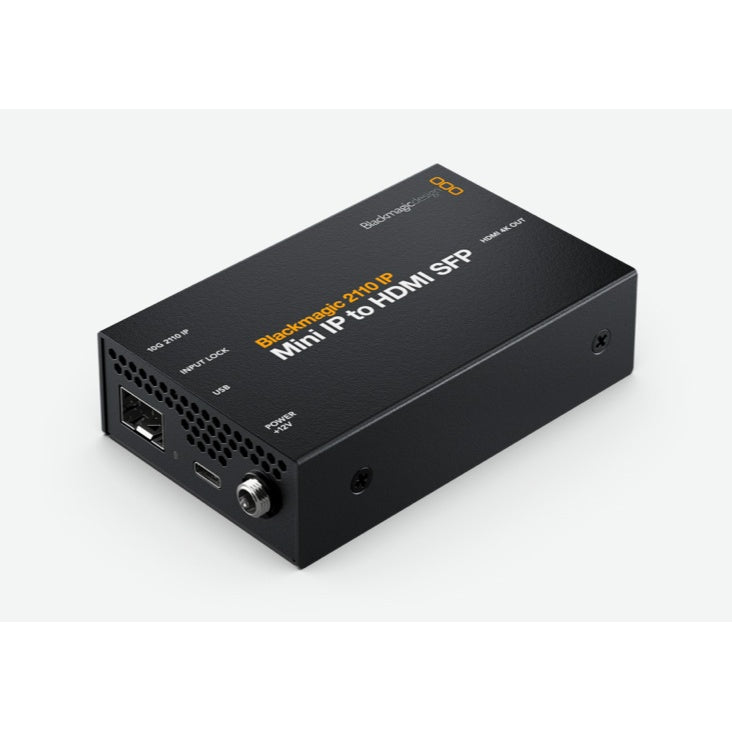

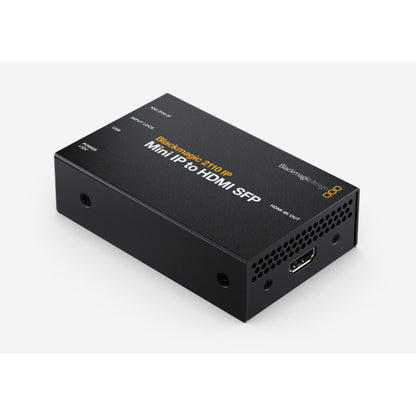

Blackmagic Design BMD-CONVNVIPE/IP/HDMISFP SMPTE-2110 IP to HDMI Converter

Blackmagic Design BMD-CONVNVIPE/IP/HDMISFP SMPTE-2110 IP to HDMI Converter

SoundPro Item: 144331 | Part Number: BMD-CONVNVIPE/IP/HDMISFP

$339.00
$339.00 $339.00
Your Price Sold out
MSRP: $339.00 | MAP: $339.00

Usually ships in 5-7 business days

  • SMPTE ST-2110 Compliance Covers Video, Audio, And Ancillary Data Streams
  • NMOS IS-04 And IS-05 Support Enables Managed IP Network Integration
  • Standard SFP Socket Accepts 10G Ethernet And SDI Optical Fiber Modules
  • PTP v2 (IEEE 1588-2008) Delivers Frame-Accurate Sync On IP Networks
  • USB-C And Network Configuration Eliminates Need For On-Site Access
  • HDR Static Metadata And Closed Captioning Passed Via Ancillary Data
Log in or register for YOUR best price

The Blackmagic Design BMD-CONVNVIPE/IP/HDMISFP is built for broadcast engineers and AV integrators who need to terminate SMPTE ST-2110 IP video streams at HDMI displays — large-format screens, projectors, or computer monitors — without running additional cabling infrastructure across a facility. Its minimal footprint allows it to mount directly behind a display, keeping IP-over-fiber infrastructure clean in control rooms, broadcast sets, and multi-screen installations.

The converter accepts 10G Ethernet optical fiber via a standard SFP socket, which also supports 3G, 6G, and 12G SDI modules for hybrid IP and SDI environments. SMPTE ST-2110 compliance covers uncompressed video, traffic shaping, PCM audio, and ancillary data including closed captioning, RP 188 timecode, and HDR static metadata. NMOS IS-04 and IS-05 support enables integration into managed IP production networks with standardized discovery and connection management workflows.

For teams transitioning from SDI to IP or running mixed infrastructures, this converter handles up to 16 channels of embedded audio on the ST-2110 IP input and delivers 8 channels of embedded audio on the HDMI output. Precision Time Protocol (PTP v2 / IEEE 1588-2008) ensures frame-accurate sync across IP production systems. Configuration is handled via USB-C or remotely over the same 10G Ethernet connection used for video, with compatibility for Mac and Windows systems running current operating system versions.

Downloads

View full details

Specifications

Connections
HDMI Video Outputs
1
HDMI Audio Outputs
8 Ch embedded audio
SMPTE ST-2110 IP Video Inputs
1 x 10G Ethernet
SMPTE ST-2110 IP Audio Inputs
16 Ch embedded audio via 10G Ethernet
Ethernet
1 x 10Gb/s SFP optical fiber, supporting 10/100/1000/10G BASE-T
Computer Interface
1 x USB-C 3.0
Video Standards
HDMI HD Video Standards
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
HDMI Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
HDMI 4K DCI Video Standards
4Kp23.98, 4Kp24, 4Kp25, 4Kp29.97, 4Kp30, 4Kp47.95, 4Kp48, 4Kp50, 4Kp59.94, 4Kp60 DCI
HDMI Color Precision
4:2:2
HDMI Color Space
YUV
IP Video Compliance
SMPTE Compliance
SMPTE ST2110-20, ST2110-21, ST2110-30, ST2110-40
SMPTE 2110-20 (Uncompressed Video)
IGMP v3
SMPTE 2110-21 (Traffic Shaping)
Sender: Narrow
SMPTE 2110-30 (PCM) Audio Conformance
Level C
SMPTE 2110-40 (Ancillary Data)
Full access; includes RP 188/SMPTE 12M-2, closed captioning, HDR static metadata
Codec
Blackmagic IP10 (for 12G-SDI rates to 10G 2110 IP conversion)
Precision Time Protocol
IEEE 1588-2008 (PTP v2)
NMOS IS-04 Discovery and Registration
v1.3.2
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP-002-01
Natural Grouping
NMOS BCP-004-01
Receiver Capabilities
Indicators
IP Input Lock
1 x LED indicator light
Power
Power Supply
1 x +12V DC external universal with locking 5.5mm barrel jack and international adapters
Operational Voltage Range
12 - 16 V
Environmental
Operating Temperature
5° to 40° C (41° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
Compatibility
Mac OS
Mac 13.0 Ventura, Mac 14.0 Sonoma or later
Windows
Windows 10 and 11
Certifications
Warranty
1 Year Limited Manufacturer's Warranty
Included Items
In the Box
Blackmagic 2110 IP Mini IP to HDMI SFP, Welcome wallet with QR code for software download
