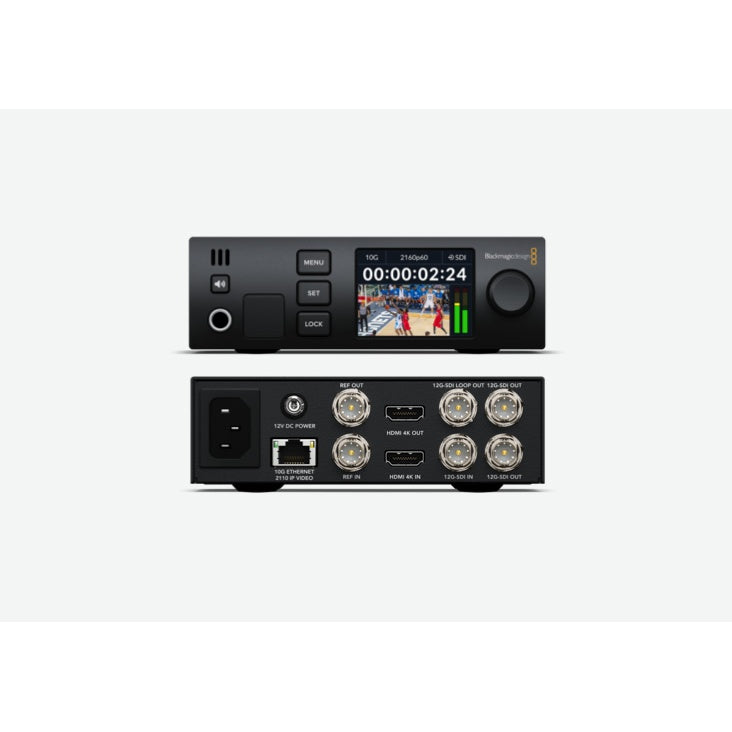

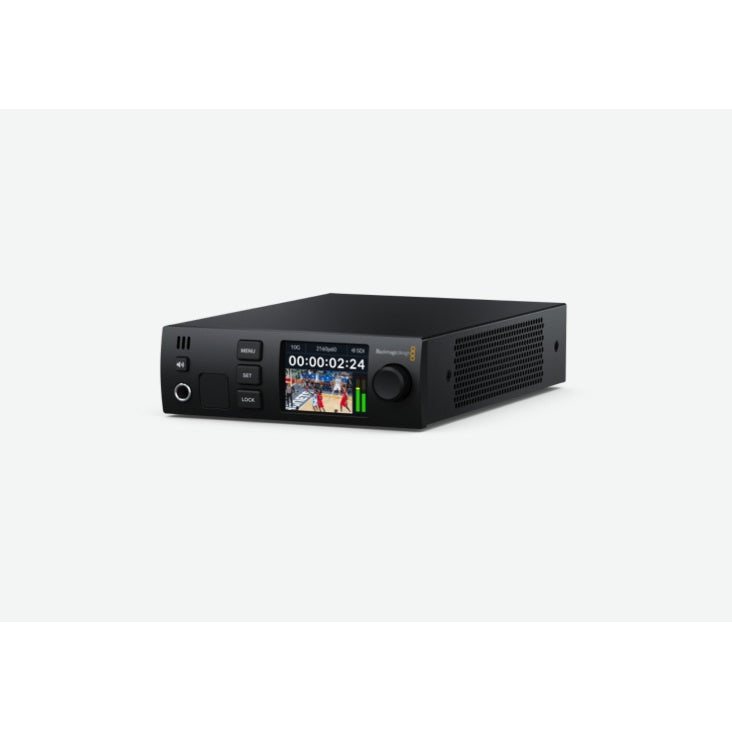

Blackmagic Design BMD-CONVNVIPJ/STD/12G 12G-SDI SMPTE 2110 IP Standards Converter

Blackmagic Design BMD-CONVNVIPJ/STD/12G 12G-SDI SMPTE 2110 IP Standards Converter

SoundPro Item: 151869 | Part Number: BMD-CONVNVIPJ/STD/12G

$625.00
$625.00 $625.00
Your Price Sold out
MSRP: $625.00 | MAP: $625.00

Usually ships in 5-7 business days

  • PTP V2 Clock Synchronization Locks SDI Inputs To A Common Network Timing Reference
  • SMPTE 2110 IP Video Over 10G Ethernet Enables Modern IP Facility Integration
  • NMOS IS-04 And IS-05 Support Enables Managed Discovery And Connection Control
  • Front Panel LCD With Spin Knob Allows On-Device Configuration Without A Computer
  • Built-In Speaker And Headphone Output Provide Immediate Audio Confidence Monitoring
  • Blackmagic IP10 Codec Supports 2160p59.94 And 2160p60 Over 10G 2110 IP Video
  • Full SMPTE Ancillary Data Access Preserves Closed Captioning And HDR Static Metadata
Log in or register for YOUR best price

The Blackmagic 2110 IP UpDownCross 12G is built for broadcast engineers and live production teams who need seamless interoperability between SDI infrastructure, HDMI sources, and IP-based SMPTE 2110 workflows. Whether you're integrating legacy SDI gear into a modern IP facility or feeding a mix of HD and Ultra HD signals into a live switcher, this converter handles the translation without requiring external processing hardware.

In OB trucks, broadcast control rooms, and hybrid IP/SDI installations, signal format mismatches cause real production risk. This unit eliminates that risk by converting any SD, HD, or Ultra HD format to any other in the same class, all while maintaining 10-bit color precision and Rec. 2020 color space support. PTP v2 clock synchronization ensures SDI inputs lock to a common reference, which is critical in multi-device IP environments where timing errors propagate downstream.

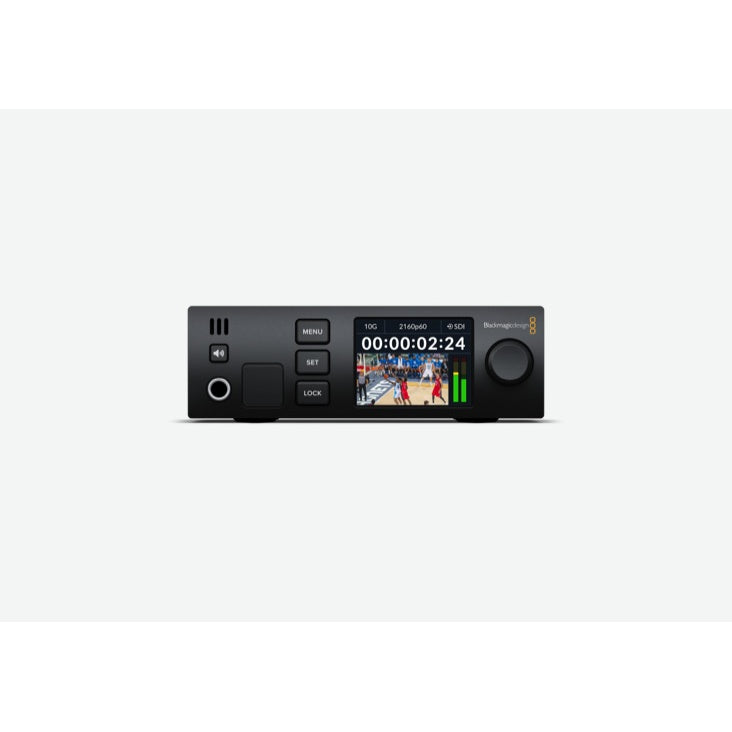

The front-panel design includes a 2.2-inch color LCD, a spin knob, and dedicated buttons so operators can adjust settings without a laptop on the floor. Audio monitoring via the built-in speaker and headphone output gives engineers a quick confidence check without patching to external monitoring. For larger facilities, NMOS IS-04 and IS-05 support enables discovery, registration, and connection management through standard IP control systems, making this unit a practical fit in fully managed broadcast networks.

Downloads

View full details

Specifications

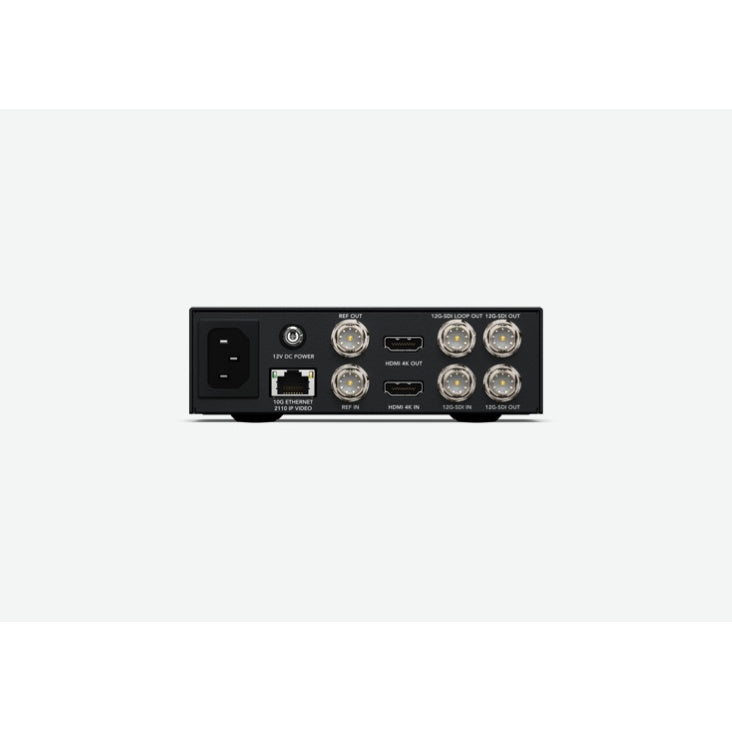

Connections
SDI Inputs
1
SDI Loop Outputs
1
SDI Outputs
2
SDI Rates
SD, 1.5G, 3G, 6G, 12G
HDMI 2.0 Video Inputs
1
HDMI 2.0 Video Outputs
1
SMPTE 2110 Input / Output
1 x 10G Ethernet
SMPTE ST 2110 IP Audio Inputs / Outputs
16 channels embedded input and output on ST-2110 IP via 10G Ethernet
SDI Audio Inputs
16 channels embedded audio
SDI Audio Outputs
16 channels embedded audio
HDMI Audio Inputs
8 channels embedded audio
HDMI Audio Outputs
8 channels embedded audio
Analog Audio Output
1 x 6.35 mm headphone jack
Reference Input
1
Reference Output
1
Ethernet
10/100/1000/10G BASE-T
Computer Interface
USB-C
Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98–1080p60; 1080PsF23.98–1080PsF30
Ultra HD Video Standards
2160p23.98–2160p60; 1080PsF23.98–1080PsF30
4K DCI Video Standards
4Kp23.98–4Kp60 DCI
HDMI HD Video Standards
720p50–720p60; 1080i50–1080i60; 1080p23.98–1080p60
HDMI Ultra HD Video Standards
2160p23.98–2160p60
HDMI 4K DCI Video Standards
4Kp23.98–4Kp60 DCI
SMPTE Compliance
SMPTE 259M, 274M, 292M, 296M, 424M, 425M A/B, 2036-1, 2048-1, 2081-10/11/12, 2082-10/11/12, ST2108-1
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning
Audio Sampling
48 kHz, 24-bit
Color Precision
8, 10-bit RGB 4:4:4 (up to 1080p30); 8, 10-bit YUV 4:2:2 (all modes)
HDMI Color Precision
4:2:2
Color Space
Rec. 601, Rec. 709, Rec. 2020
HDMI Color Space
YUV
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)
IGMP v3
SMPTE 2110-21 (Traffic Shaping)
Sender: Narrow
SMPTE 2110-30 (PCM Audio)
Conformance Level C
SMPTE 2110-40 (Ancillary Data)
Full access including RP 188/SMPTE 12M-2, closed captioning, HDR static metadata
Precision Time Protocol
IEEE 1588-2008 (PTP v2)
NMOS IS-04
v1.3.2
NMOS IS-05
v1.1.2
NMOS BCP-002-01
Natural Grouping
NMOS BCP-004-01
Receiver Capabilities
Controls
Built-In Control Panel
3 buttons, spin knob, 2.2" color LCD display
External Control
RJ-45 10Gb/s Ethernet, USB-C
Power
Power Supply
Internal 100–240V AC, 50/60 Hz
Power Input
1 x IEC C14 socket
Power Usage
30 W max
Environmental
Operating Temperature
0° C to 40° C (32° to 104° F)
Storage Temperature
-20° C to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
Operating Systems
Mac
macOS 13.0 Ventura, macOS 14.0 Sonoma or later
Windows
Windows 10 and 11
Warranty
Warranty
1-Year Limited Manufacturer's Warranty
Included Items
In The Box
Blackmagic 2110 IP UpDownCross 12G, Welcome wallet with QR code for software download
