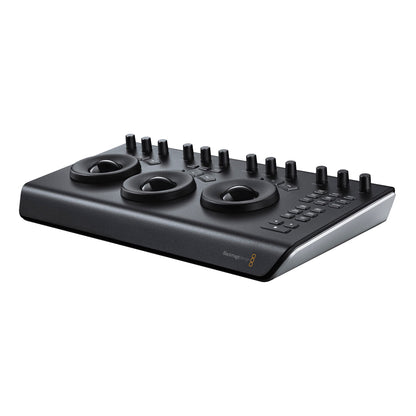

• Blackmagic Design DaVinci Resolve Micro Panel

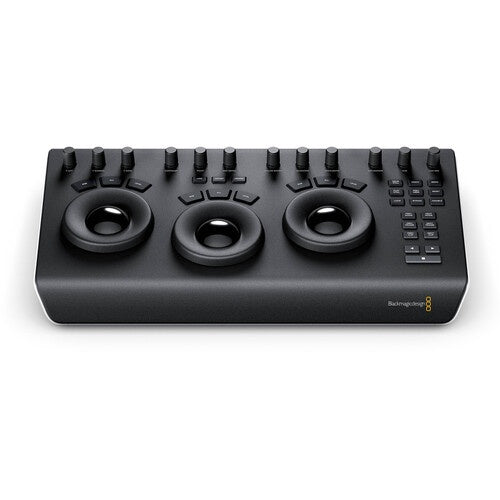

  • Blackmagic Design DaVinci Resolve Micro Panel front three-quarter view with three trackballs and control knobs

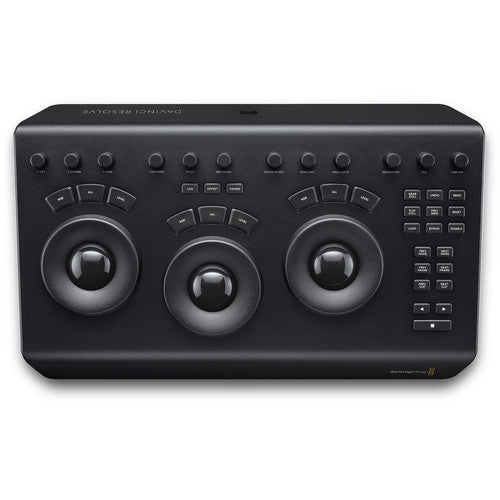

  • Blackmagic Design DaVinci Resolve Micro Panel top-down view showing labeled buttons and grading trackballs

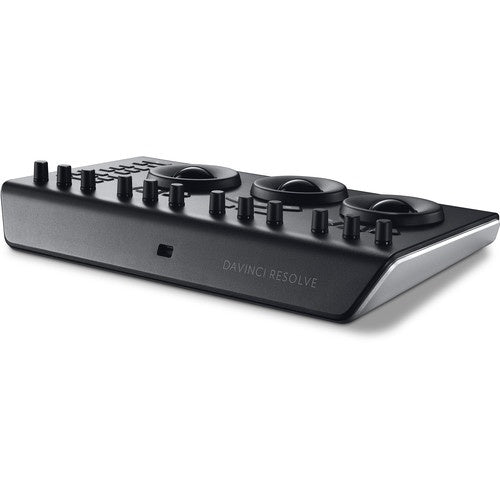

  • Blackmagic Design DaVinci Resolve Micro Panel side angle showing low-profile chassis and DaVinci Resolve badge
1 5

Blackmagic Design DaVinci Resolve Micro Panel

Blackmagic Design DaVinci Resolve Micro Panel

SoundPro Item: 23898 | Part Number: BMD-DV/RES/BBPNLMIC

$949.00
$949.00 $949.00
Your Price Sold out
MSRP: $949.00 | MAP: $949.00

Usually ships in 5-7 business days

  • Works with any Resolve system 12.5.5 or later
  • Shares basic layout with DaVinci Resolve Mini panel
  • Interfaces with and controls software
  • Log and offset color-correction selection buttons
  • Custom control knobs with 4096 steps per rotation and push-button reset
  • Luminance y lift control to adjust contrast in dark areas
  • Luminance y gamma control to adjust contrast in mid-tone areas
  • Contrast: contrast control, pivot, and mid-tone detail
  • Detail: color boost control, shadow control, highlight control
  • Saturation: hue control, luminance mix control
Log in or register for YOUR best price

Use the DaVinci Resolve Micro panel for more control and a faster workflow than you can achieve with a keyboard and mouse setup. Features include three high-resolution, weighted trackballs and 12 control knobs to access color correction tools, and 18 keys to access commonly used grading functions and playback controls. The Micro panel is recommended for editors and colorists looking for a portable control surface.

Control knobs are divided into four sections for luminance, contrast, detail, and saturation. Luminance and contrast both adjust contrast, with luminance able to adjust contrast in specific areas of the image. Detail and saturation work similarly; both alter saturation with detail being applied to designated areas of the image.

USB 3.0 Type-C interface lets you connect the Micro Panel to a computer or laptop to power the panel. Connected laptop or computer must be running DaVinci Resolve 12.5.5 or DaVinci Resolve Studio 12.5.5 or later for the panel to work with Resolve. It also works as an interface with Mac, Windows, and select Linux systems.

When the control panel is small enough to take with you, color correction on location is always possible.

View full details
  • Connections
    • Computer Interface: USB Type-C
  • Power Requirements
    • Power Usage: 2W max via USB Type-C
  • Operating Systems
    • Mac 10.15 Catalina or later
    • Windows 10, 64-bit
    • Linux CentOS 7.3 or later
  • Physical Specifications
    • Dimensions (H x W x L): 2.95 x 10.15 x 16.81 inches
    • Weight: 7.89 lbs
  • Environmental Specifications
    • Operating Temperature: 0° to 40°C (32° to 104°F)
    • Storage Temperature: -20° to 60°C (-4° to 140°F)
    • Relative Humidity: 0% to 90% non-condensing
